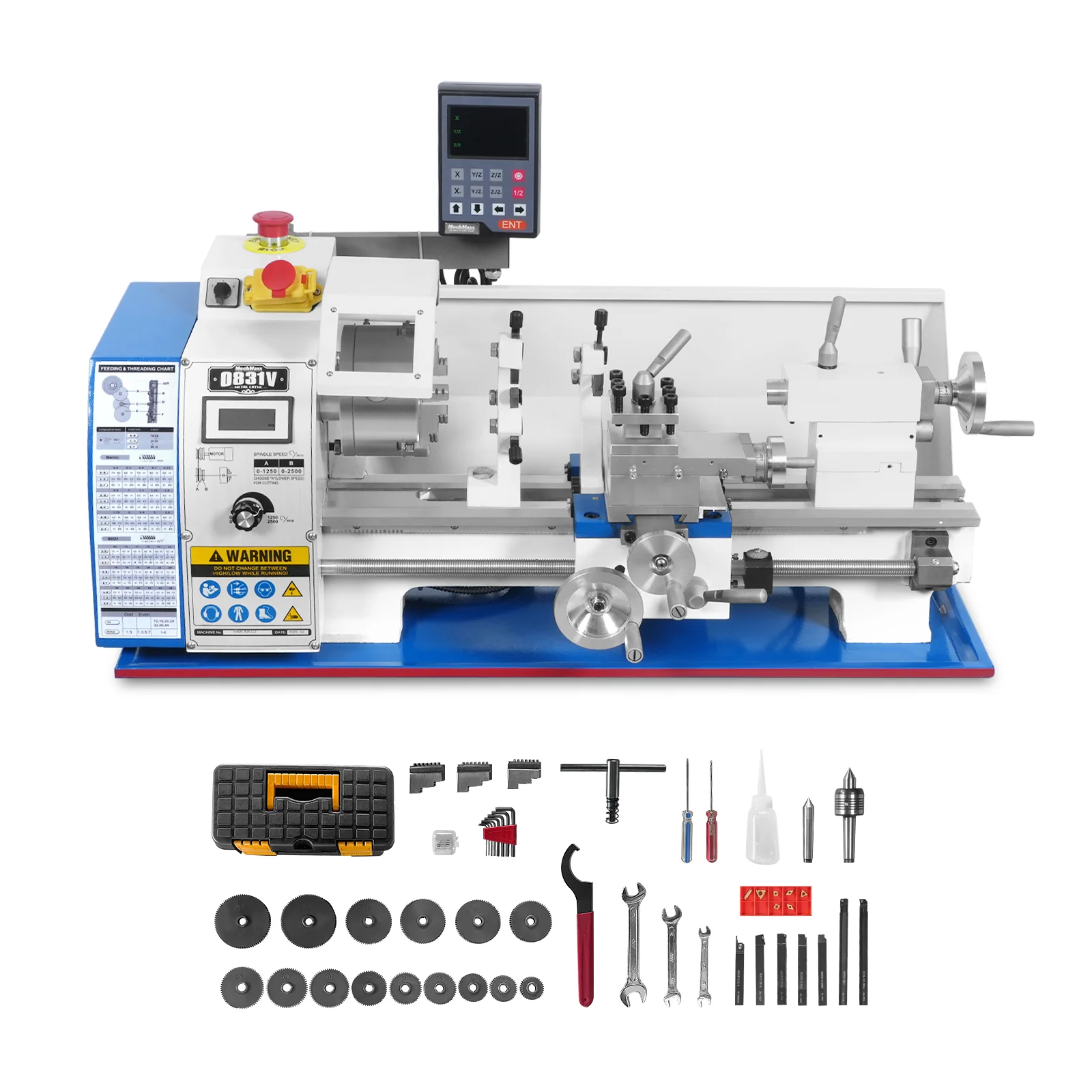

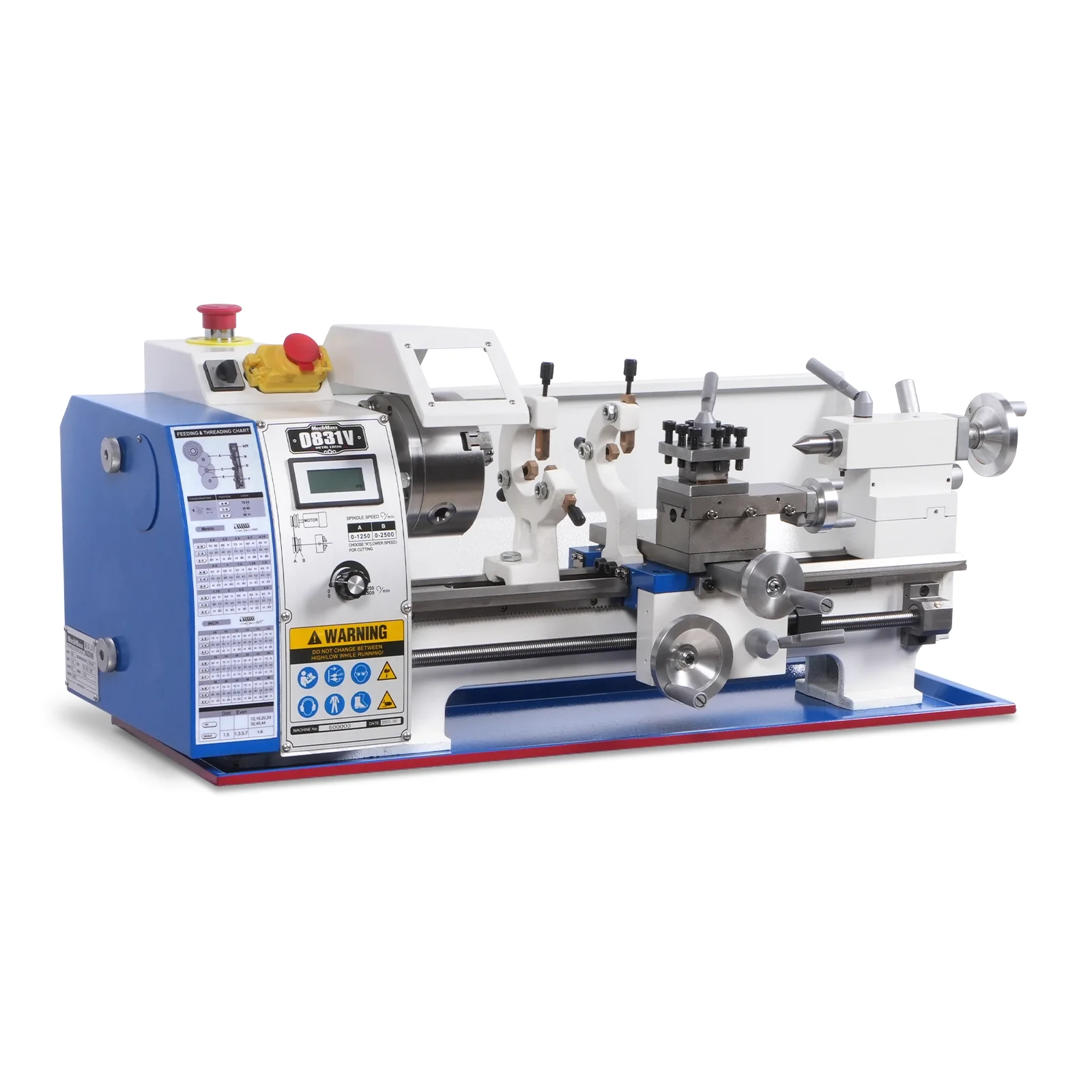

1.5‘’ Spindle Bore Metal Lathe Machine 8'' x 16'' High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal Working Machine 1.5‘’ Spindle Bore Small Lathe without Stand 0831V
1.5‘’ Spindle Bore Metal Lathe Machine 8'' x 16'' High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal Working Machine 1.5‘’ Spindle Bore Small Lathe without Stand 0831V
| Motor | 1.5 HP, 110V, Single-Phase, 10A, 60Hz |
| Swing Over Bed | 8‑1/4"(210mm) |
| Swing Over Cross Slide | 4‑5/8"(117mm) |
| Swing Over Saddle | 3-1/2"(90mm) |
| Distance Between Centers | 15‑3/4"(400mm) |

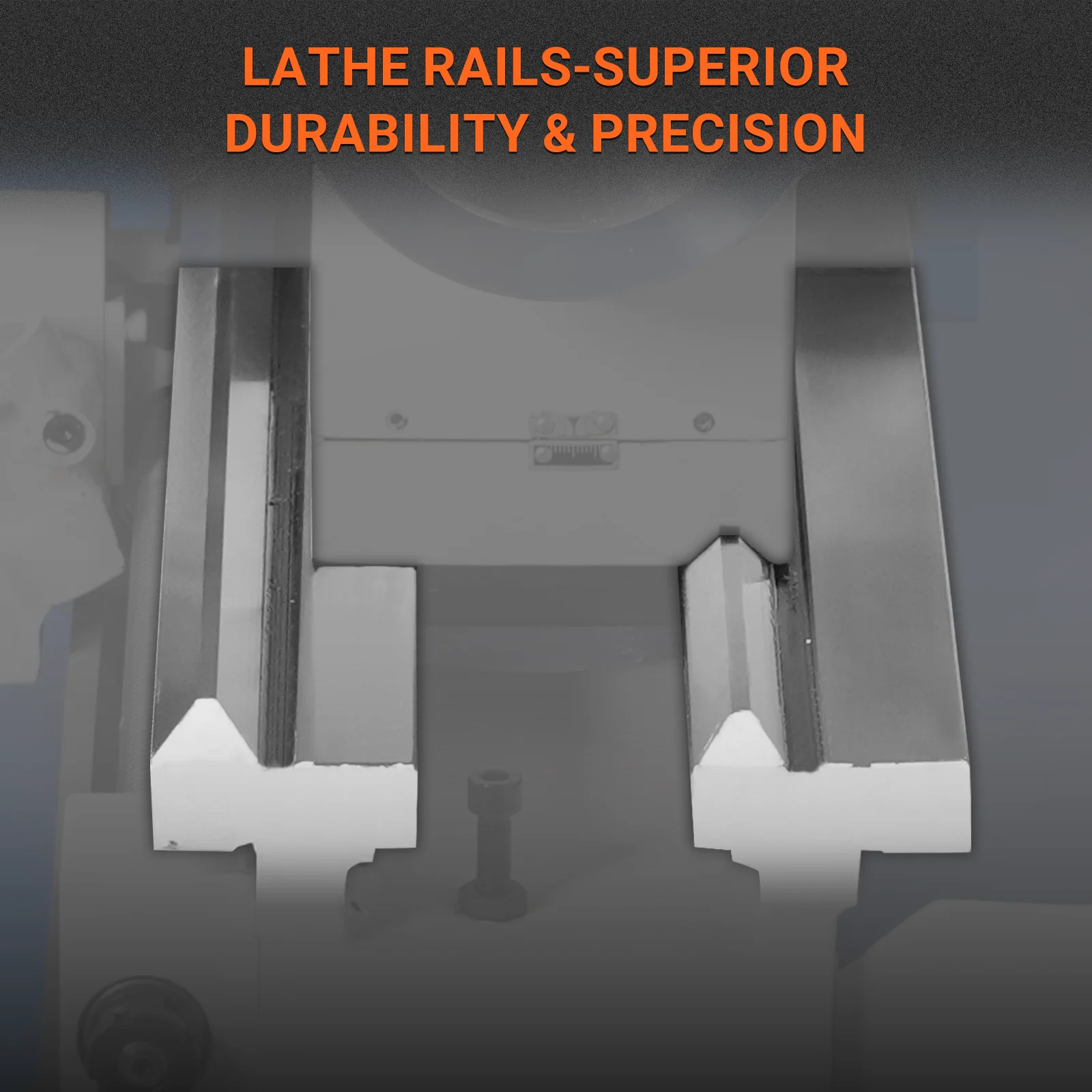

| Bed Width | 4"(100mm) |
| Spindle Bore | 1-1/2"(38mm) |
| Spindle Mount | Intrinsic back plate |
| Spindle Type | One-piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |

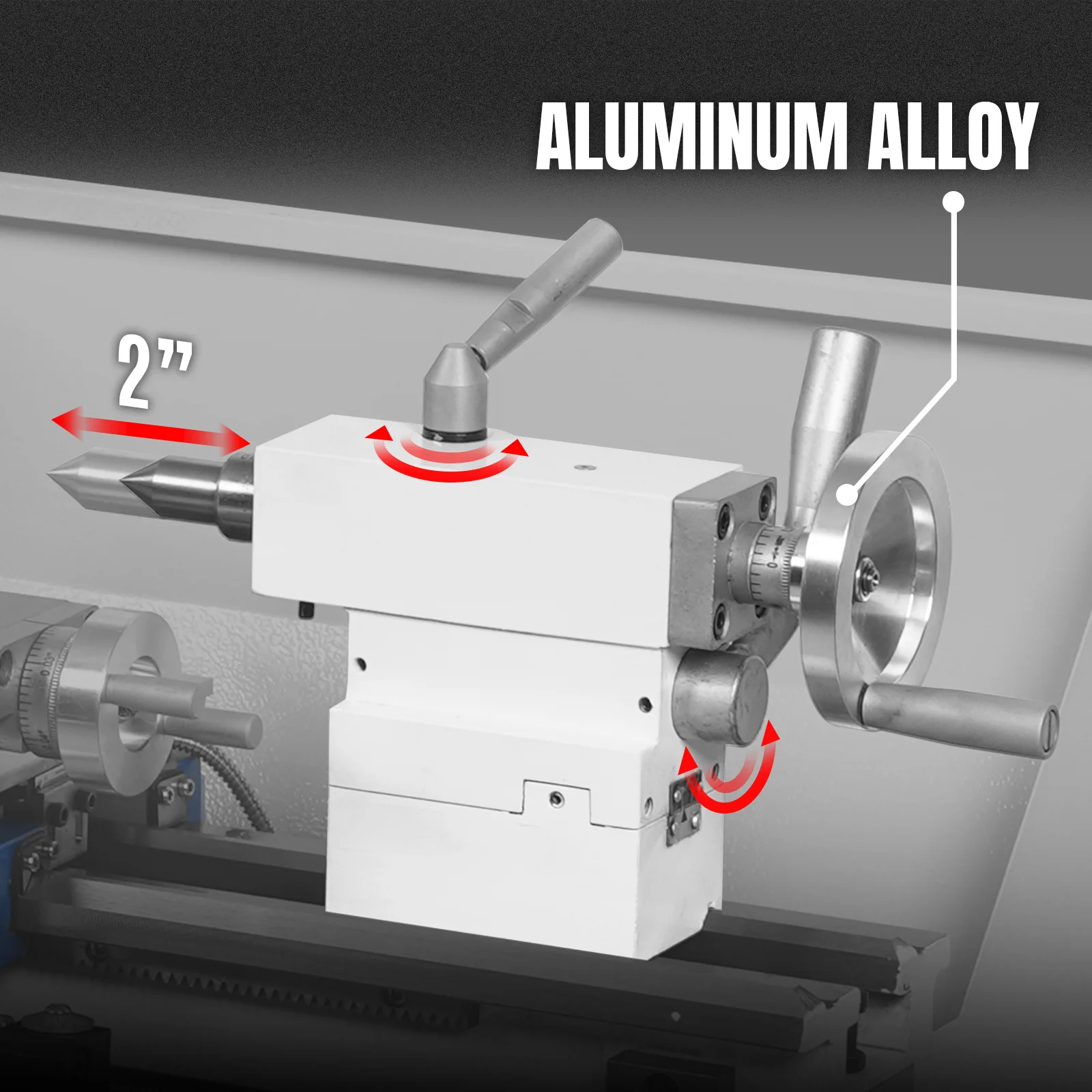

| Tailstock Quill Travel | 2"(50mm) |

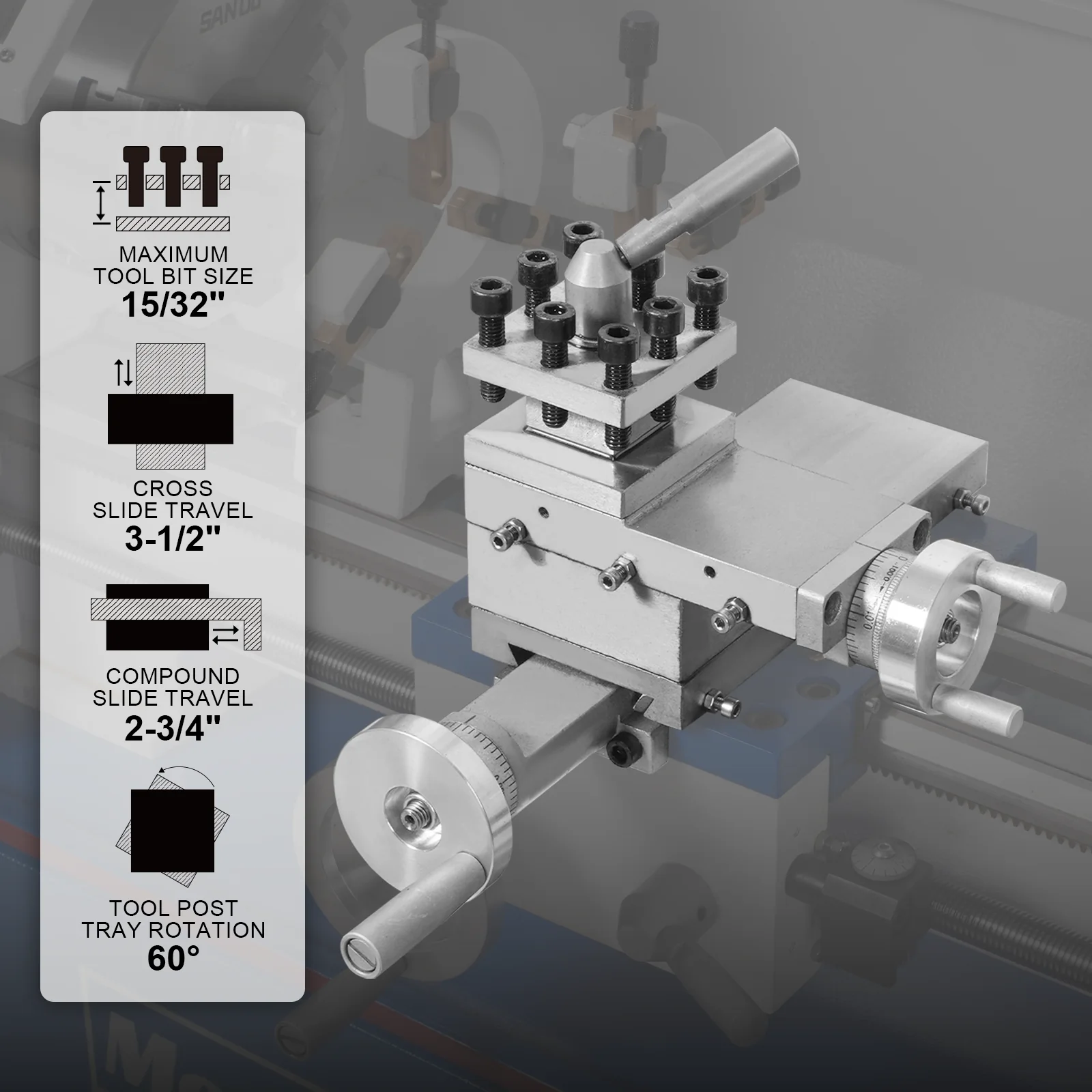

| Cross Slide Travel | 3-1/2"(90mm) |
| Compound Slide Travel | 2-3/4"(70mm) |
| Carriage Travel | 14-5/16(350mm) |

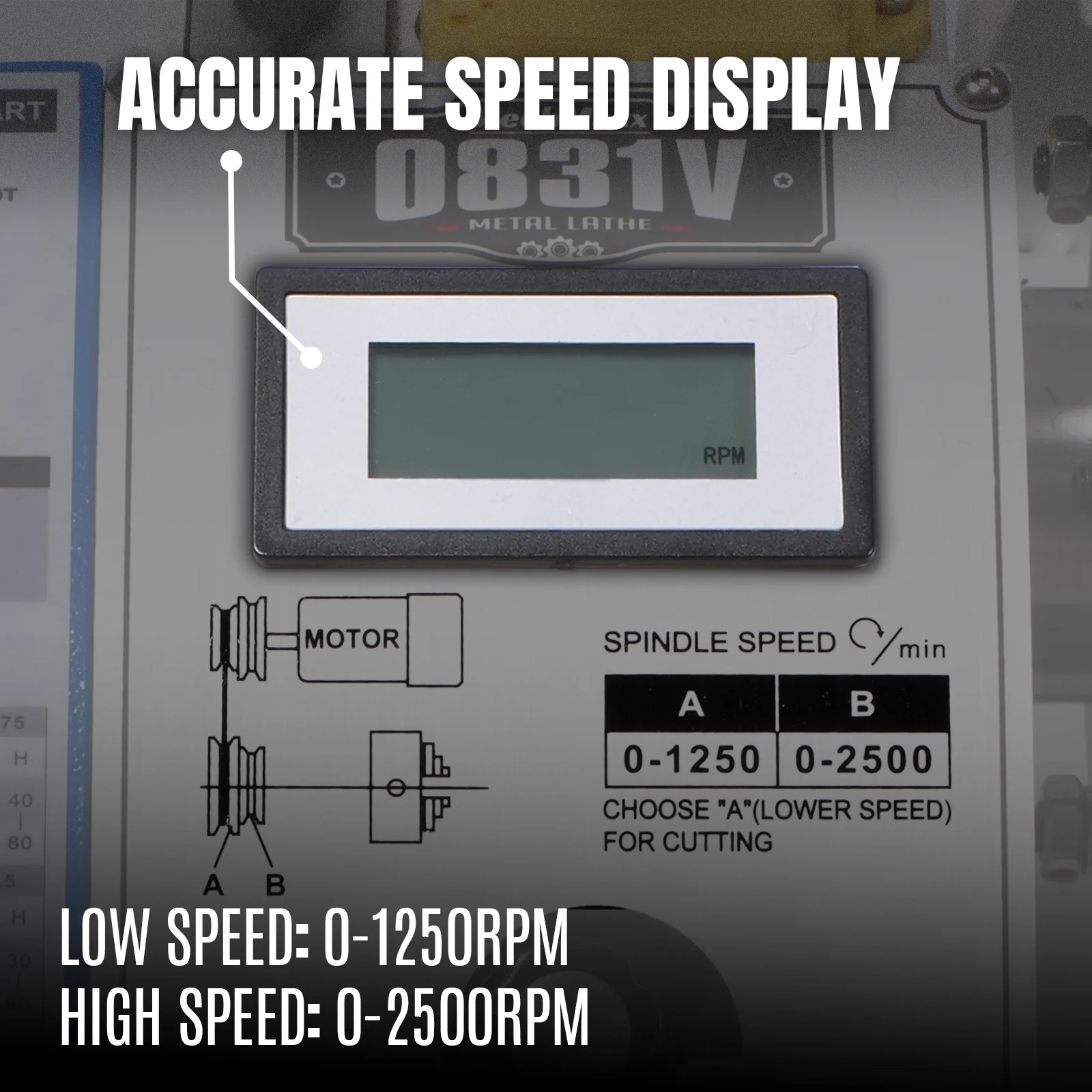

| Spindle Speeds | 0–2500 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0037-0.0068 in./rev. |
| Transverse Feed Rate | / |
| Leadscrew Size & Pitch | 16mm(12TPI) |
| Threading Capacity - Inch | 8–48 TPI（18kinds） |
| Threading Capacity - Metric | 0.4–3.5mm(15kinds) |
| Maximum Tool Bit Size | 15/32"(12mm) |

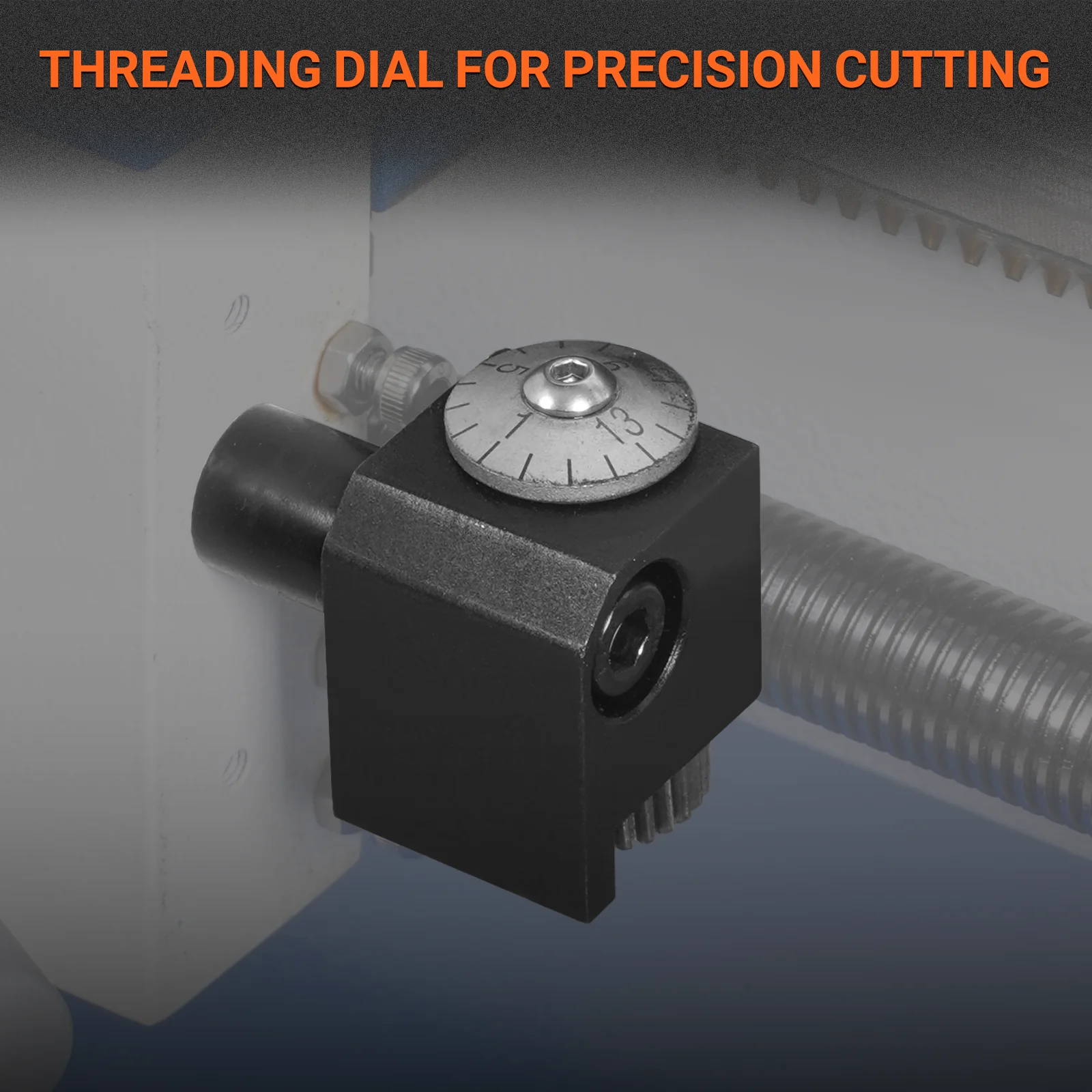

| Thread Dial Indicator | YES |
| Overall Dimensions | 36" W x 19" D x 20" H (914 x 480 x 490 mm) |
| Approximate Shipping Weight | 190lbs(75 kg) |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
