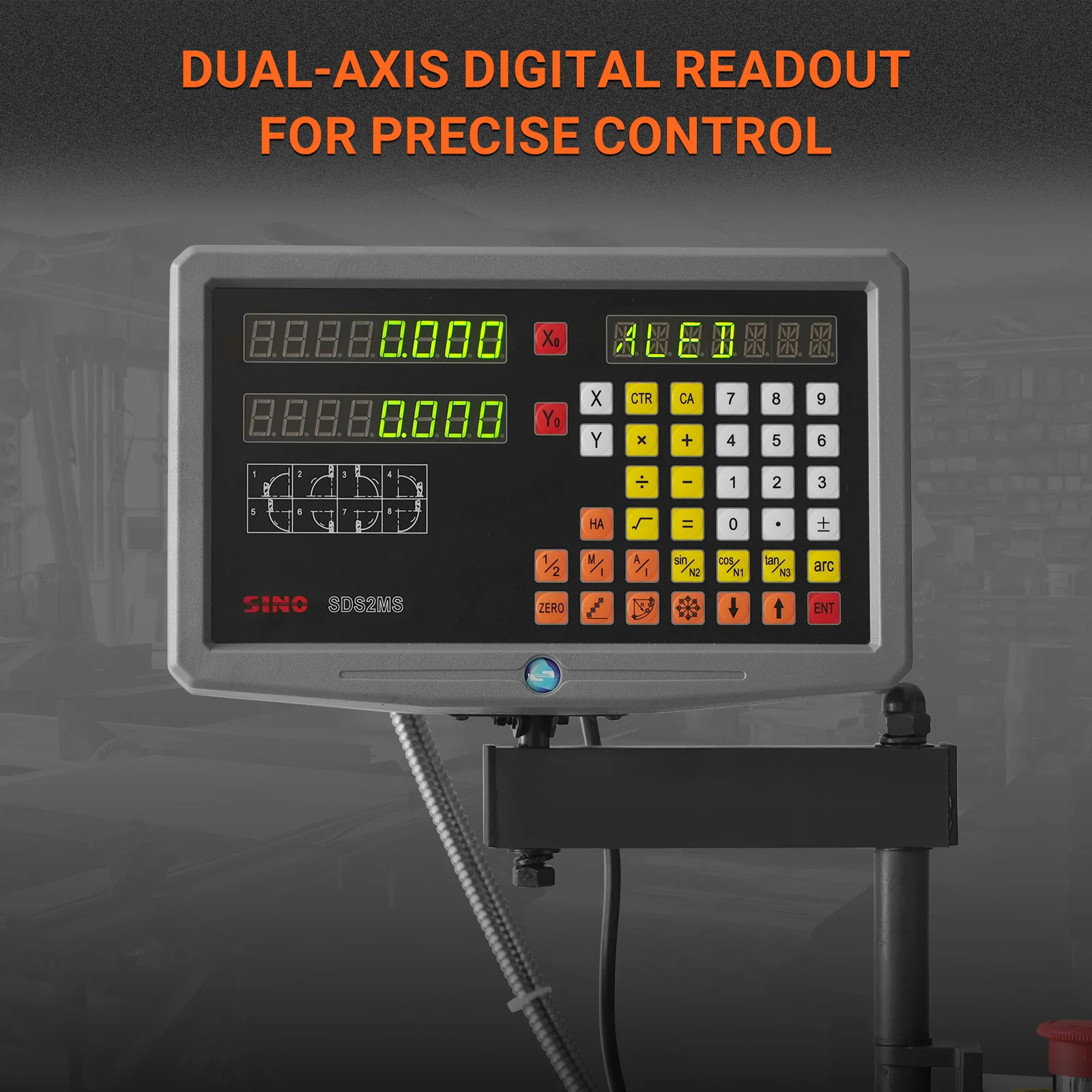

1.5‘’ Spindle Bore Metal Lathe Machine with DRO 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand 1030VD
1.5‘’ Spindle Bore Metal Lathe Machine with DRO 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand 1030VD
| Motor | 1.5 HP, 110V, Single-Phase, 10A, 60HZ |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Swing Over Saddle | 5" (127 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |

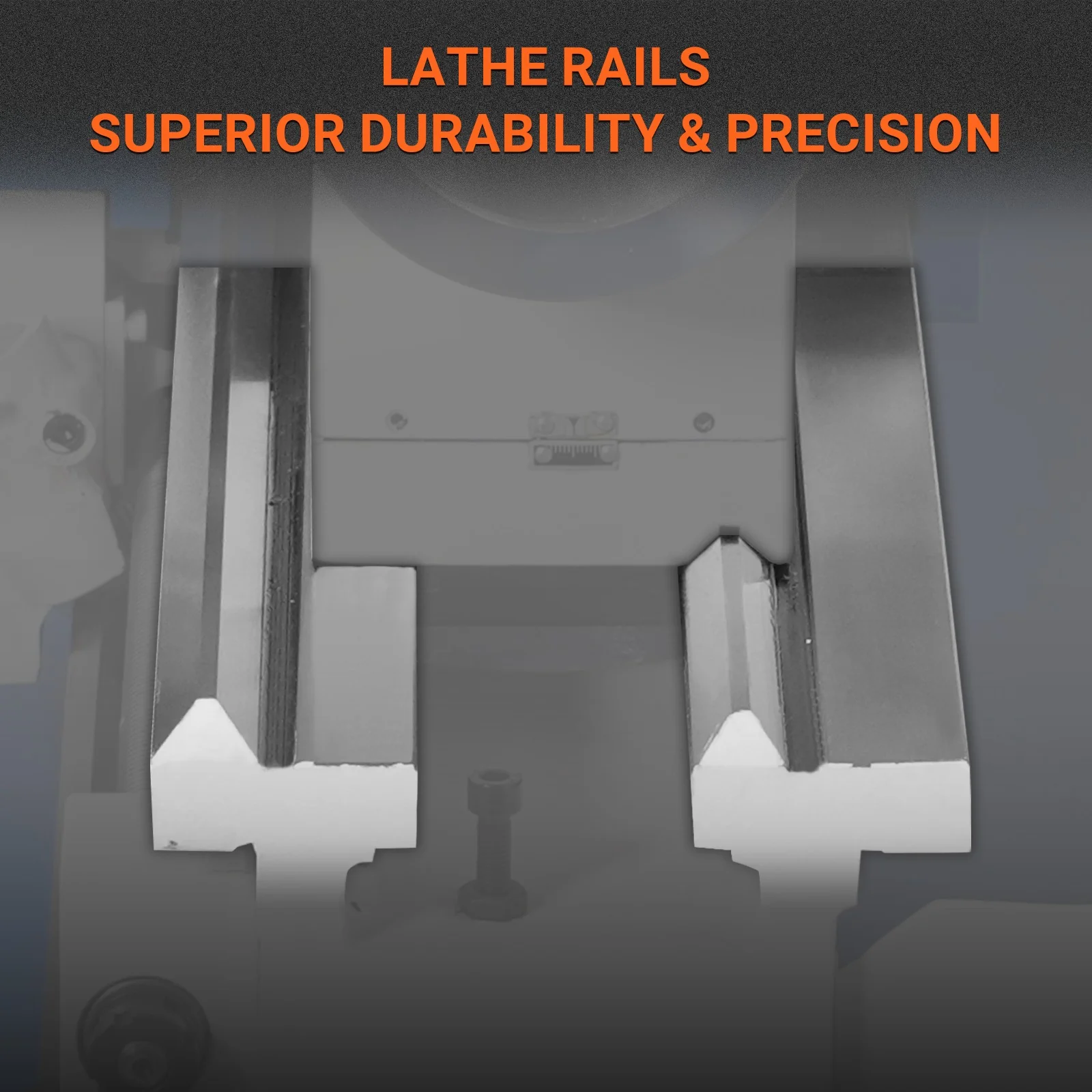

| Bed Width | 5-1/2" (140 mm) |

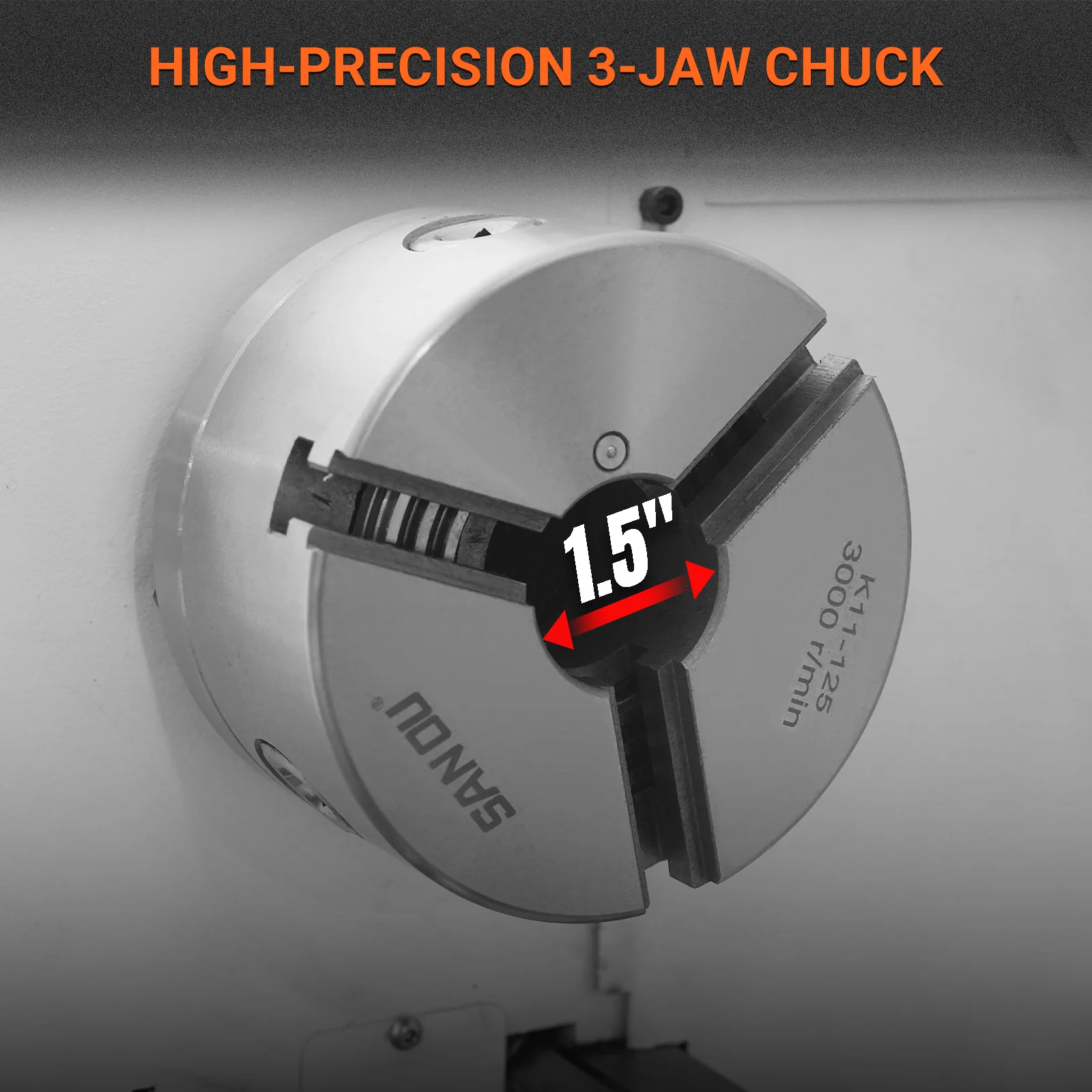

| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic back plate |
| Spindle Type | One-piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |

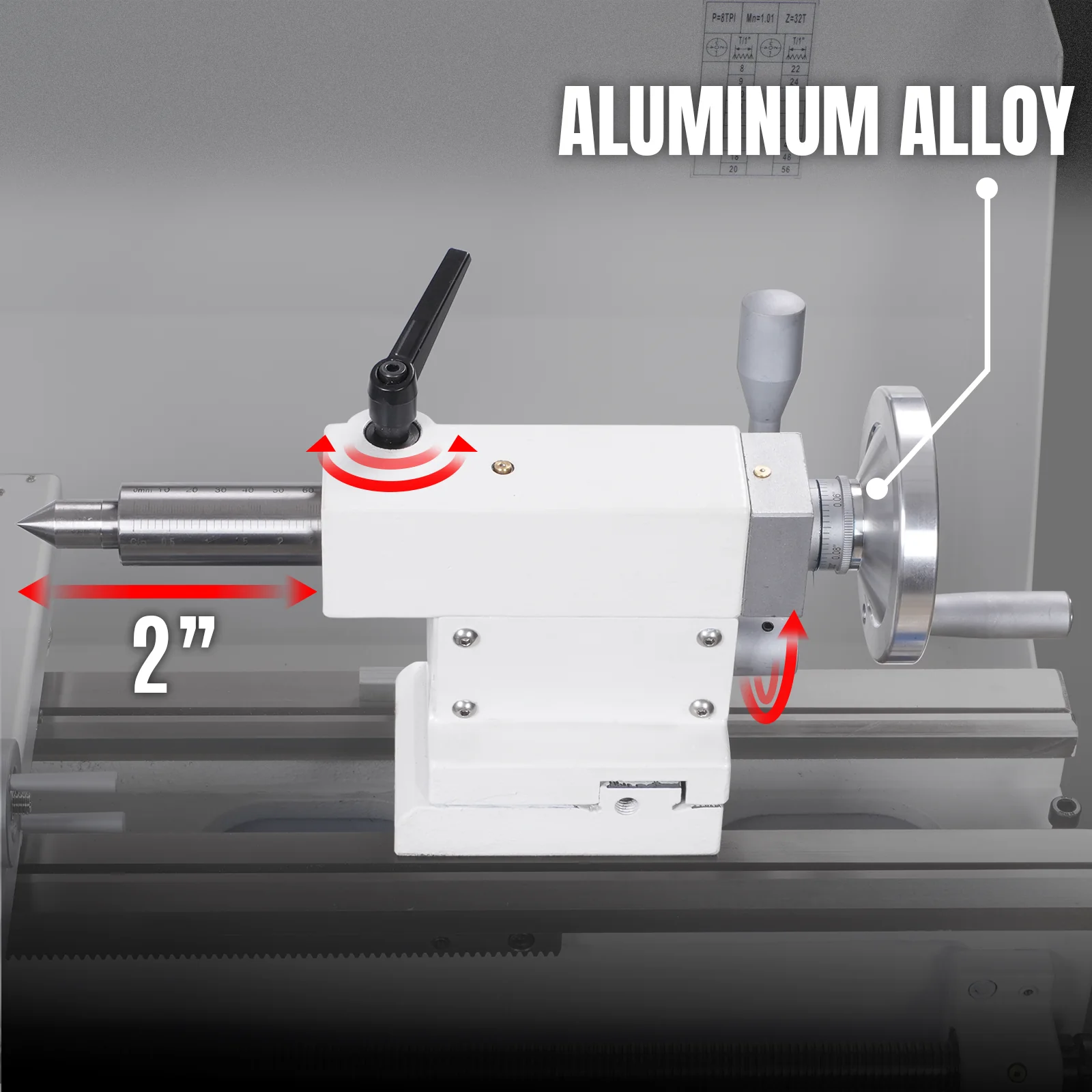

| Tailstock Quill Travel | 3" (75 mm) |

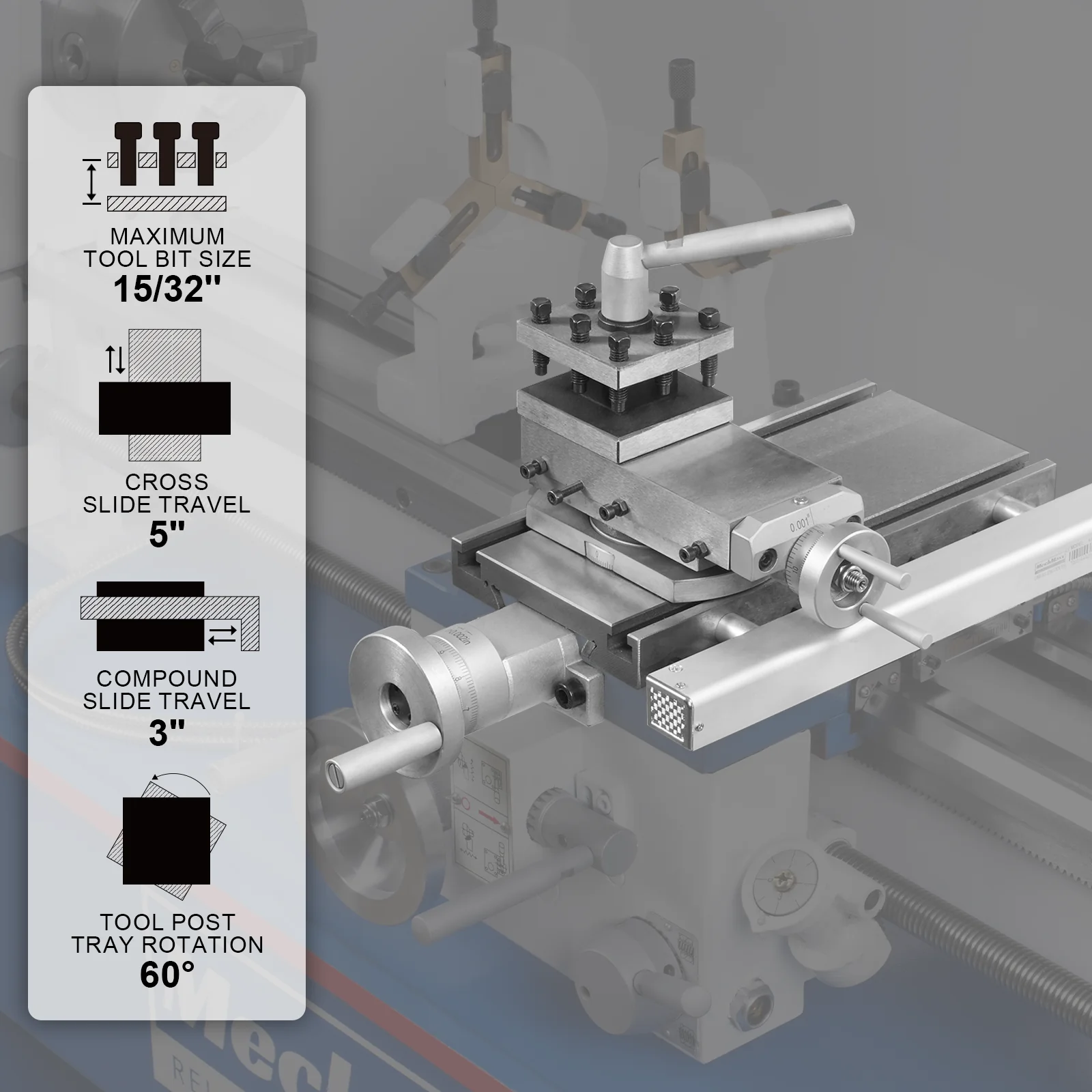

| Cross Slide Travel | 5" (127 mm) |
| Compound Slide Travel | 3" (75 mm) |
| Carriage Travel | 27-1/2" (700 mm) |

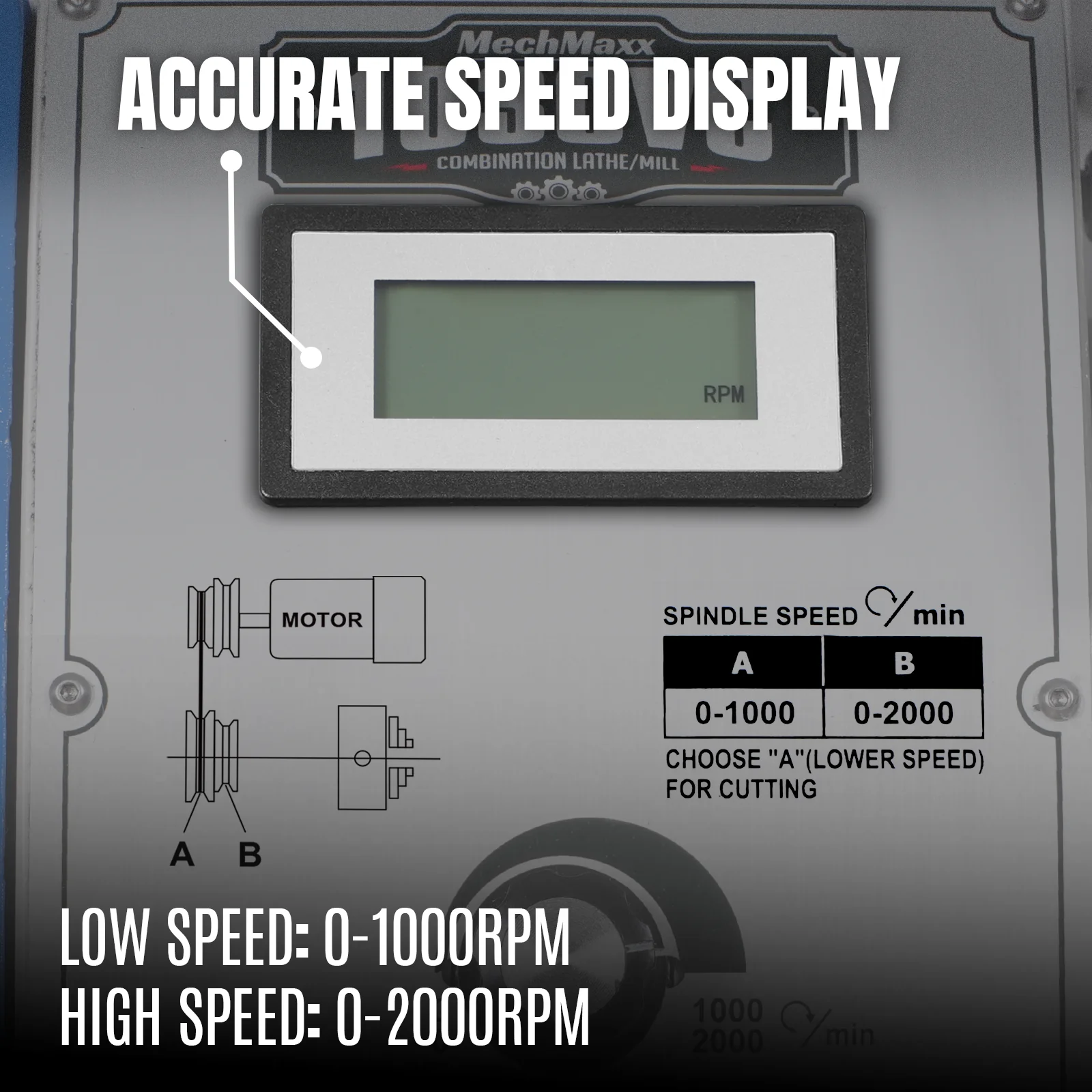

| Spindle Speeds | 0–2000 RPM |
| Number of Speed Ranges | Variable |

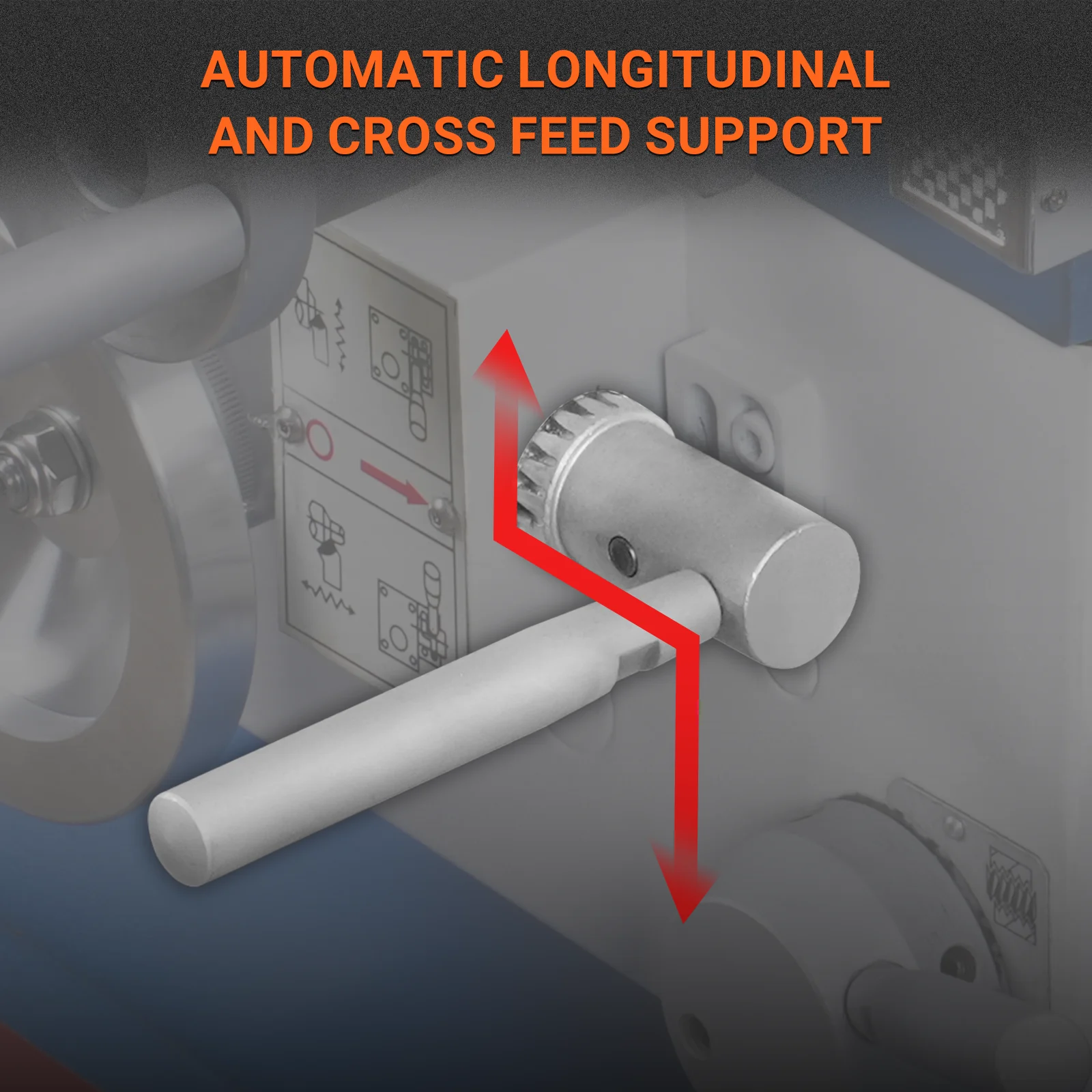

| Longitudinal Feeds | 0.0025 – 0.014 in./rev. |
| Transverse Feed Rate | 0.0014 – 0.004 in./rev. |
| Leadscrew Size & Pitch | 20mm(8TPI) |
| Threading Capacity - Inch | 8–80TPI(37KINDS) |
| Threading Capacity - Metric | 0.35 – 3.0 mm(21kinds) |
| Maximum Tool Bit Size | 15/32''(12mm) |

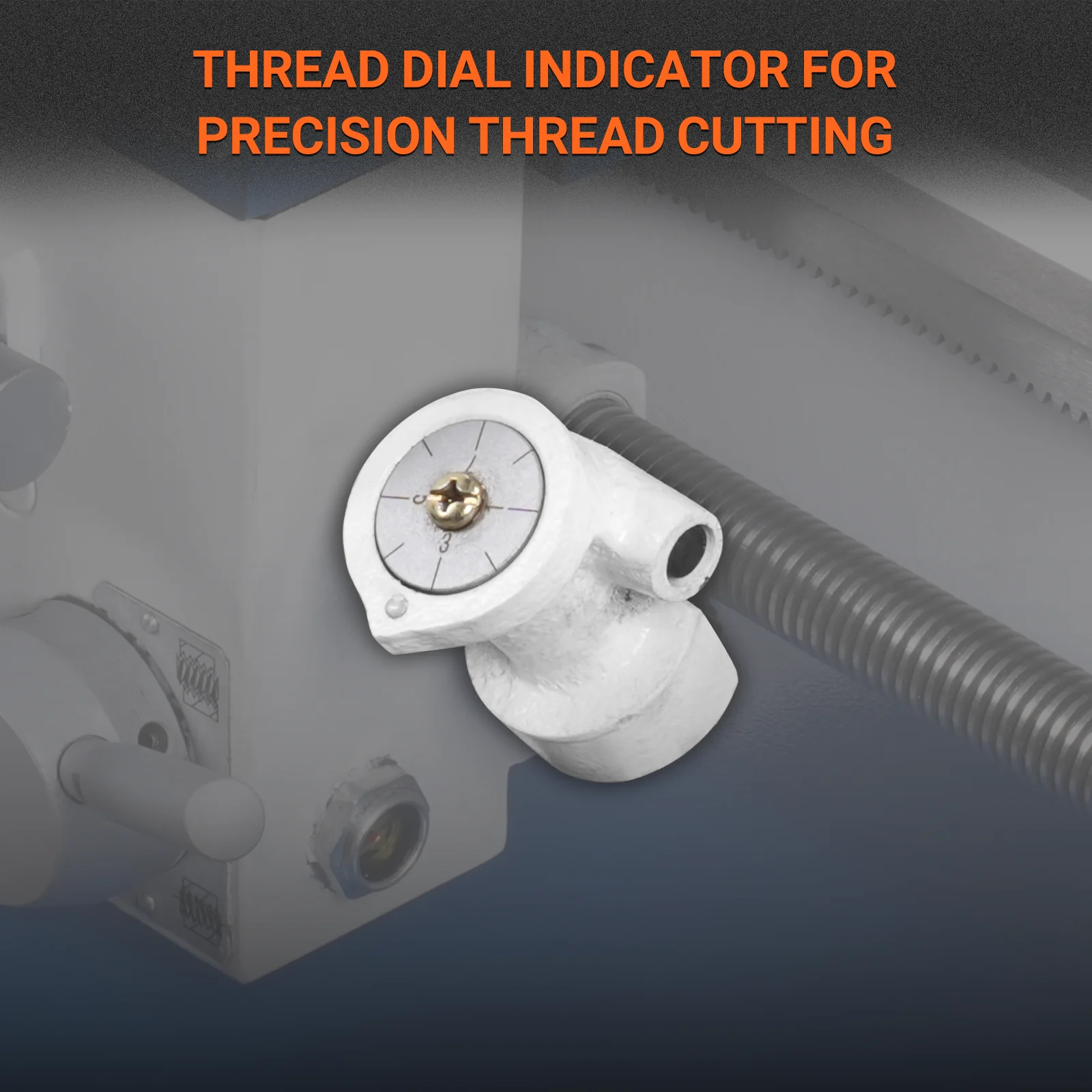

| Thread Dial Indicator | YES |
| Overall Dimensions | 52.0" × 25.0" × 19.0" (1320 × 635 × 480 mm) |
| Approximate Shipping Weight | 399 lbs (181 kg) |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
