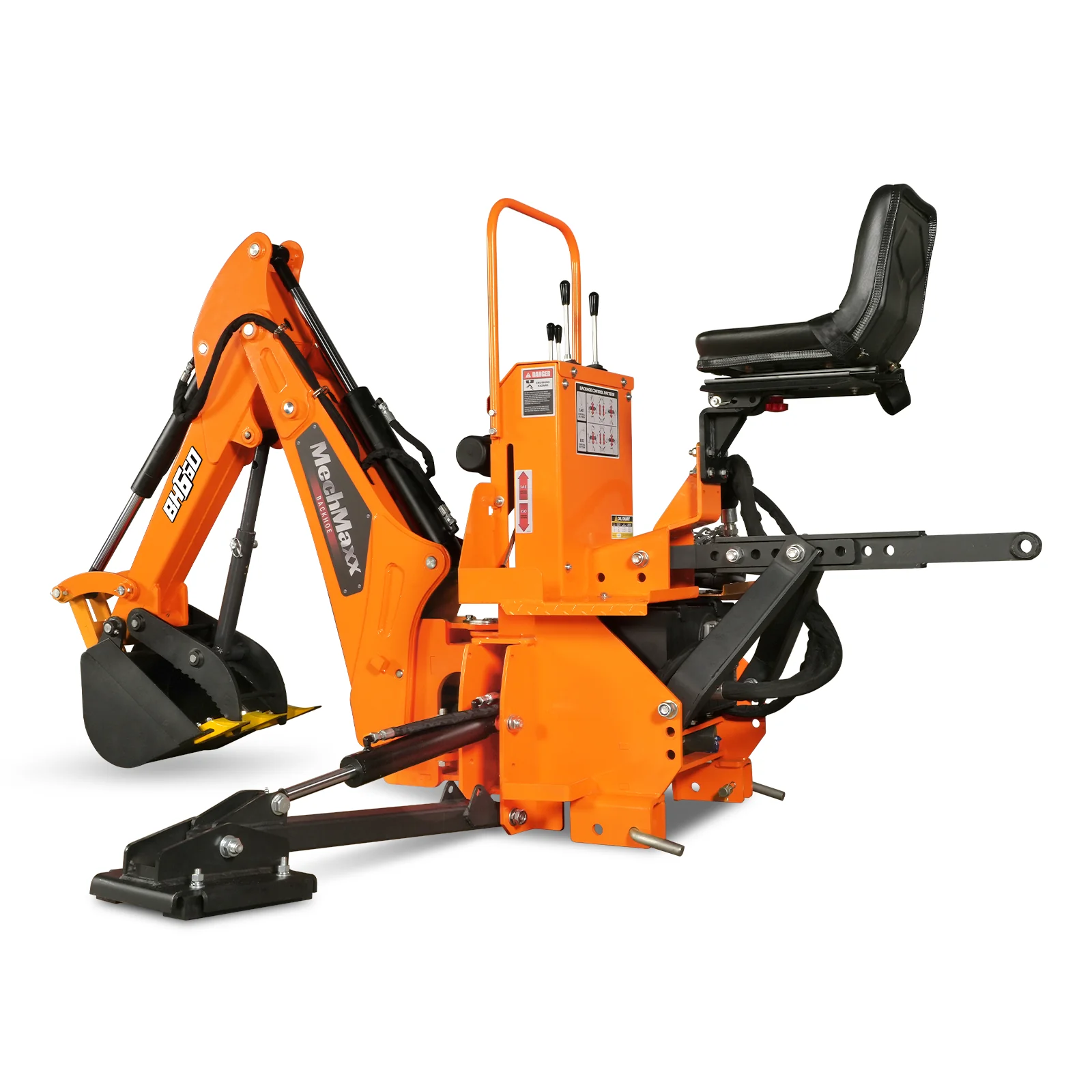

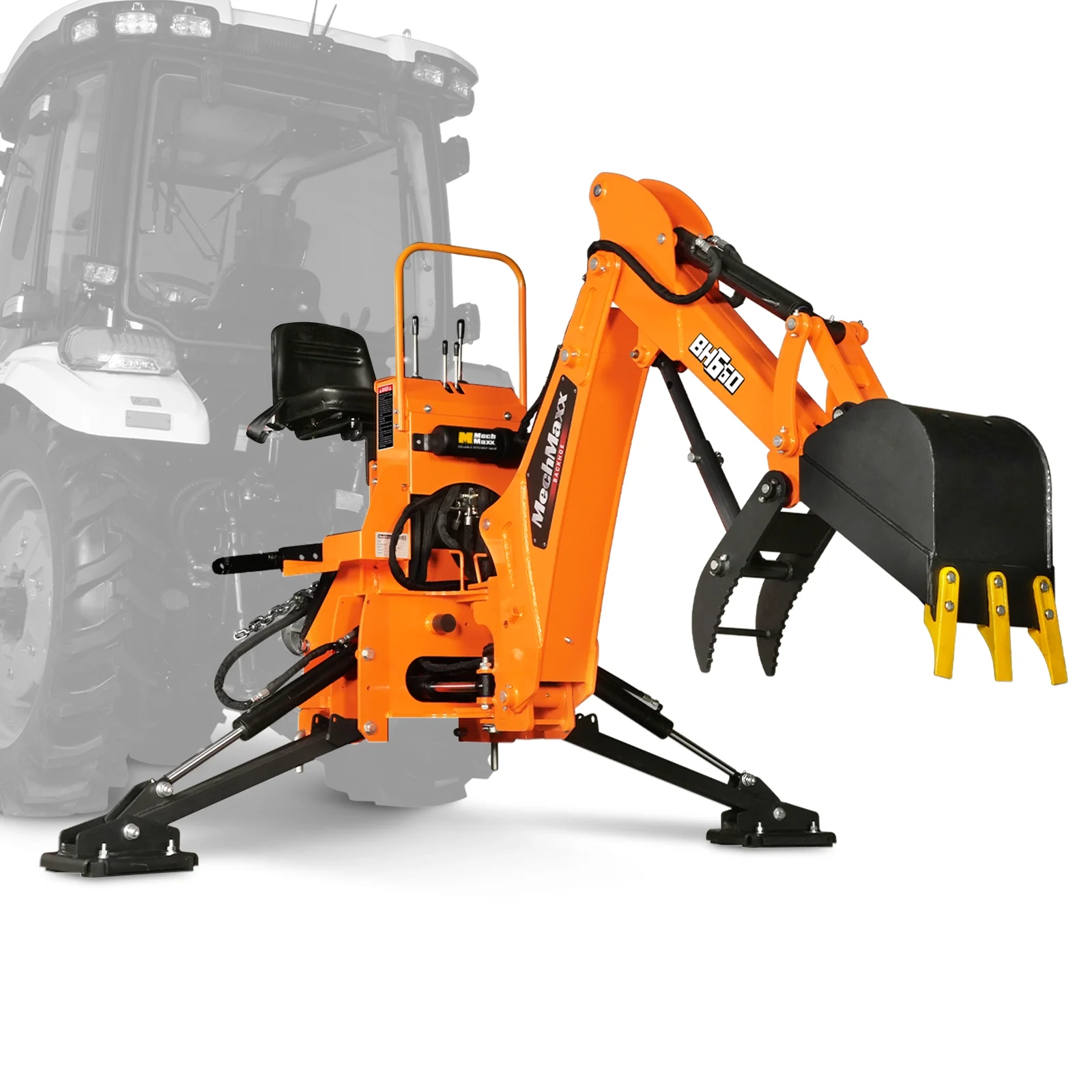

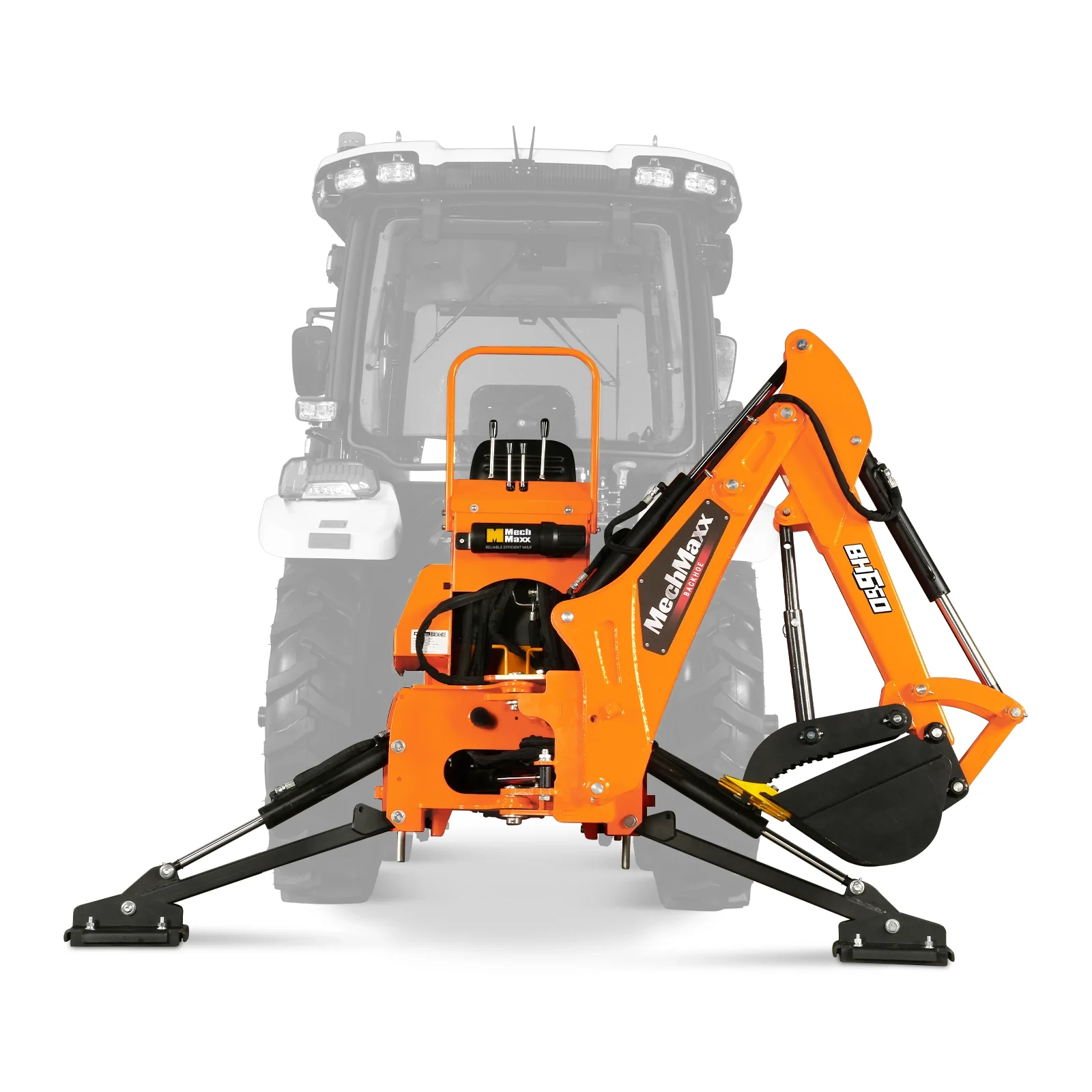

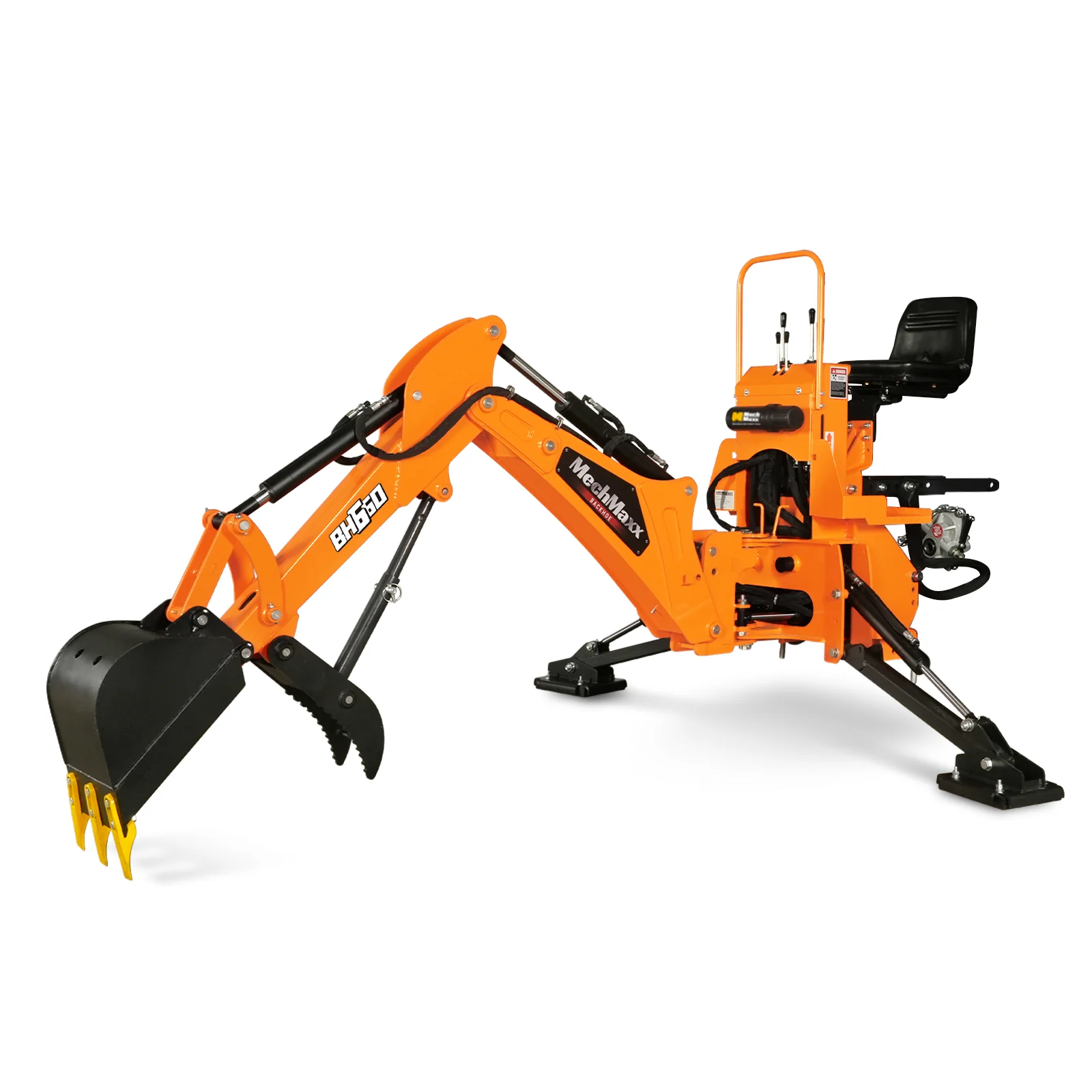

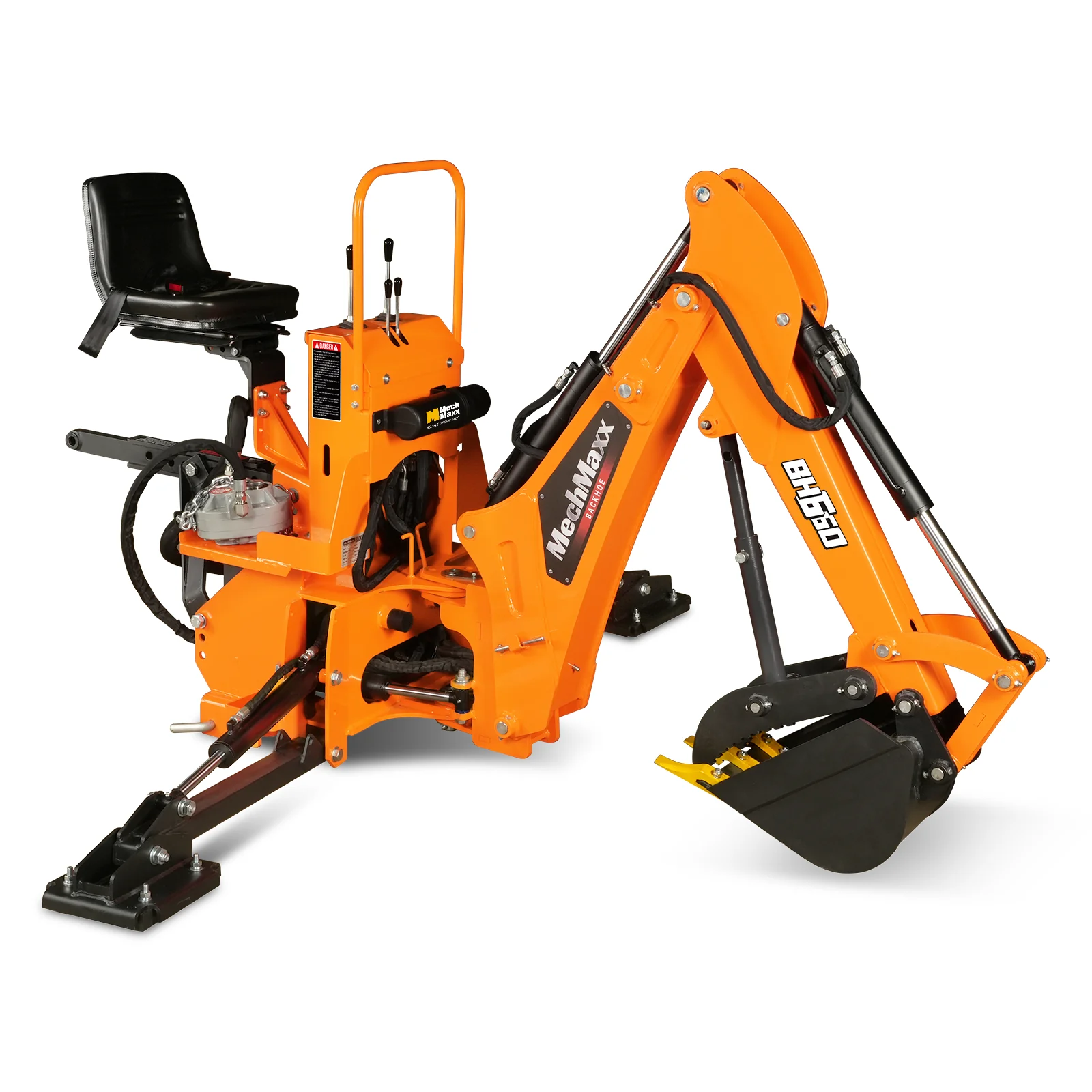

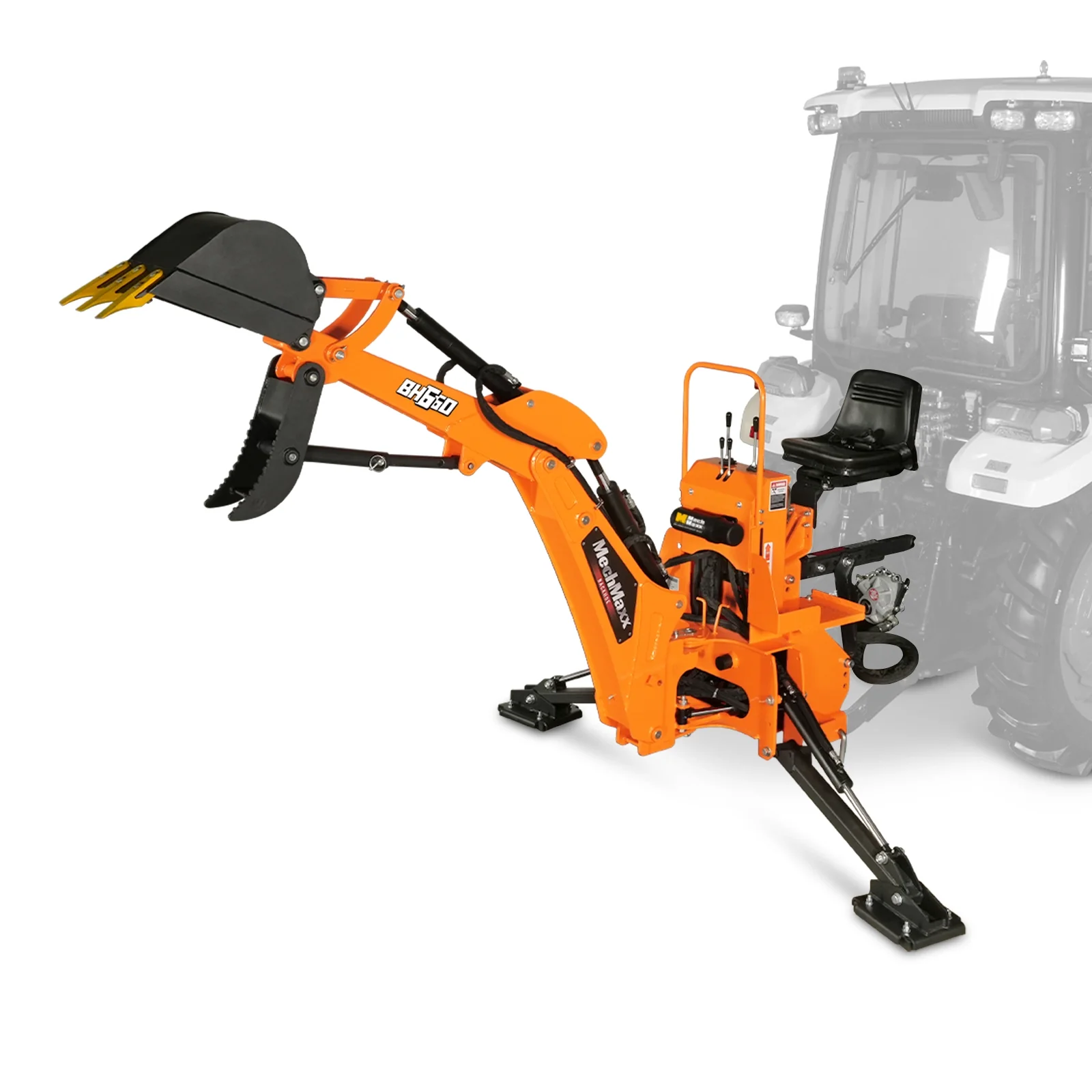

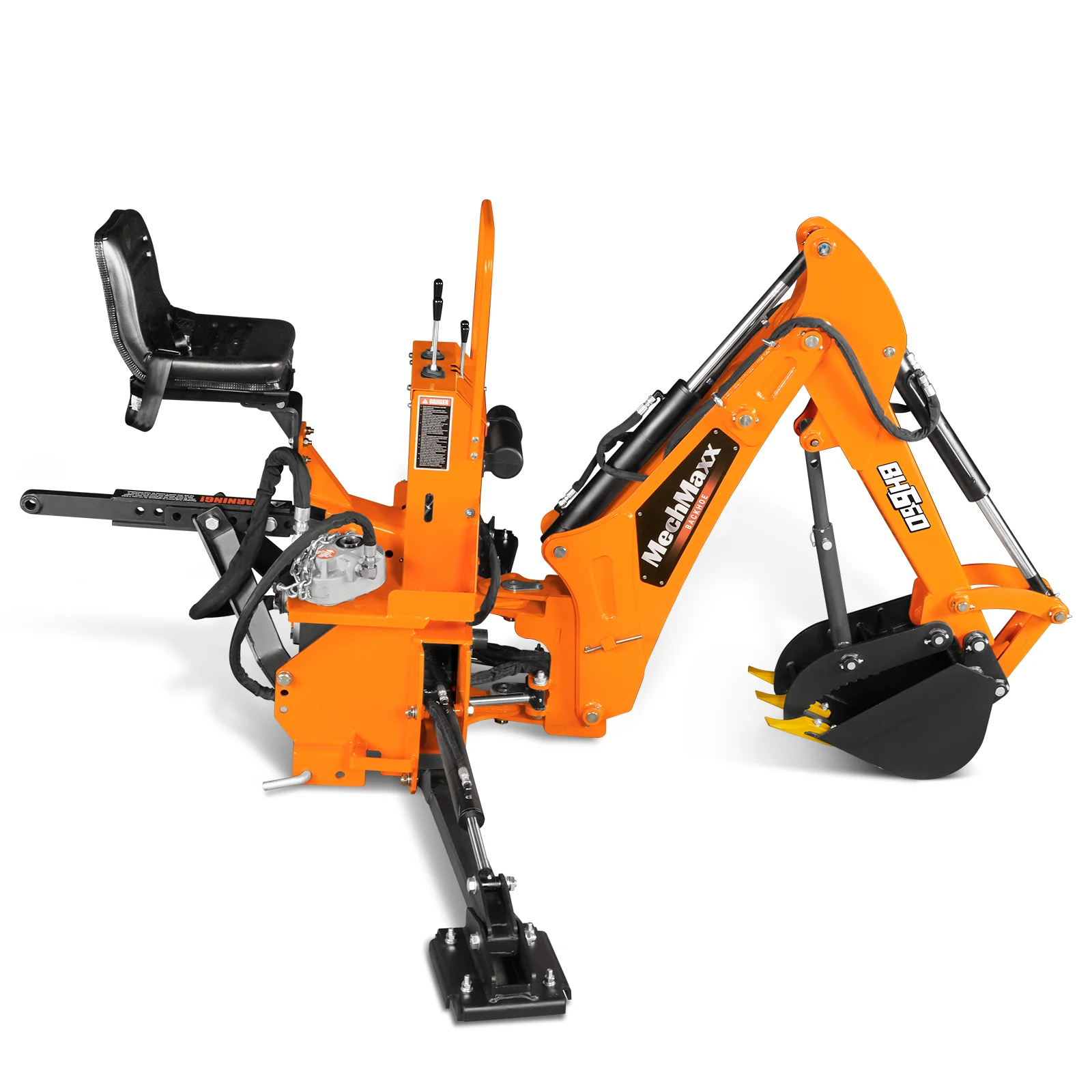

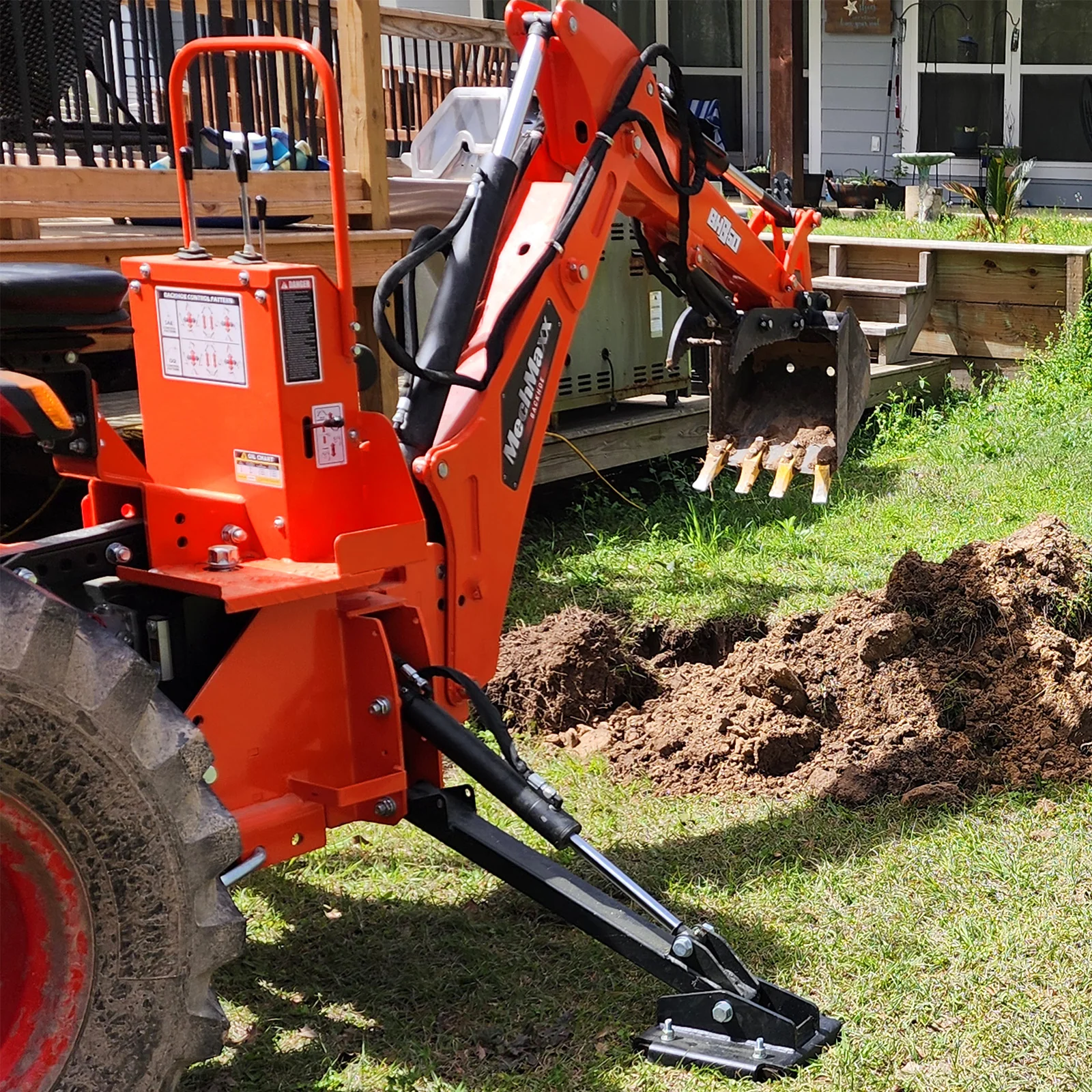

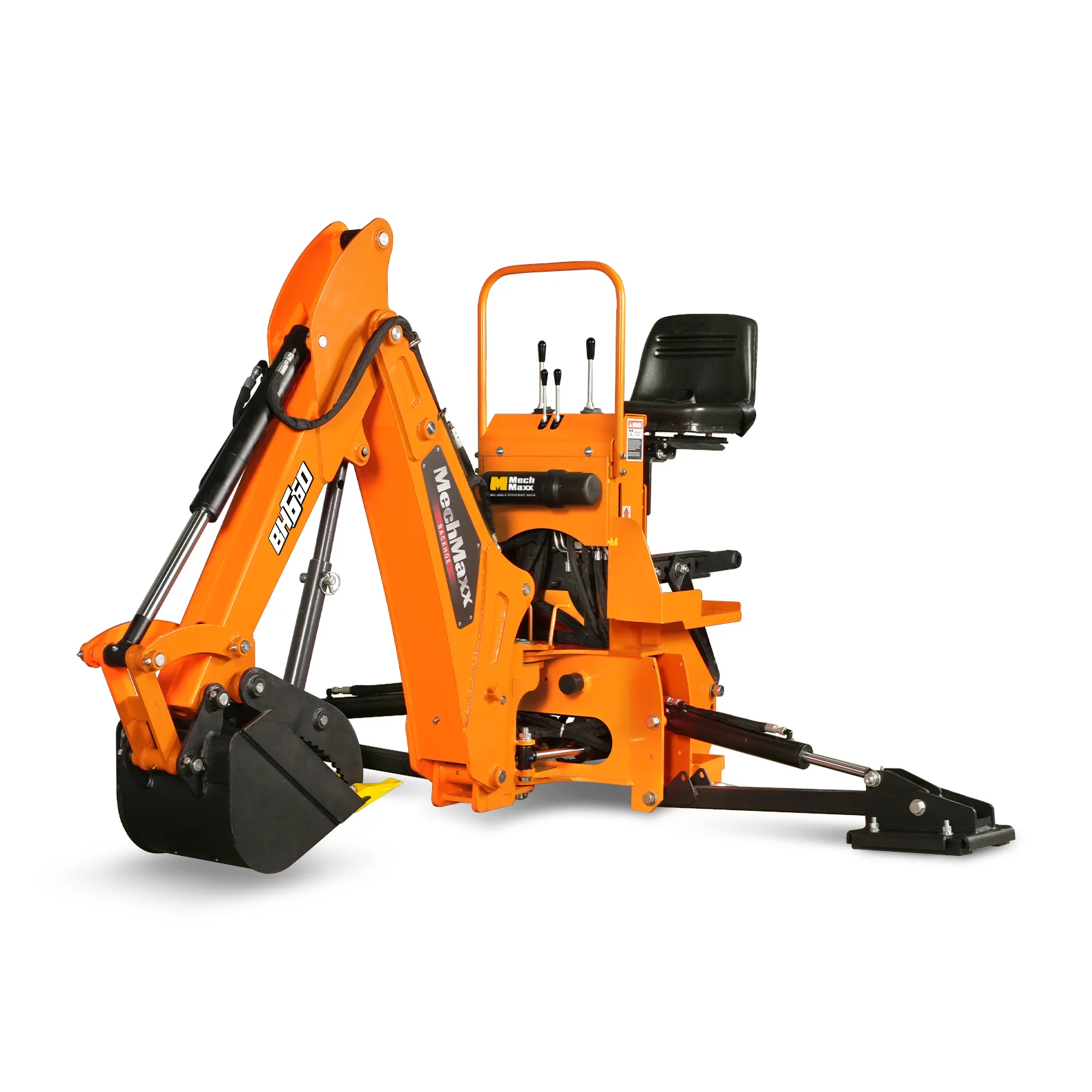

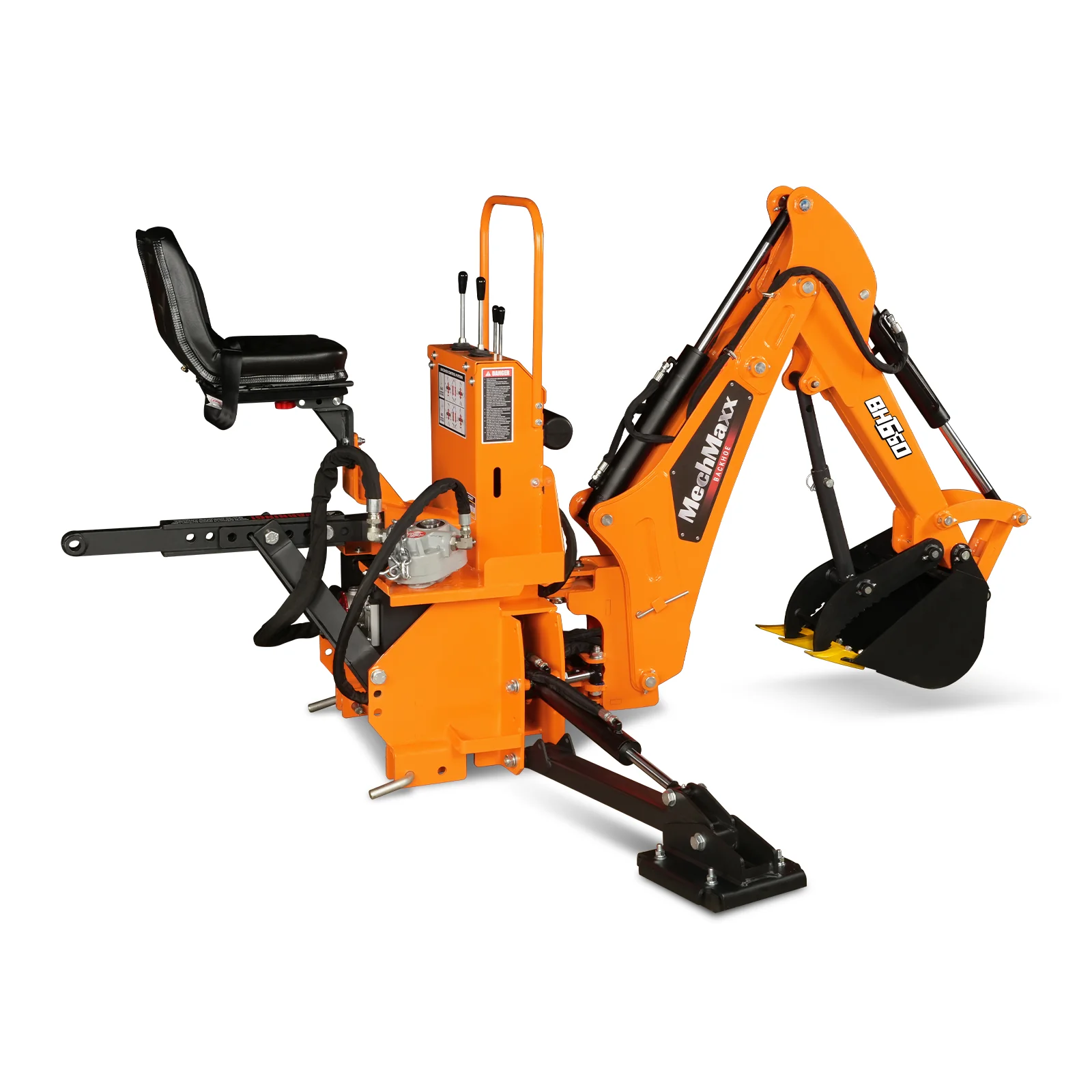

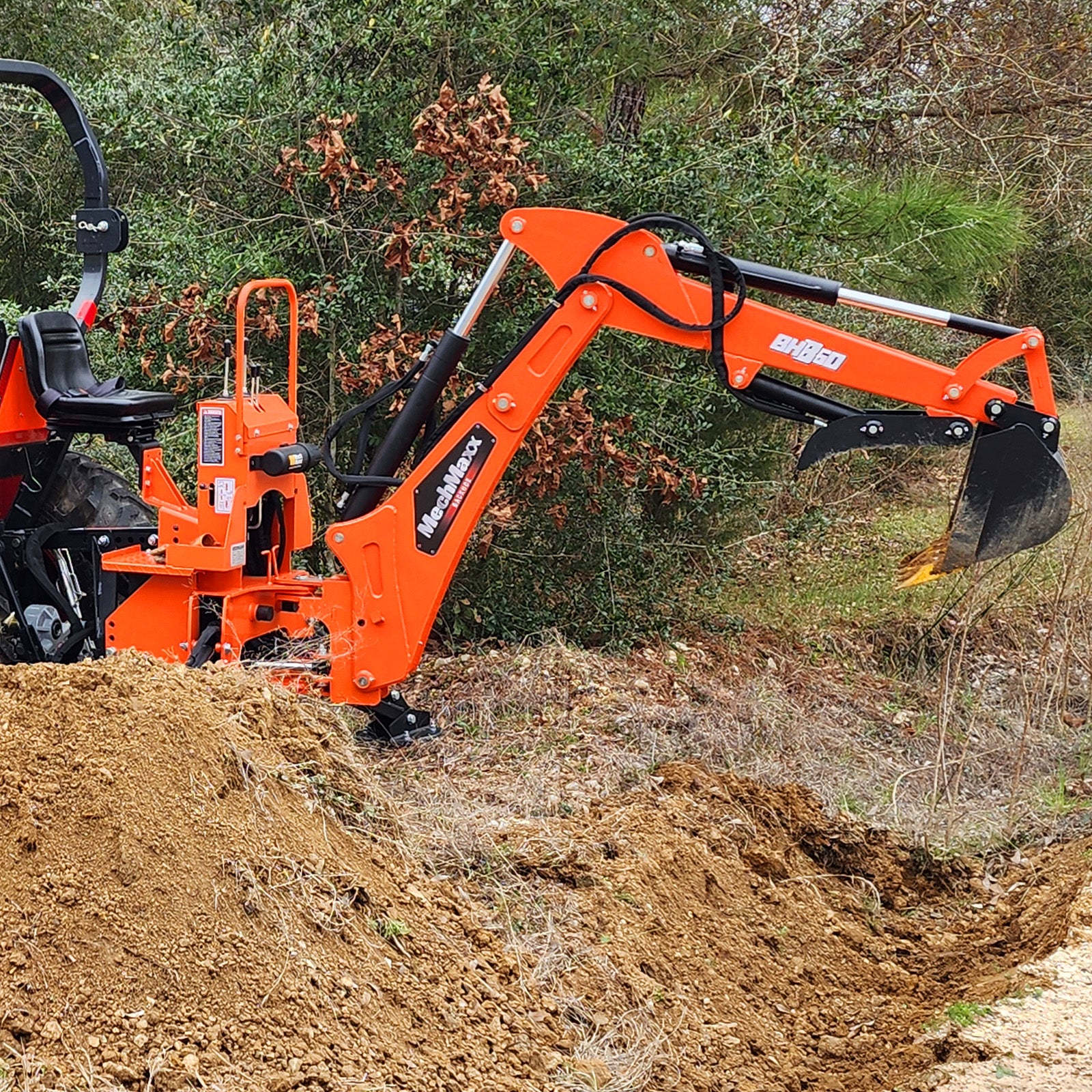

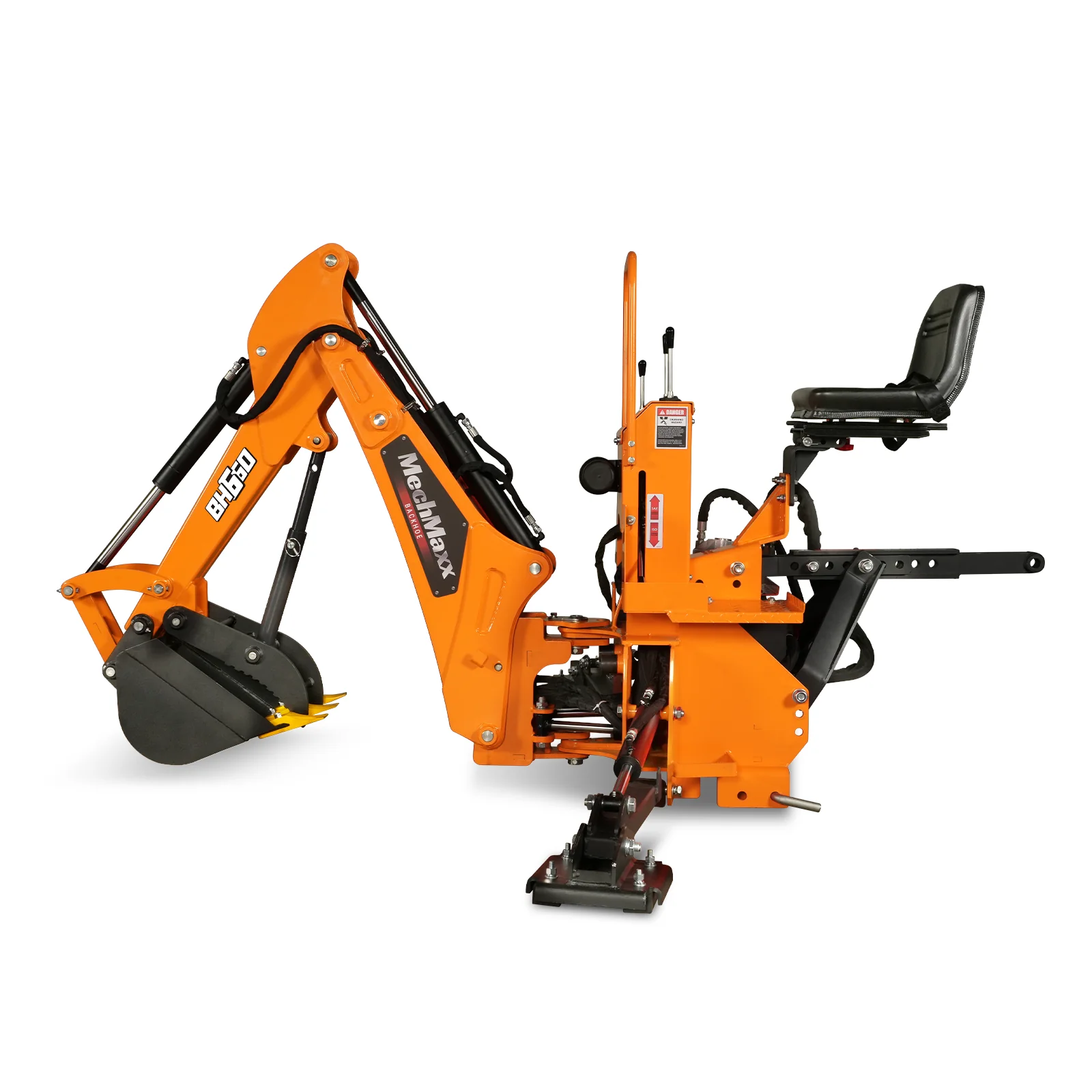

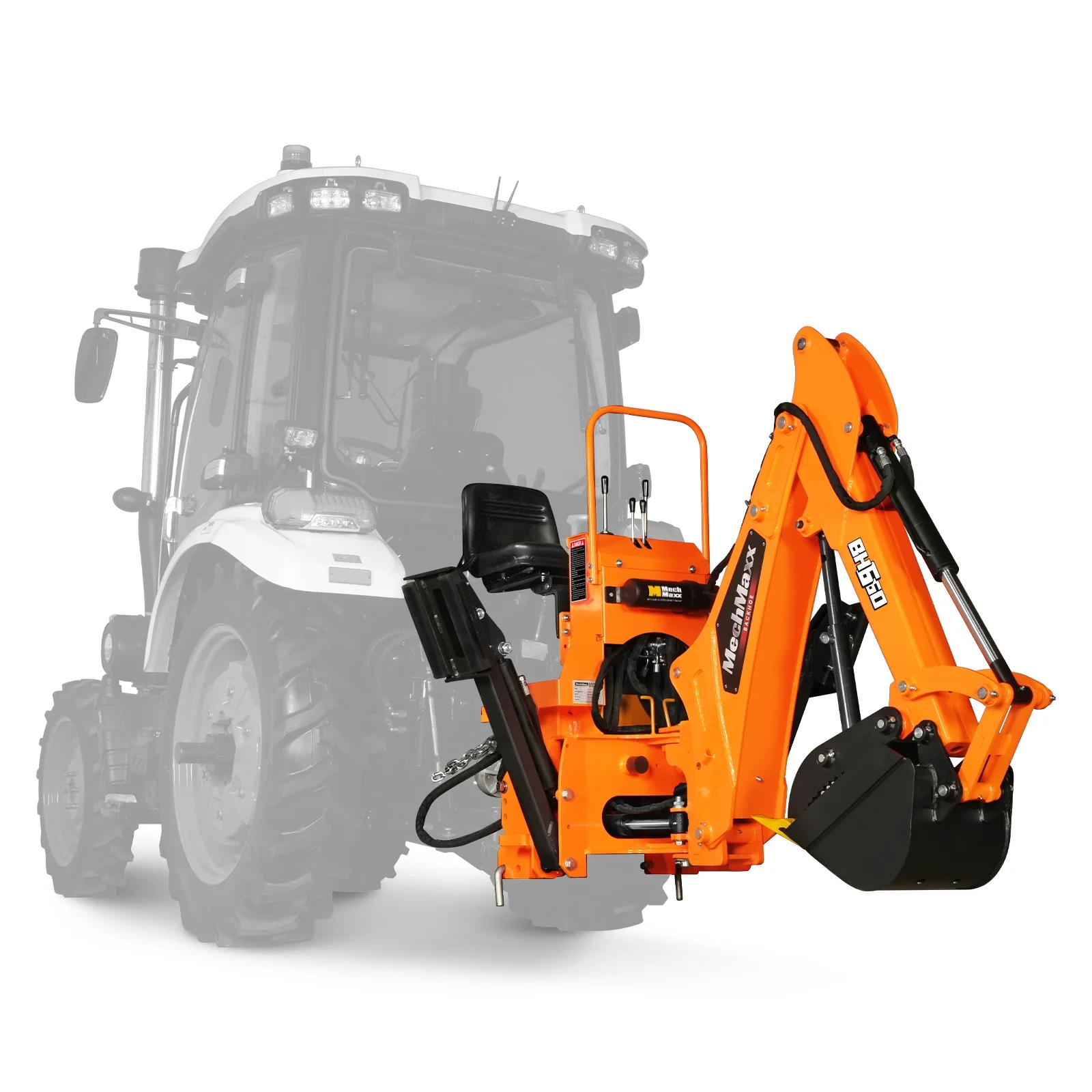

7' Tractor Backhoe Attachment with Mechanical Thumb, 12" Bucket, ISO/SAE Switchable Controls, Self-Contained Hydraulic System, 3 Point Hitch Cat.1, 15-50 HP, BH660M
7' Tractor Backhoe Attachment with Mechanical Thumb, 12" Bucket, ISO/SAE Switchable Controls, Self-Contained Hydraulic System, 3 Point Hitch Cat.1, 15-50 HP, BH660M
| Max. Digging Depth | 7 ft | Dipper Stick Cylinder Digging Force | 2005 lbs |
| Digging Depth (two foot flat bottom) | 6 ft 6 in | Hydraulic Volume Requirements | 4 to 5 GPM |
| Swing Arc | 180 Degrees | Hydraulic Pressure Requirements | 2250psi |
| Loading Height (bucket at 60 °) | 4 ft 9 in | Hydraulic Tank Capacity | 4.1 US Gal (15.5L) |
| Reach from Center Line of Swing Pivot | 9 ft 1 in | Hydraulic Type Recommended | AW 46 |

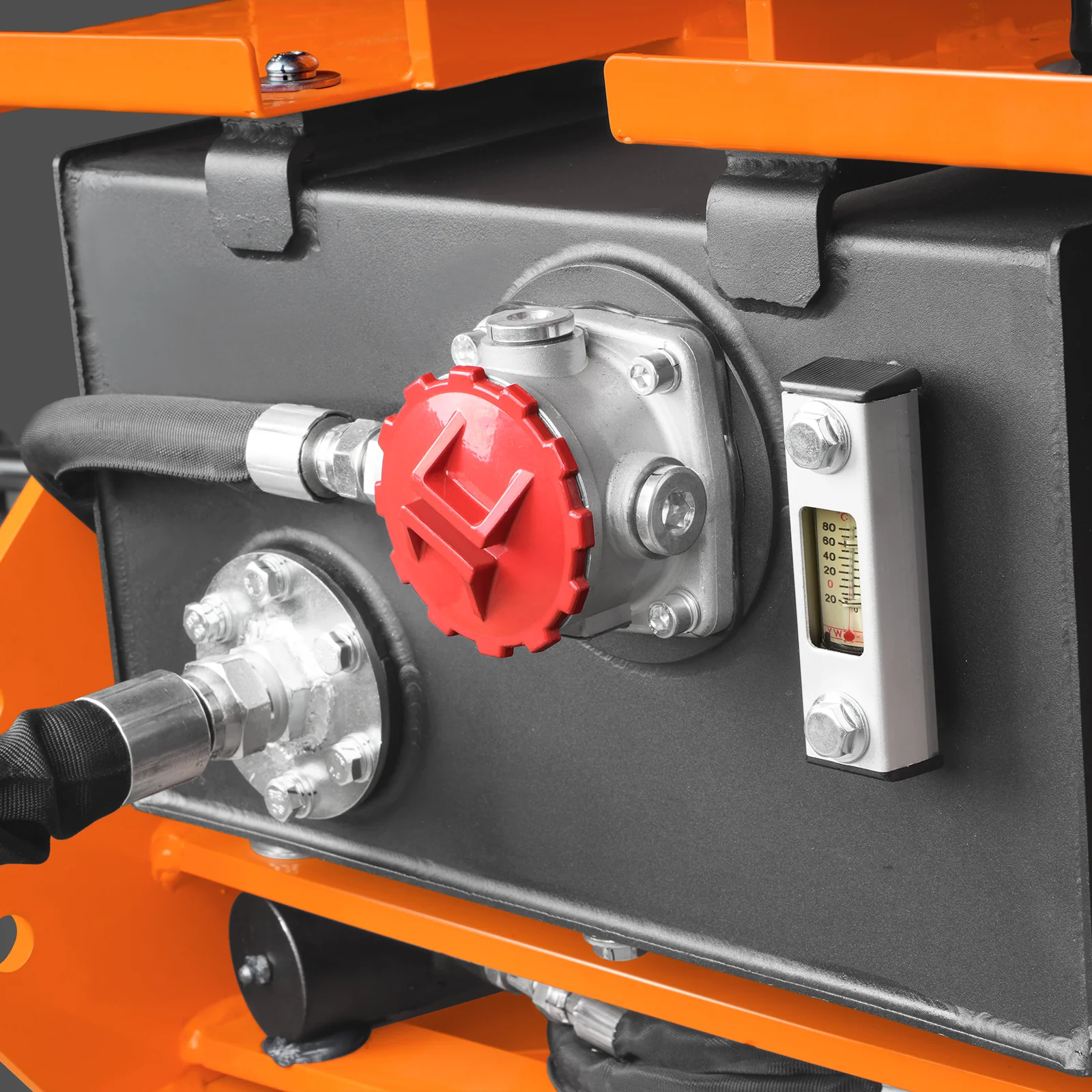

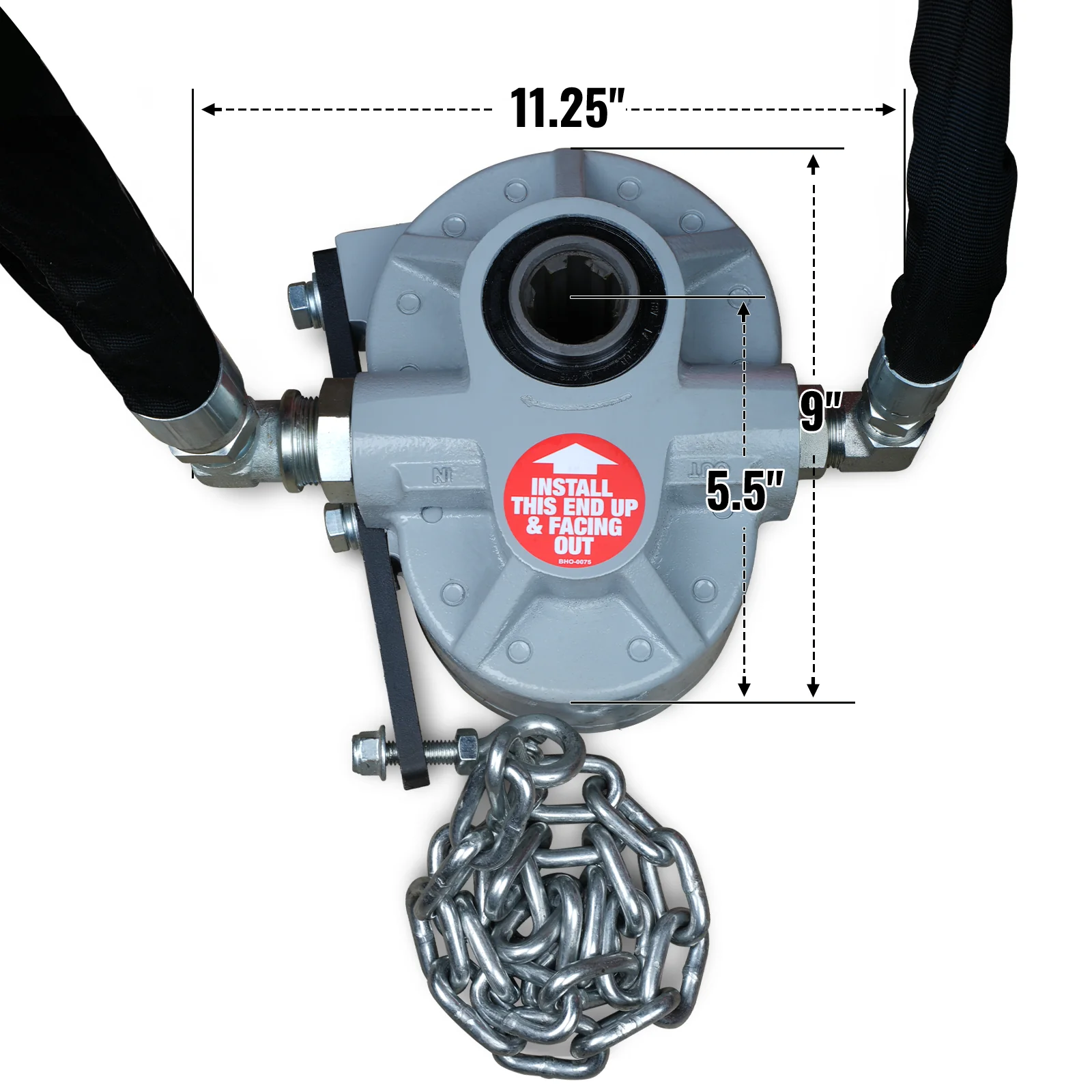

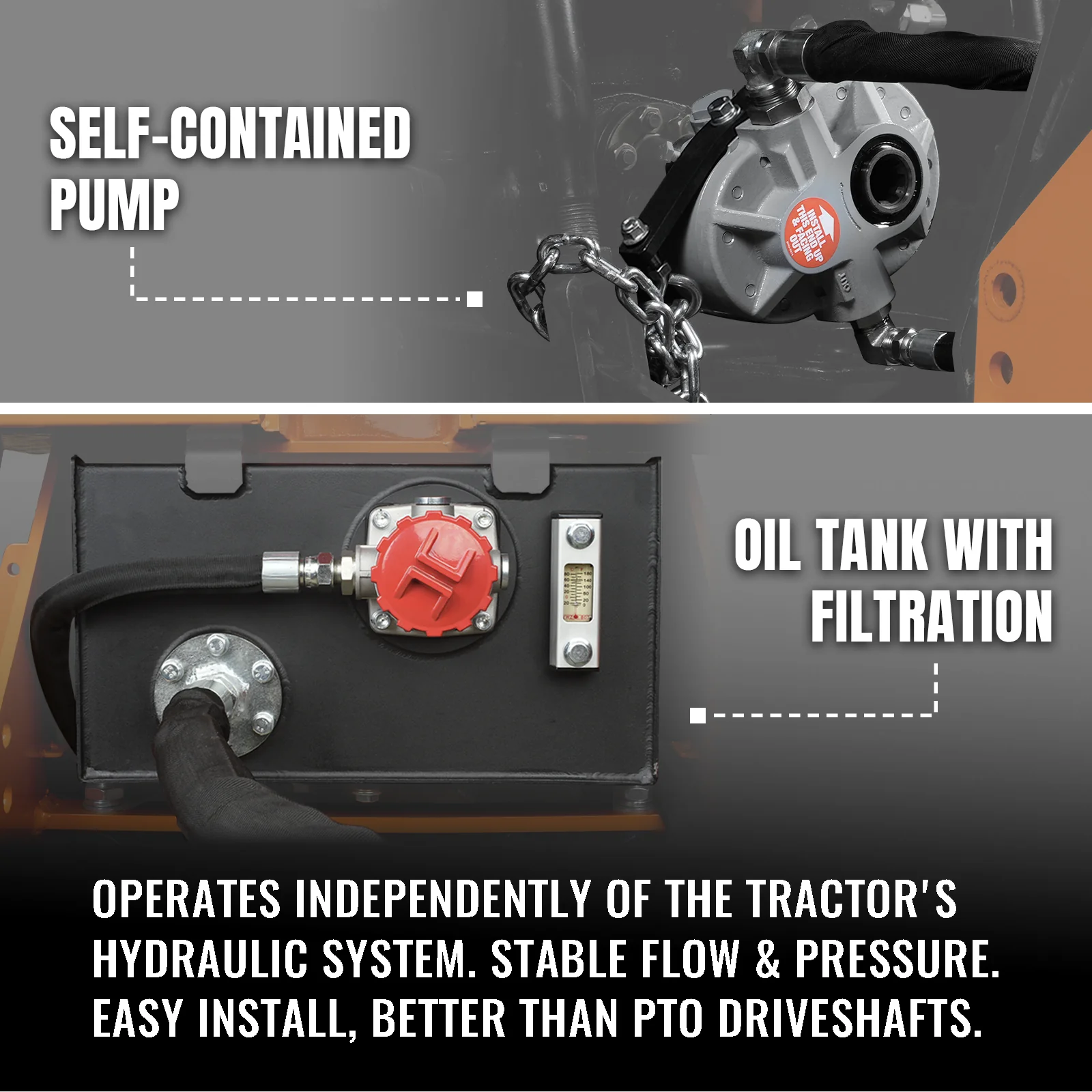

| Transport Height (maximum) | 5 ft 2 in | Self-contained PTO Pump & Tank | Included |

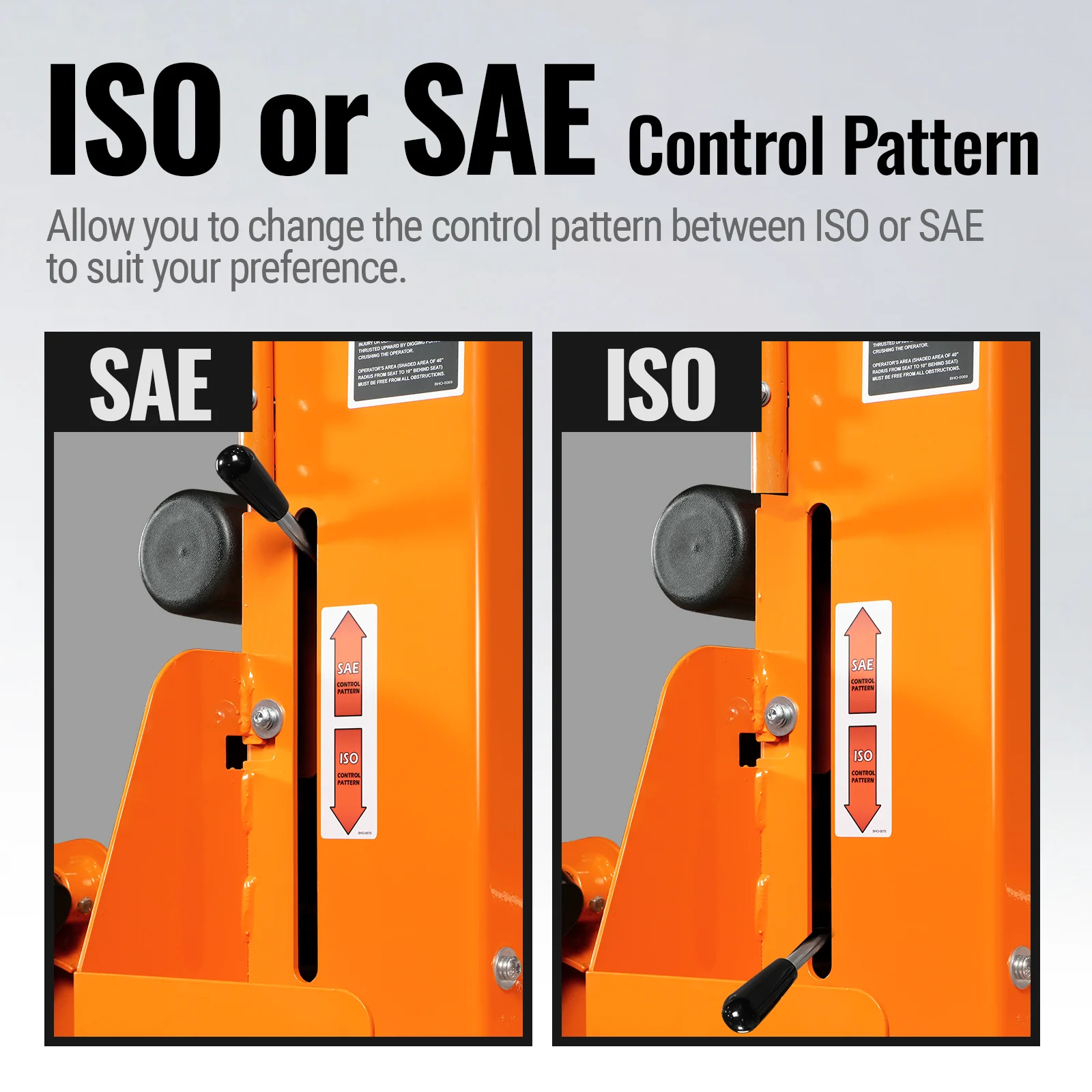

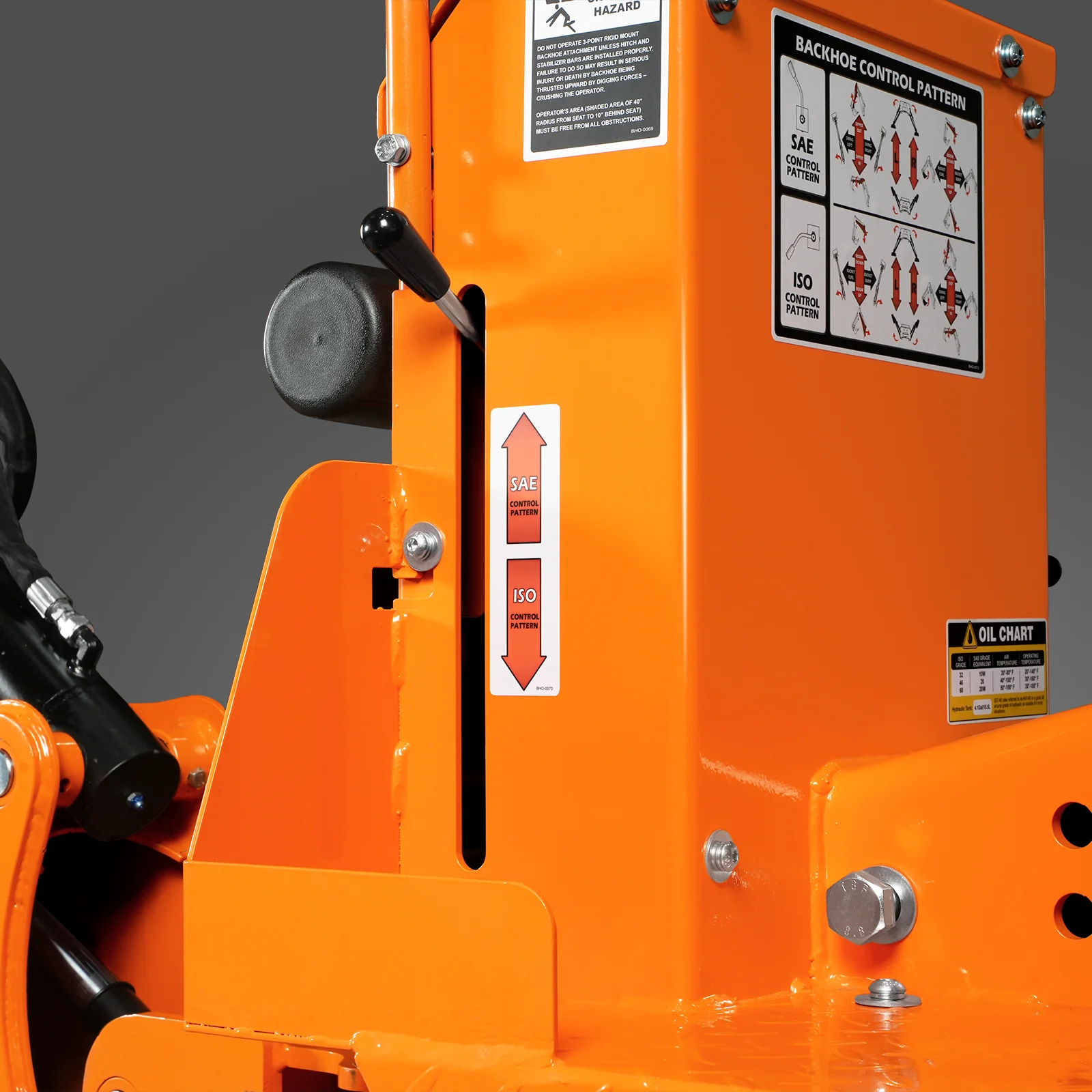

| Bucket Rotation | 180 Degrees | ISO or SAE Switch | Included |

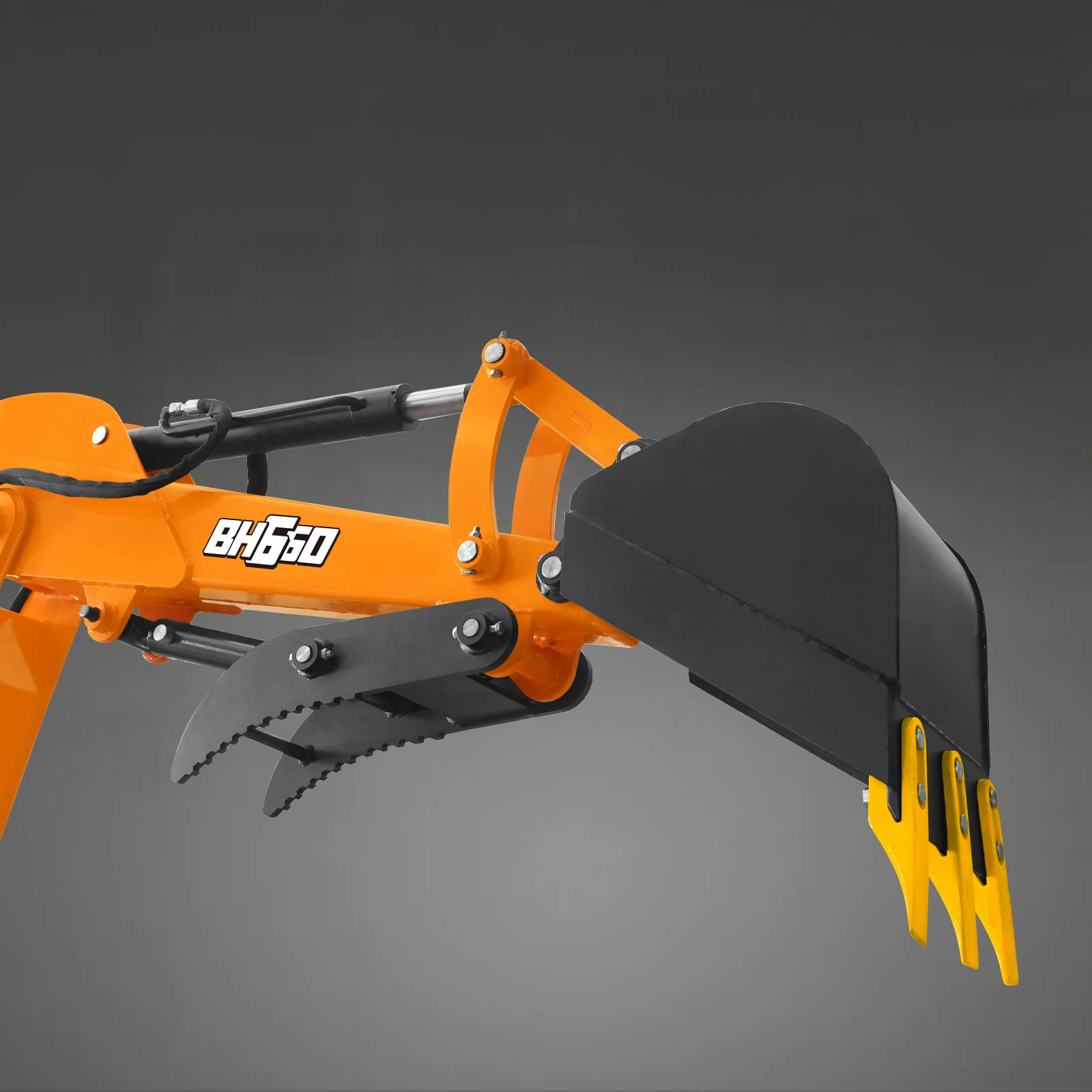

| Loading Reach (bucket at 60 °) | 3 ft 8 in | Standard Thumb | Mechanical |

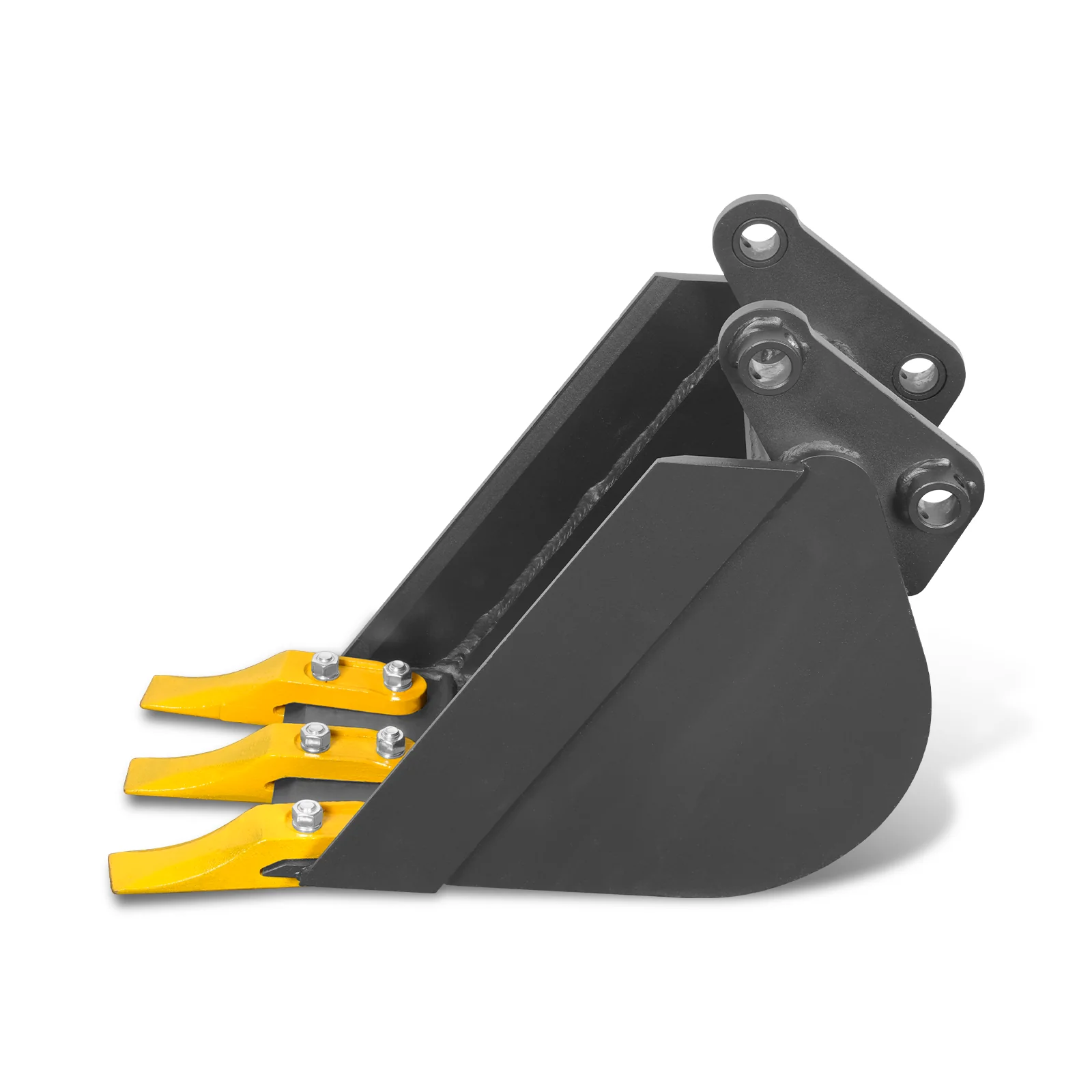

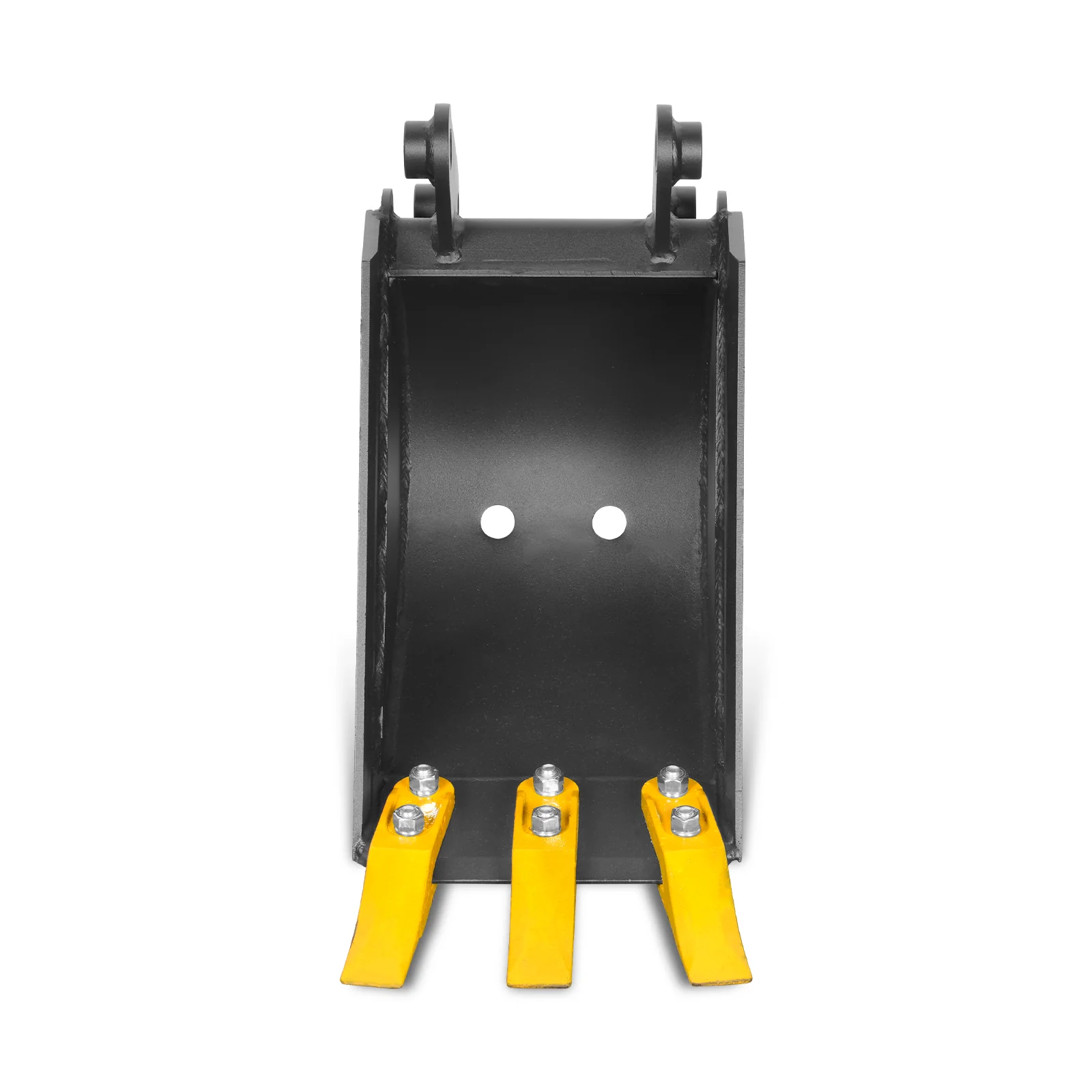

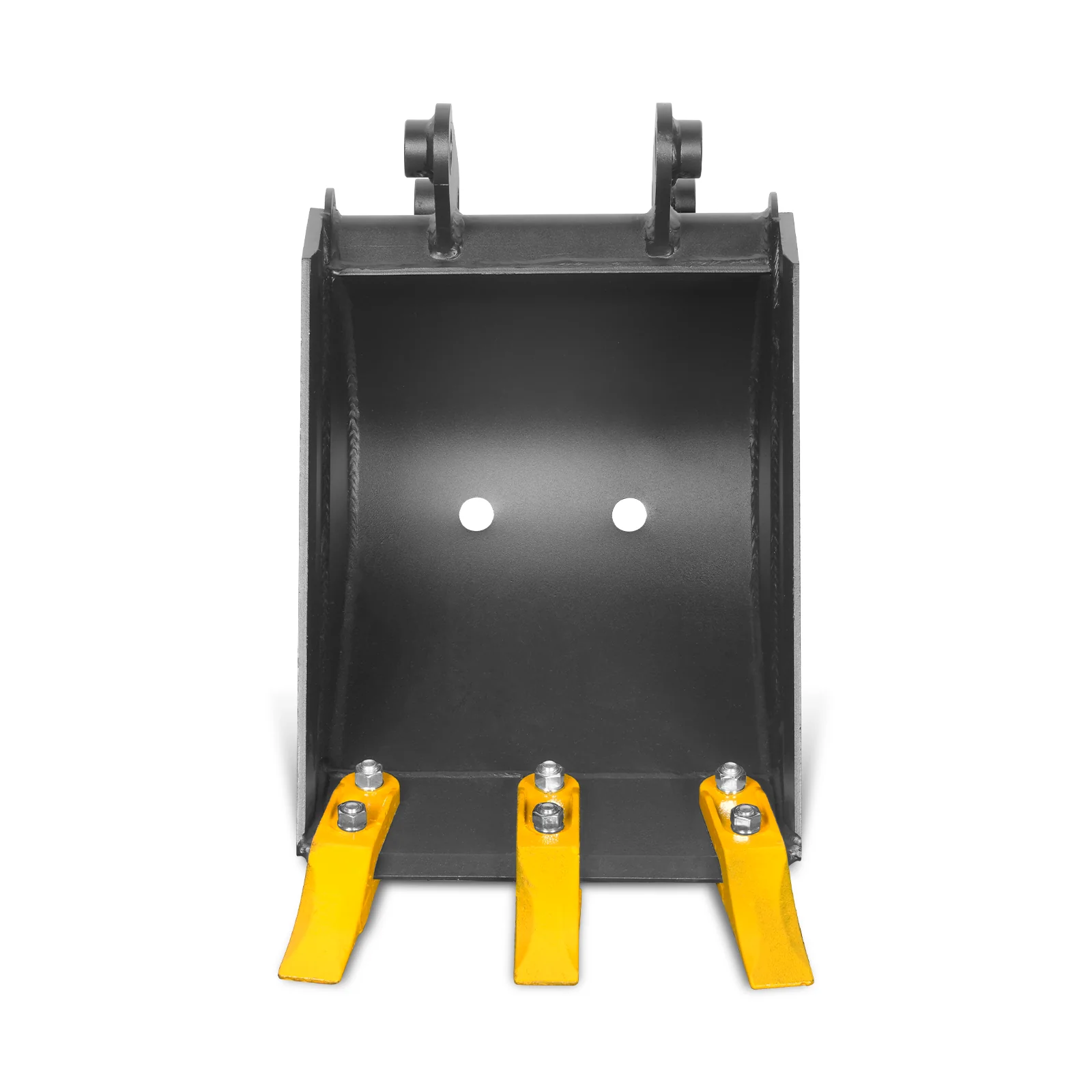

| Transport Overhang | 4 ft 9 in | Standard Bucket Size | 12 in (3 teeth) |
| Undercut | 1 ft 6 in | PTO Speed | 540 RPM |

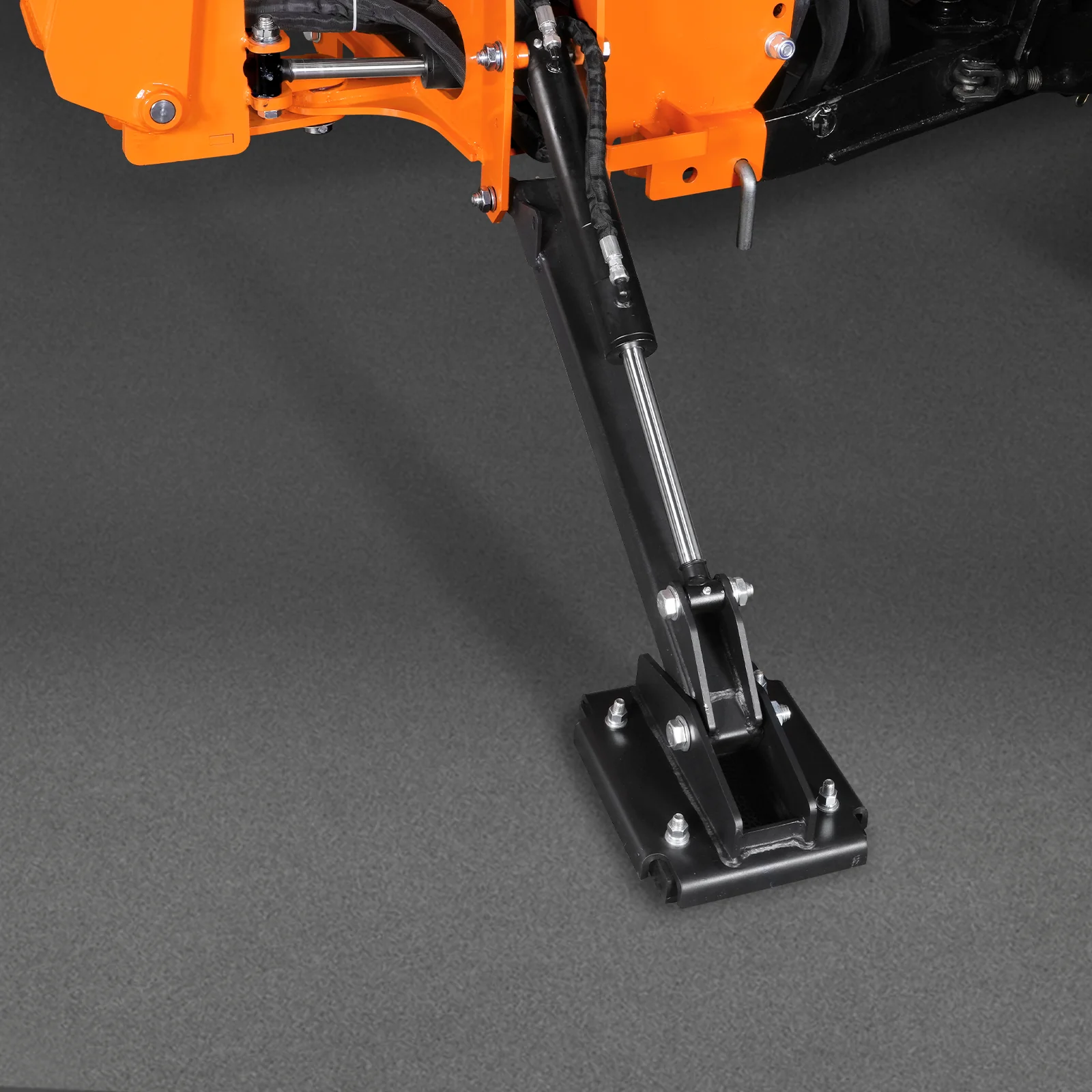

| Stabilizer Spread (down position) | 6 ft 7 in | PTO Connection | 1-3/8" 6 Spline |
| Stabilizer Spread (up position) | 5 ft 9 in | Recommended PTO HP | 15 to 50 HP |

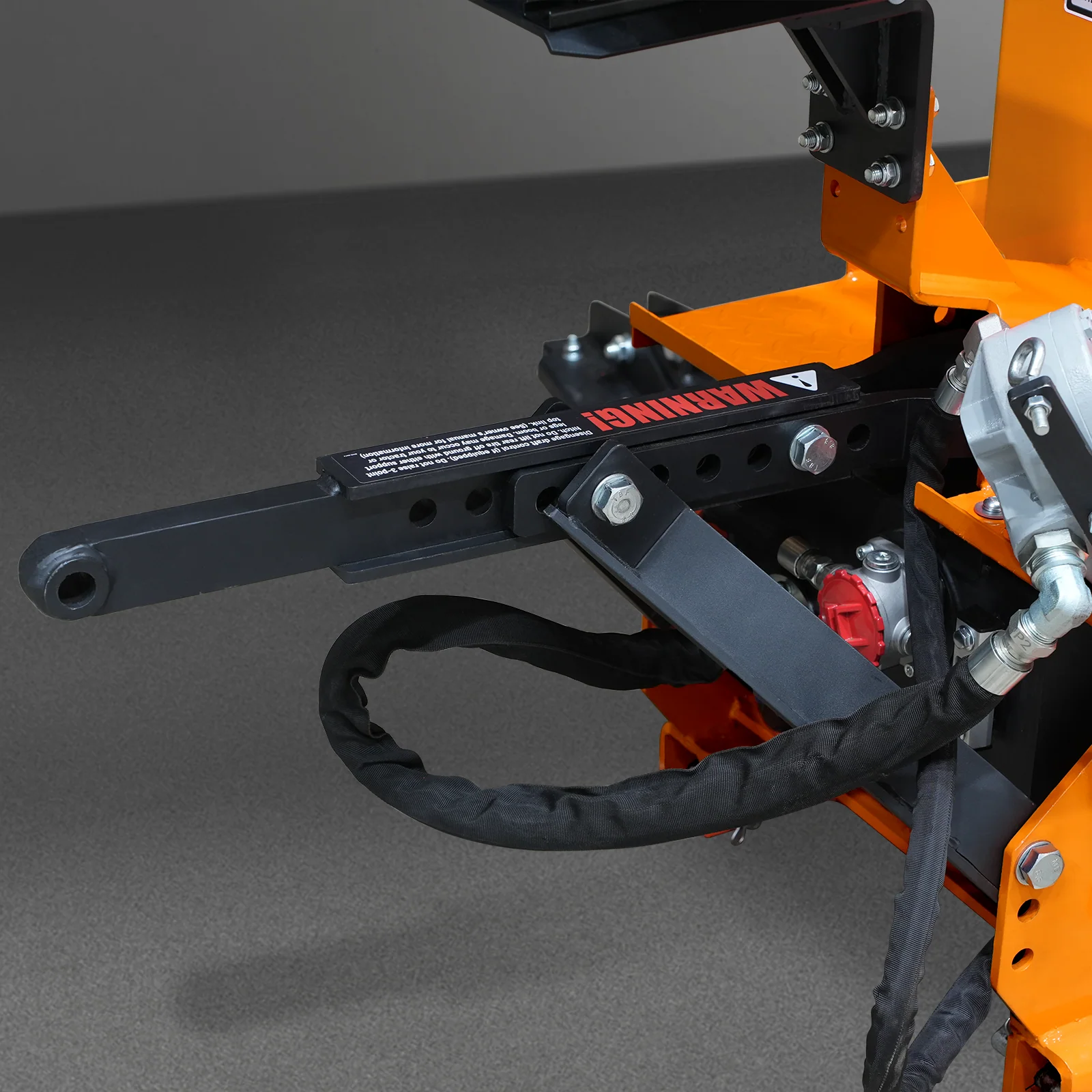

| Stabilizer Spread (lifting height) | 3 ft 8 in | 3-Point Hitch | CAT I |
| Transportation Height (maximum altitude) | 7 ft 2 in | Min Tractor Weight | 1500 lbs |
| Loading Height (bucket at 180 °) | 8 ft 4 in | Min Tractor Rear Lift Capacity | 1335 lbs |
| Transport Overhang (maximum) | 4 ft 2 in | Packing Size (LxWxH) | 57 x 30 x 71 in |
| Bucket Cylinder Digging Force | 2840 lbs | Weight with Bucket (N.W/G.W.) | 1113/1292 lbs |
| Regarding tractor compatibility, ensure that the tractor’s PTO HP and 3-point hitch are compatible with the backhoe, and that it meets the minimum weight requirement for safe operation. If the tractor is too light, it can become unstable during travel or operation. To improve stability and reduce tipping hazards, add front ballast as needed. Additionally, take into account factors like speed and terrain slope. Above all, always prioritize safety during operation. | |||
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Original: $4,499.00
-70%$4,499.00
$1,349.70More Images
7' Tractor Backhoe Attachment with Mechanical Thumb, 12" Bucket, ISO/SAE Switchable Controls, Self-Contained Hydraulic System, 3 Point Hitch Cat.1, 15-50 HP, BH660M
| Max. Digging Depth | 7 ft | Dipper Stick Cylinder Digging Force | 2005 lbs |
| Digging Depth (two foot flat bottom) | 6 ft 6 in | Hydraulic Volume Requirements | 4 to 5 GPM |
| Swing Arc | 180 Degrees | Hydraulic Pressure Requirements | 2250psi |
| Loading Height (bucket at 60 °) | 4 ft 9 in | Hydraulic Tank Capacity | 4.1 US Gal (15.5L) |
| Reach from Center Line of Swing Pivot | 9 ft 1 in | Hydraulic Type Recommended | AW 46 |
| Transport Height (maximum) | 5 ft 2 in | Self-contained PTO Pump & Tank | Included |
| Bucket Rotation | 180 Degrees | ISO or SAE Switch | Included |
| Loading Reach (bucket at 60 °) | 3 ft 8 in | Standard Thumb | Mechanical |
| Transport Overhang | 4 ft 9 in | Standard Bucket Size | 12 in (3 teeth) |
| Undercut | 1 ft 6 in | PTO Speed | 540 RPM |
| Stabilizer Spread (down position) | 6 ft 7 in | PTO Connection | 1-3/8" 6 Spline |
| Stabilizer Spread (up position) | 5 ft 9 in | Recommended PTO HP | 15 to 50 HP |
| Stabilizer Spread (lifting height) | 3 ft 8 in | 3-Point Hitch | CAT I |
| Transportation Height (maximum altitude) | 7 ft 2 in | Min Tractor Weight | 1500 lbs |
| Loading Height (bucket at 180 °) | 8 ft 4 in | Min Tractor Rear Lift Capacity | 1335 lbs |
| Transport Overhang (maximum) | 4 ft 2 in | Packing Size (LxWxH) | 57 x 30 x 71 in |
| Bucket Cylinder Digging Force | 2840 lbs | Weight with Bucket (N.W/G.W.) | 1113/1292 lbs |
| Regarding tractor compatibility, ensure that the tractor’s PTO HP and 3-point hitch are compatible with the backhoe, and that it meets the minimum weight requirement for safe operation. If the tractor is too light, it can become unstable during travel or operation. To improve stability and reduce tipping hazards, add front ballast as needed. Additionally, take into account factors like speed and terrain slope. Above all, always prioritize safety during operation. | |||
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
