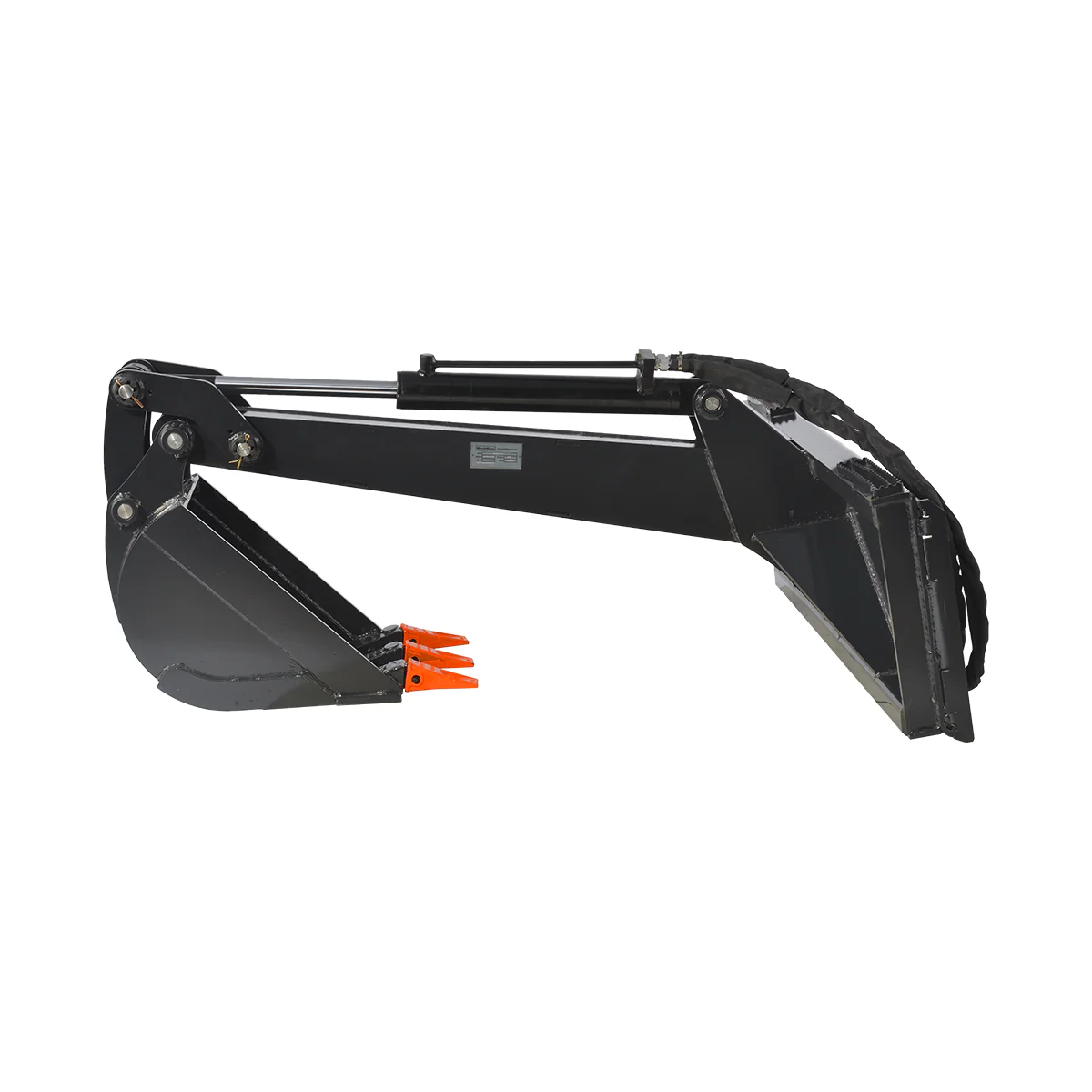

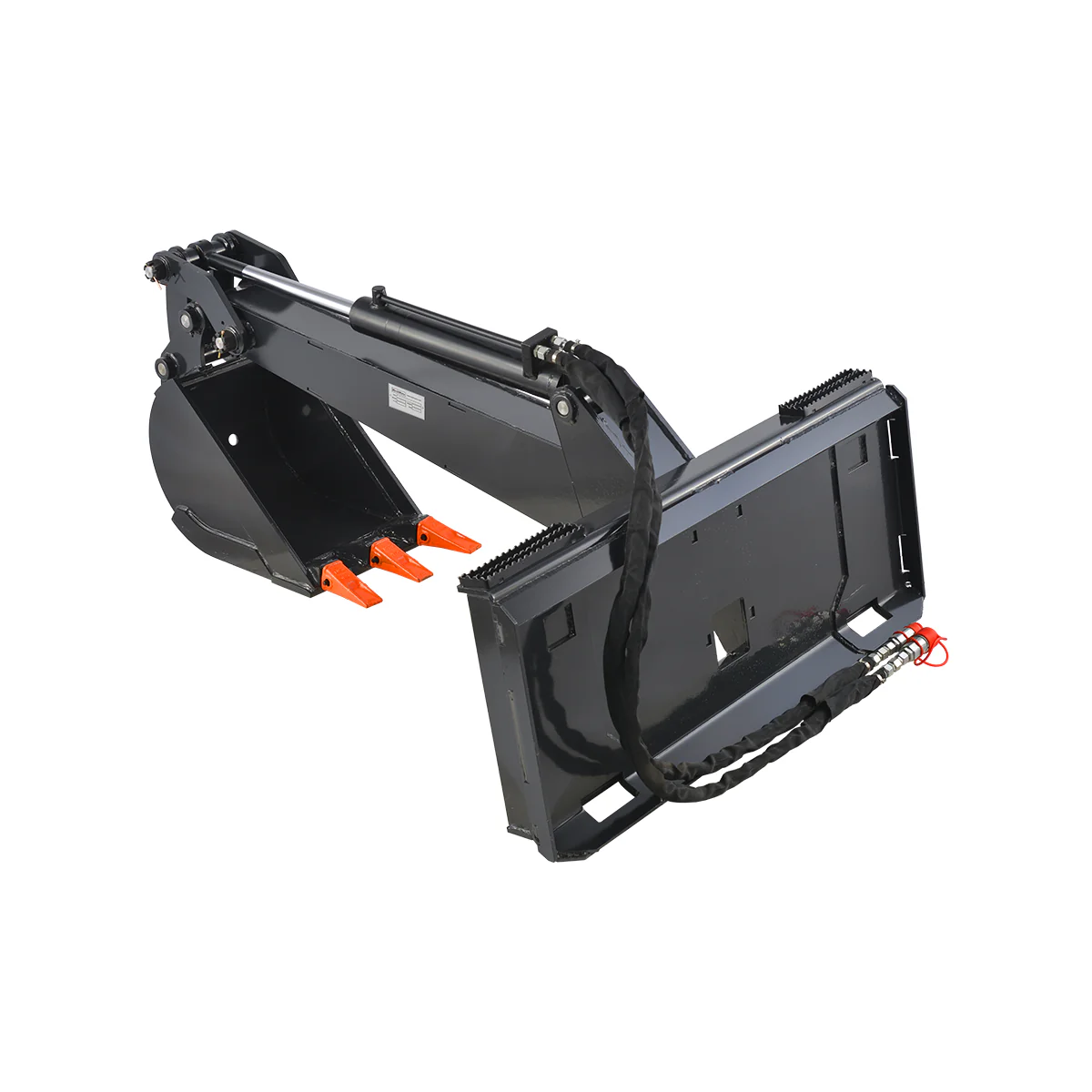

MechMaxx Skid Steer Backhoe Attachment, 14” Bucket Included, 78in Digging Depth,LBH-14

Bucket Width	14 in	Thumb Jaw Length	5.5 in
Max Digging Depth	78 in	Quick Coupler	G1/2
Overall Reach	85 in	Overall Swing Arc Right/Left	Fixed
Bucket Breakout Force	2000 lbs	Finish	Durable Powder Coated finish
Lift Capacity	1000 lbs	Product Size	59x49x31 in
Max System Pressure	2320 psi	Package Method	Iron Frame with Film
Hydraulic Cylinder Stroke	14 in	Packing Size	67x50x31 in
Hydraulic Cylinder Diameter	2.5 in	Weight（N.W./G.W.)	574/640 lbs
Bucket Rotation	160°	Warranty	1 Year
Hydraulic Pipe Length	67 in



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
