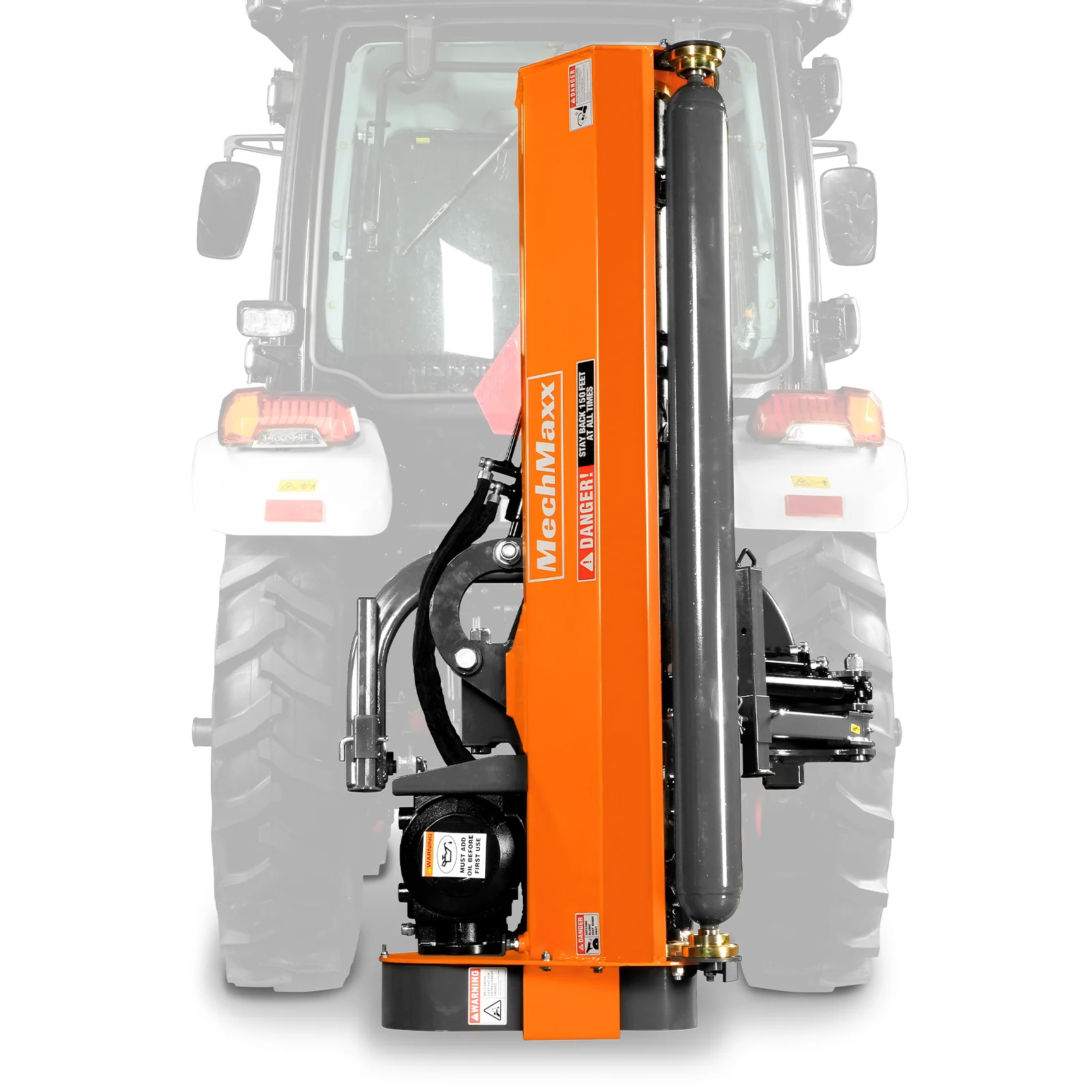

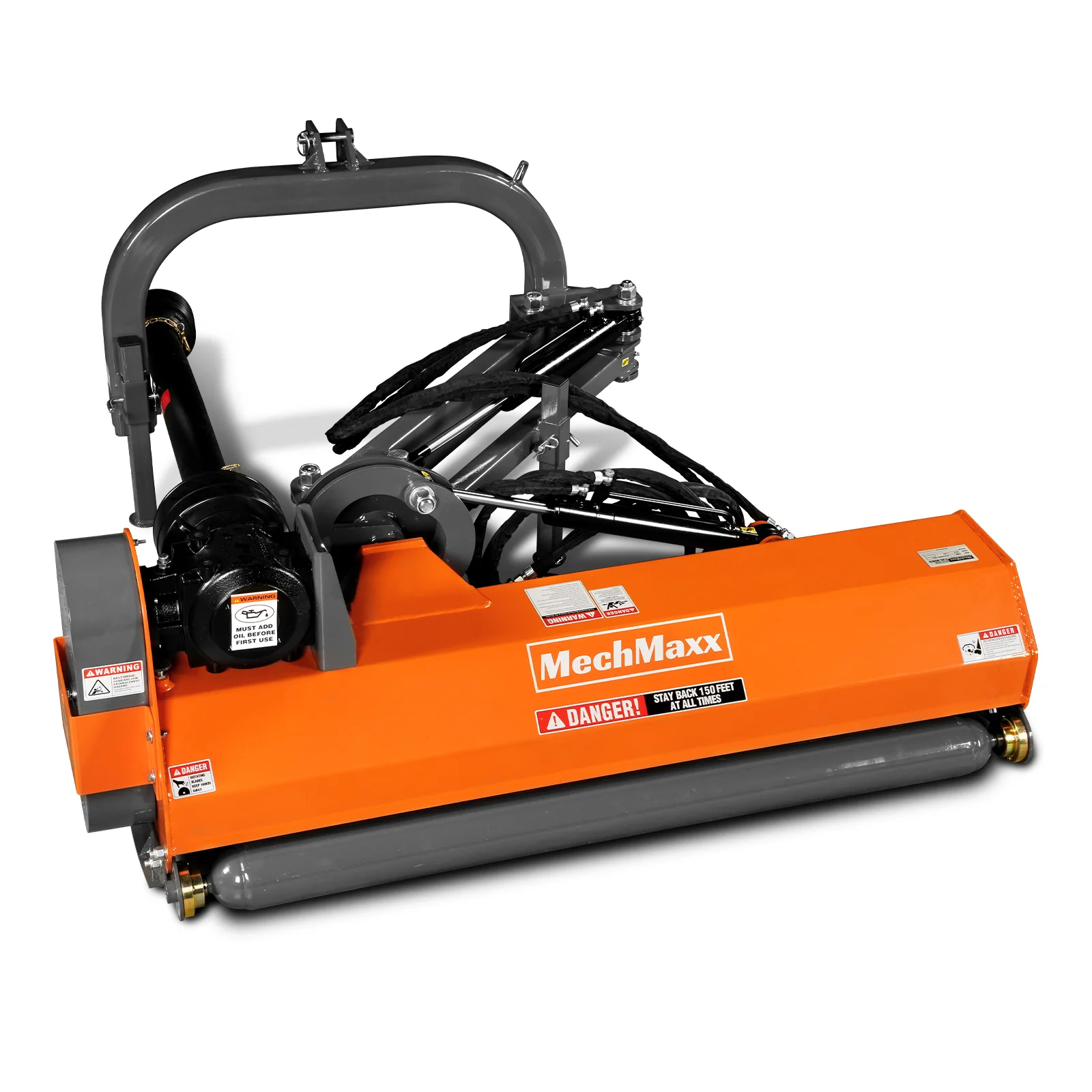

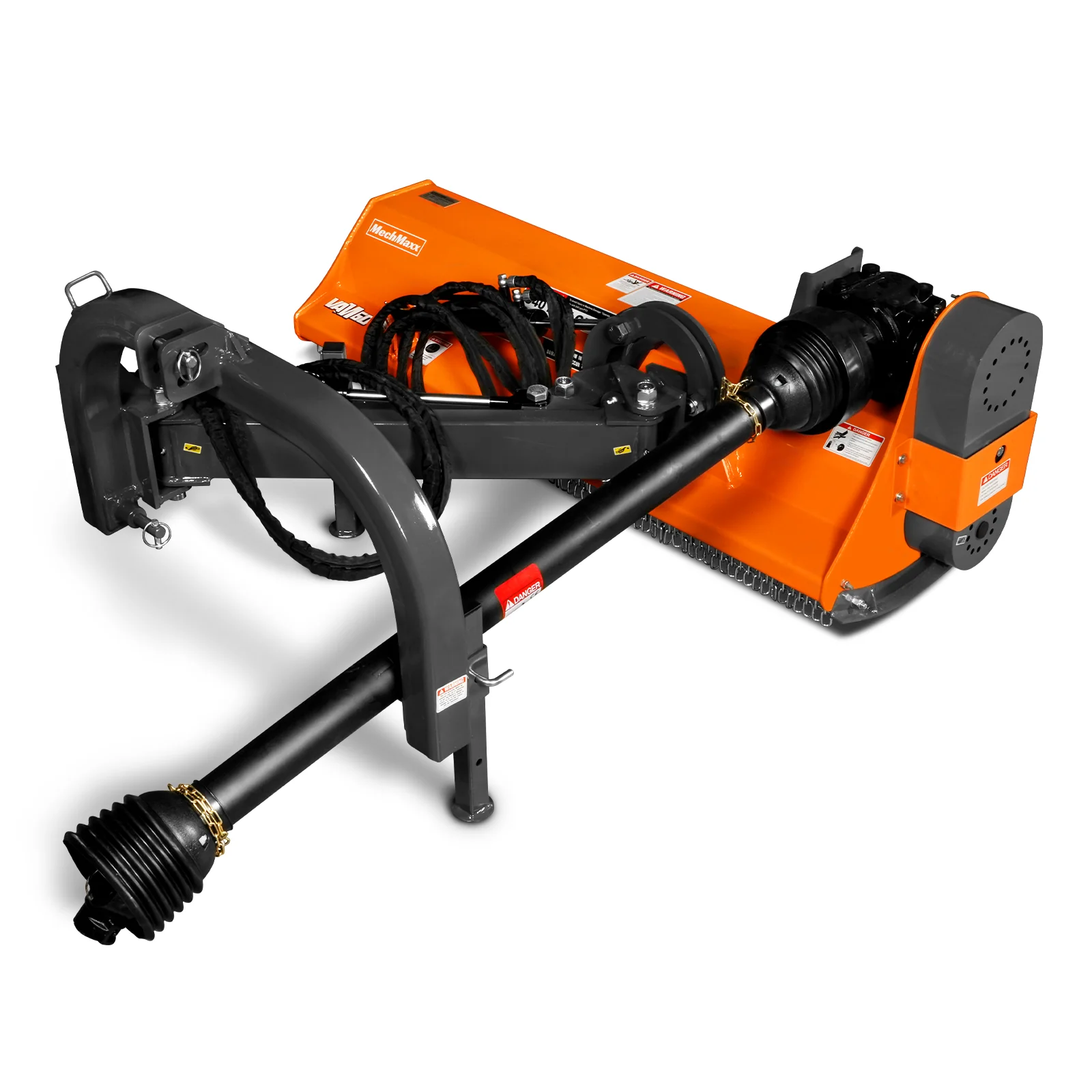

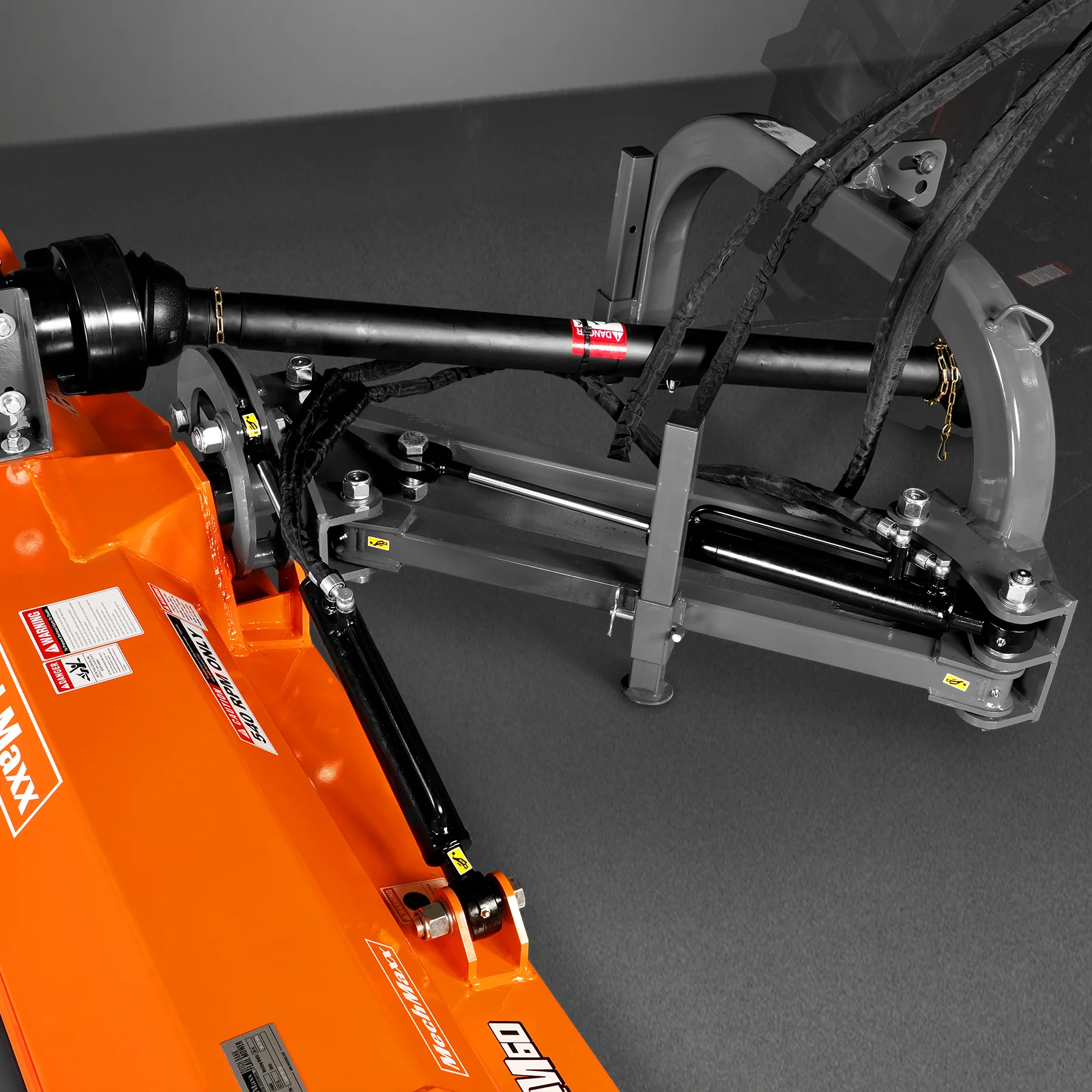

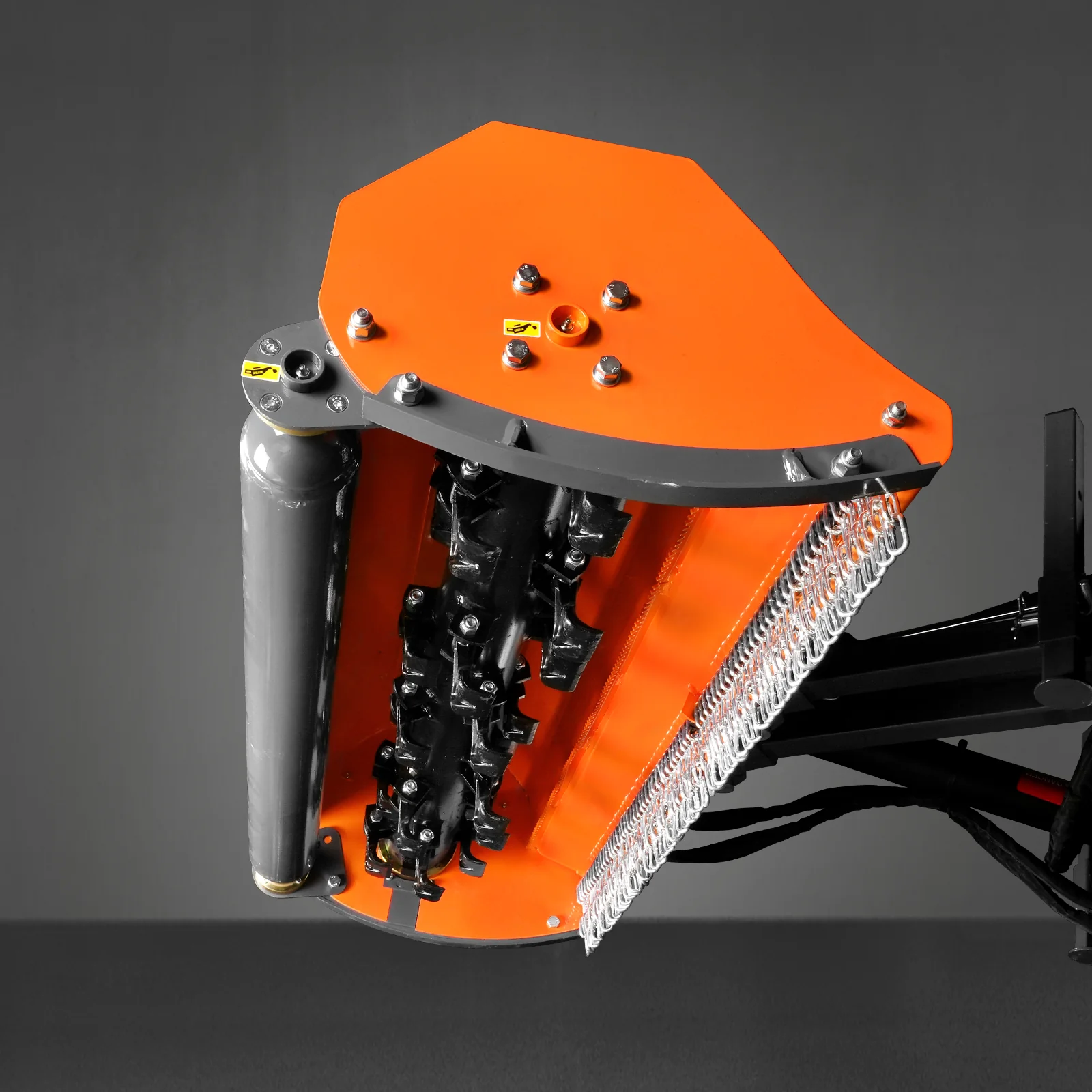

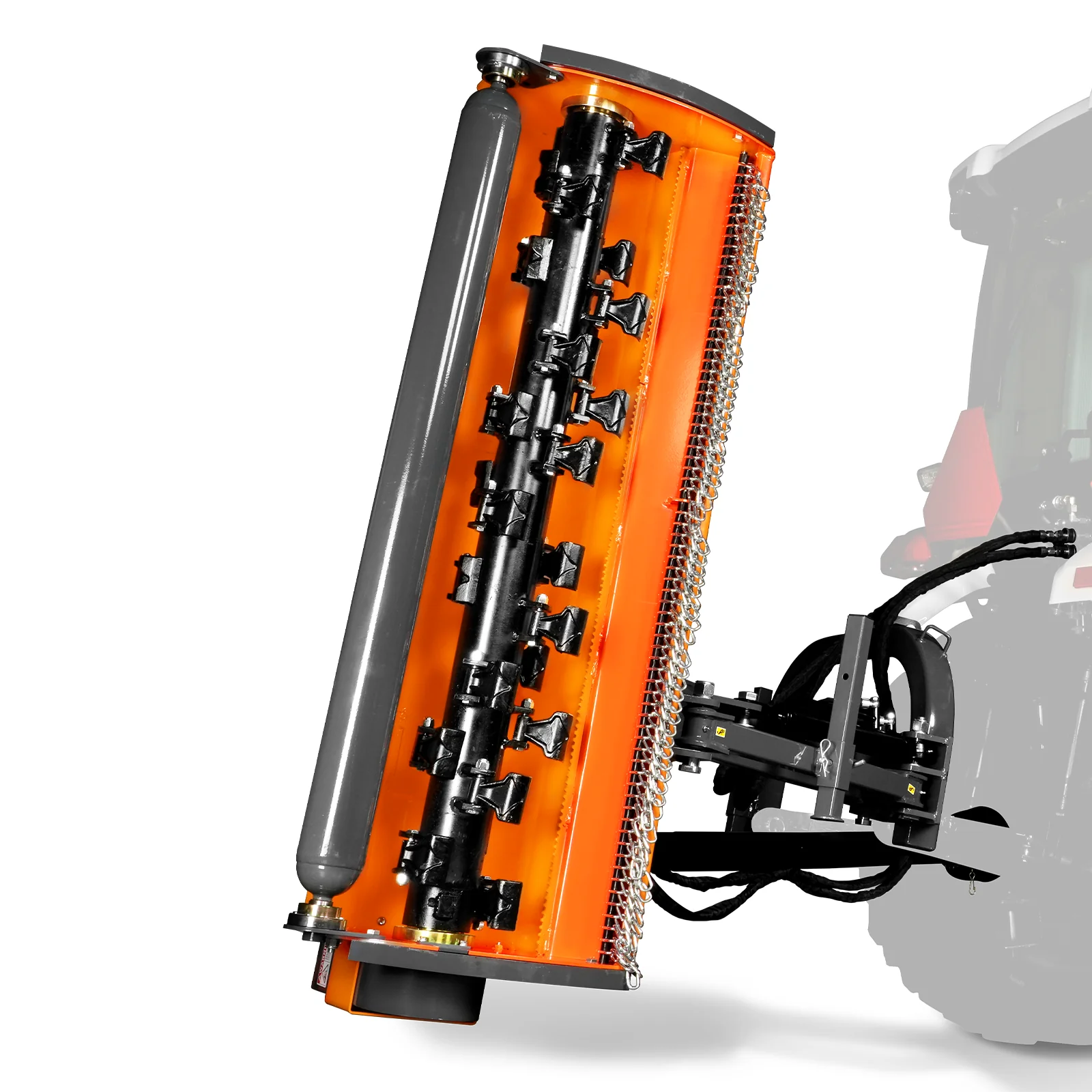

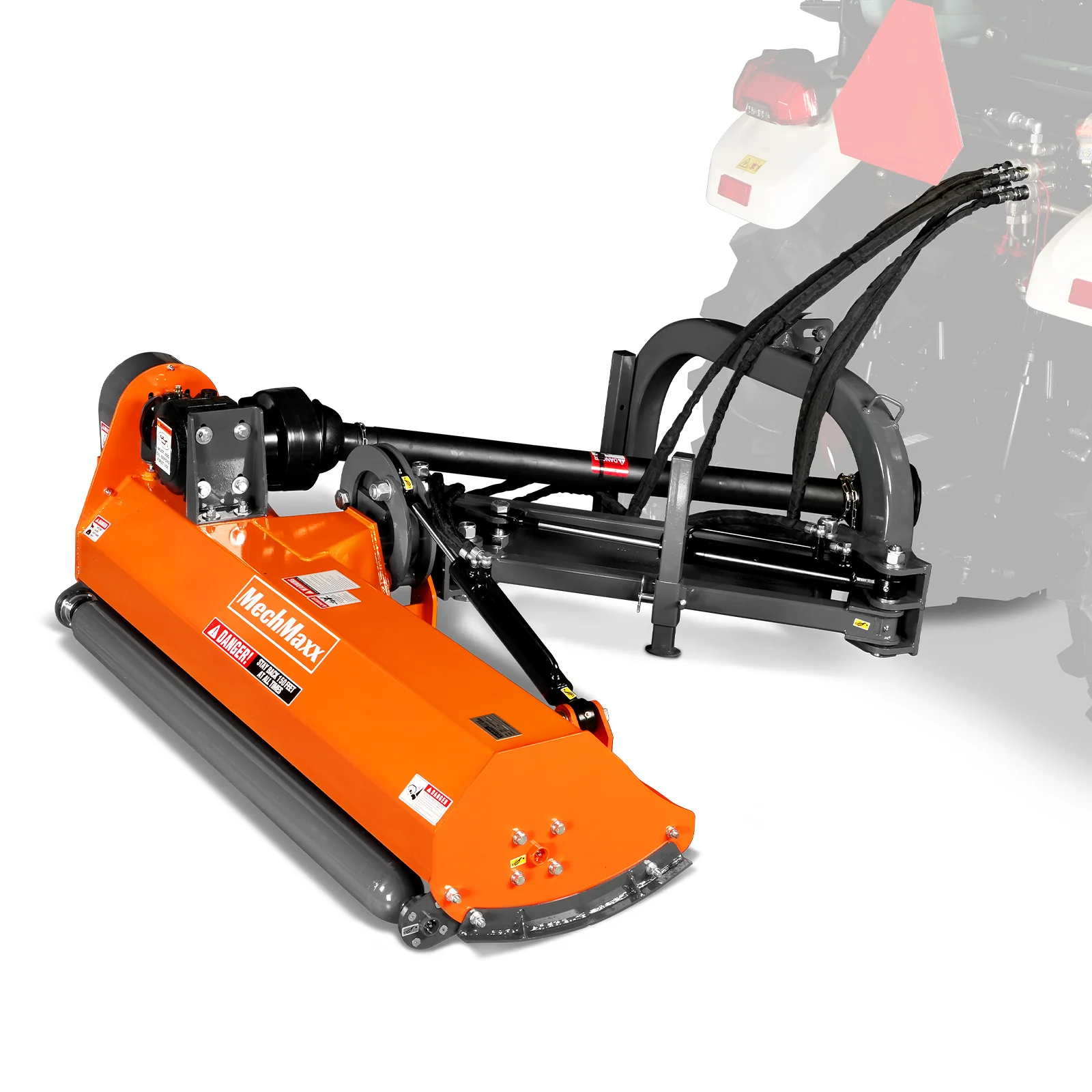

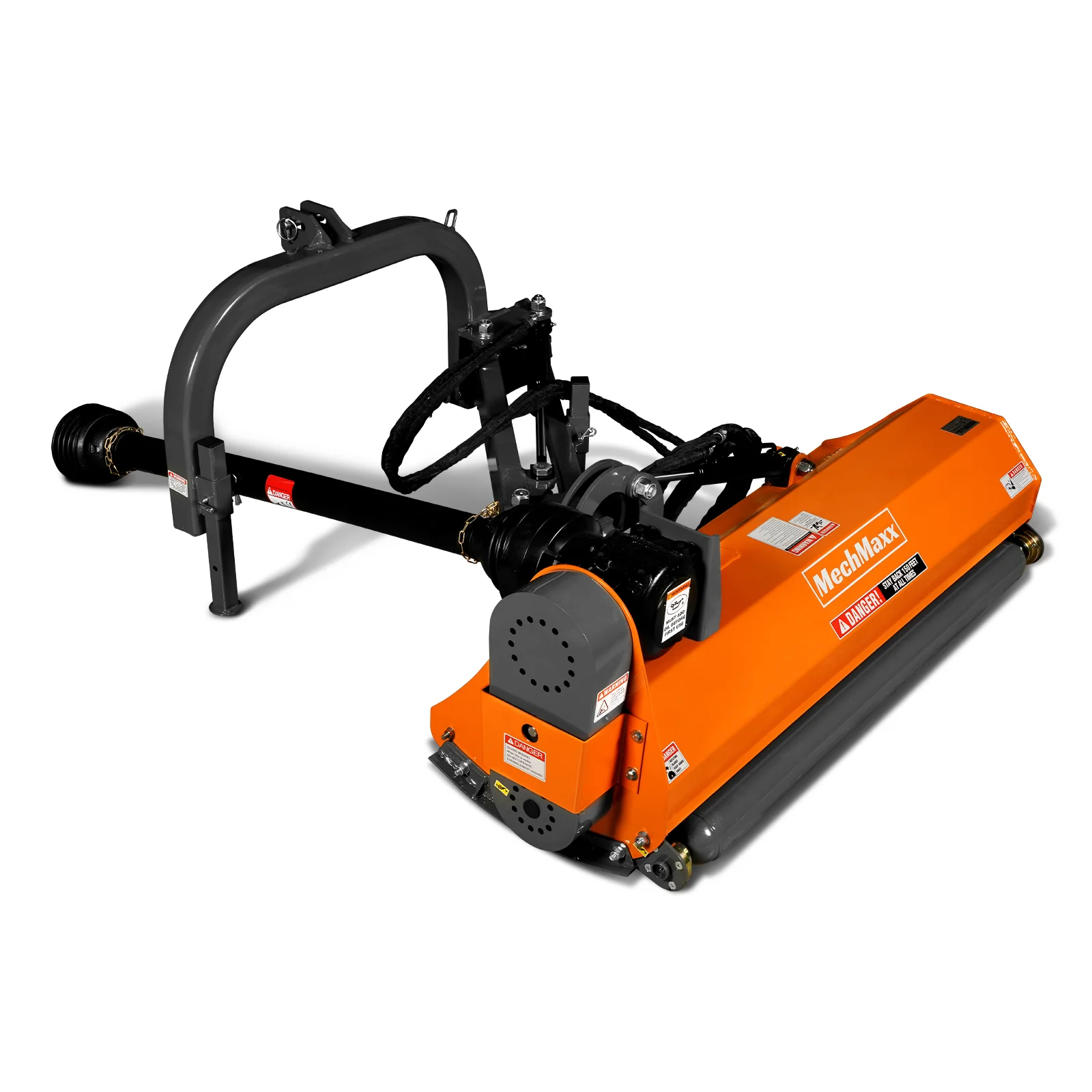

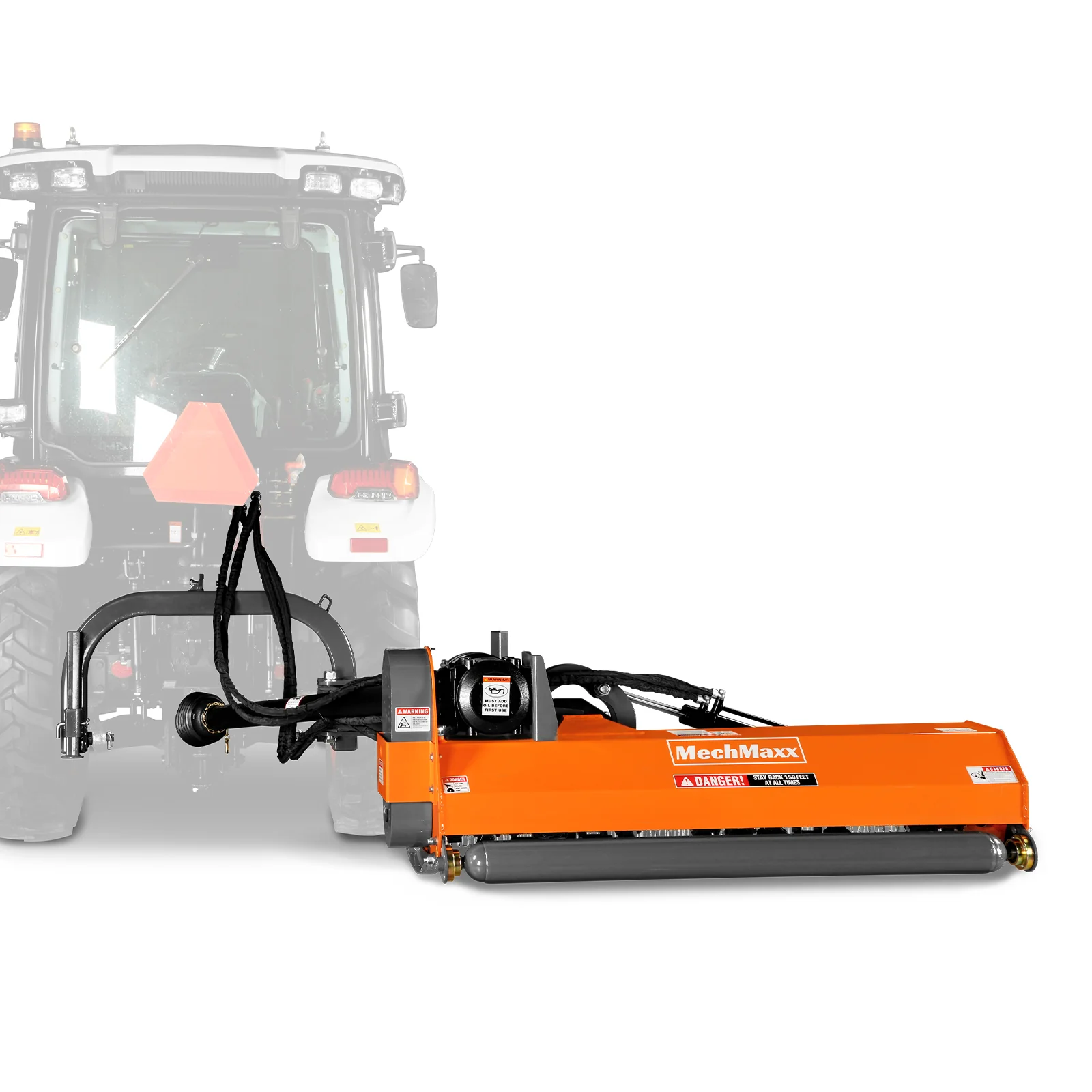

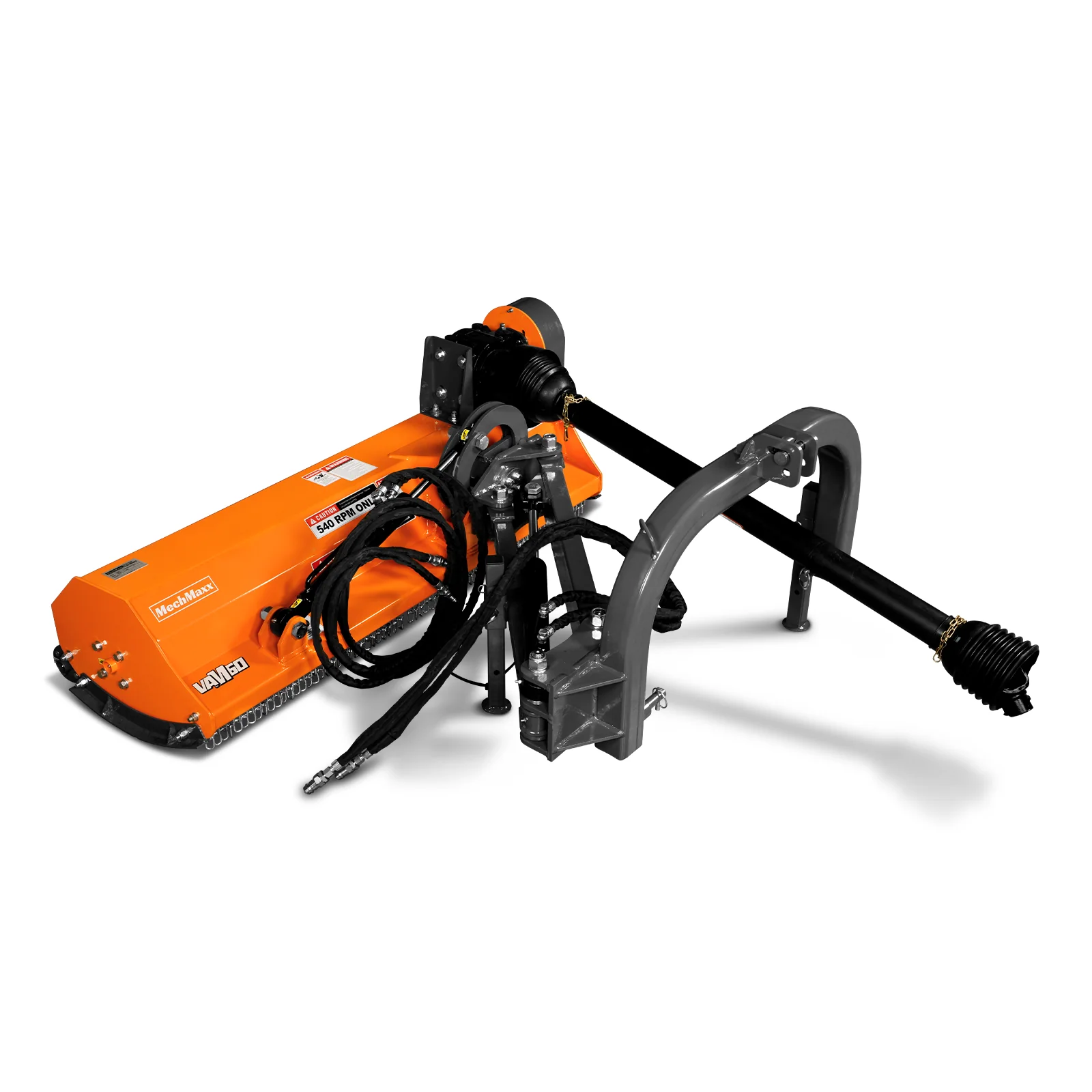

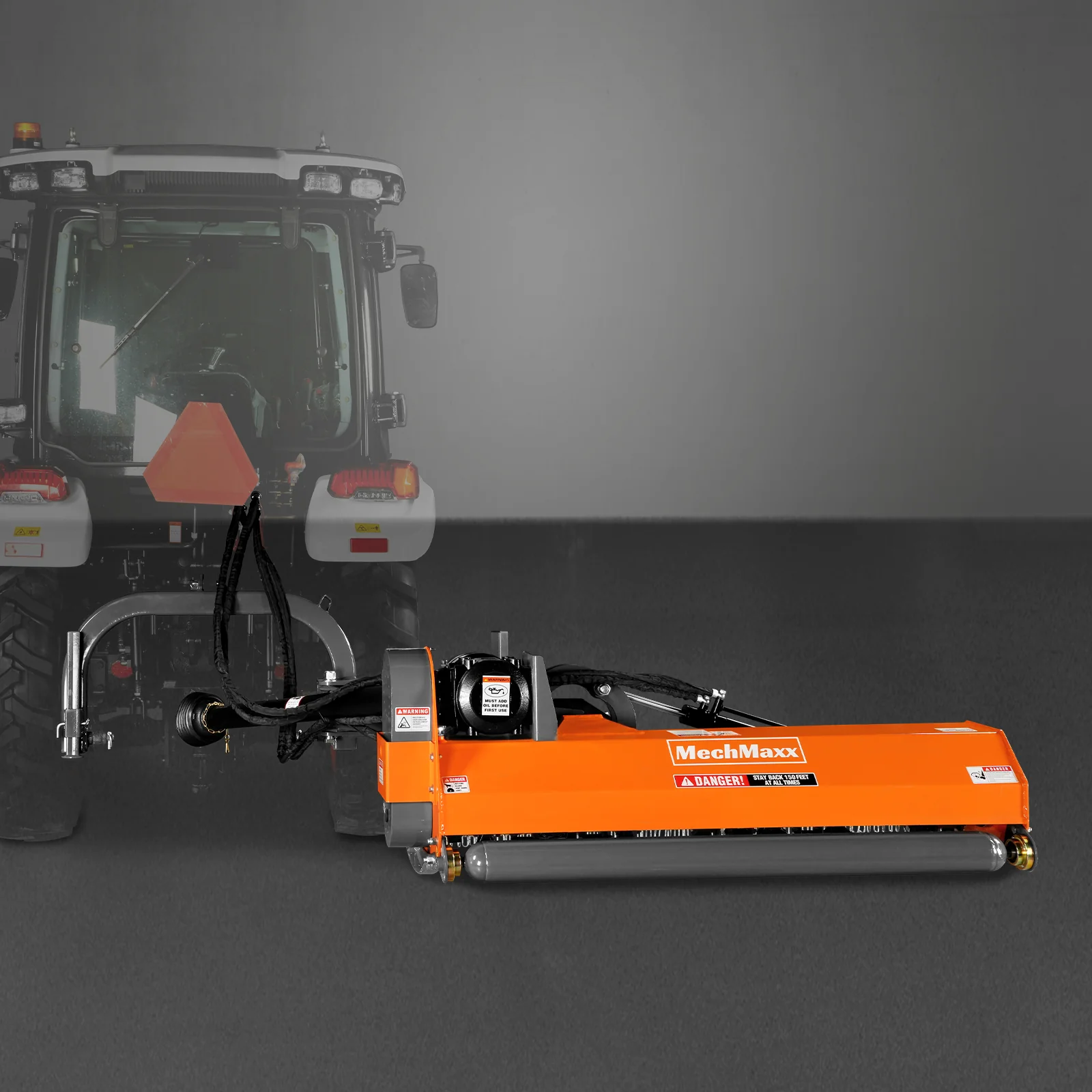

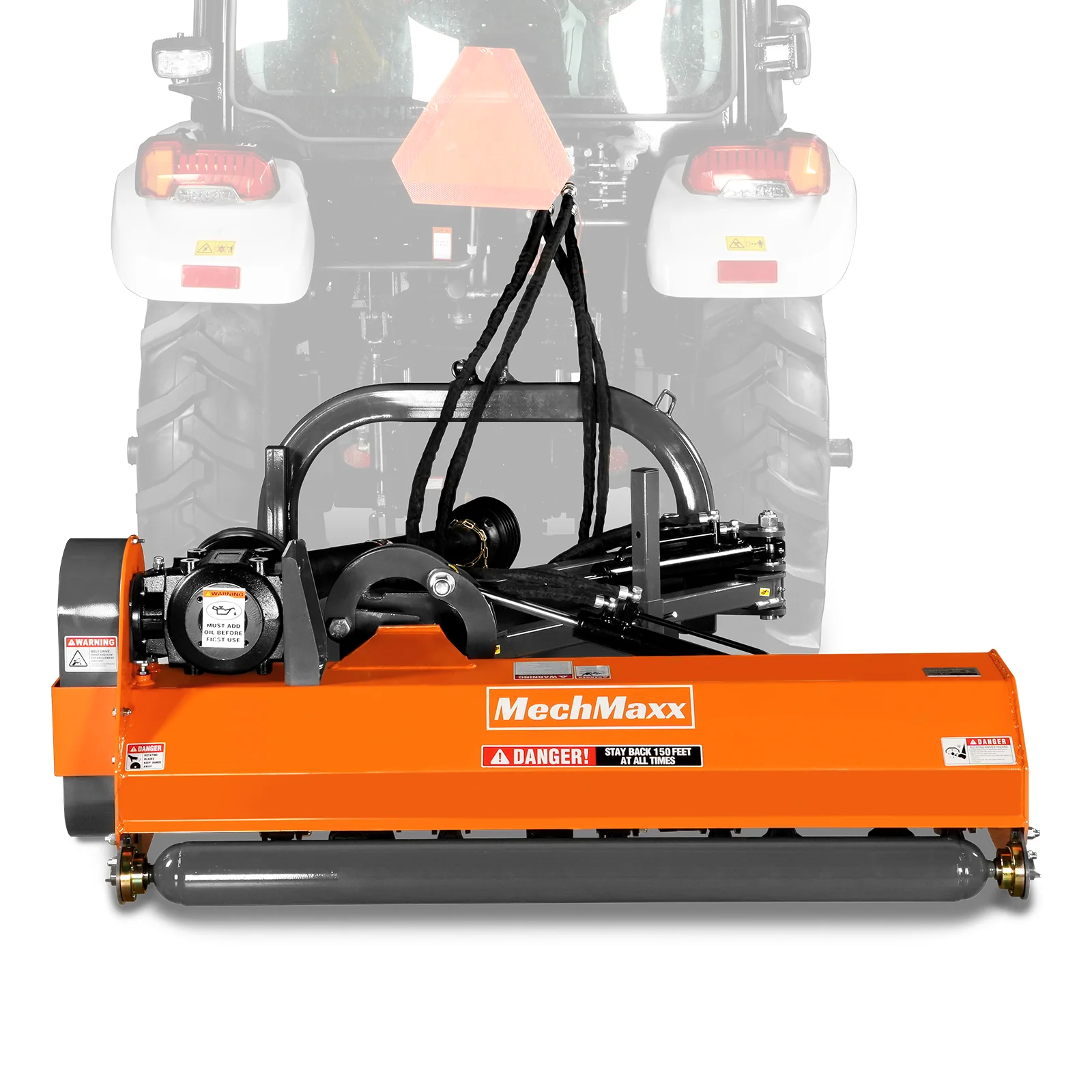

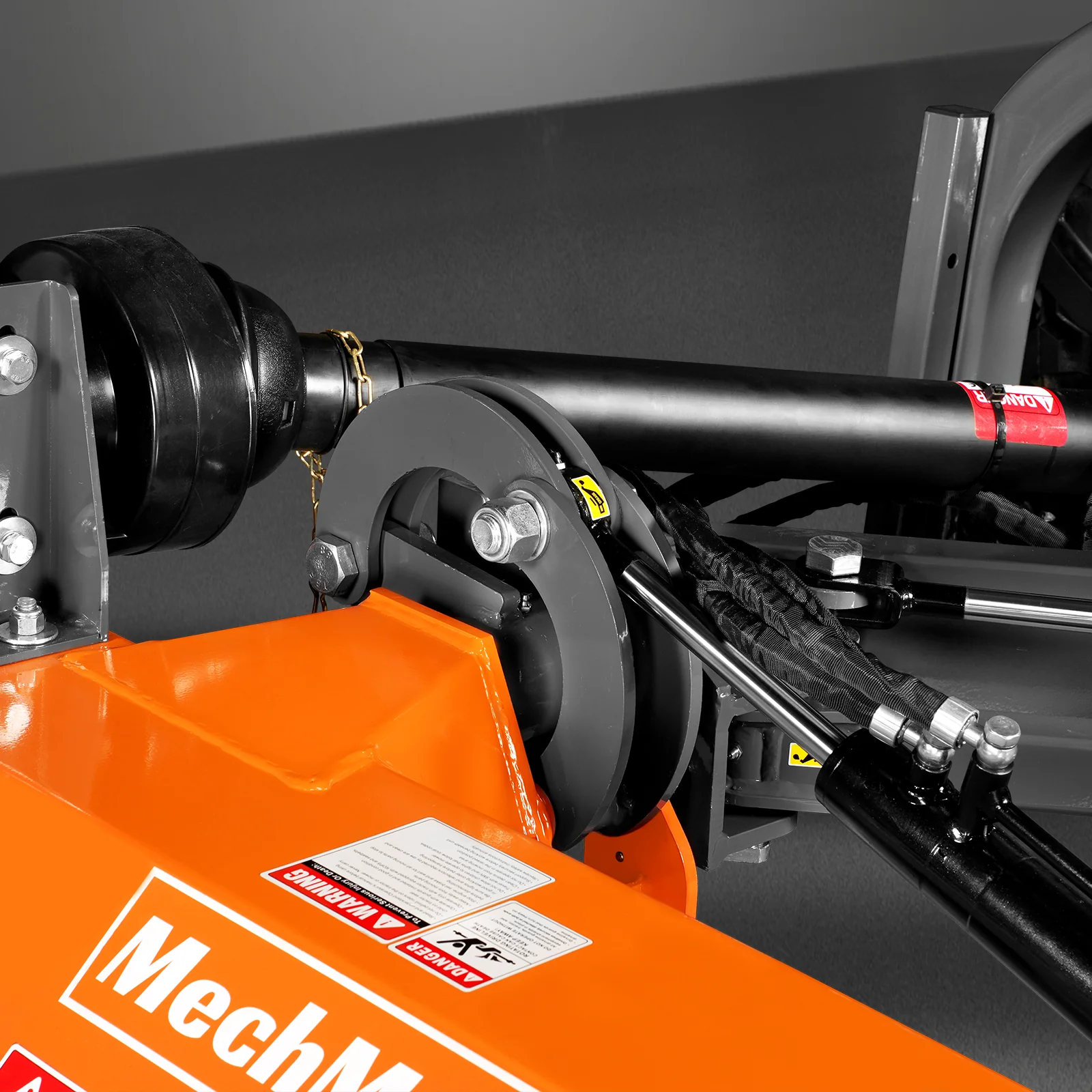

60" Standard 3Point Offset Flail Ditch Bank Mower, 25-60HP, VAM60
| Engine Power Required | 25-60 hp | Rotor Shaft Speed | 2356 rpm |
| Working Width | 60in | Hydraulic Fittings Size | G1/2 in |
| Overall Width | 64in | Hydraulic Hoses Quantity | 4 |
| Ground Clearance (Two Gears) | 0.5-0.6in | Drive Type | Belt Drive |
| Max. Cutting Diameter |
Depends On The Type Of Grass |
Spline End | 1.375in Z6 |

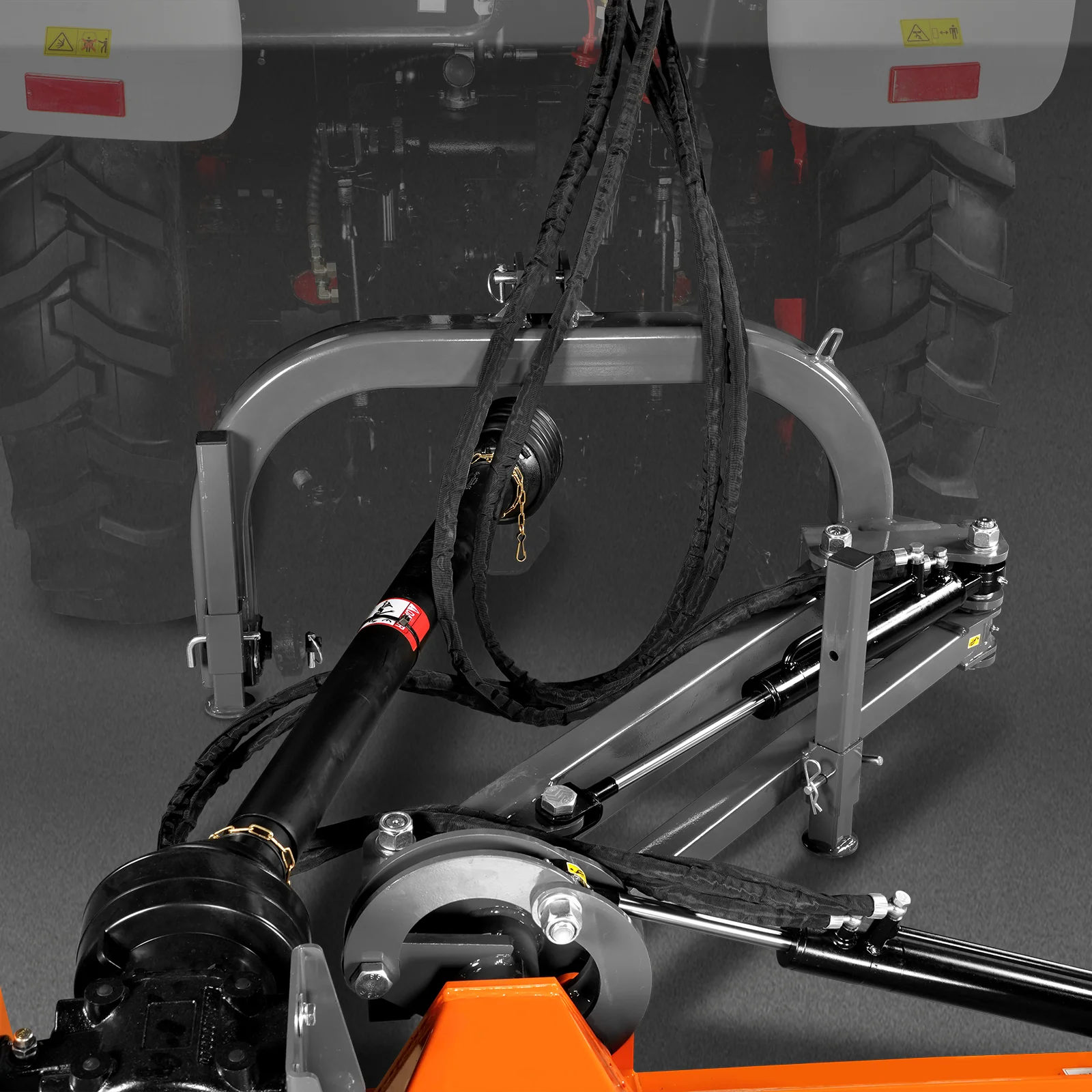

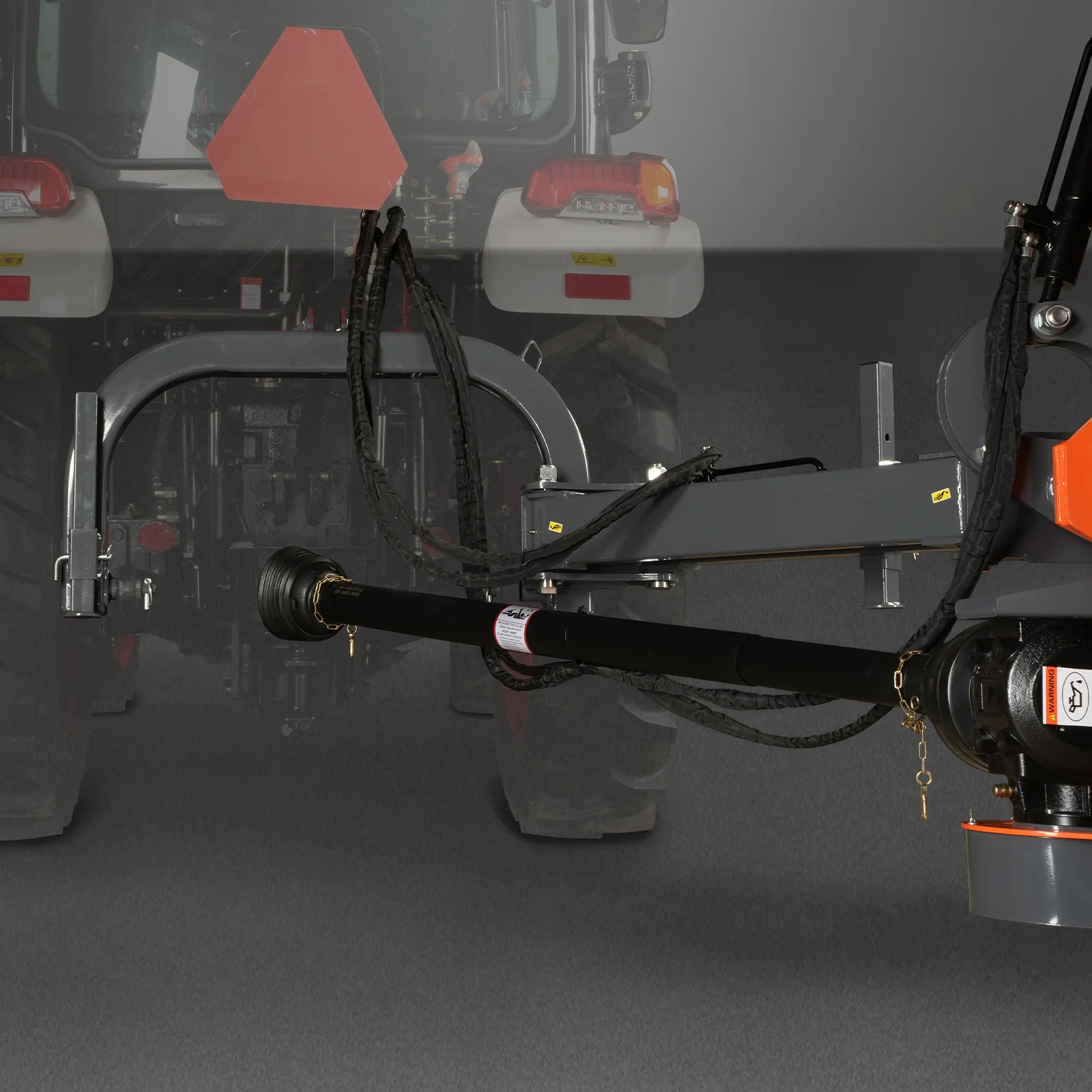

| Offset Distance from The Center (Maximum) | 77in | Driveline Shaft Length | T6-LF-63 With Shear Bolt ; 63in-77in [05B-1600] |

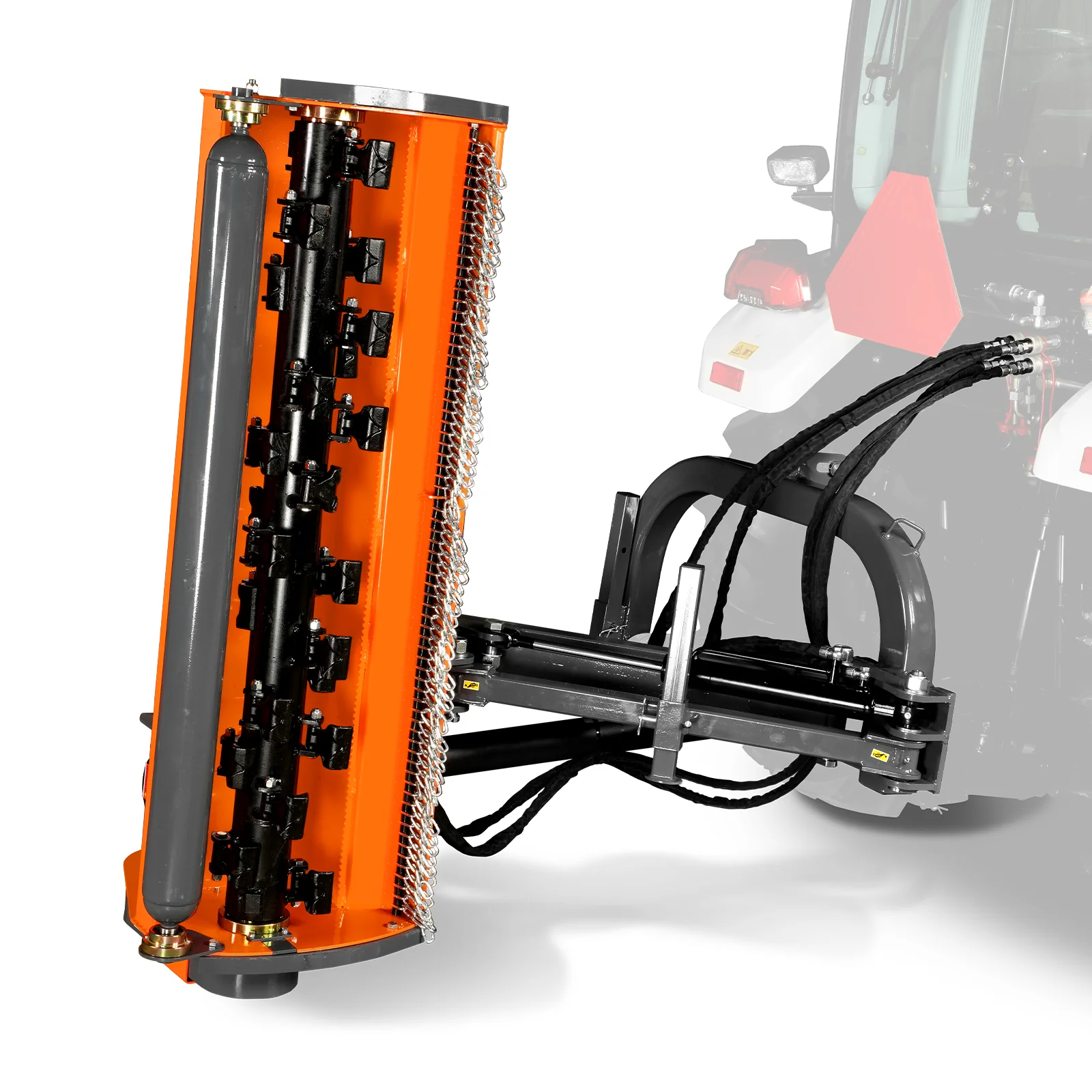

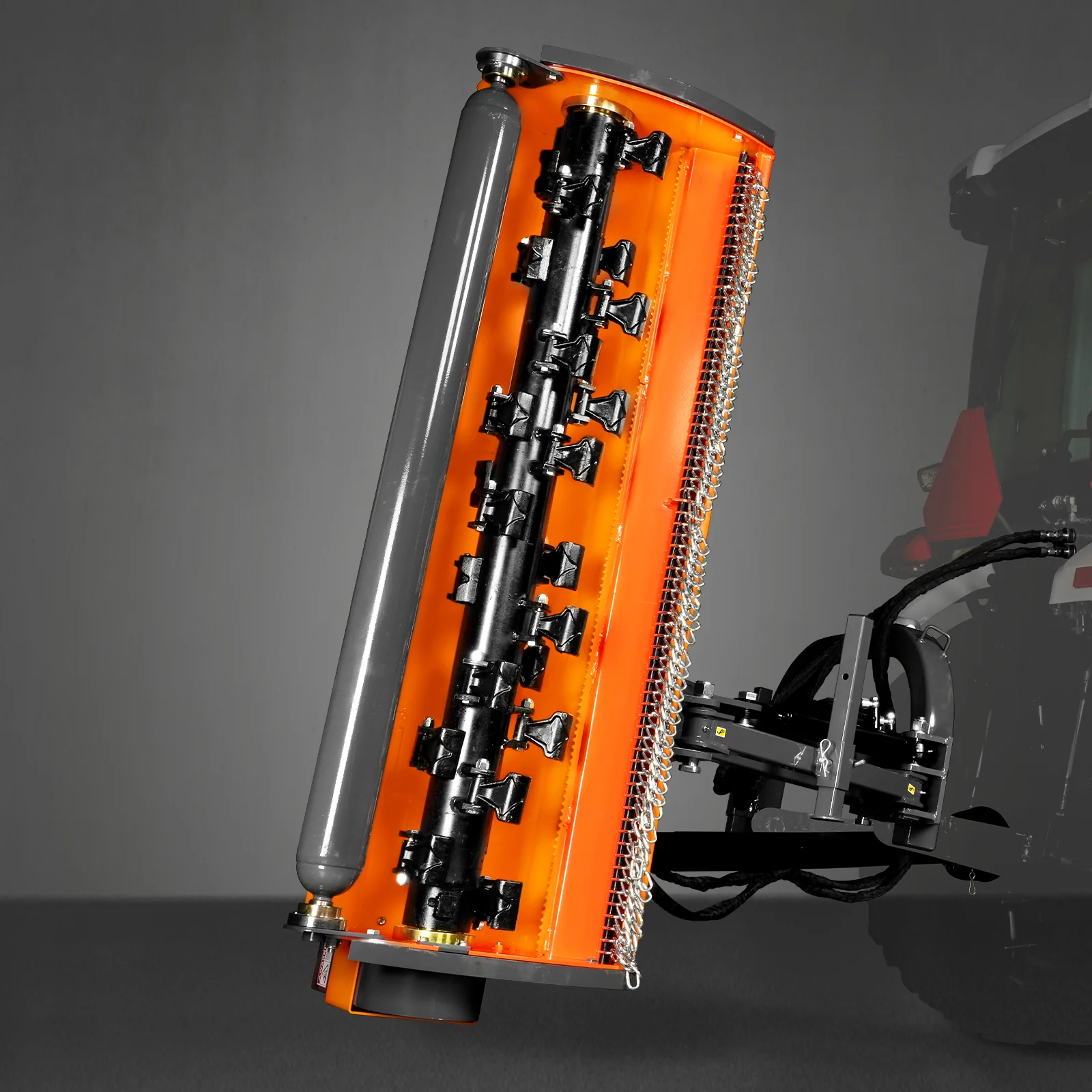

| Tilt-Up Angle | 90° | PTO Shaft Speed | 540 rpm |
| Tilt-Down Angle | 60° | 3-Point Hitch | CAT 1 |

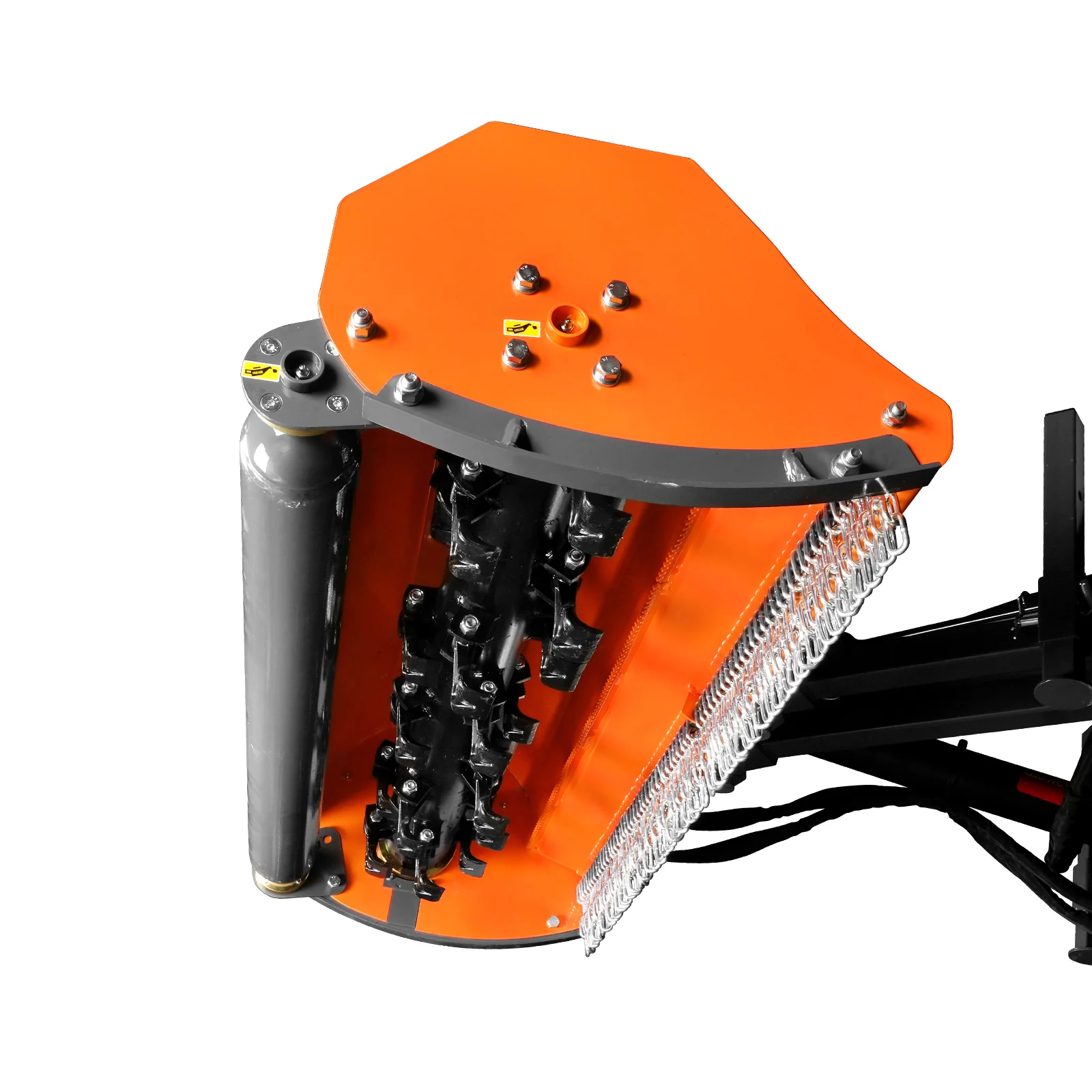

| Number Of Blades | 24 | Deck Thickness | 0.16in |
| Blade Type | Hammer | Side Plate Thickness | 0.25in |
| Size of Blades | 3.5 x 3.2 x 1.6in | Number of Belts | 3 |
| Blade Weight | 0.9 lbs | Belt Size | V Belt 17x991 |
| Blade （Tines）Material | Cast Steel | Gearbox 0il Type | 85W-90 |
| Rotor Bearing | SKF Bearing | Dimensions (L x W x H) | 64 x 27.5 x 28in |
| Rotor Diameter | 4.3in | Finsh | Powder Coating |
| Blade Swing Diameter | 14in | Warranty | 1 Year |
| Rotor Thickness | 0.3in | Weight (N.W./G.W.) | 657/772 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Original: $2,699.00
-70%$2,699.00
$809.70More Images
