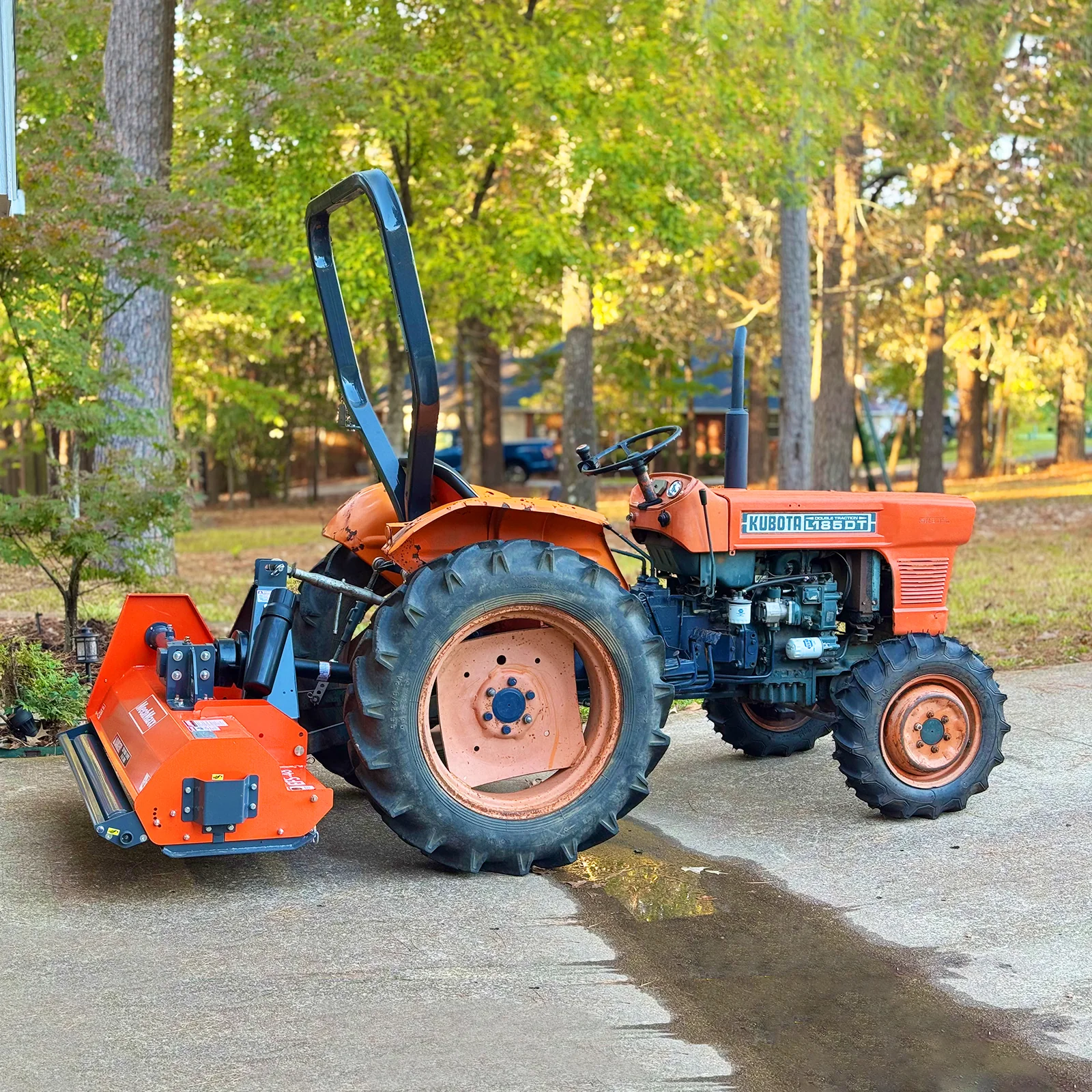

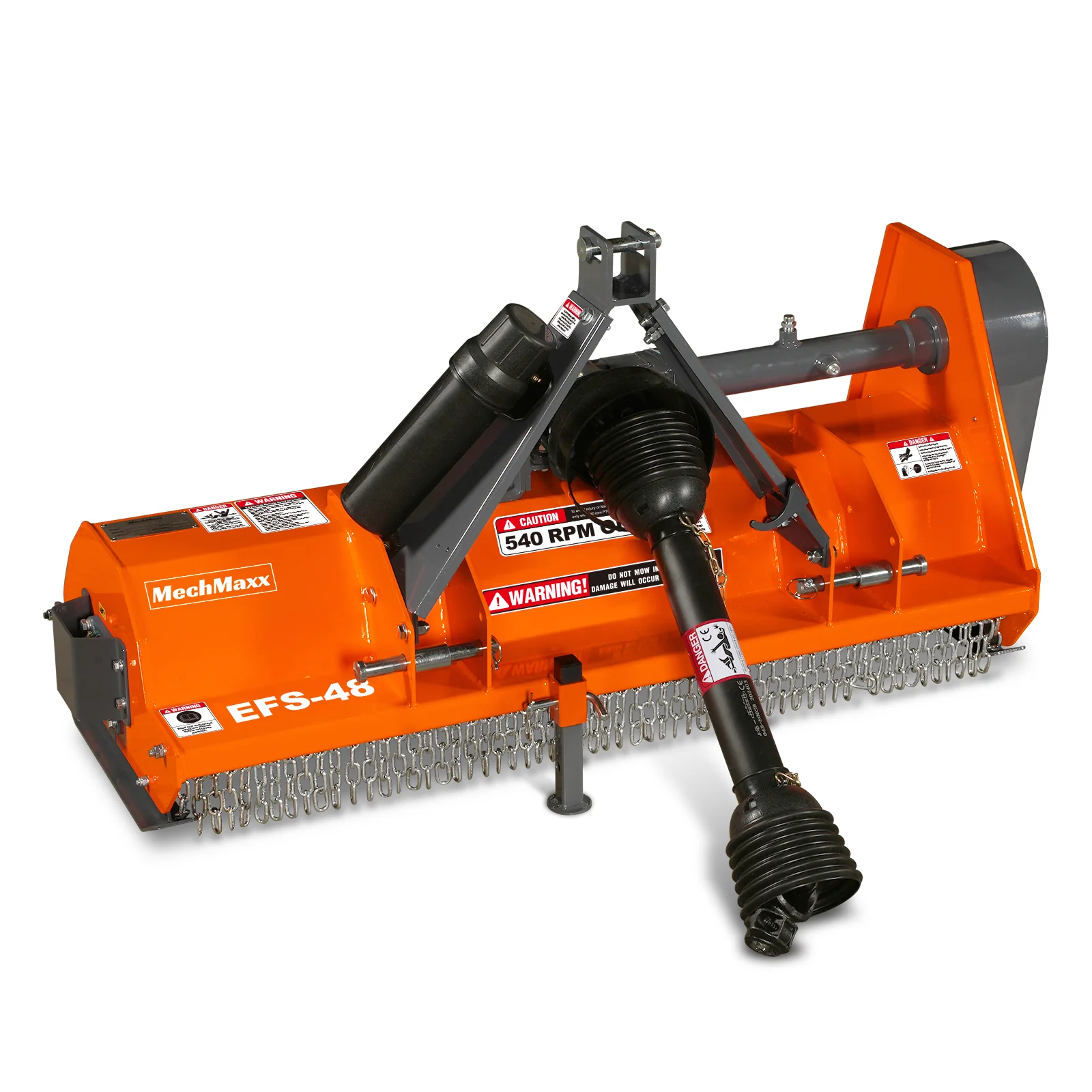

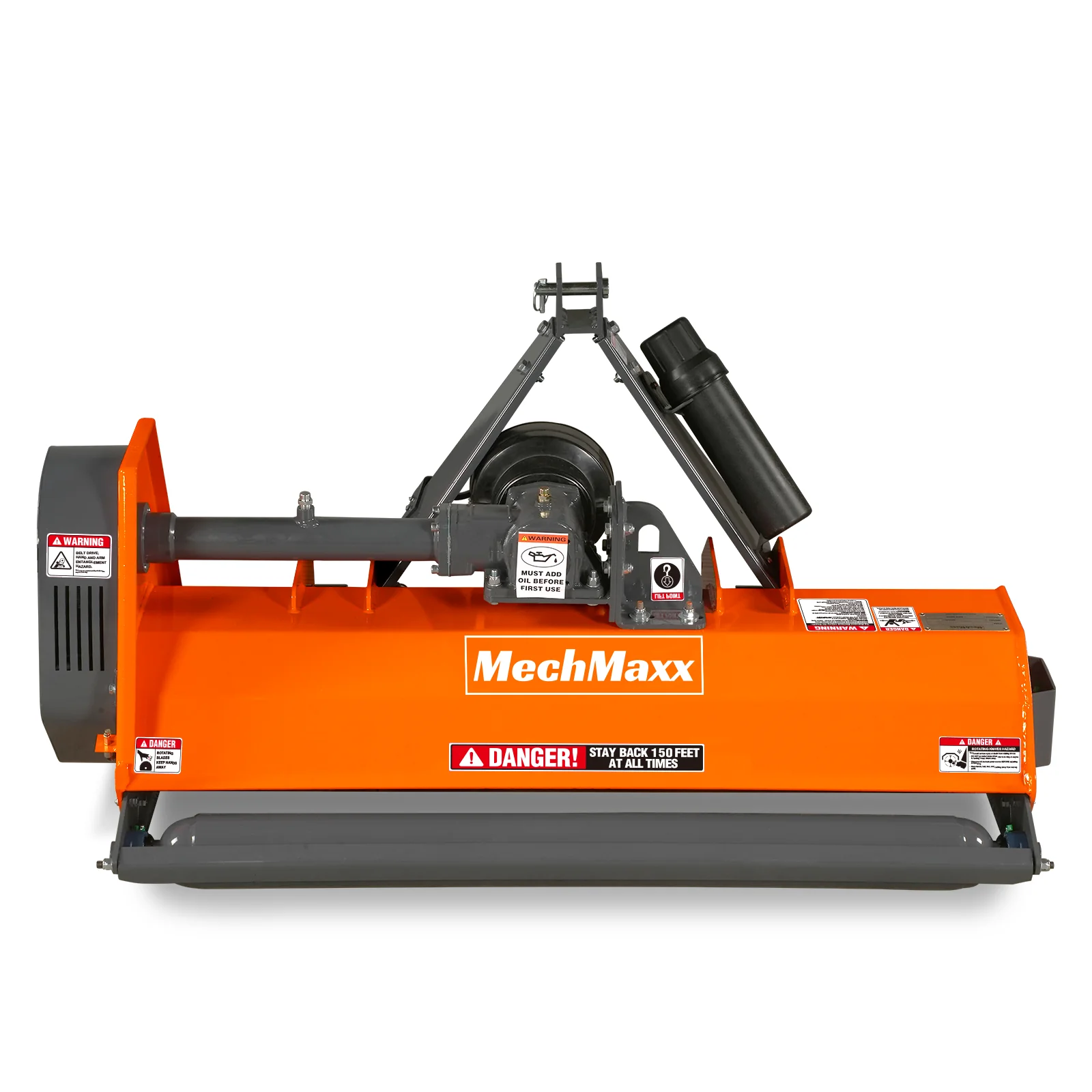

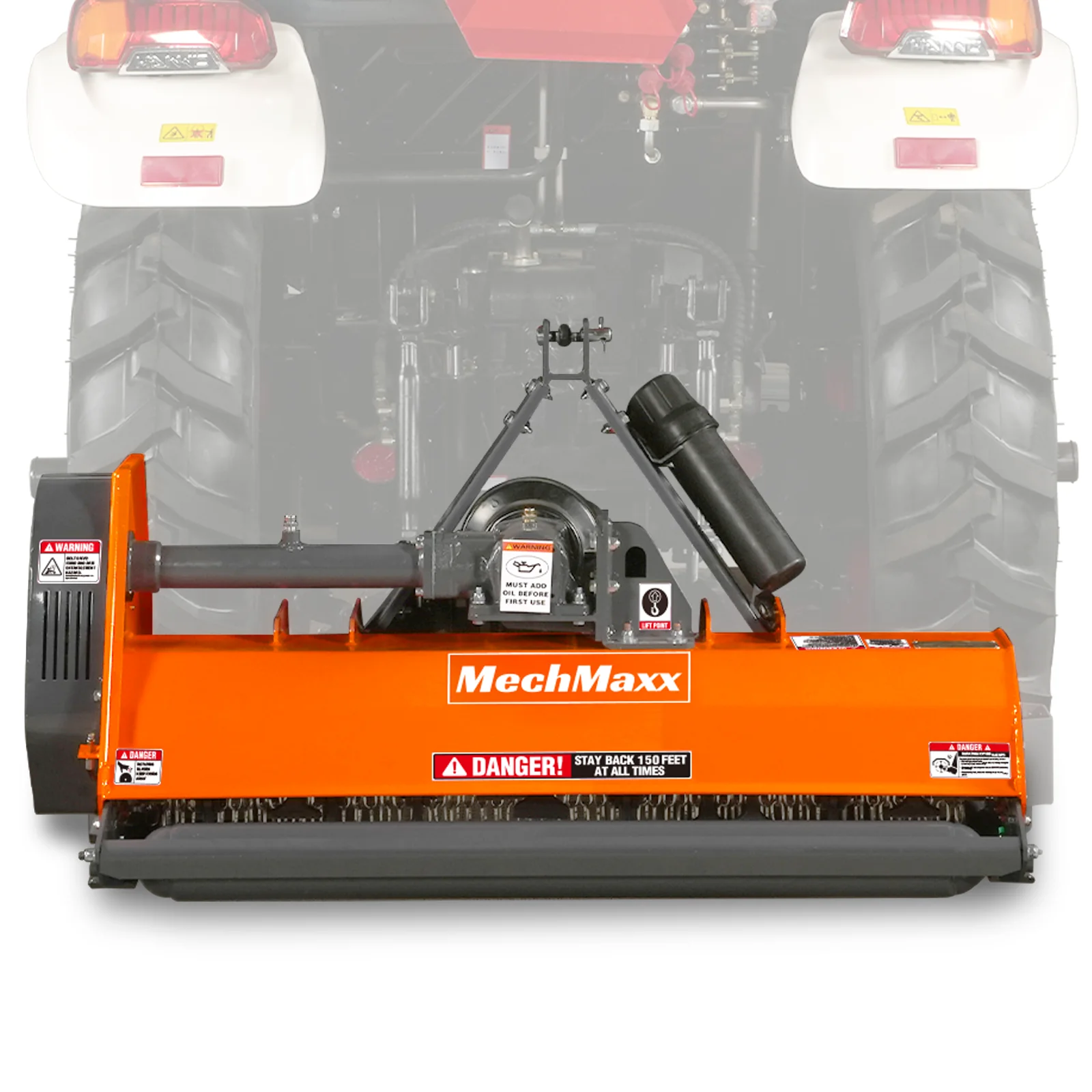

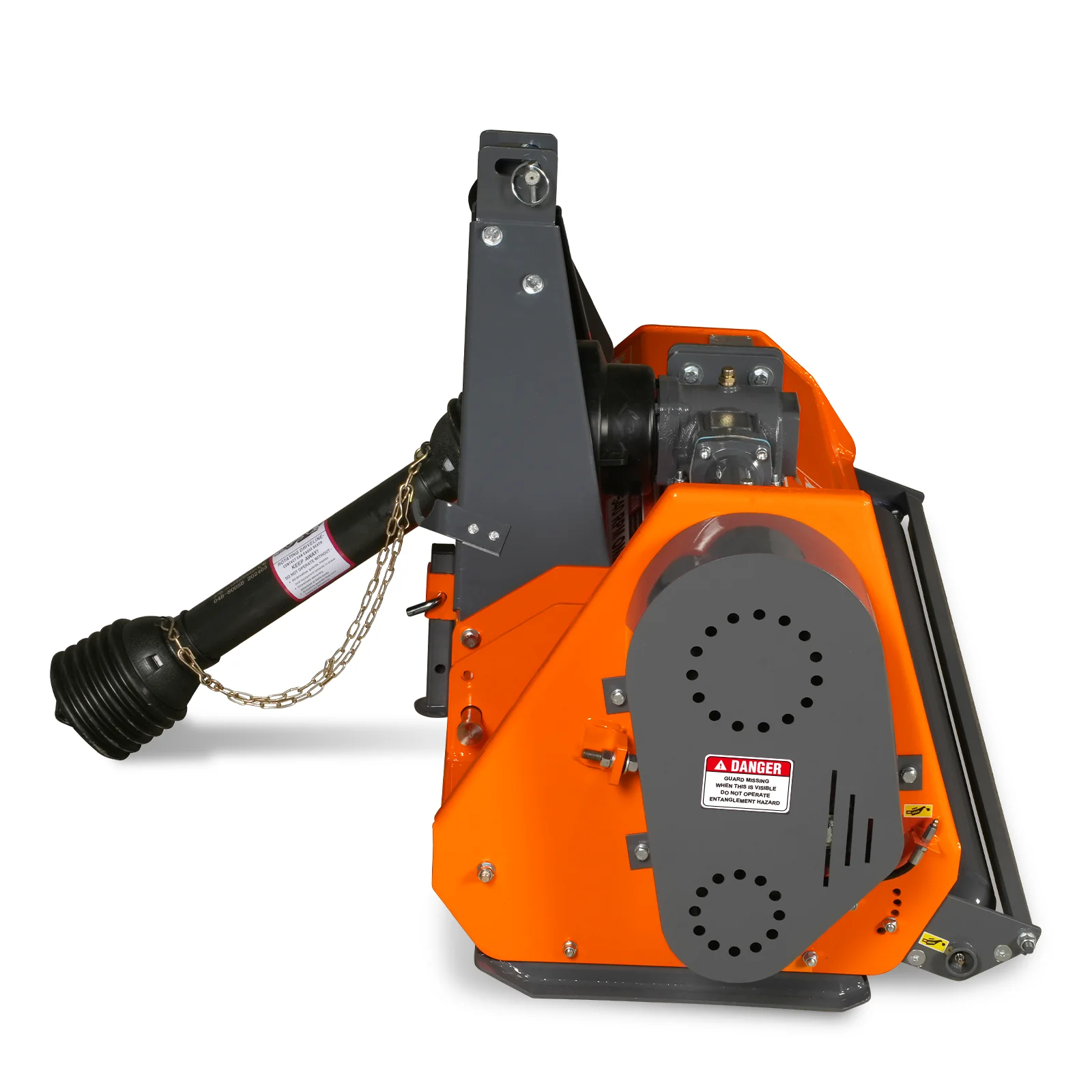

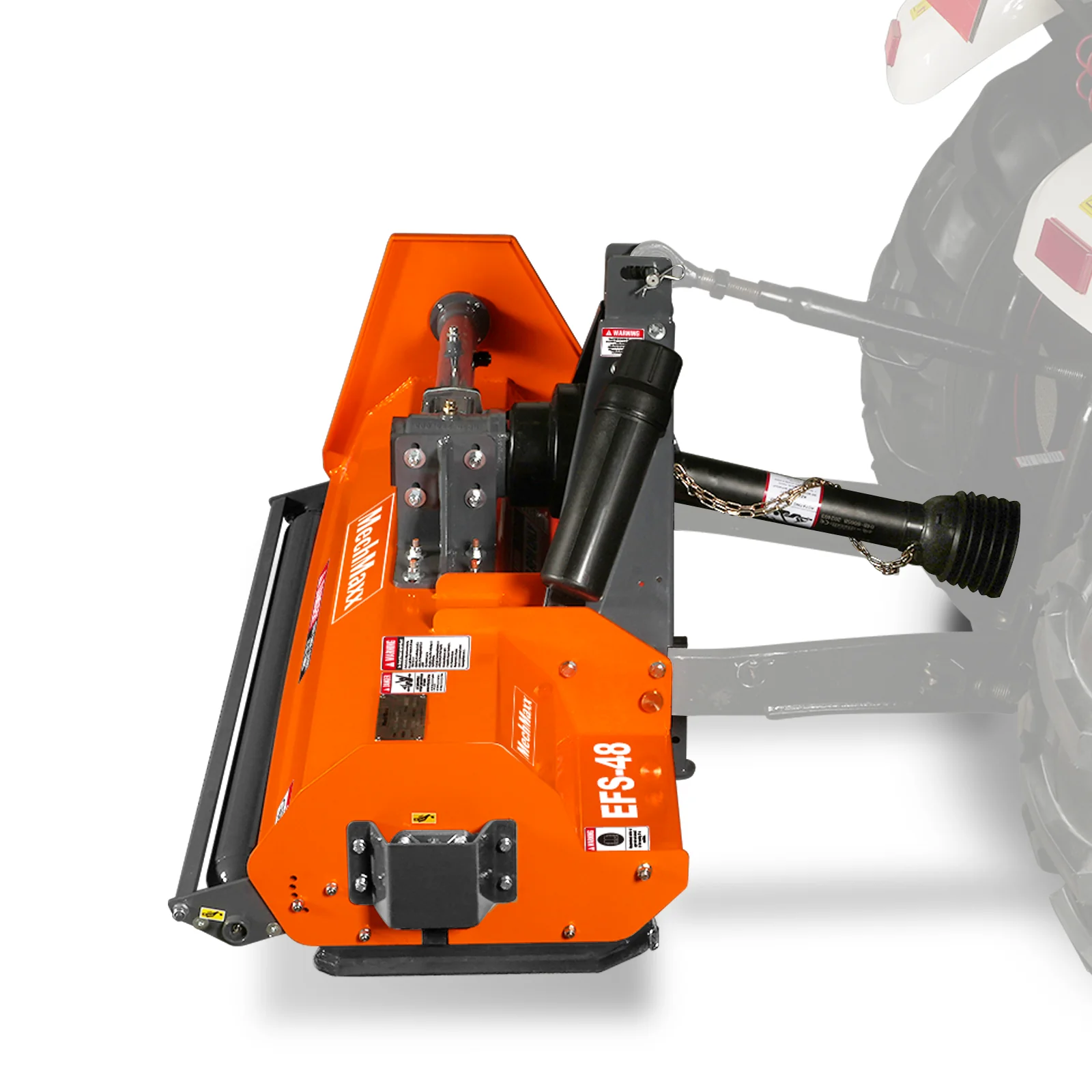

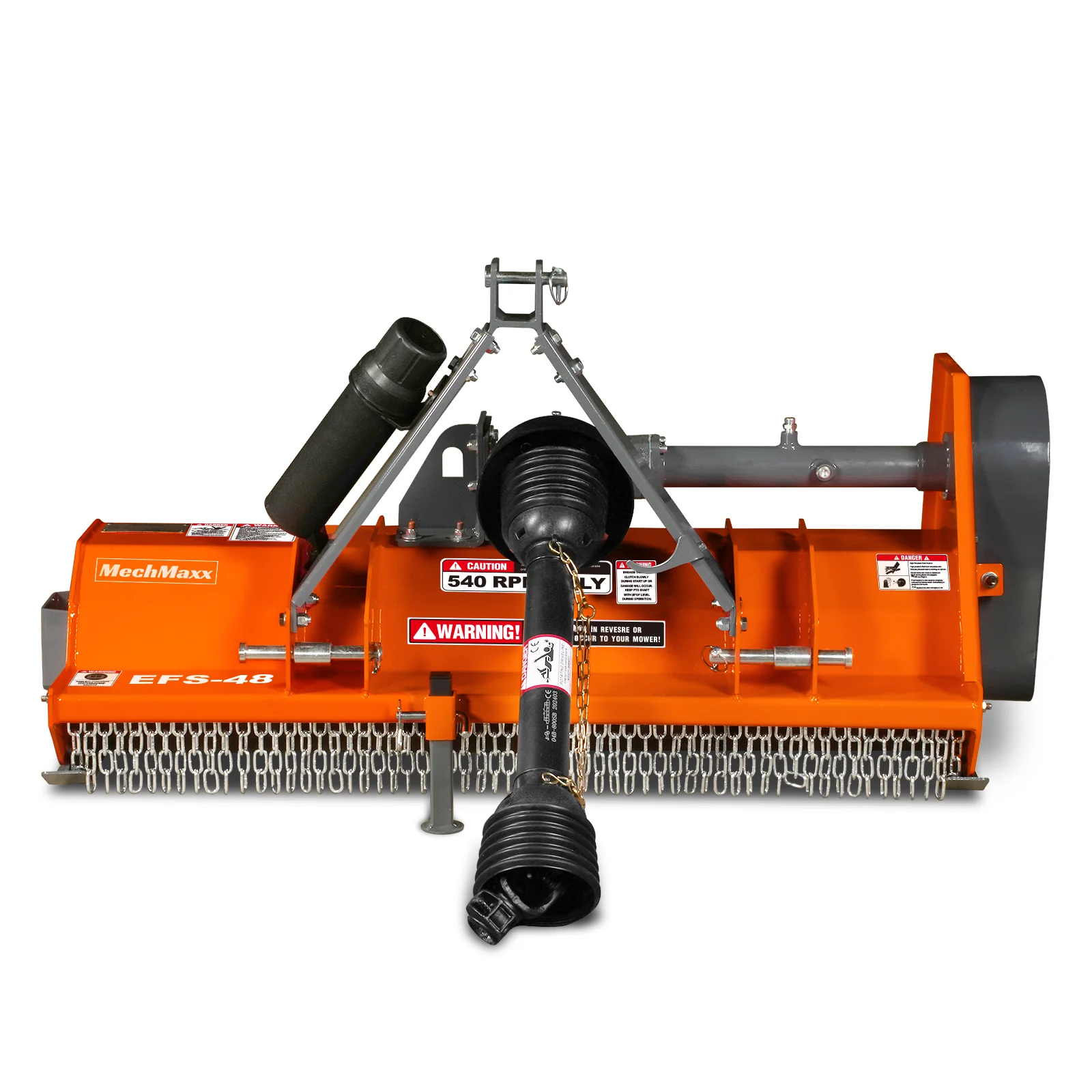

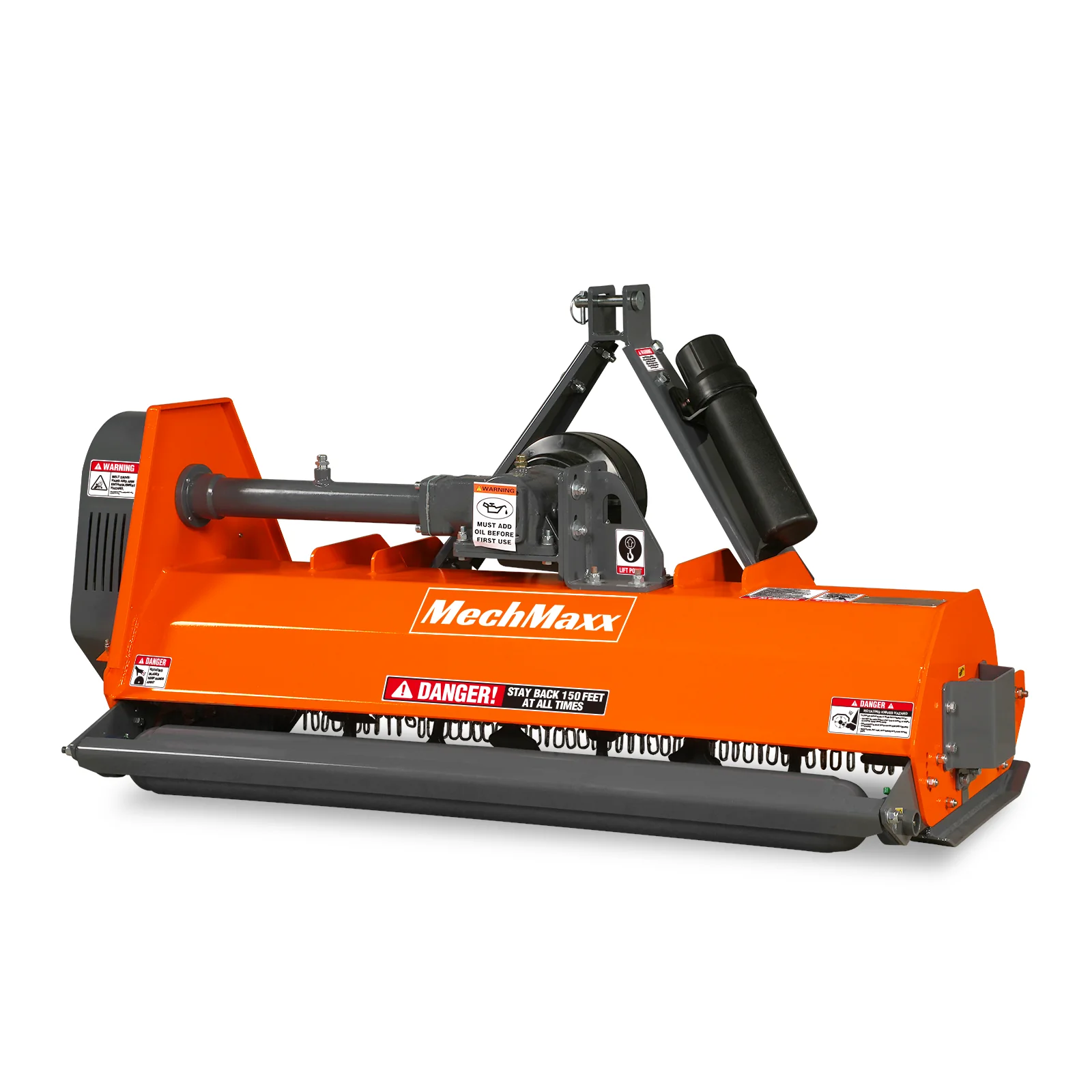

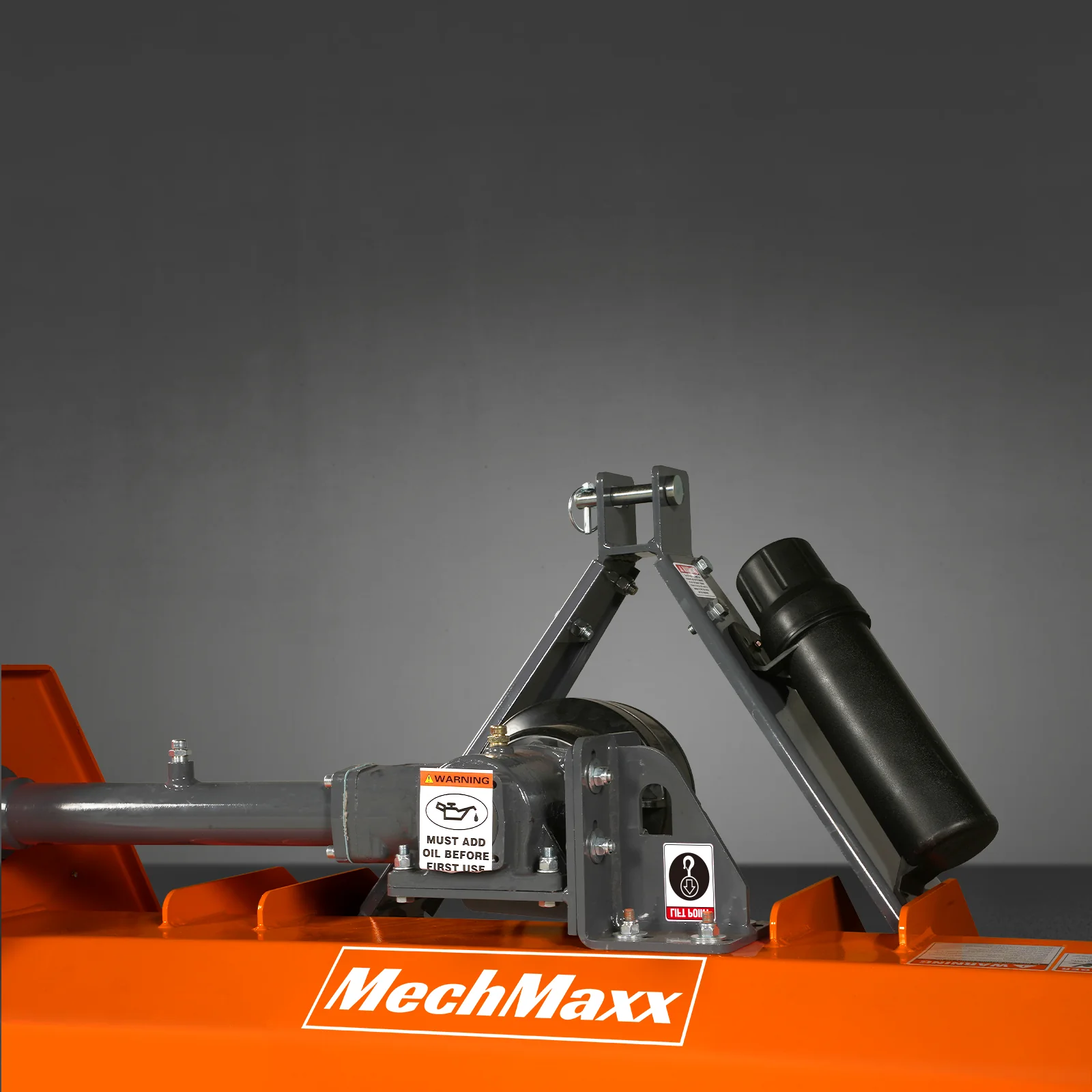

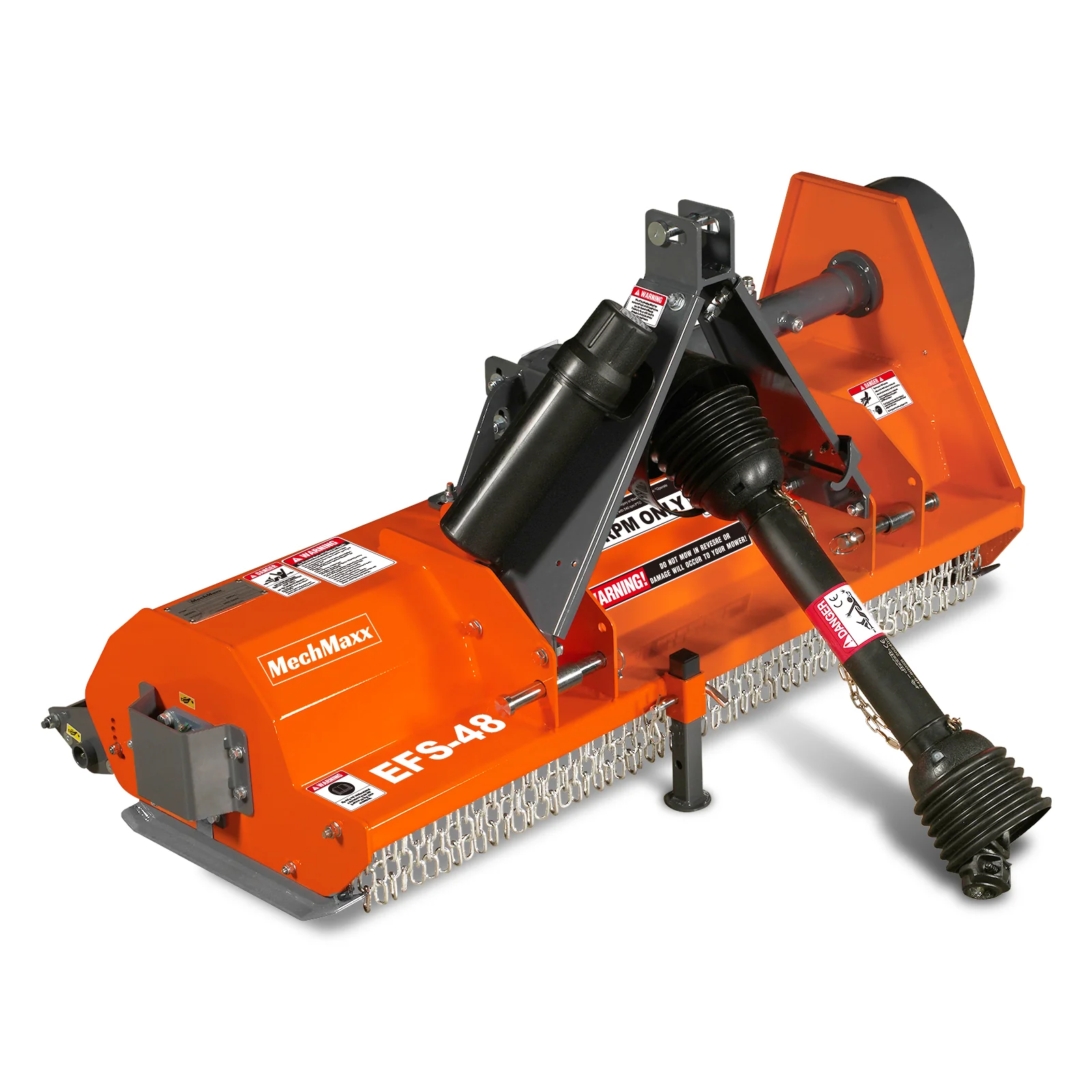

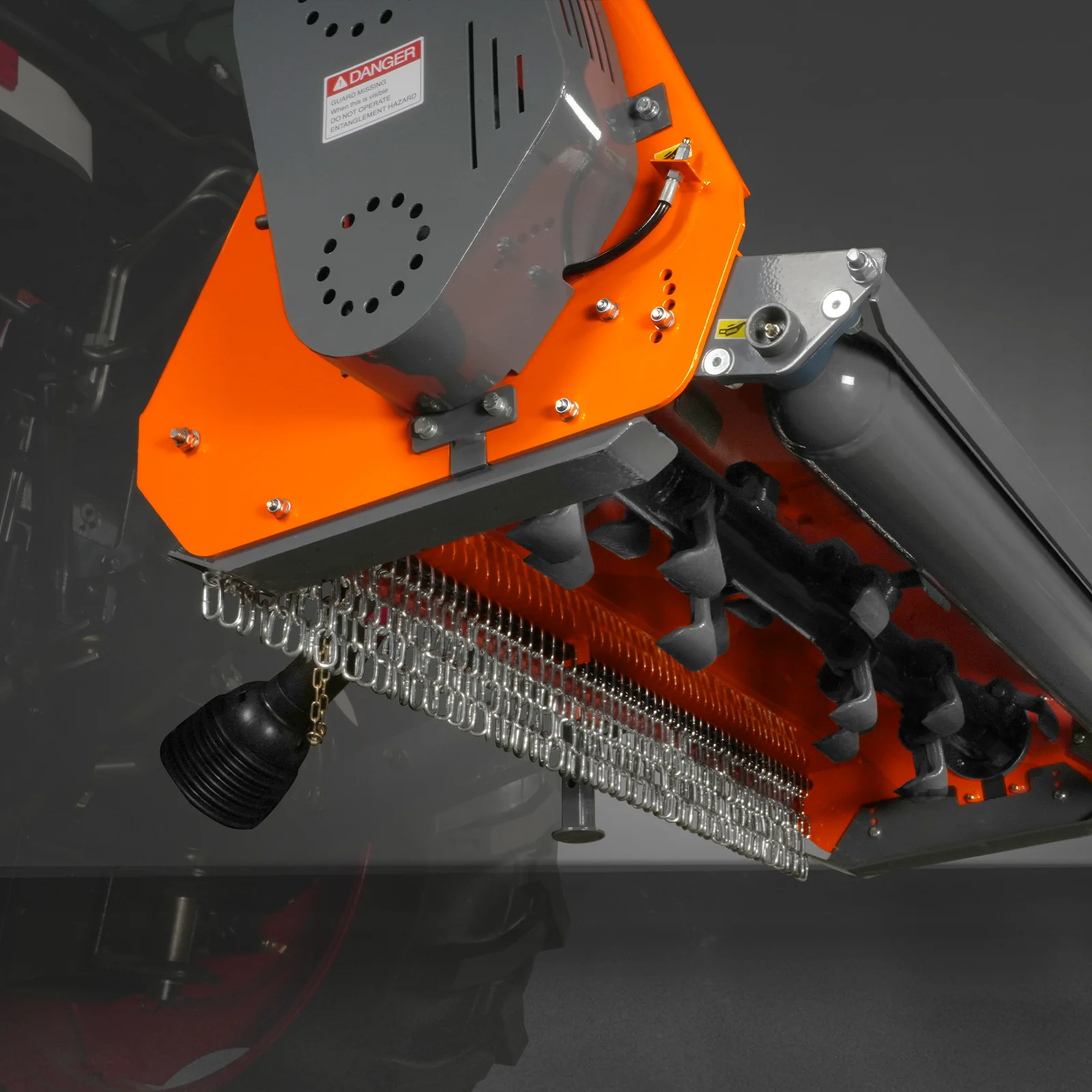

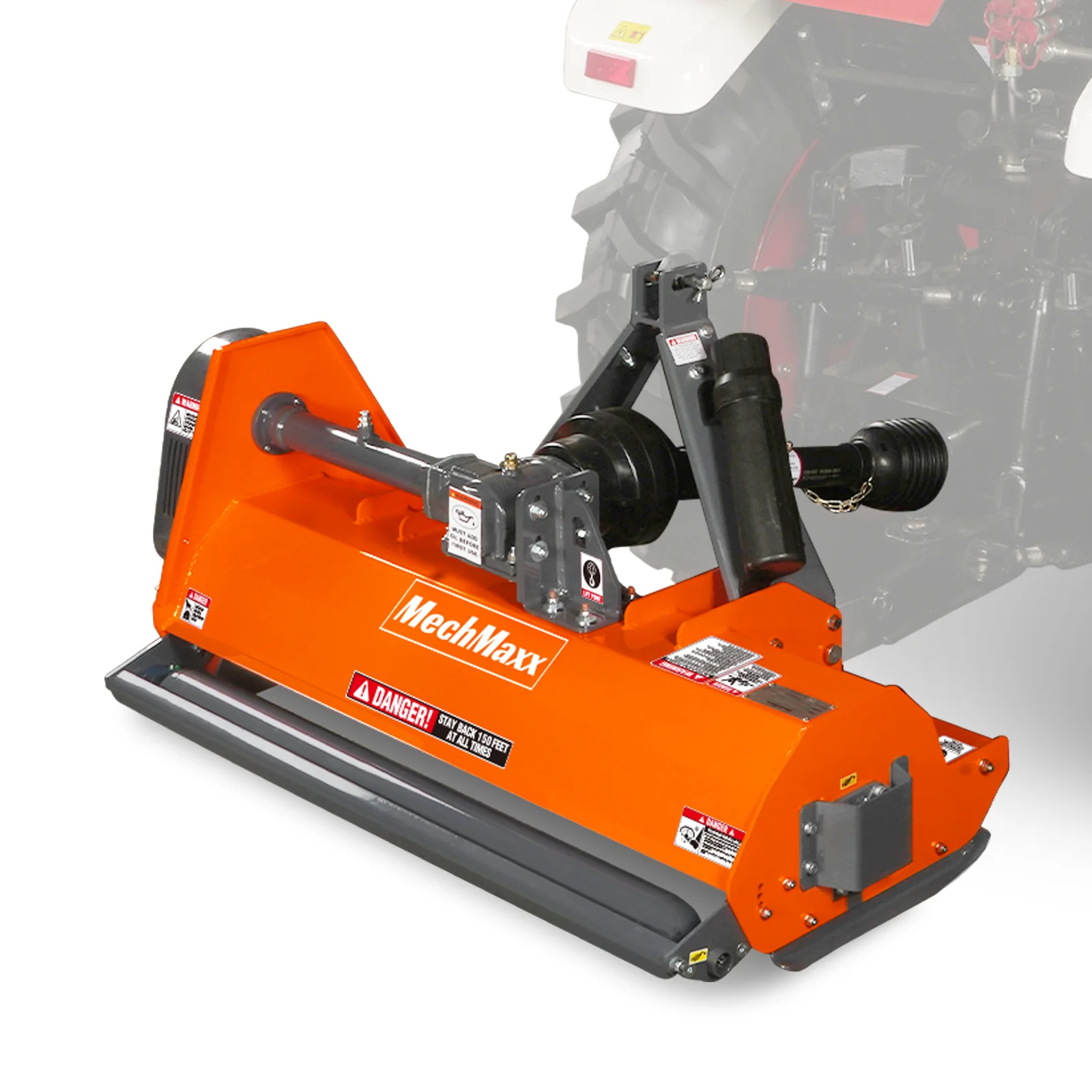

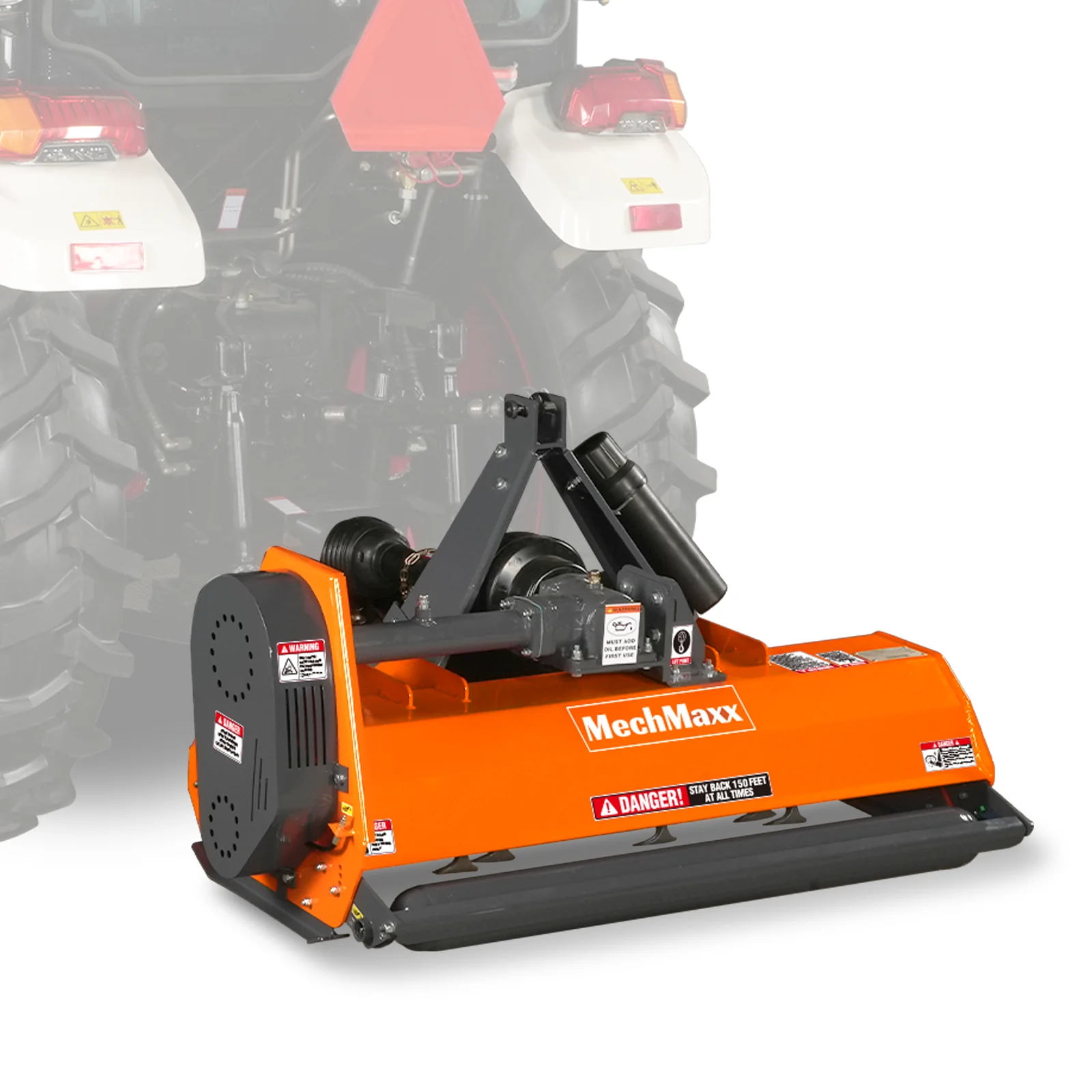

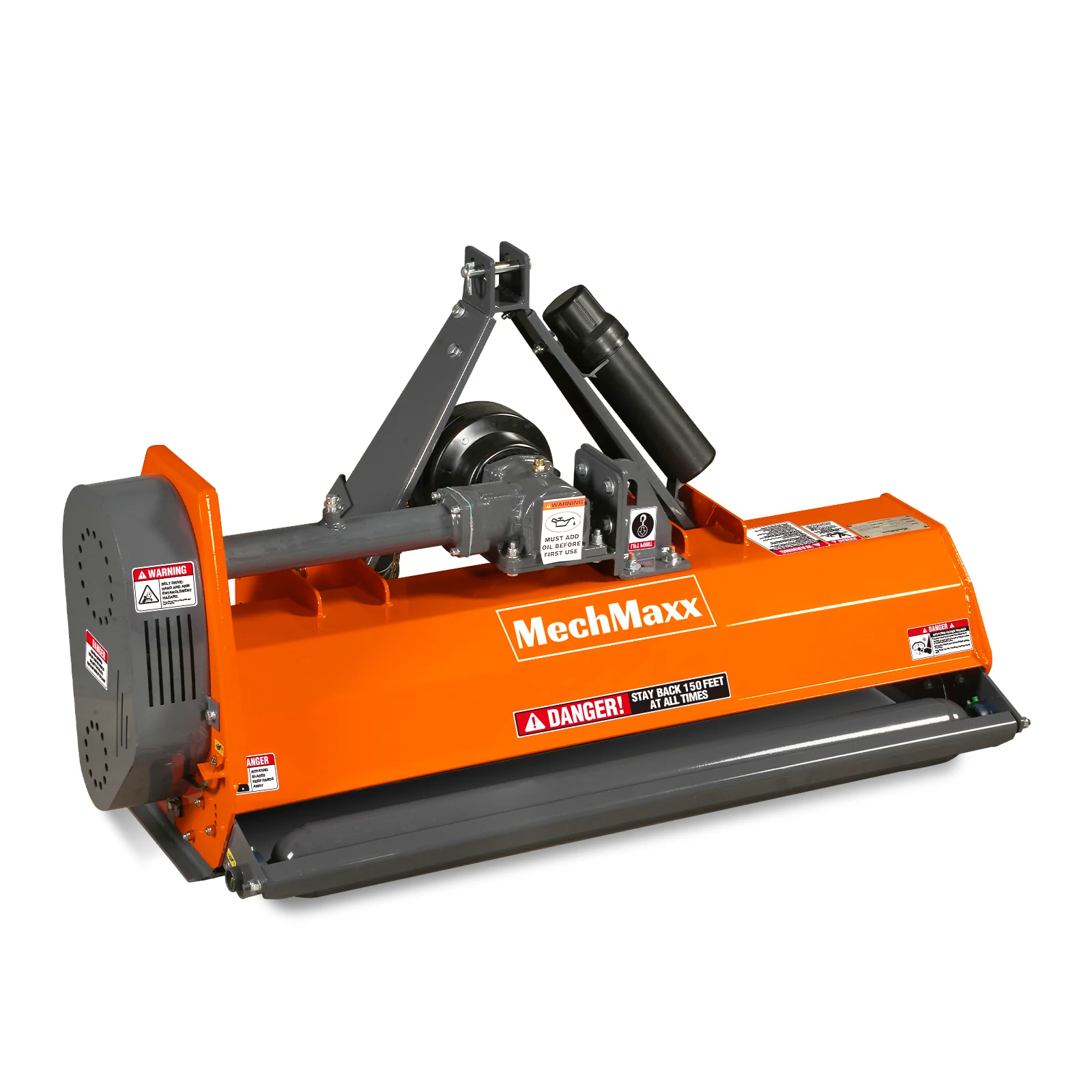

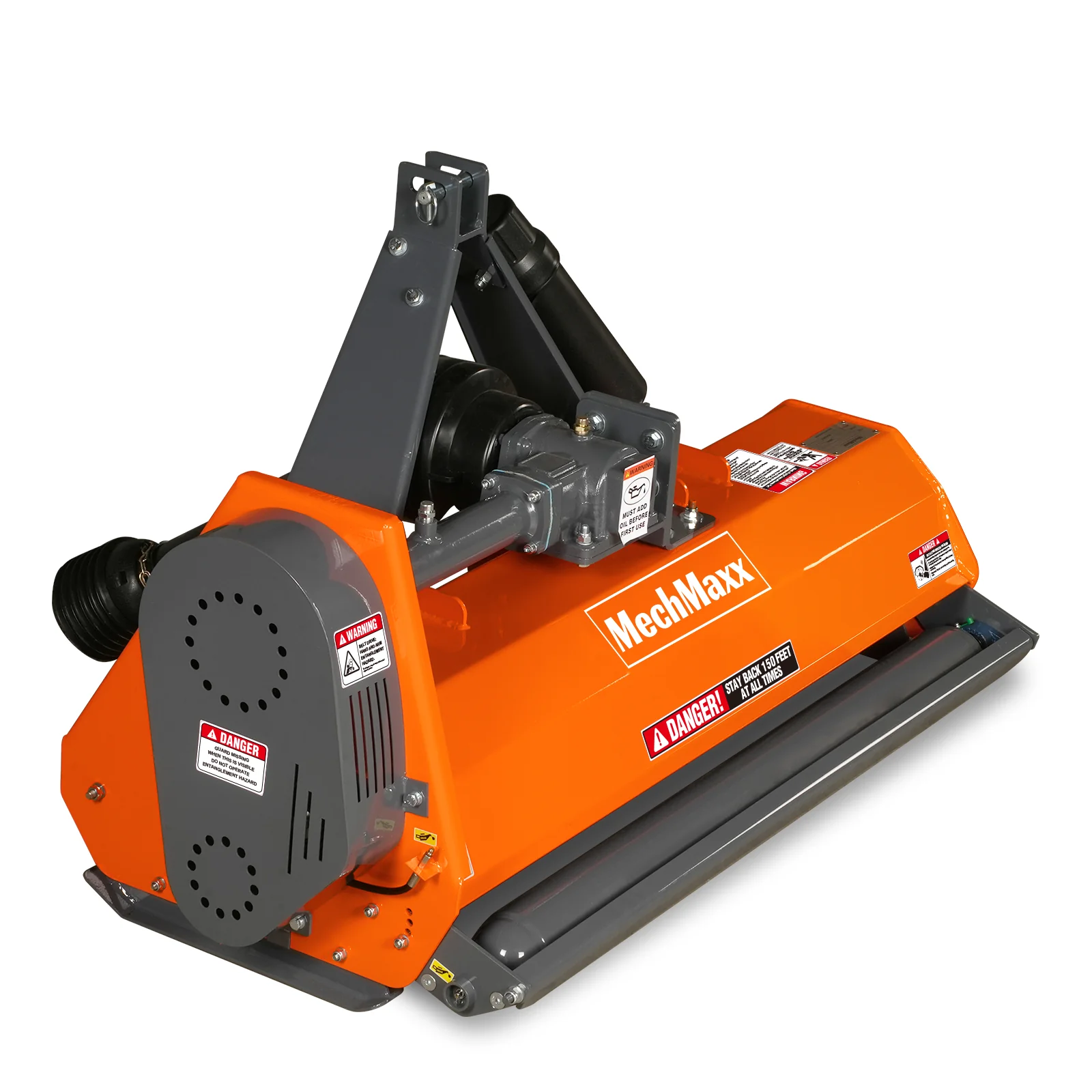

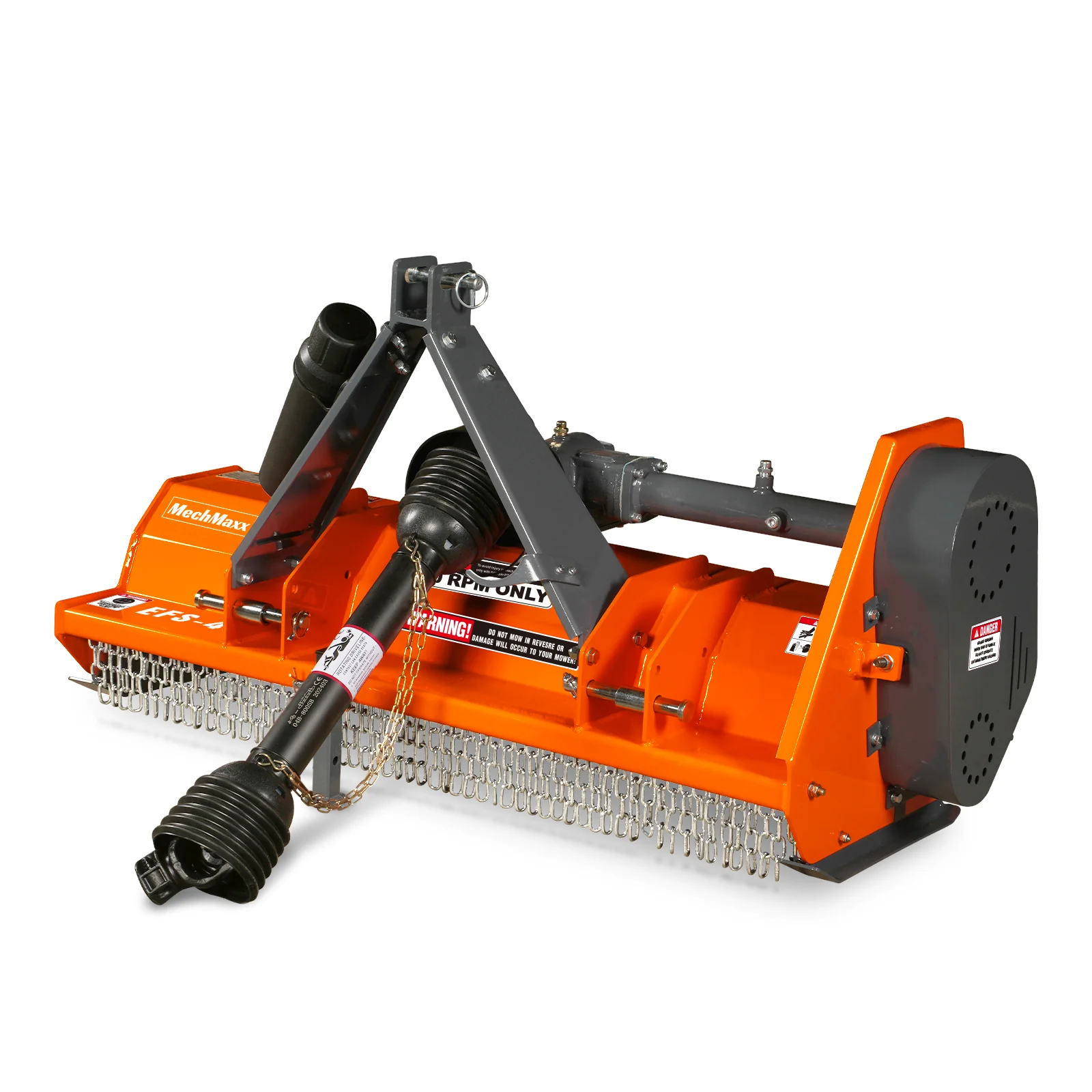

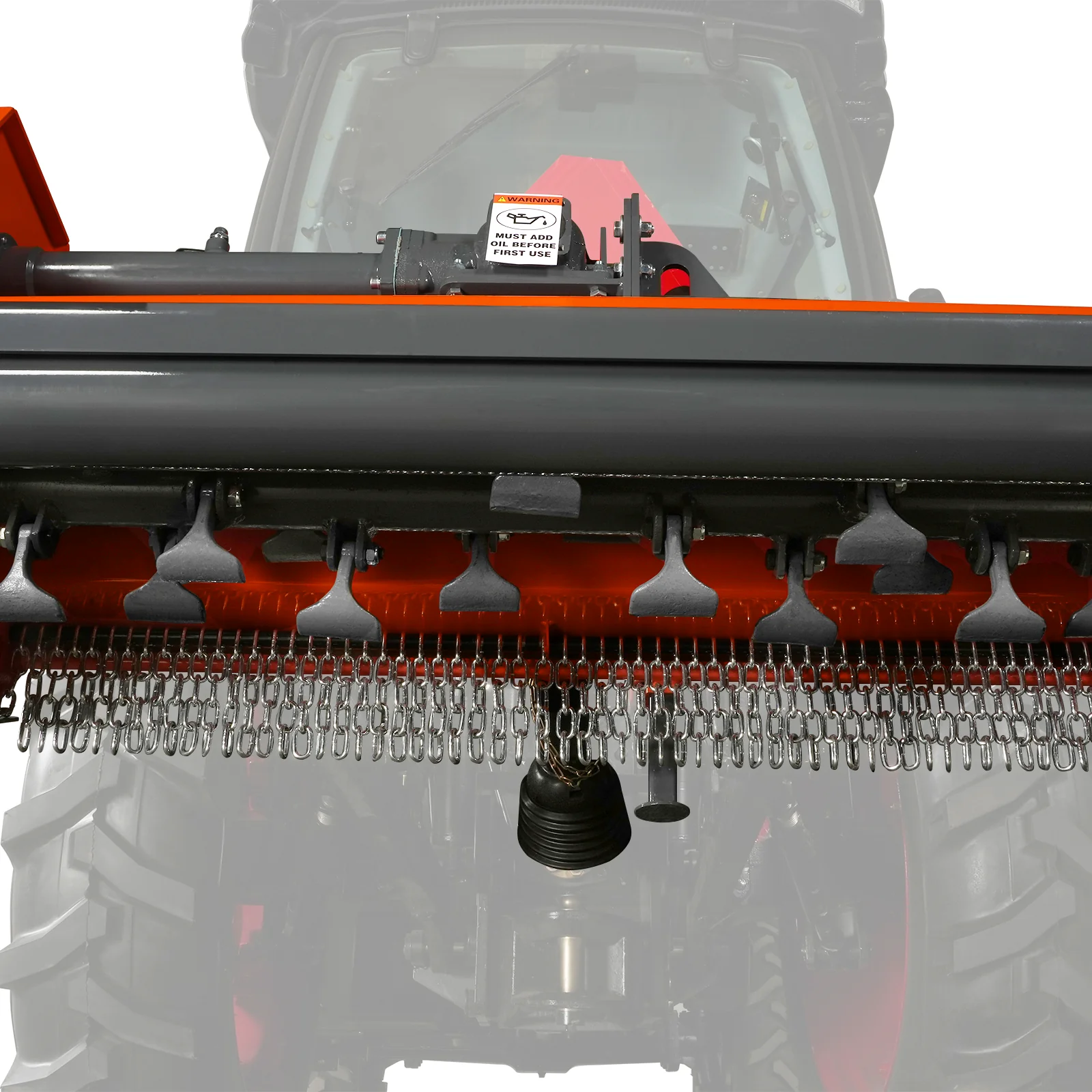

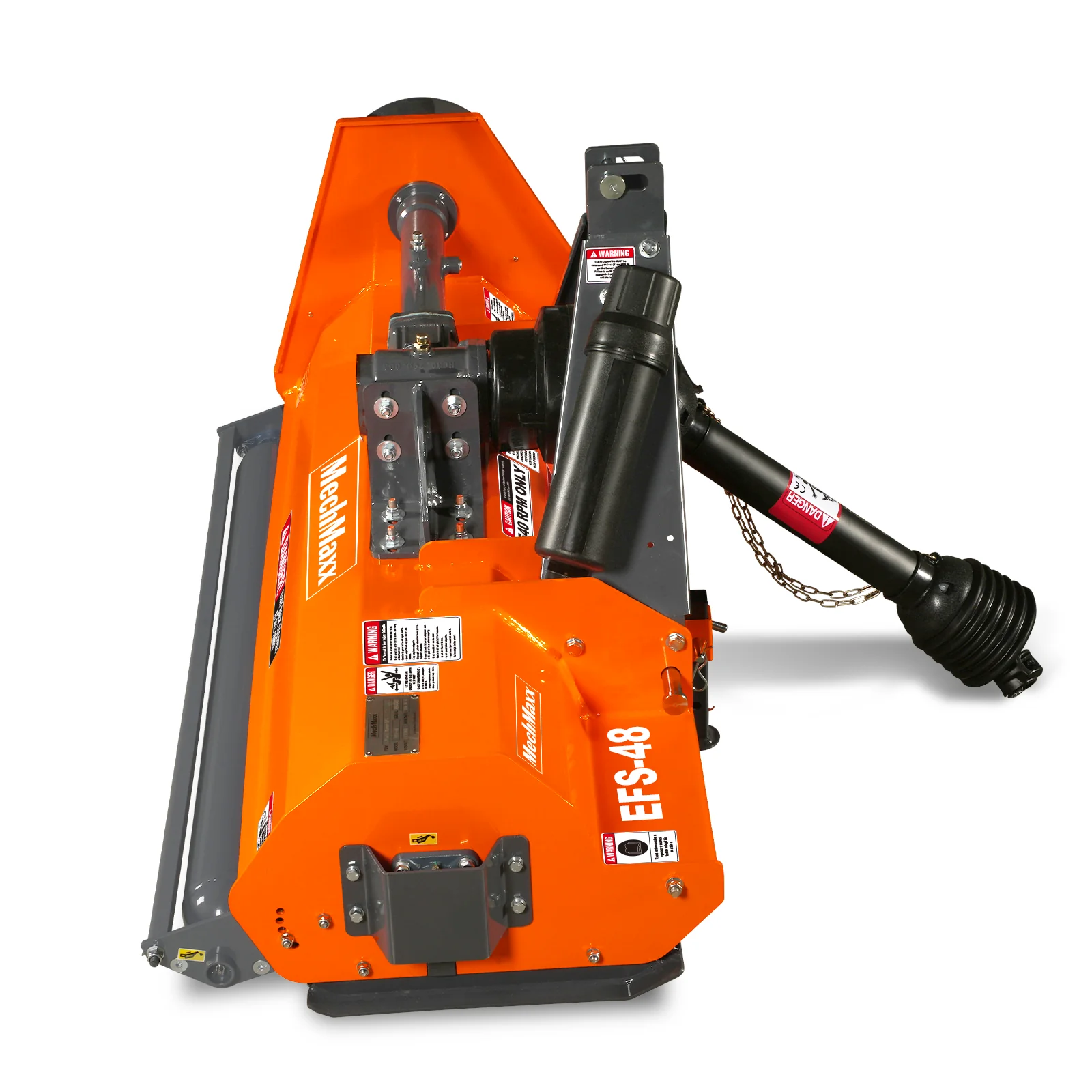

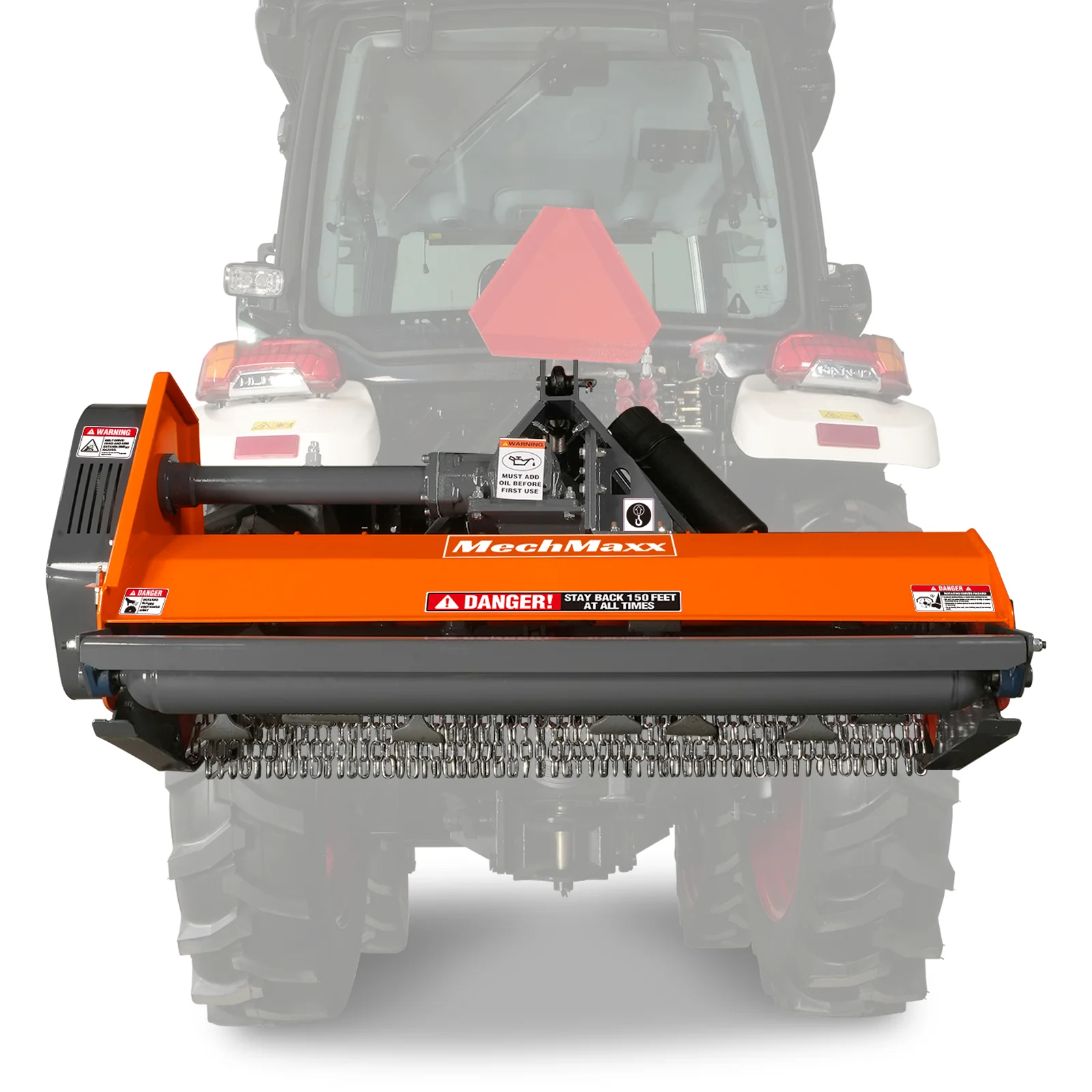

48'' Light-duty Flail Mower 3 Point 15-35HP , PTO Driven, EFS48
| Engine Power Required | 15-35HP | Drive Type | Belt drive |
| Working Width | 48in | Number Of Belts | 3 |
| Overall Width | 56in | Belt Size | V Belt 13X1041 |
| Blade Ground Clearance | 0.6in-1.8in | Drive Belt Tensioner | yes |
| Max. Cutting Diameter |
Depends On The Type Of Grass |
Deck Material | 0.16in |
| Number Of Blades | 20 | Side Plate Material | 0.24in |
| Blade Type | Hammer | PTO Shaft RPM | 540 RPM |
| Size Of Blades | 3.5 X 3 X 1.6in | Driveline Shaft Length | T5-LF-31 with shear bolt ；31in- 43in |
| Blade Weight | 0.8lbs | Spline End | 1.375in z6 |
| Blade （Tines）Material | Cast Steel | 3-Point Hitch | CAT 1 |
| Rotor Bearing | SKF bearing | Gearbox Oil Type | 85W-90 |
| Rotor Diameter | 3in | Dimensions (L x W x H) | 57 X 30 X 28in |
| Rotor Swing Diameter | 11in | Finish | Powder Coating |
| Rotor Thickness | 0.3in | Warranty | 1 year |
| Rotor Shaft Speed | 2958 rpm | Weight (N.W./G.W.) | 379/470 lbs |
| Blade Speed | 142 ft/s |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
