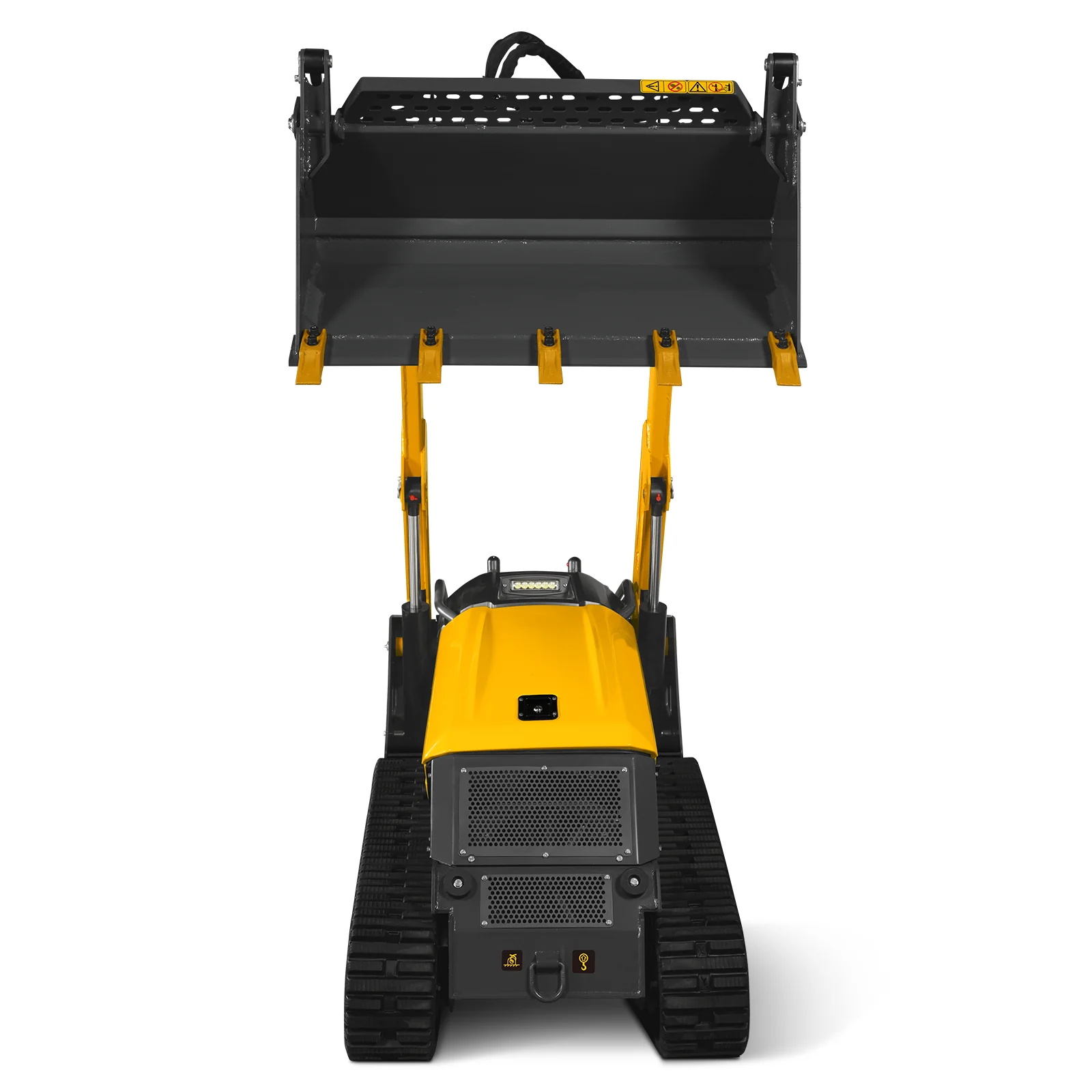

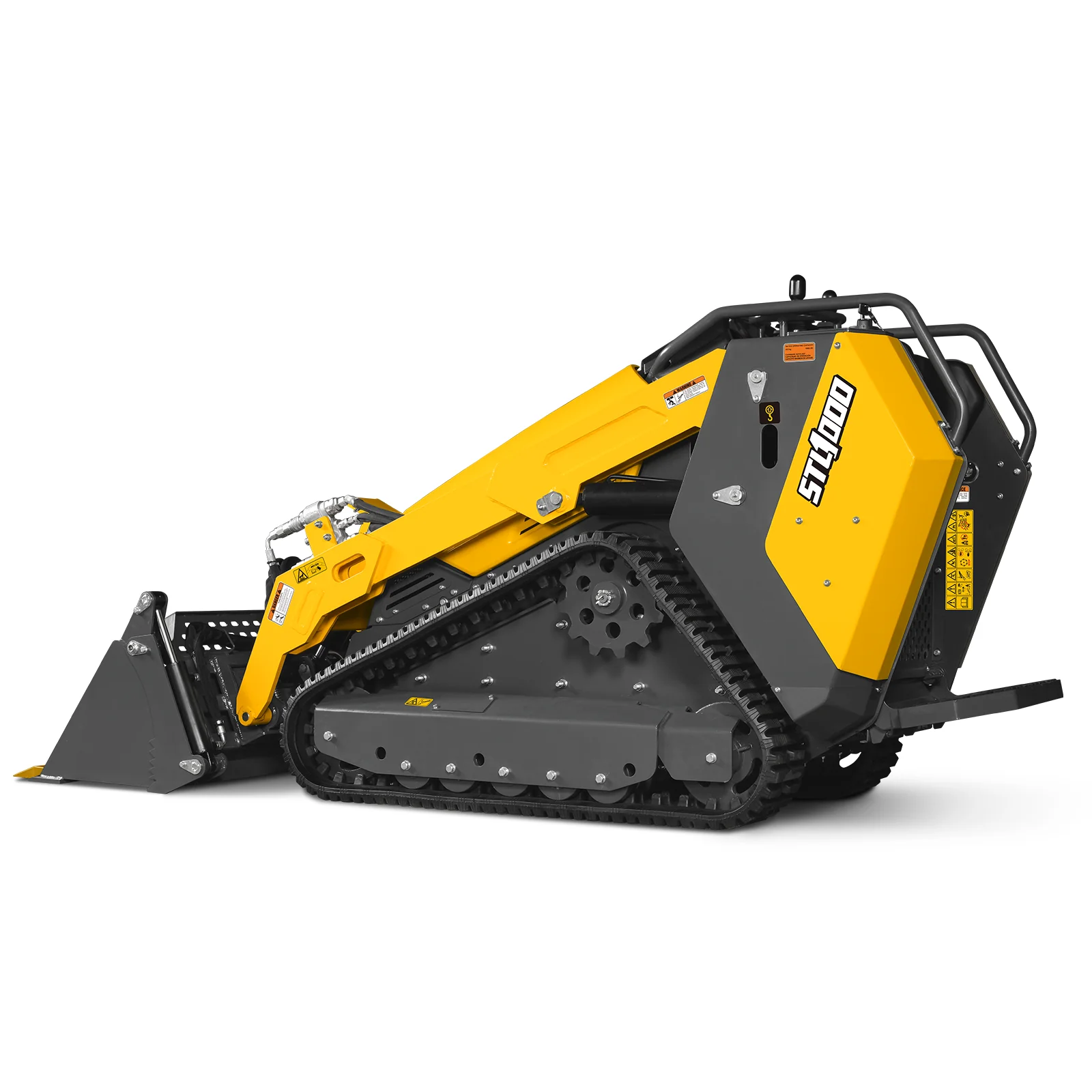

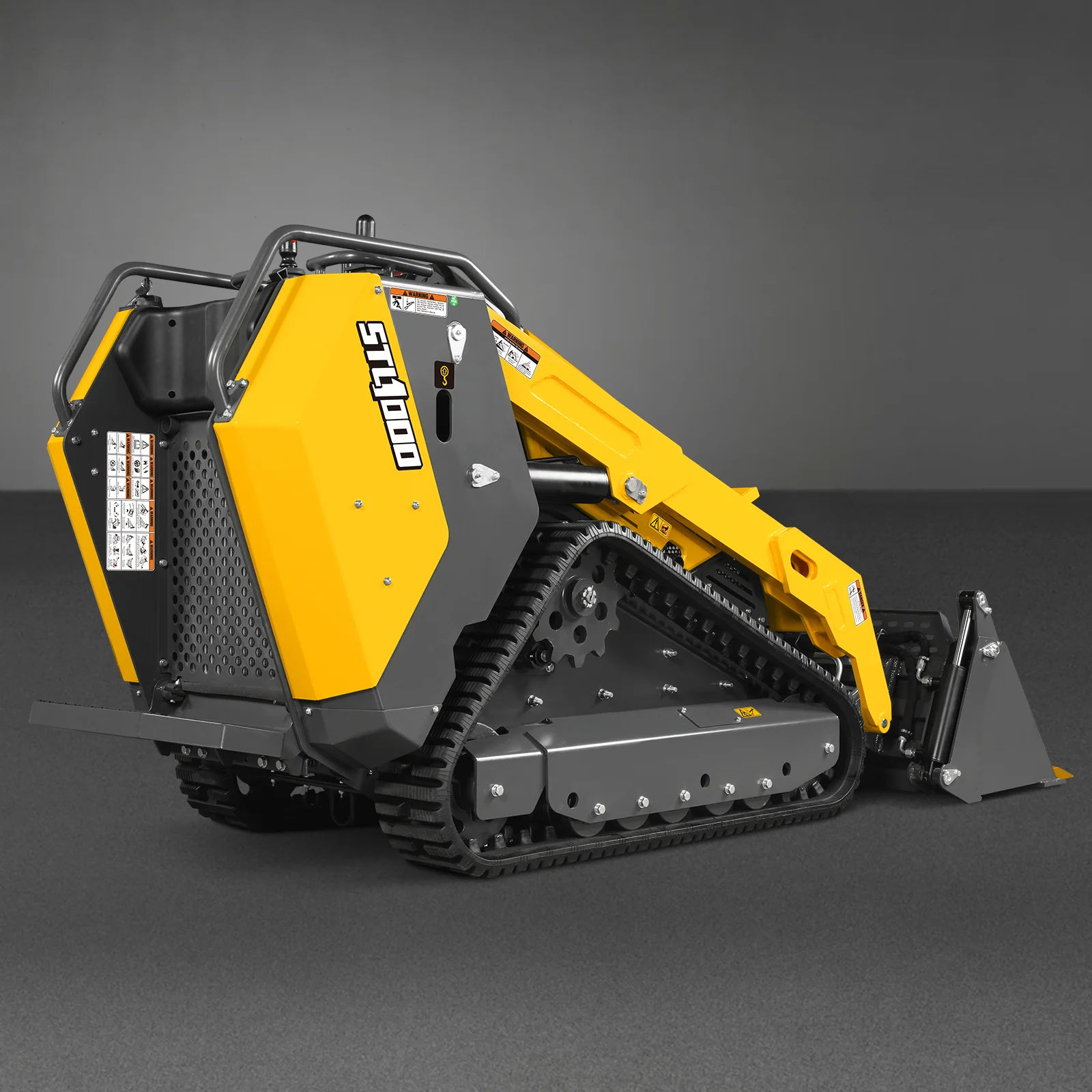

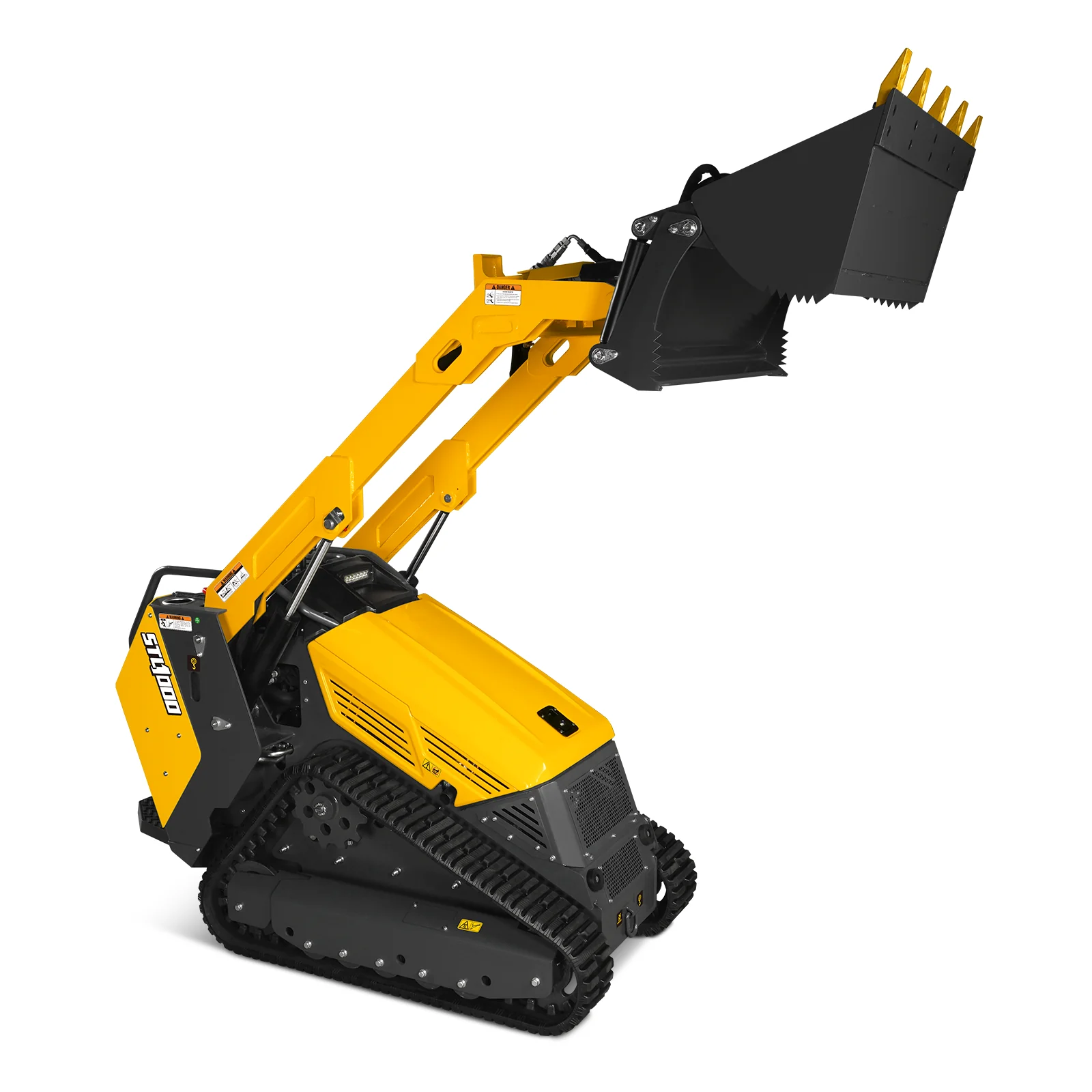

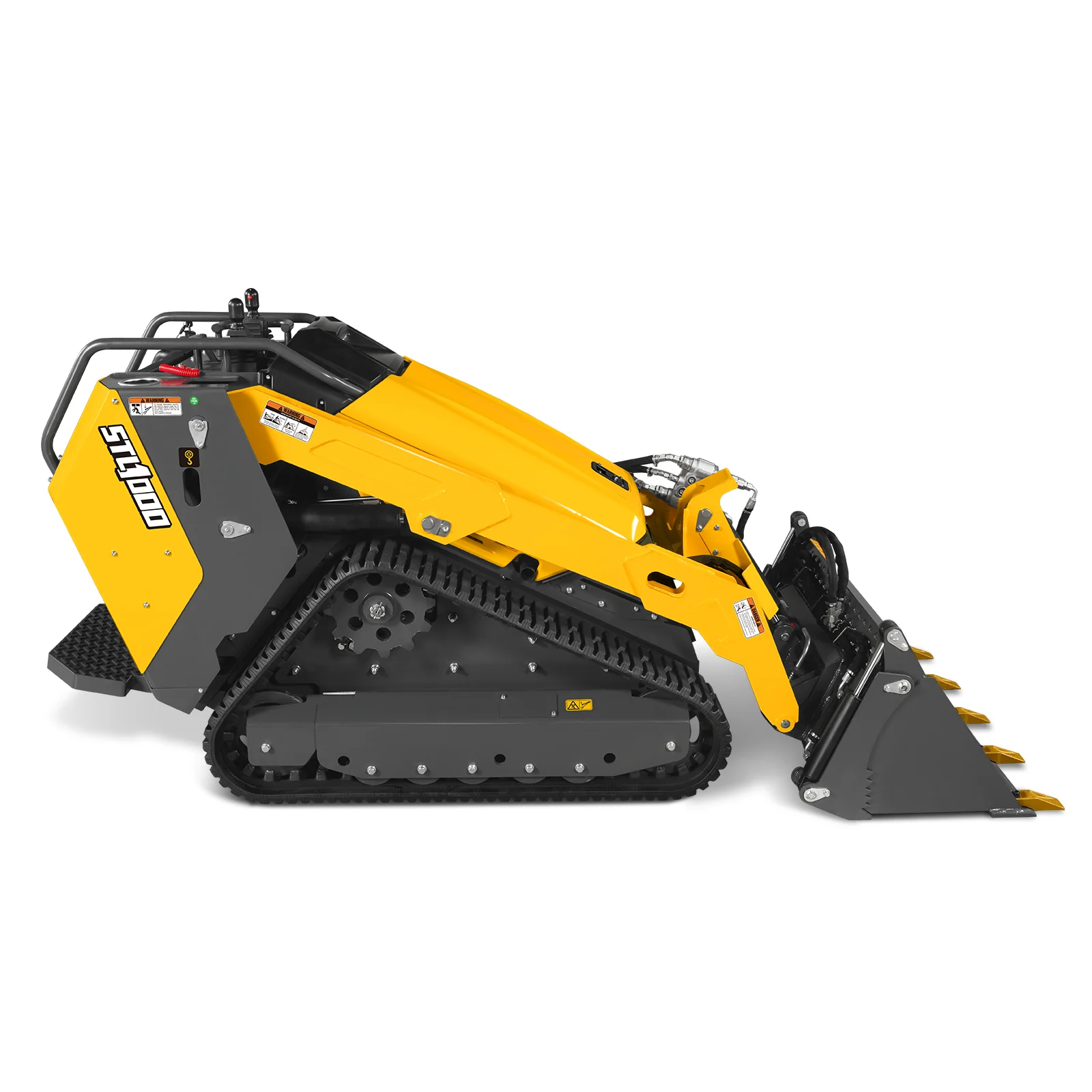

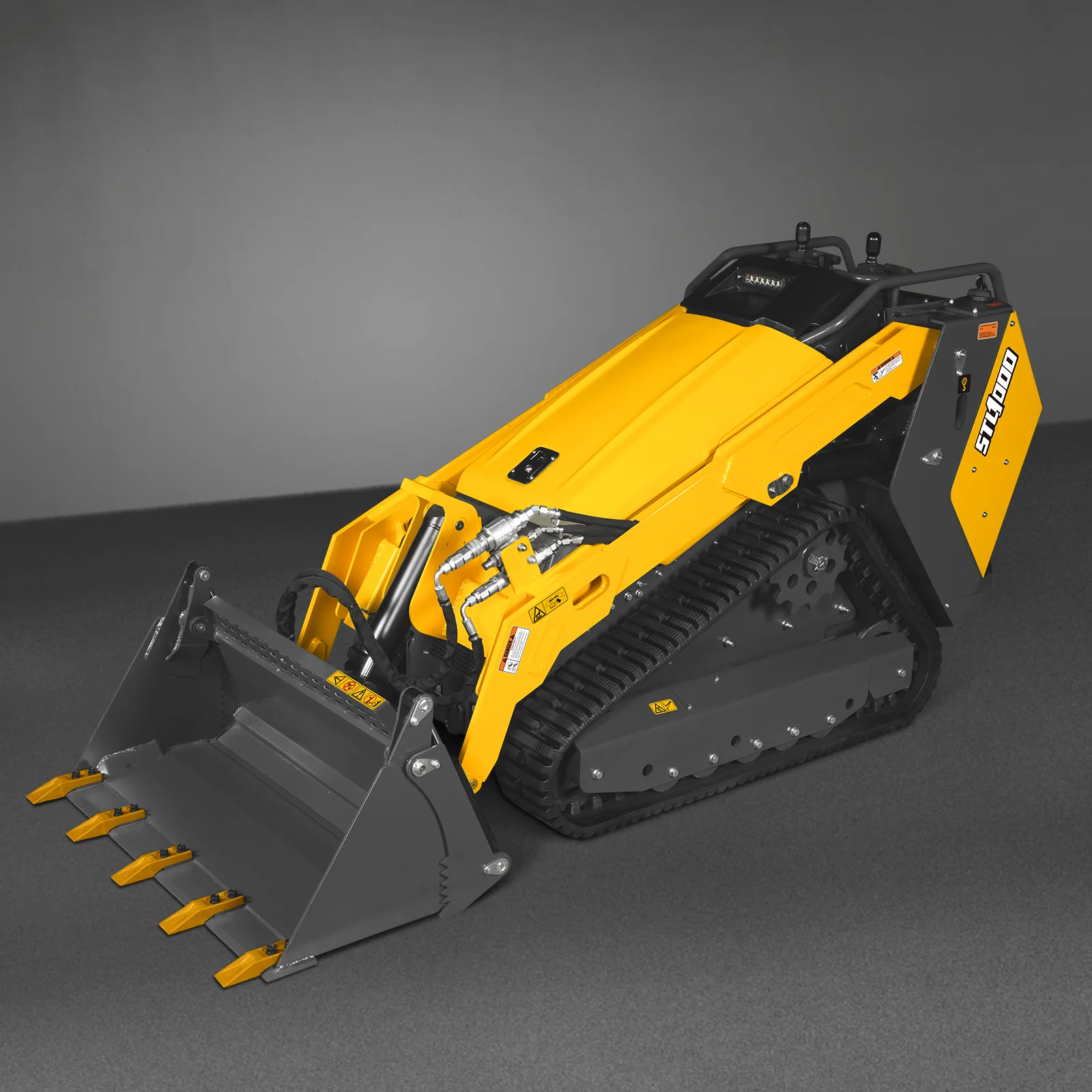

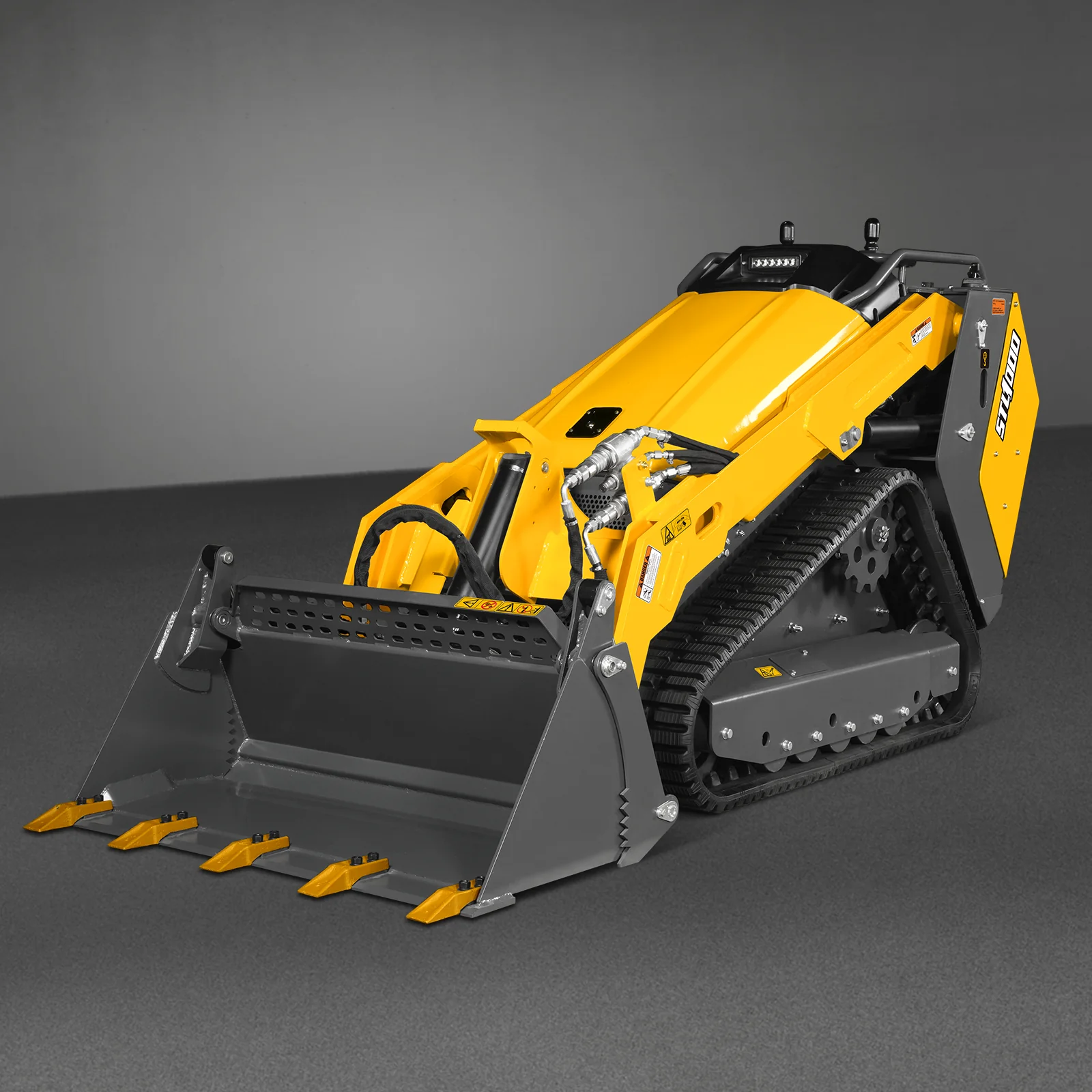

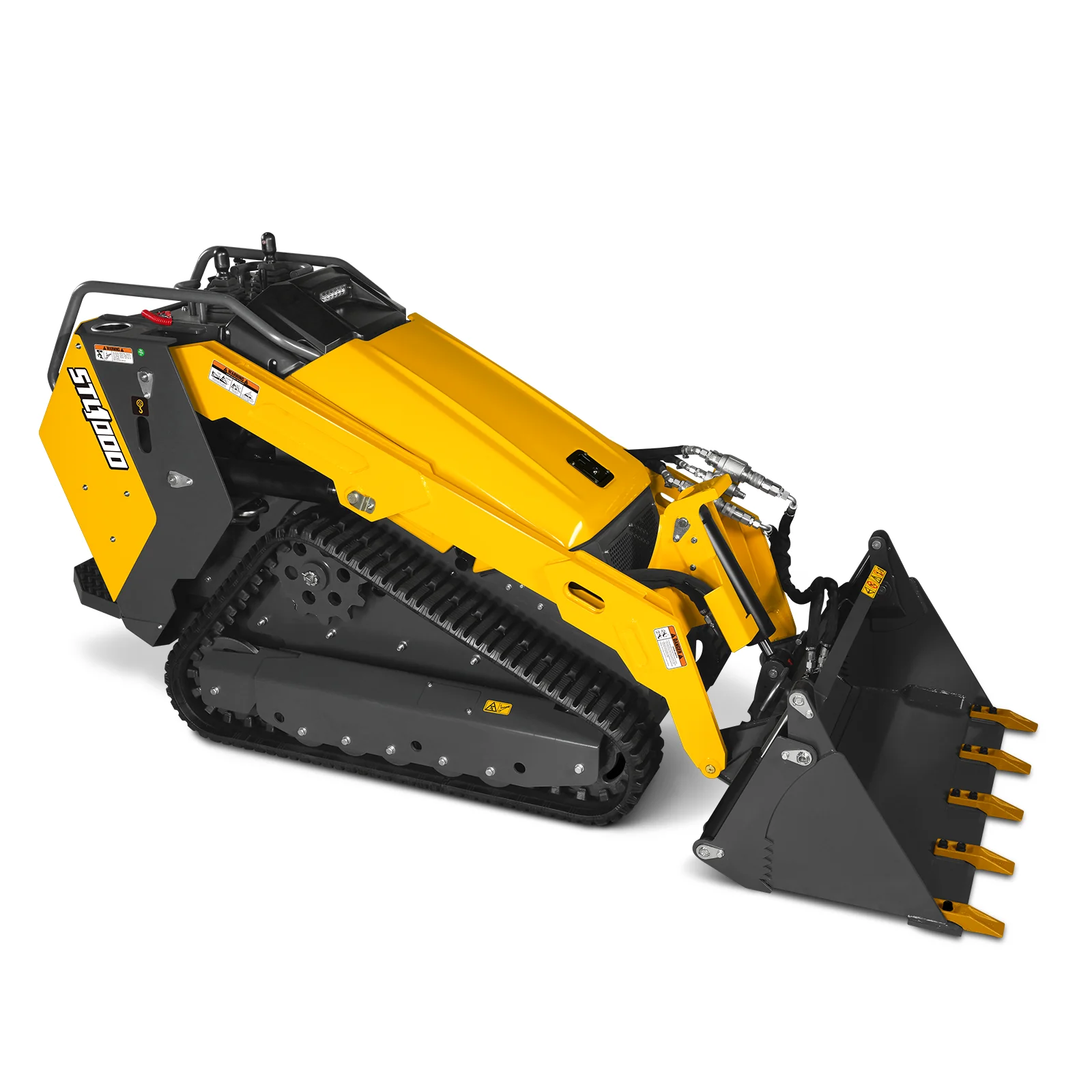

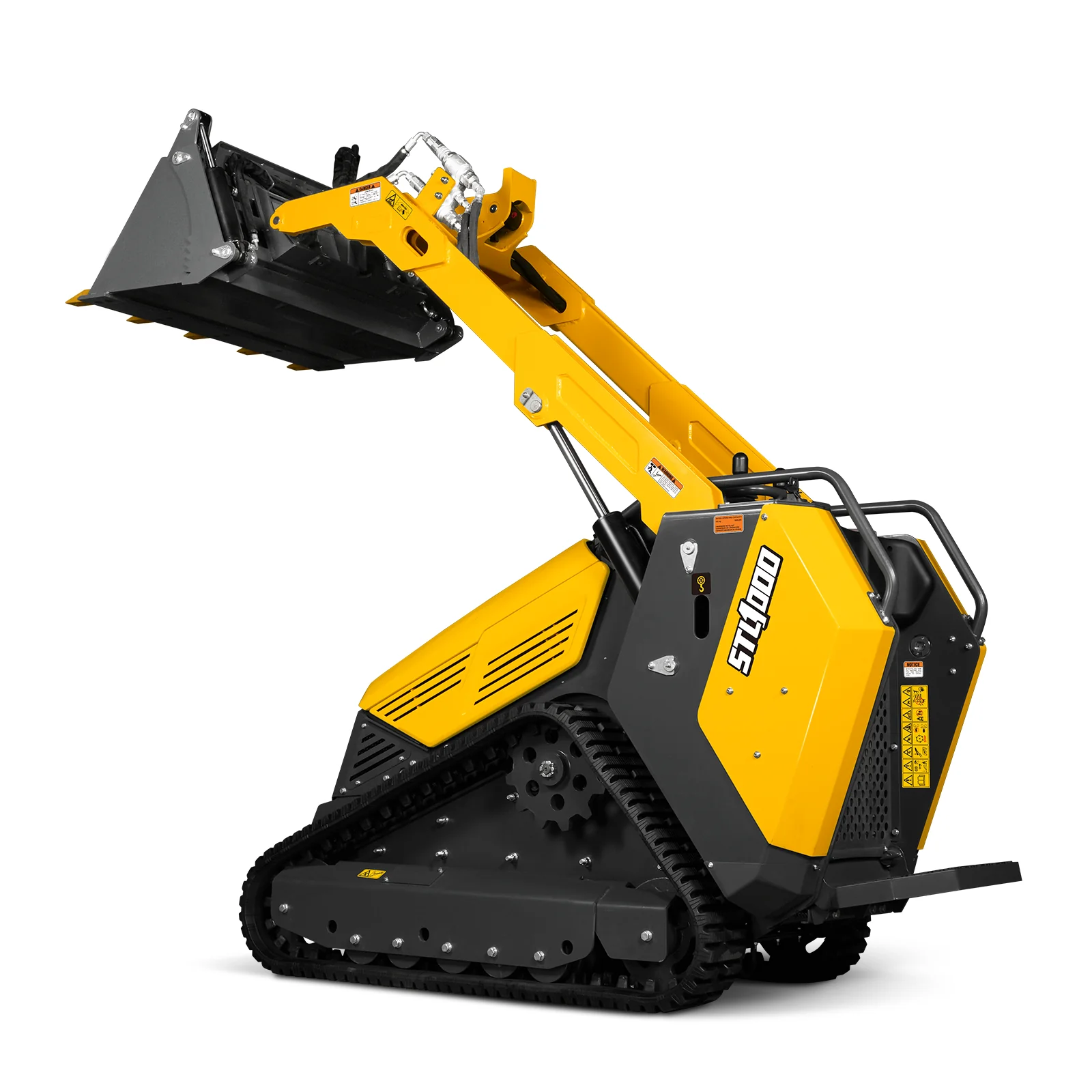

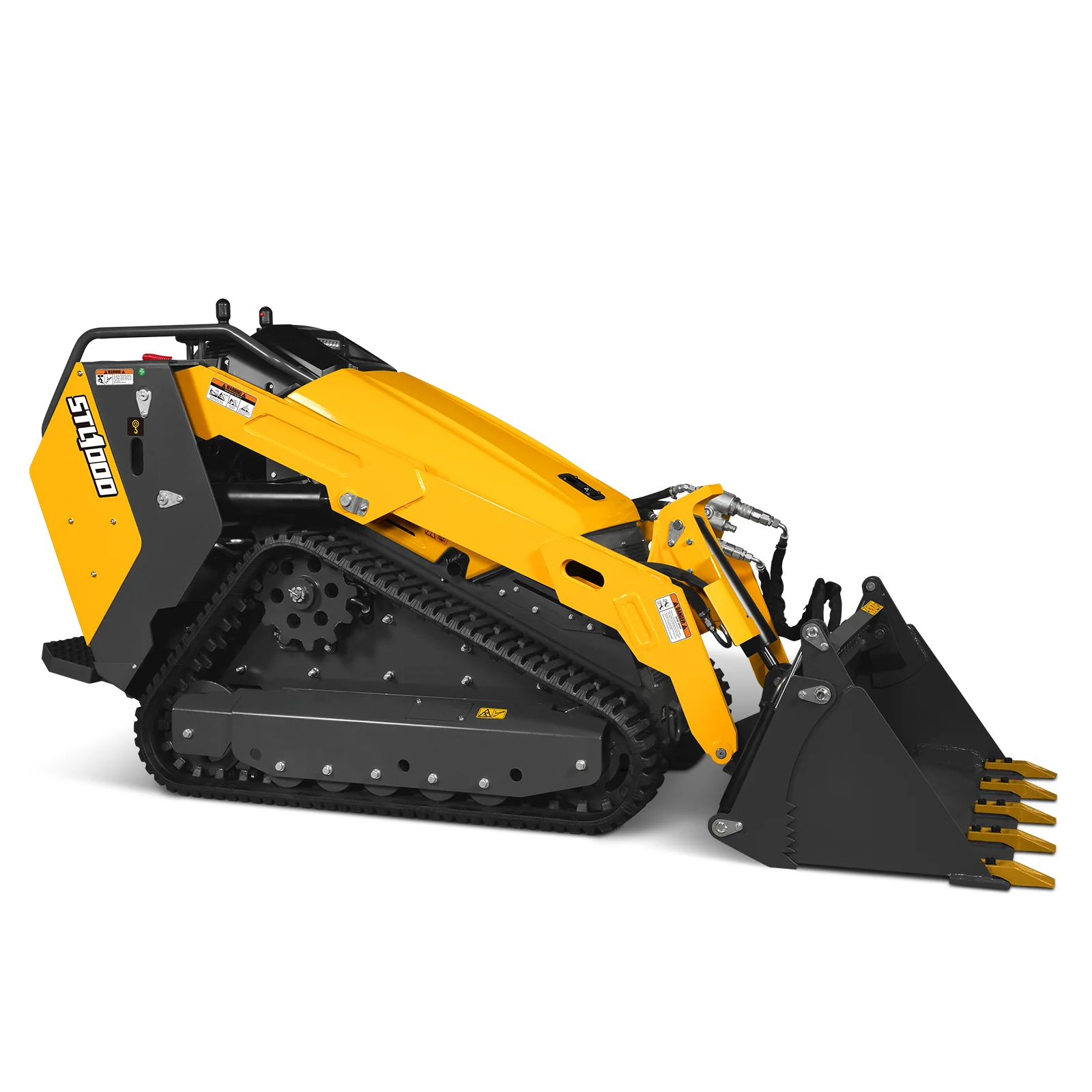

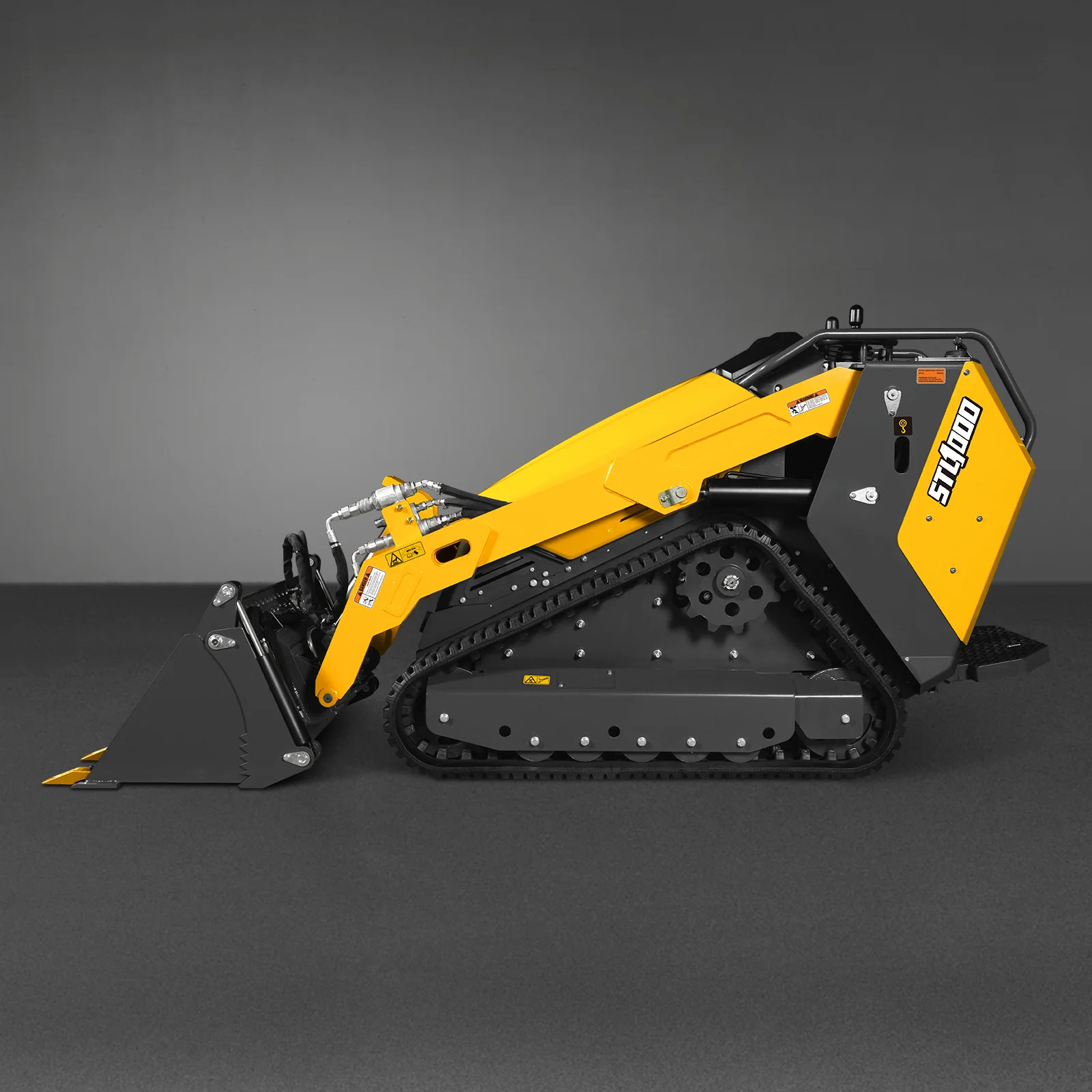

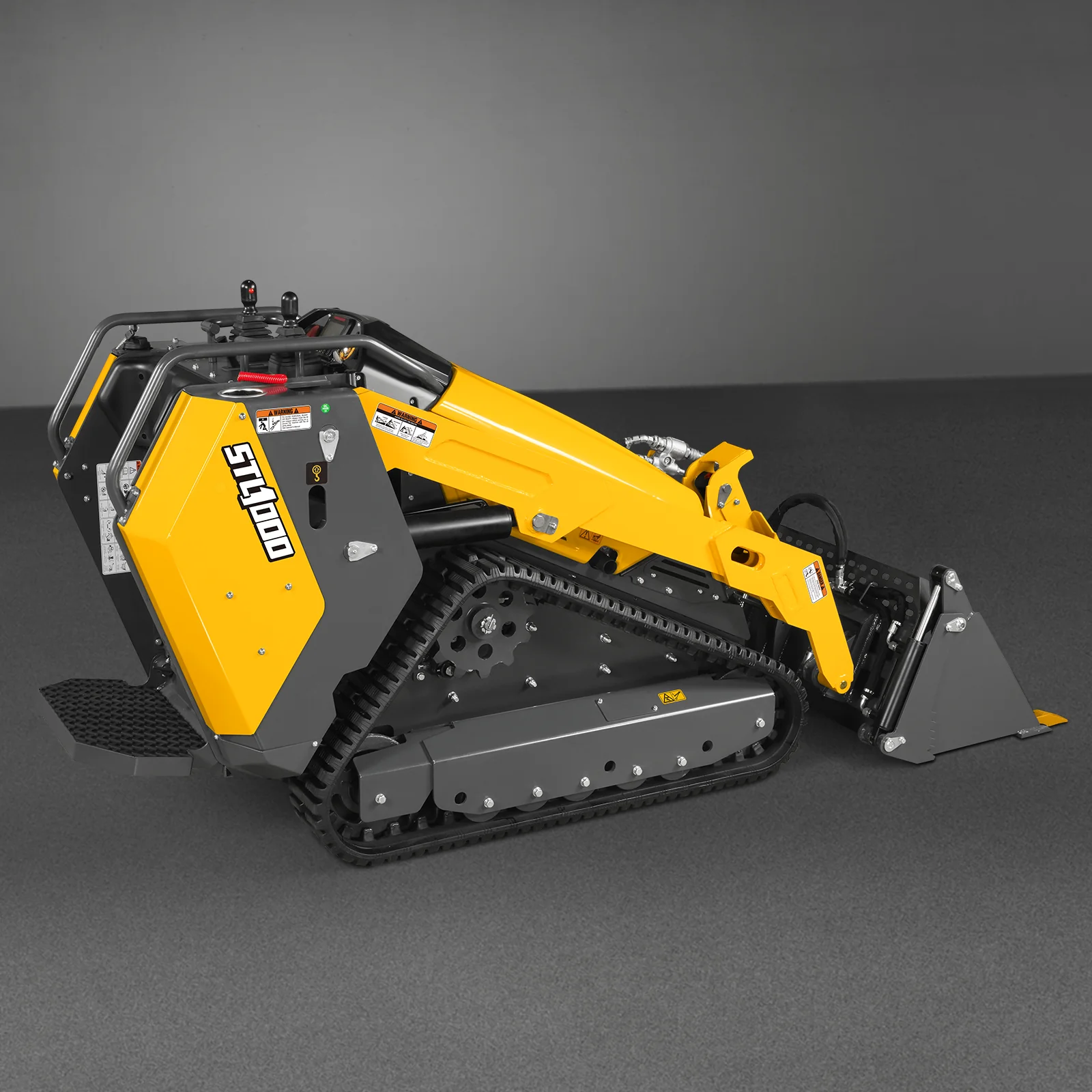

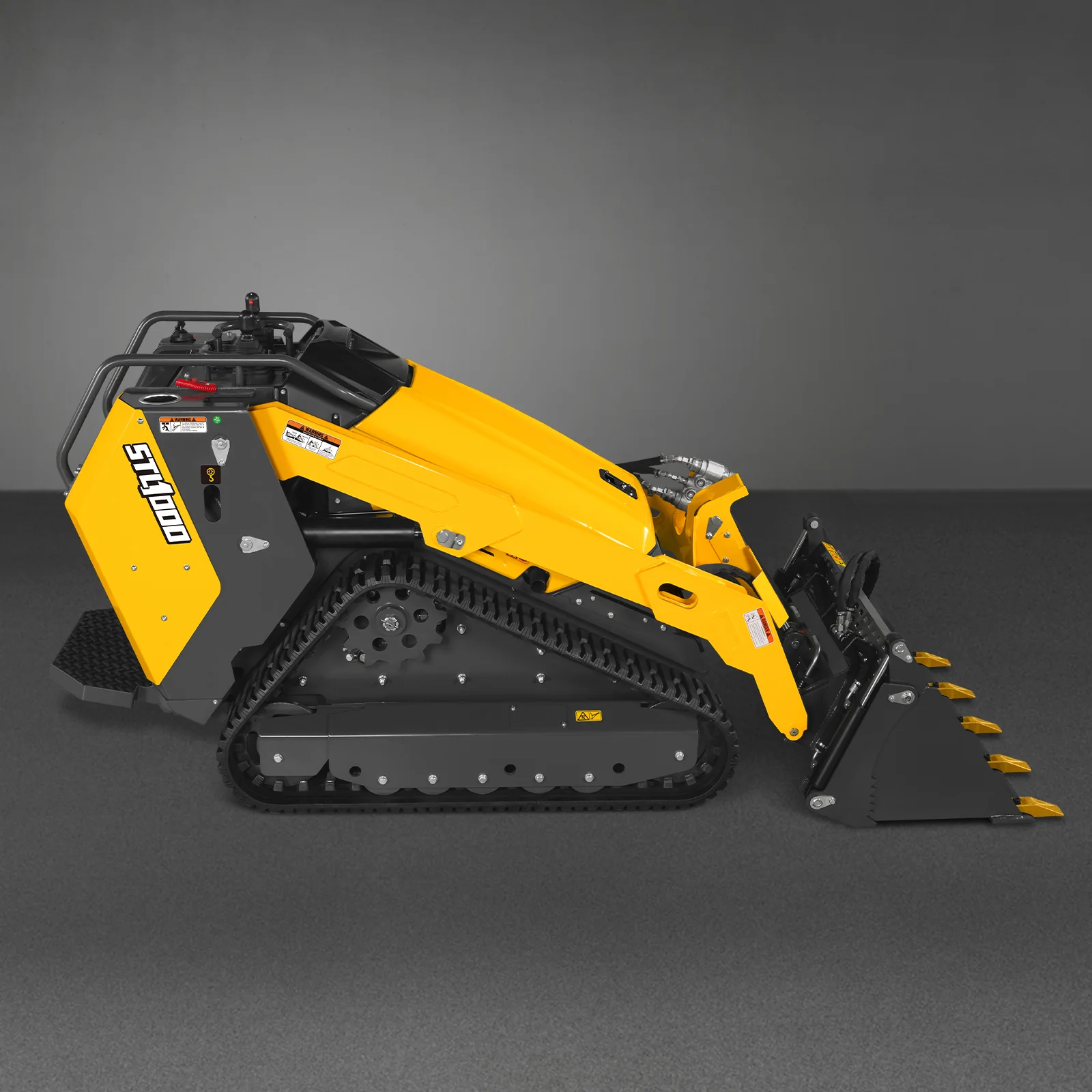

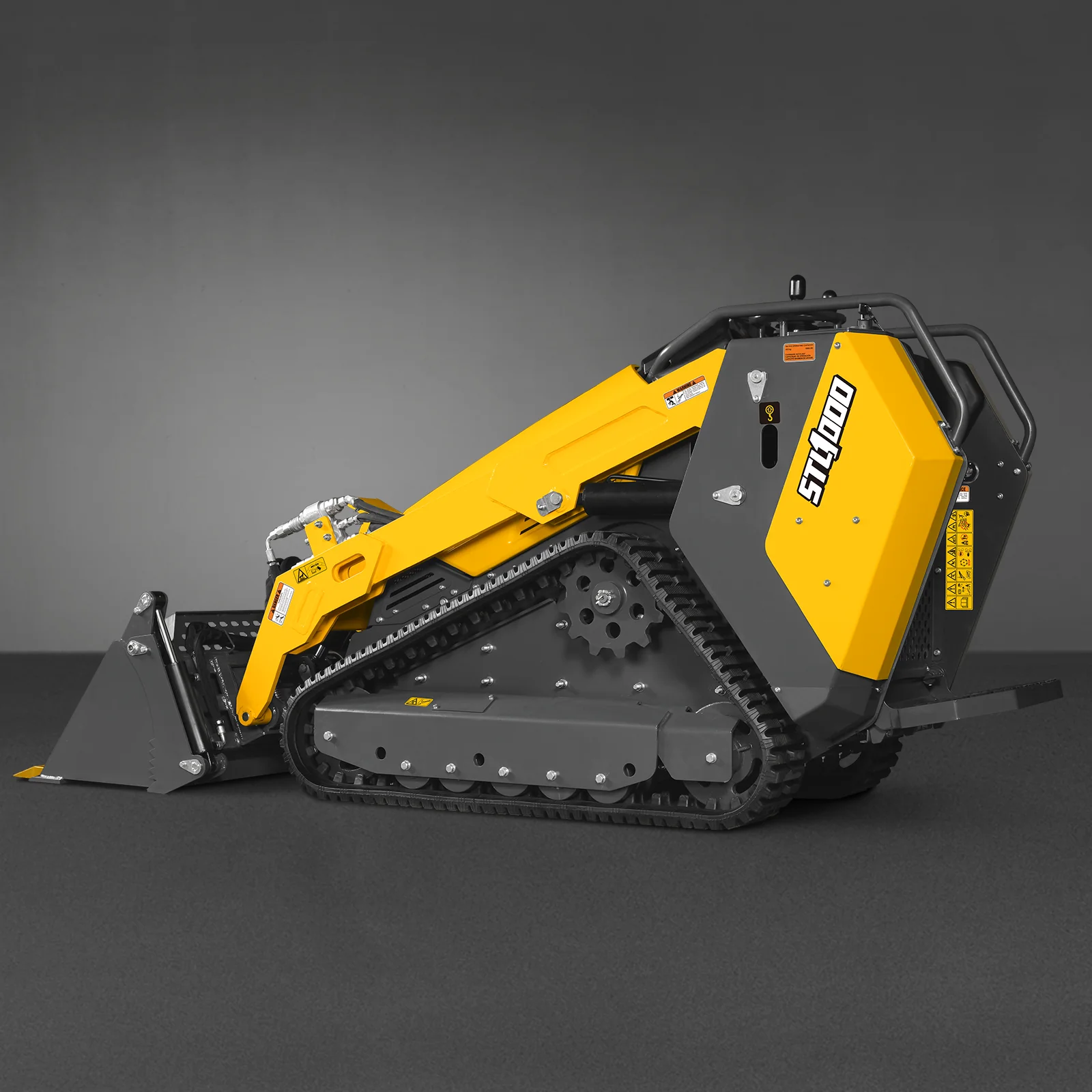

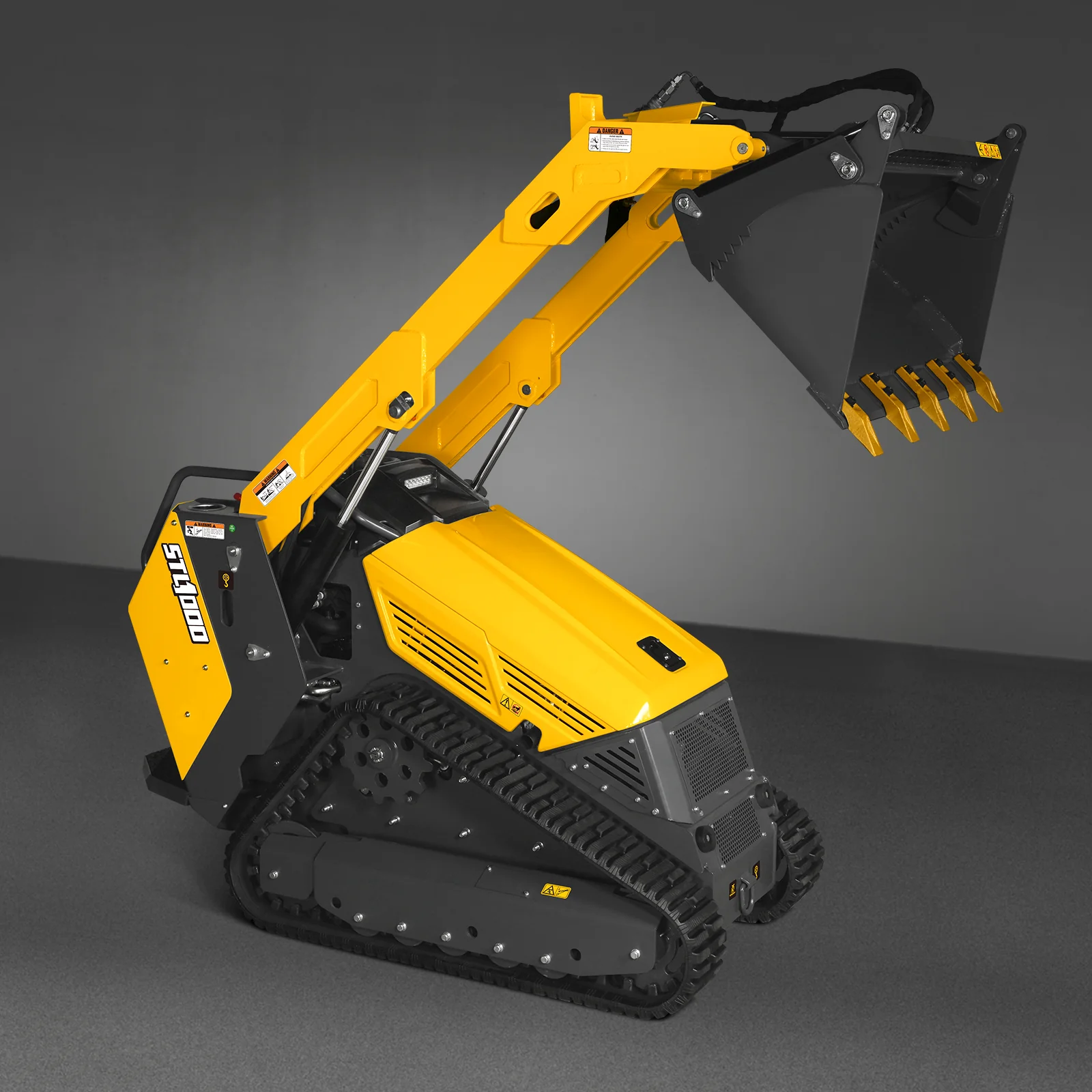

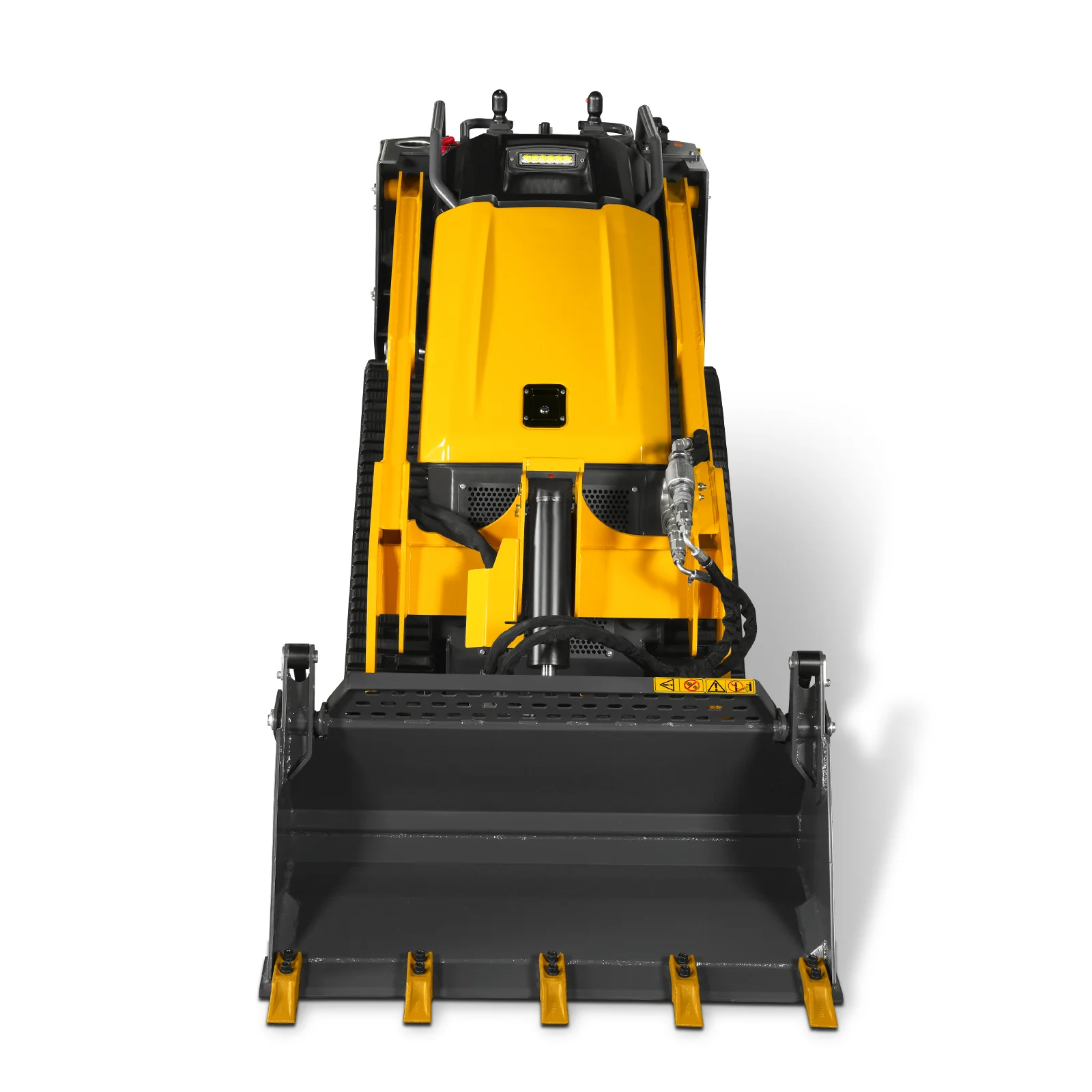

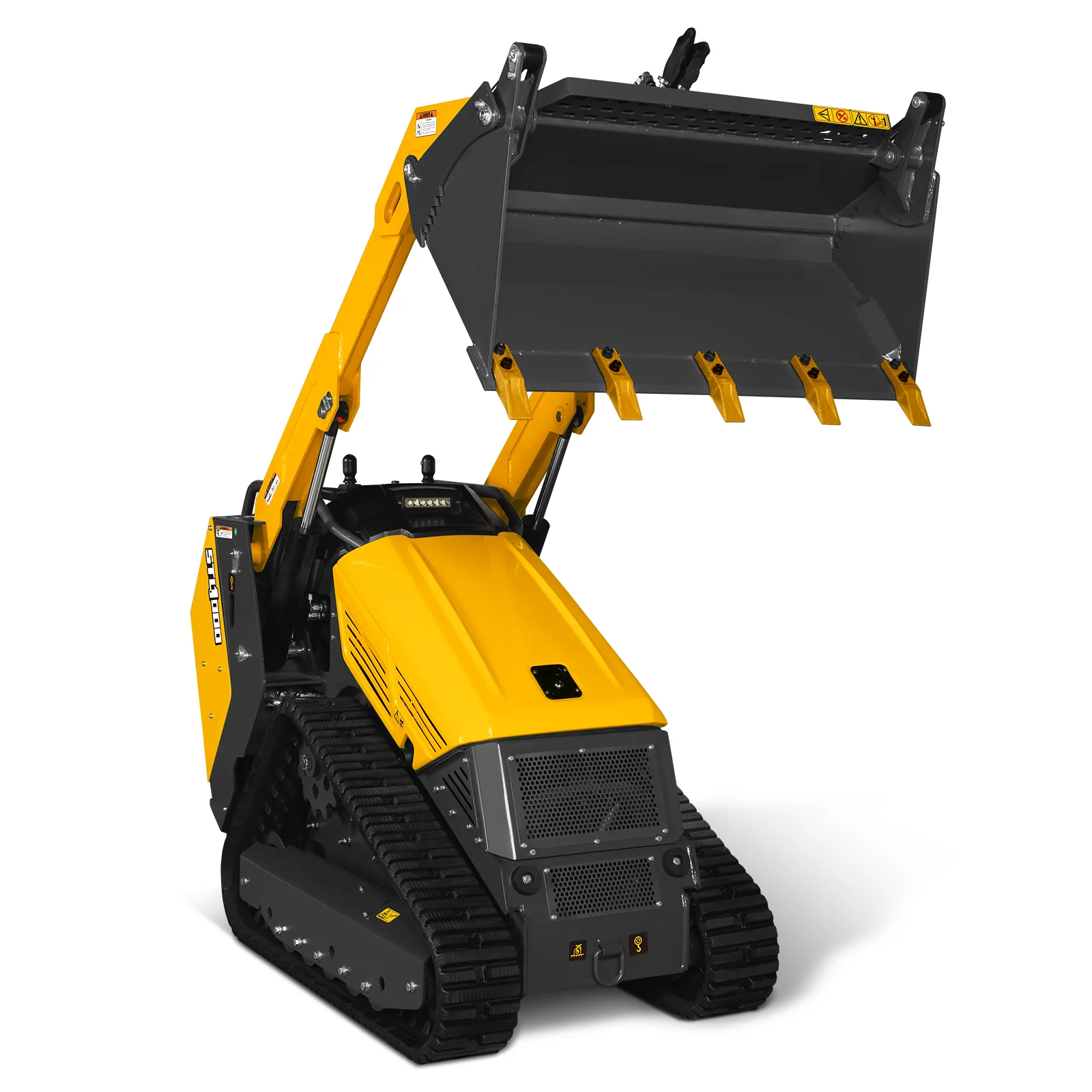

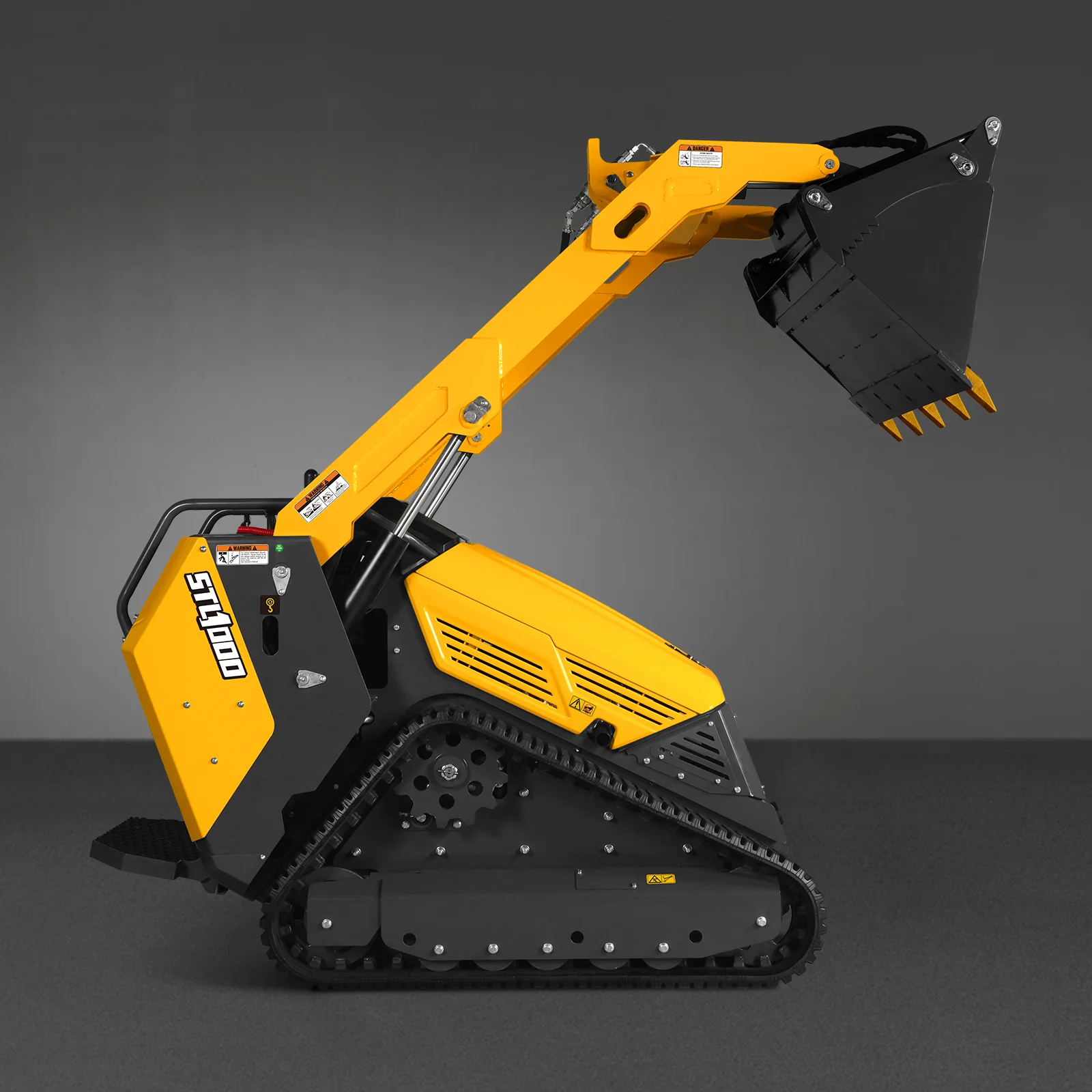

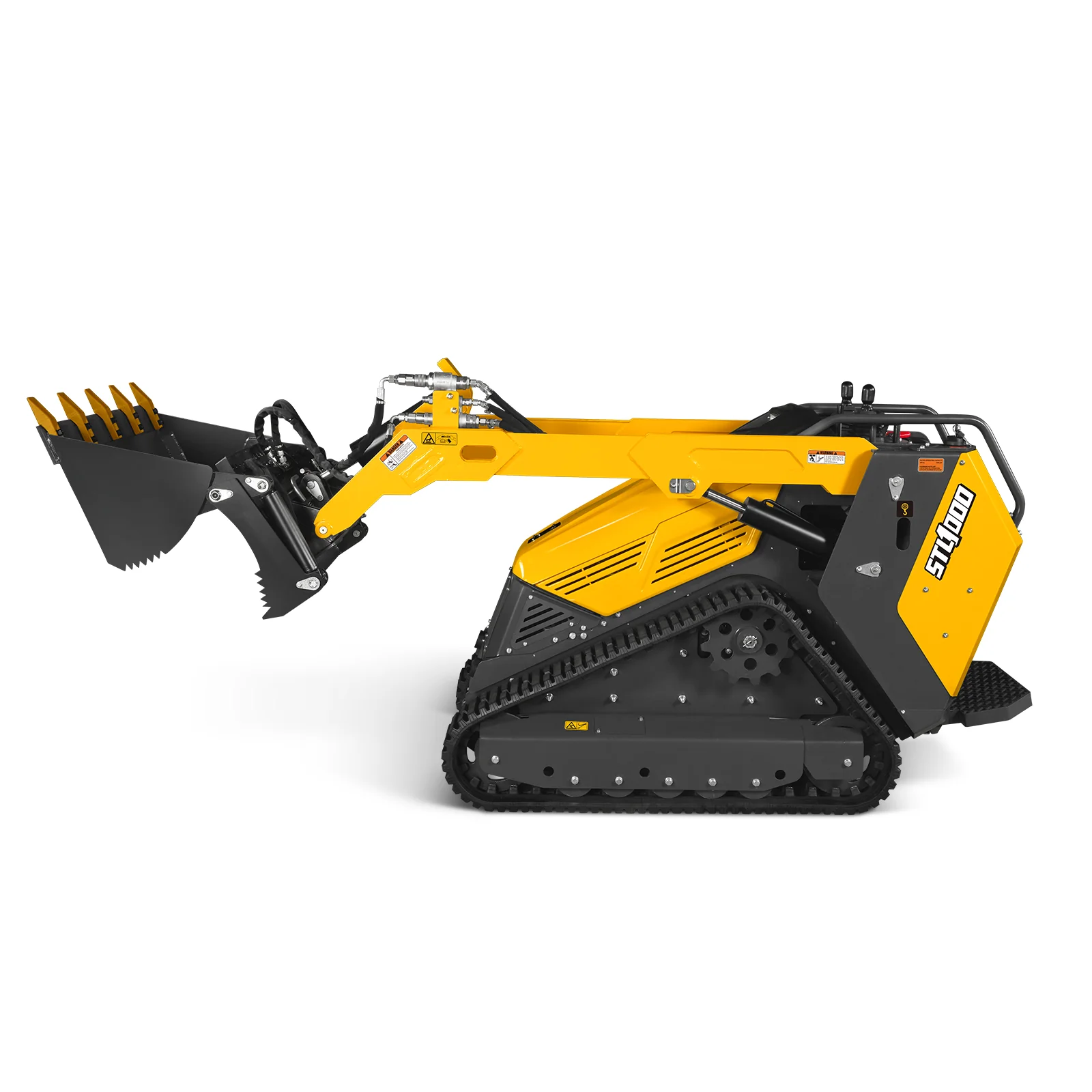

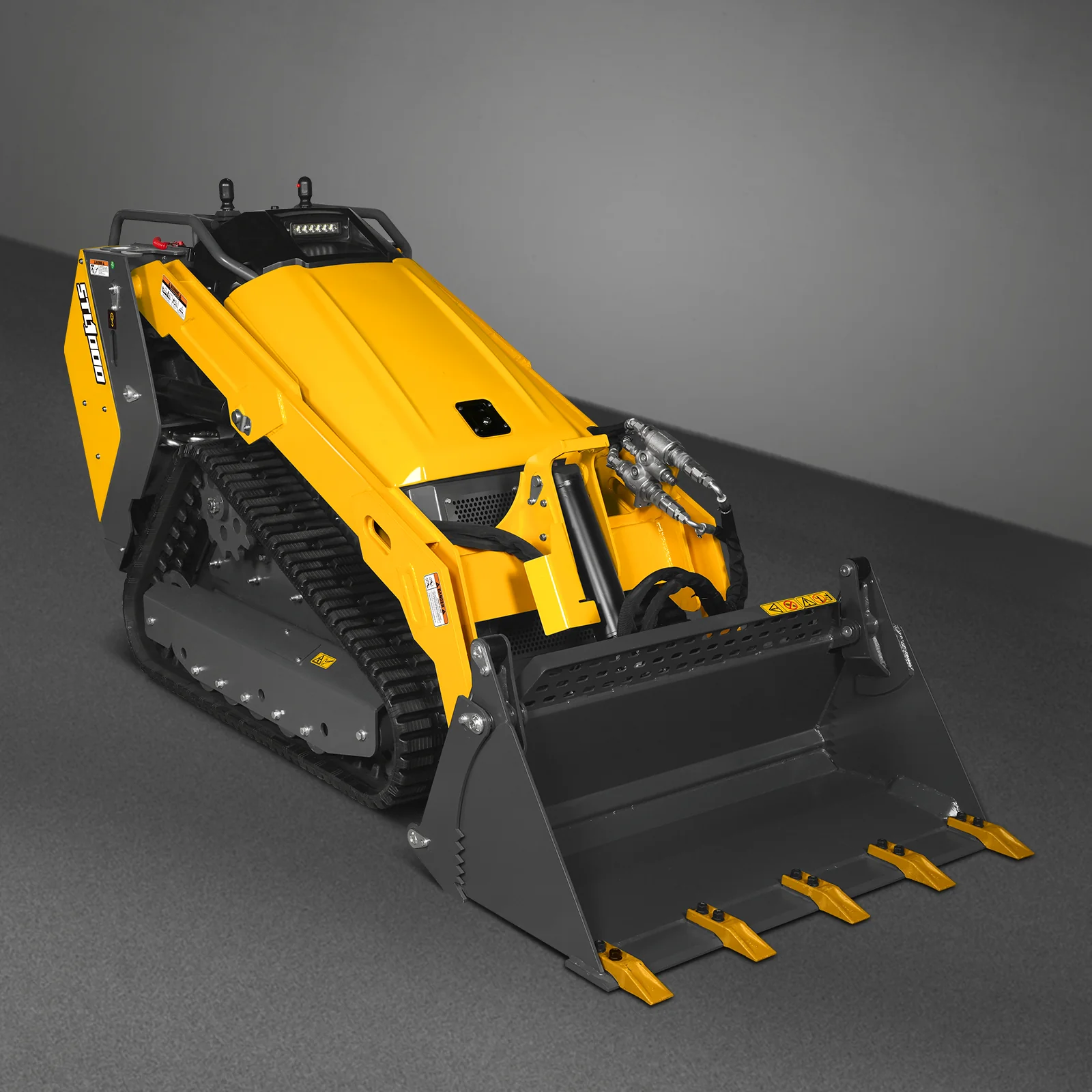

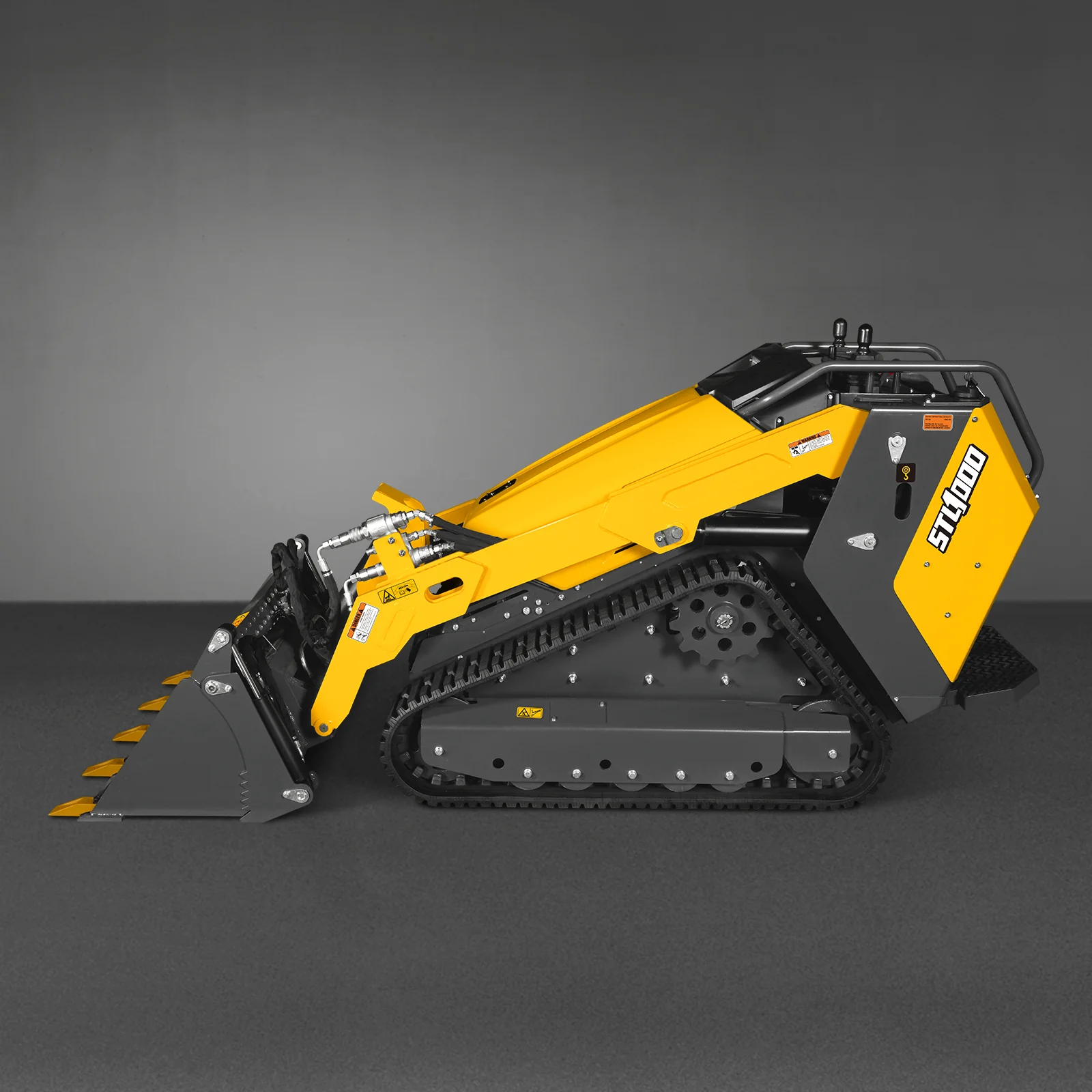

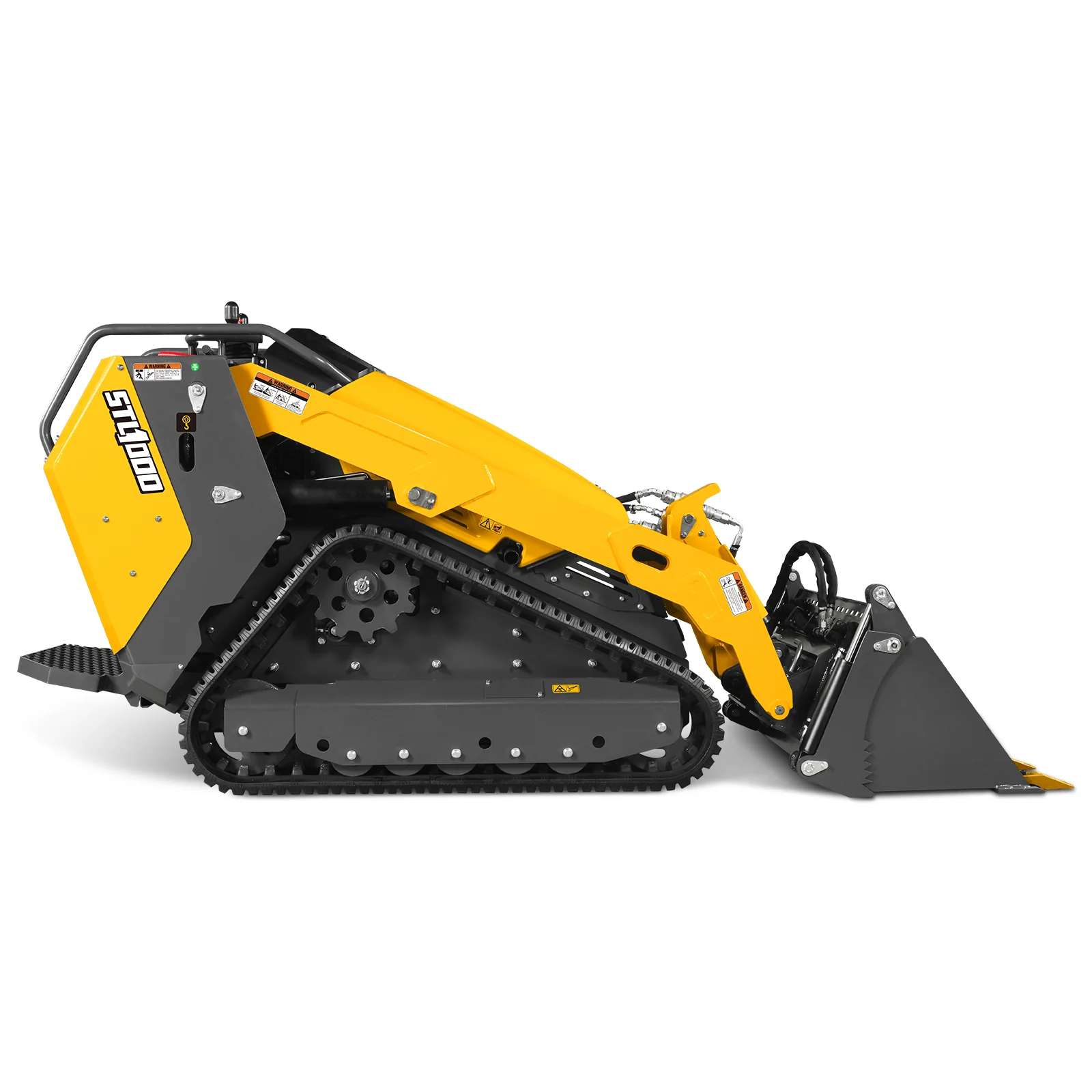

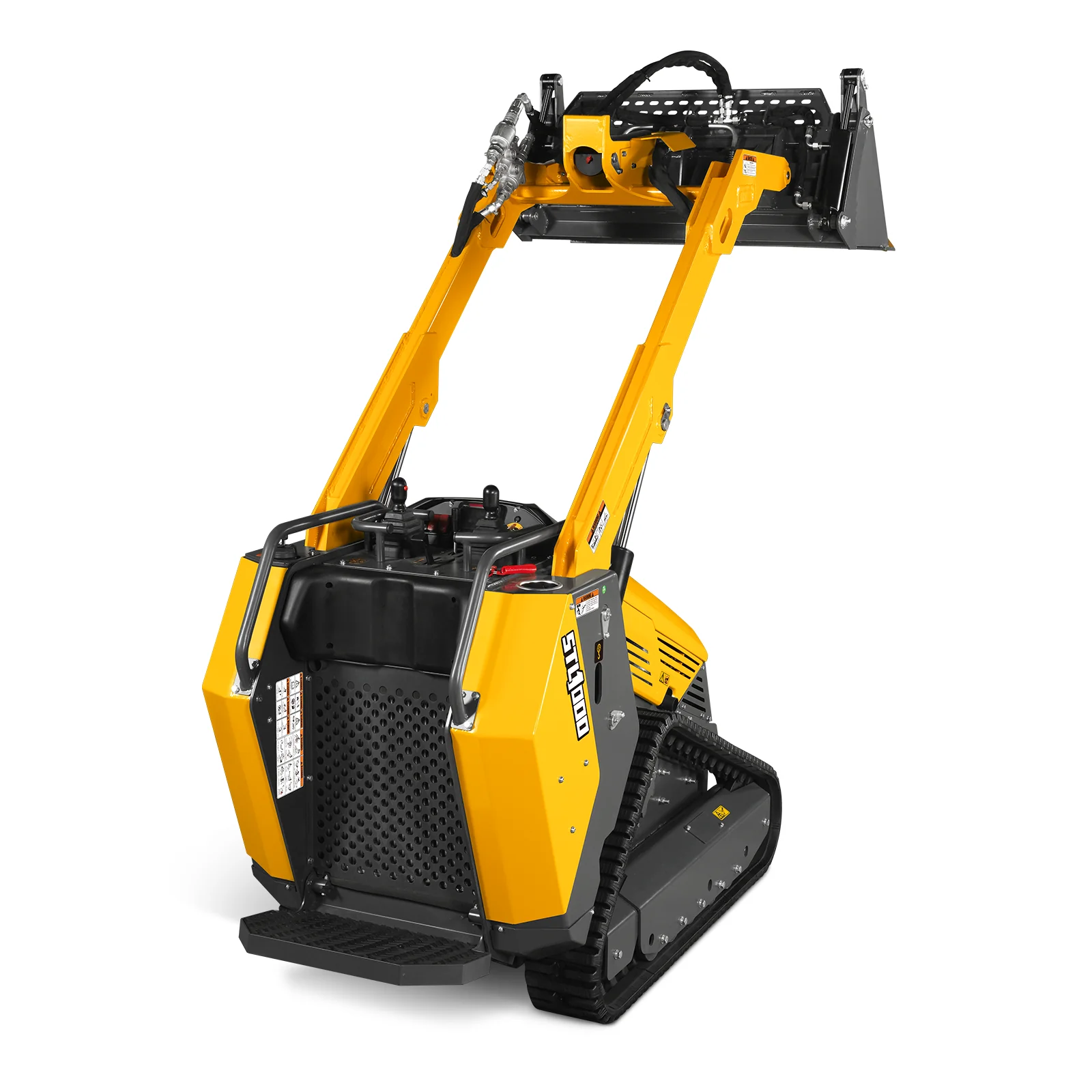

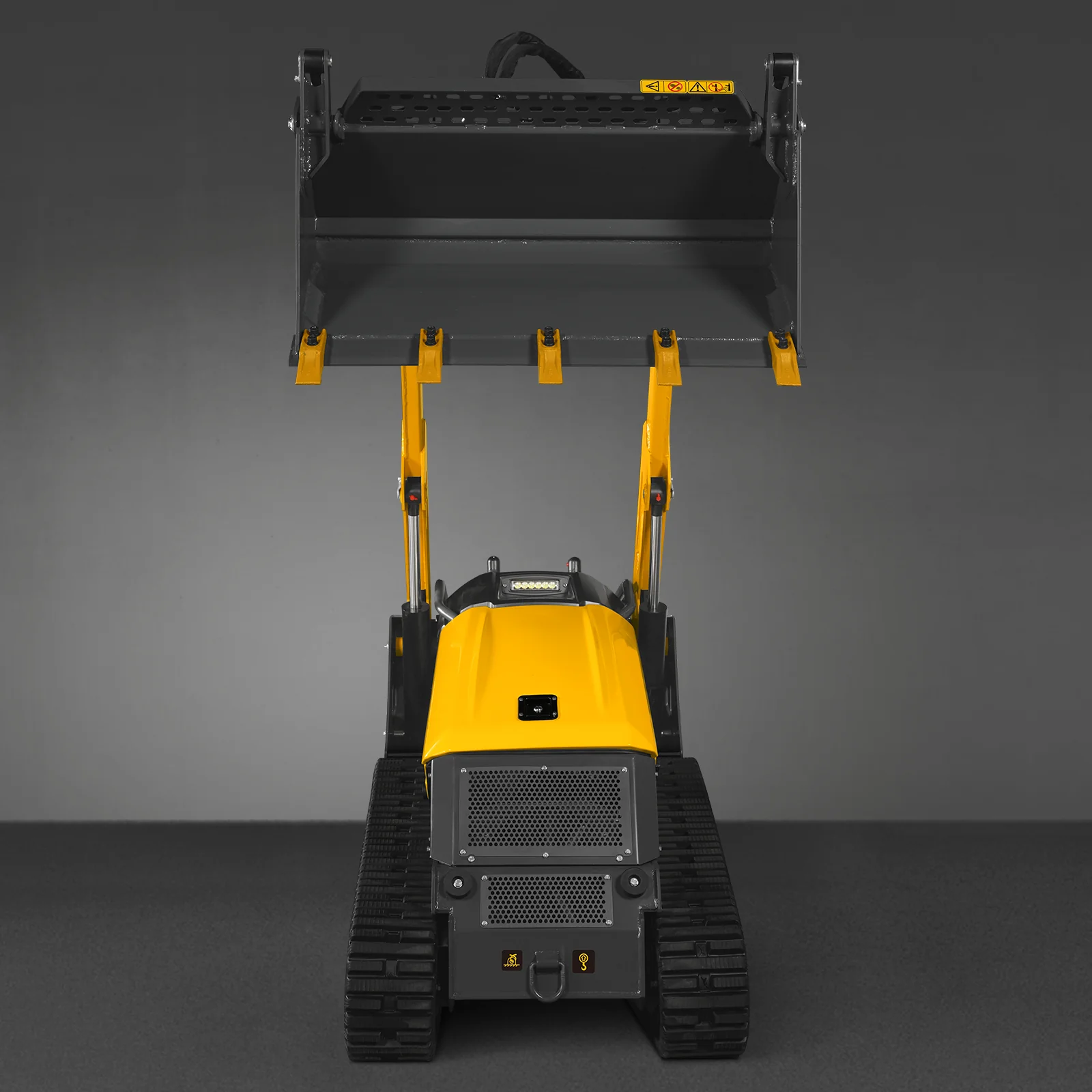

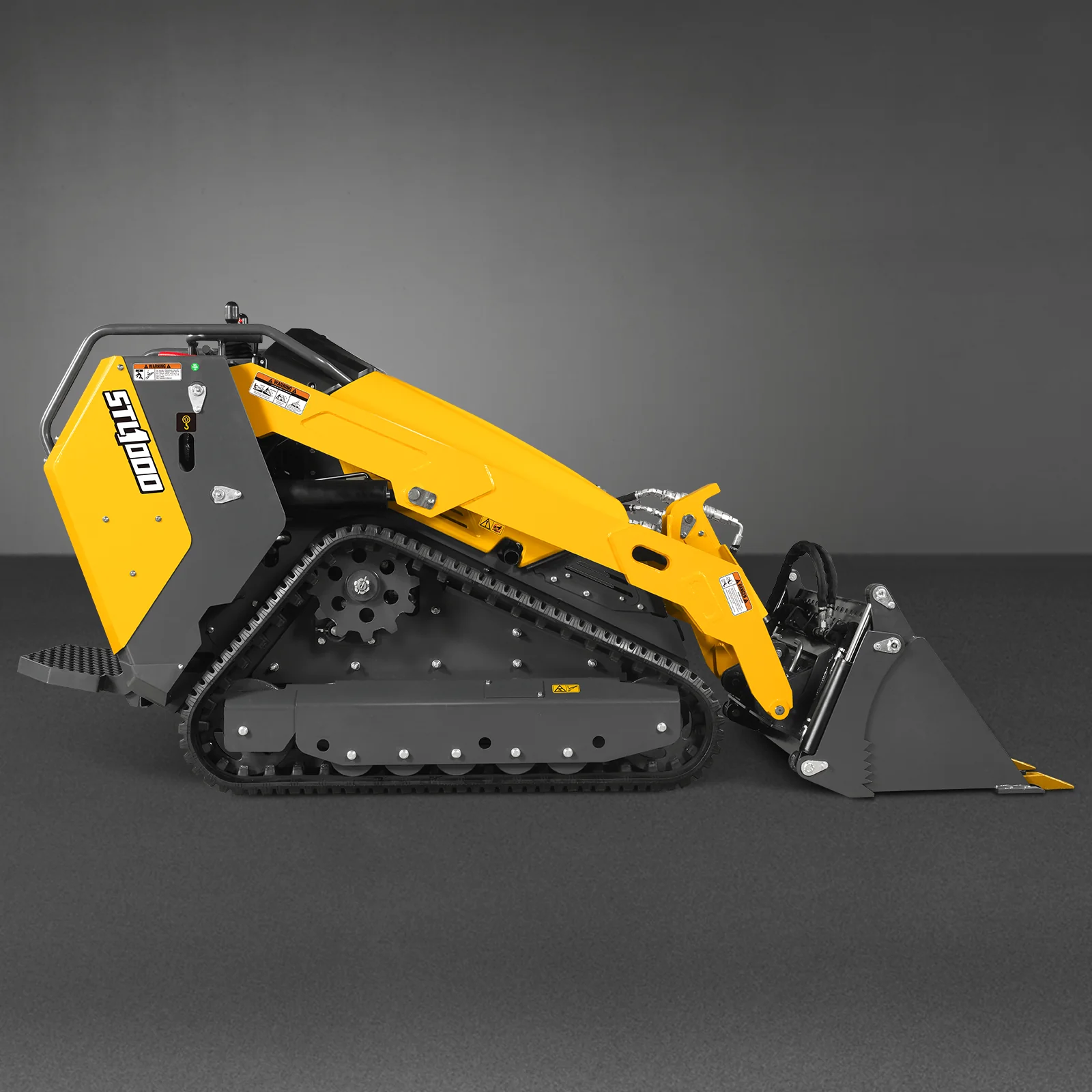

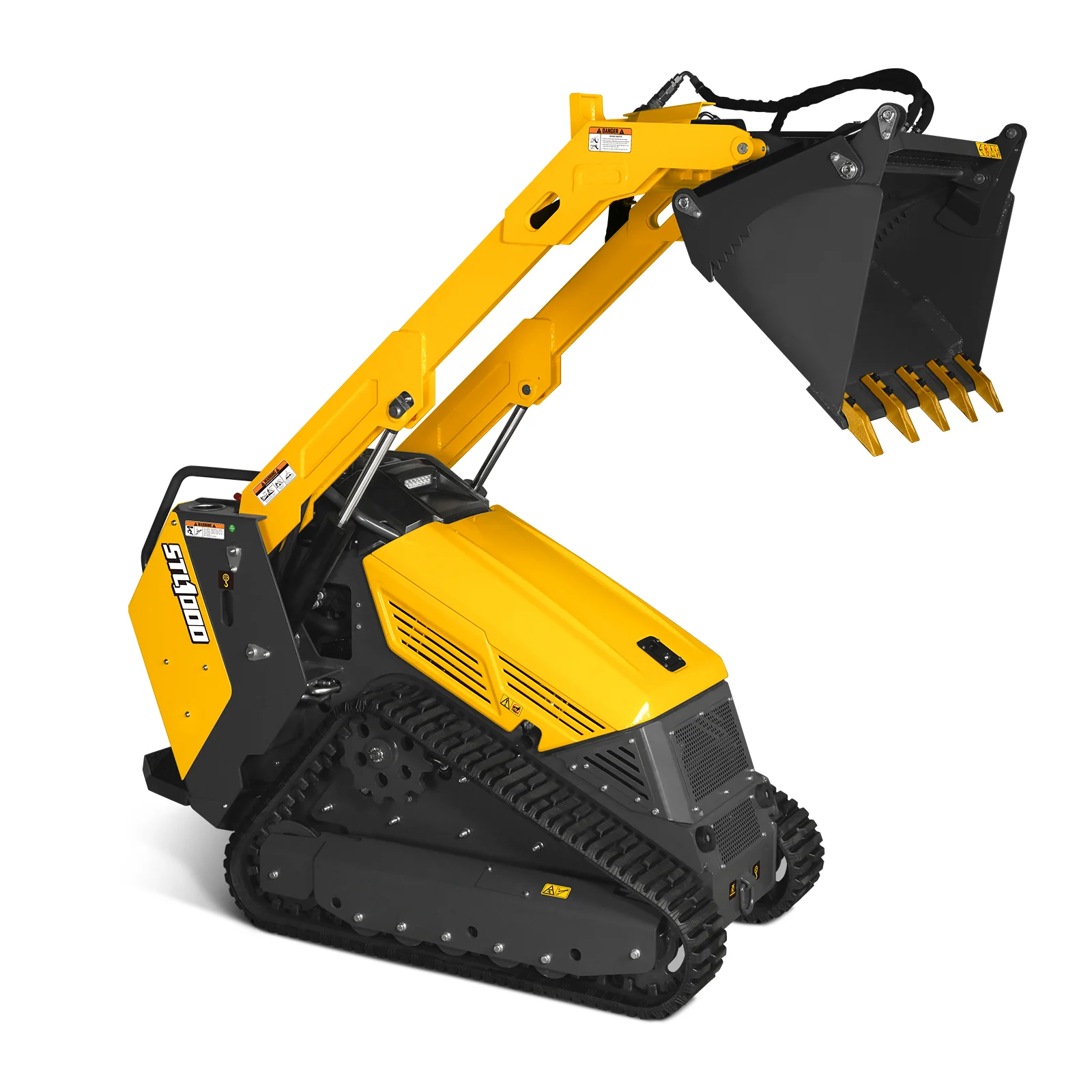

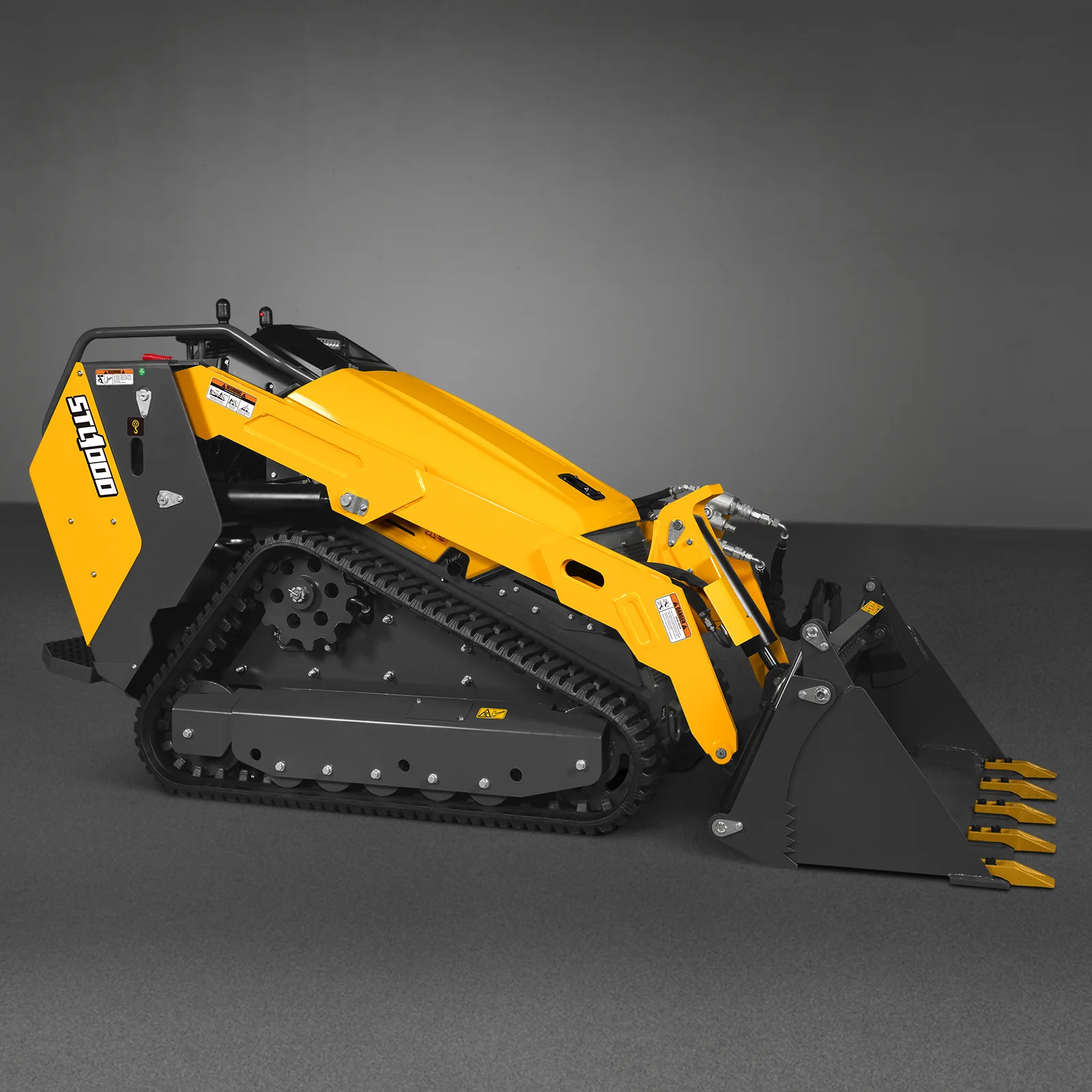

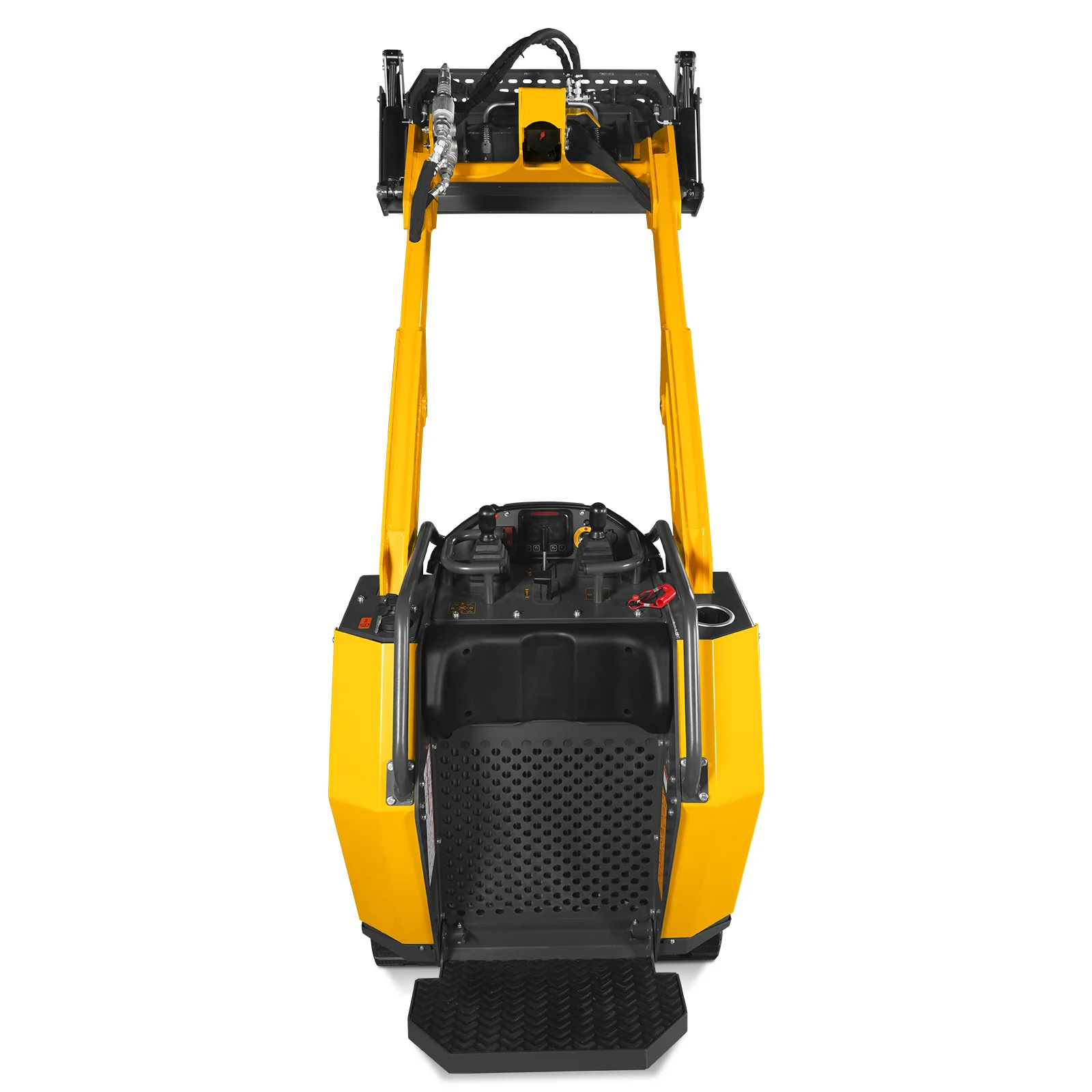

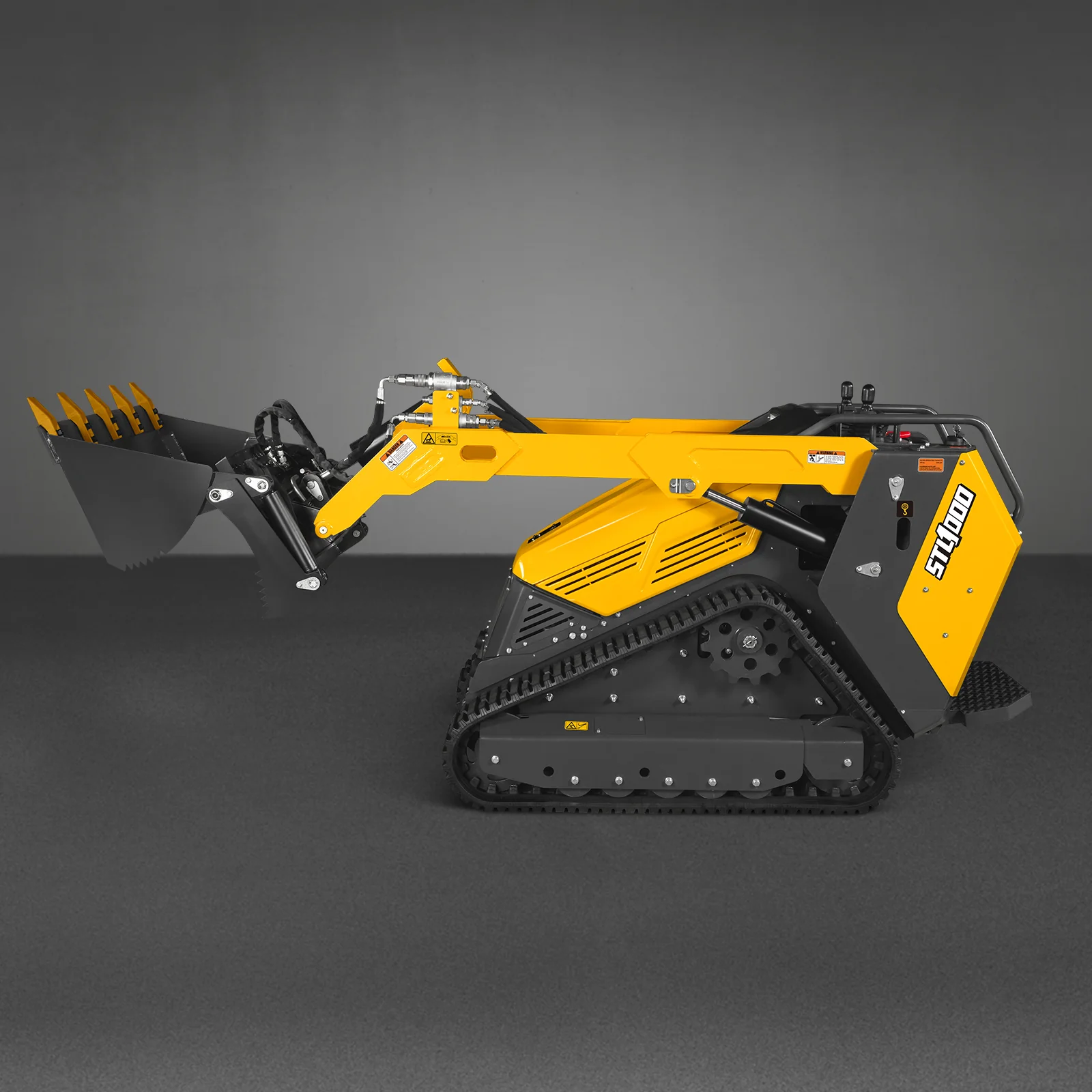

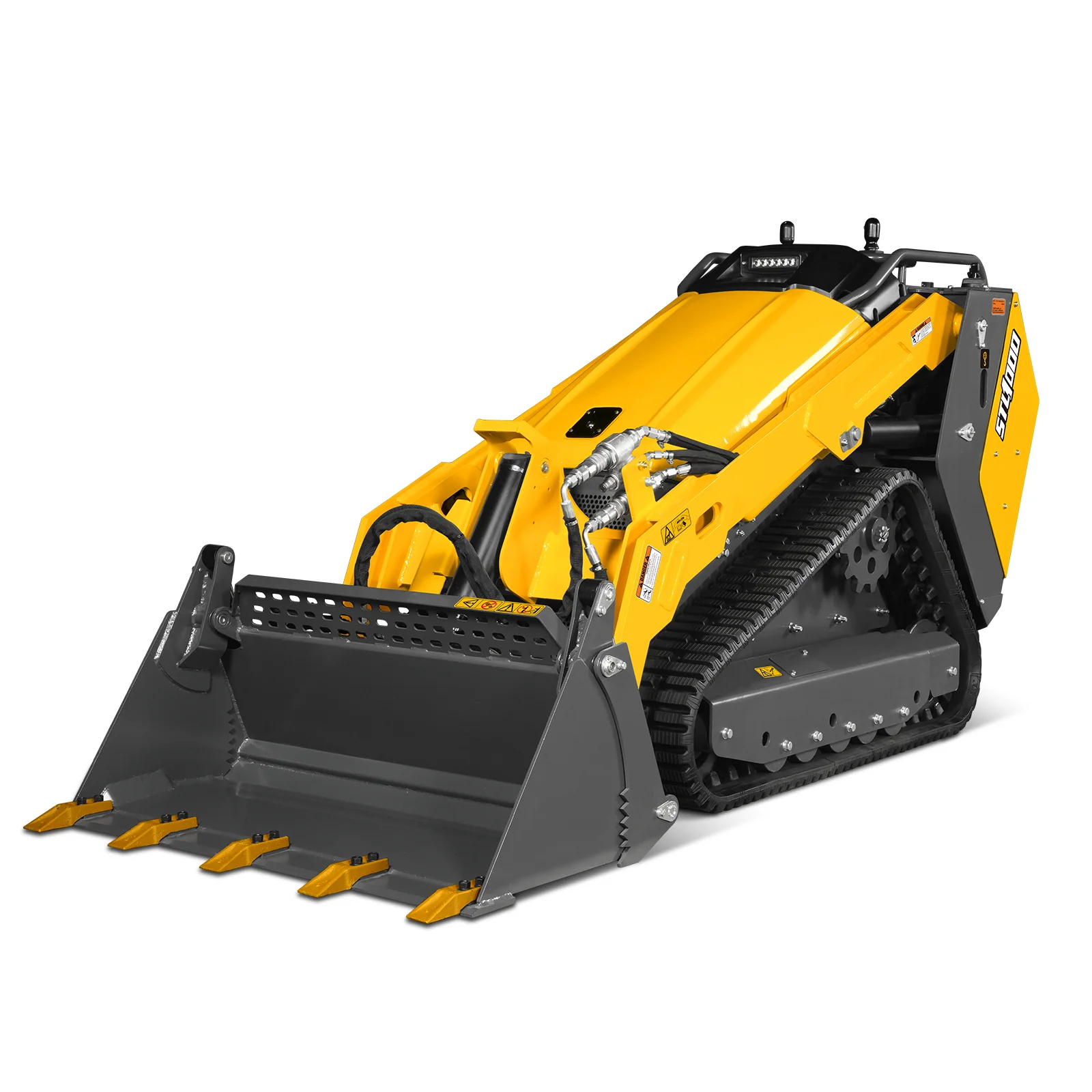

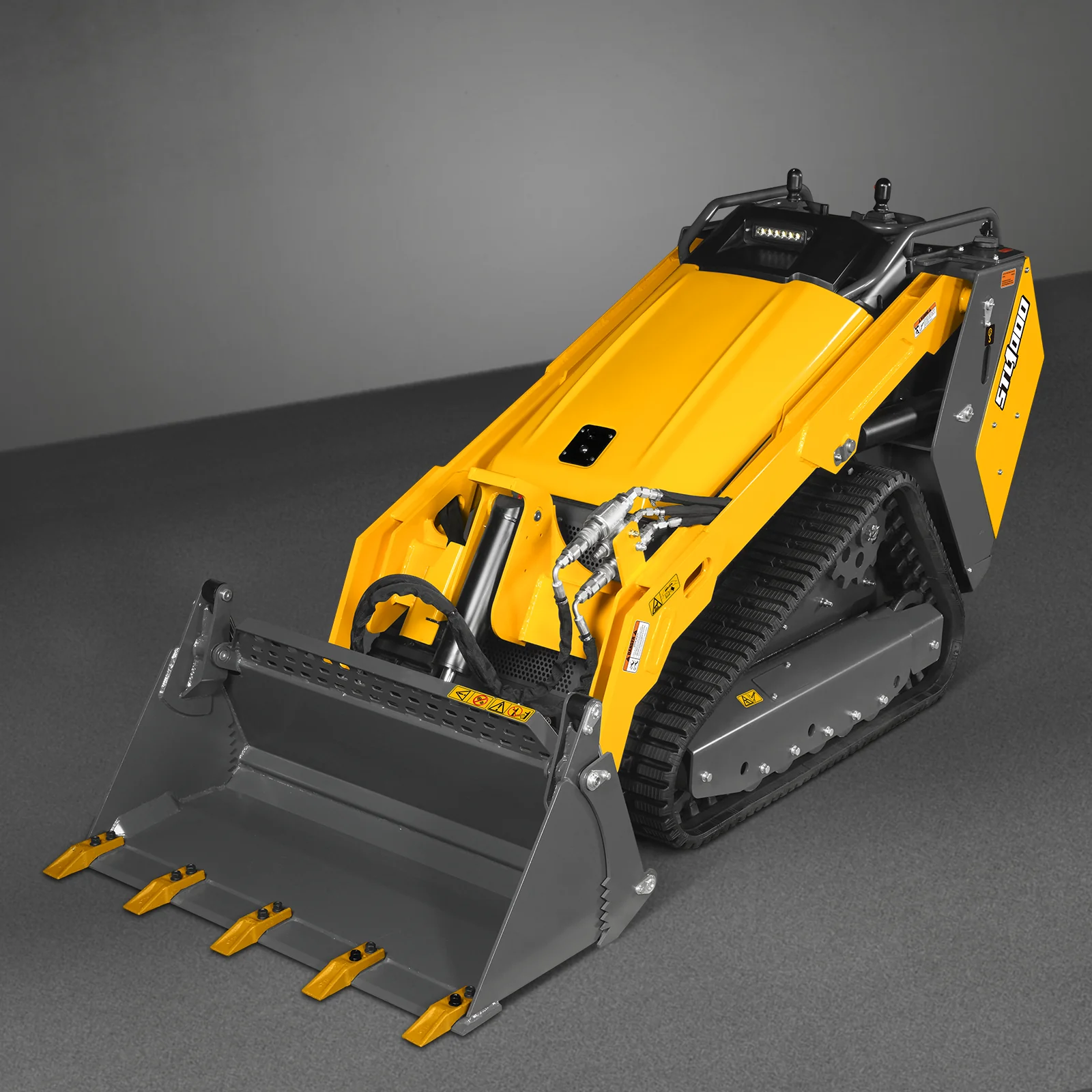

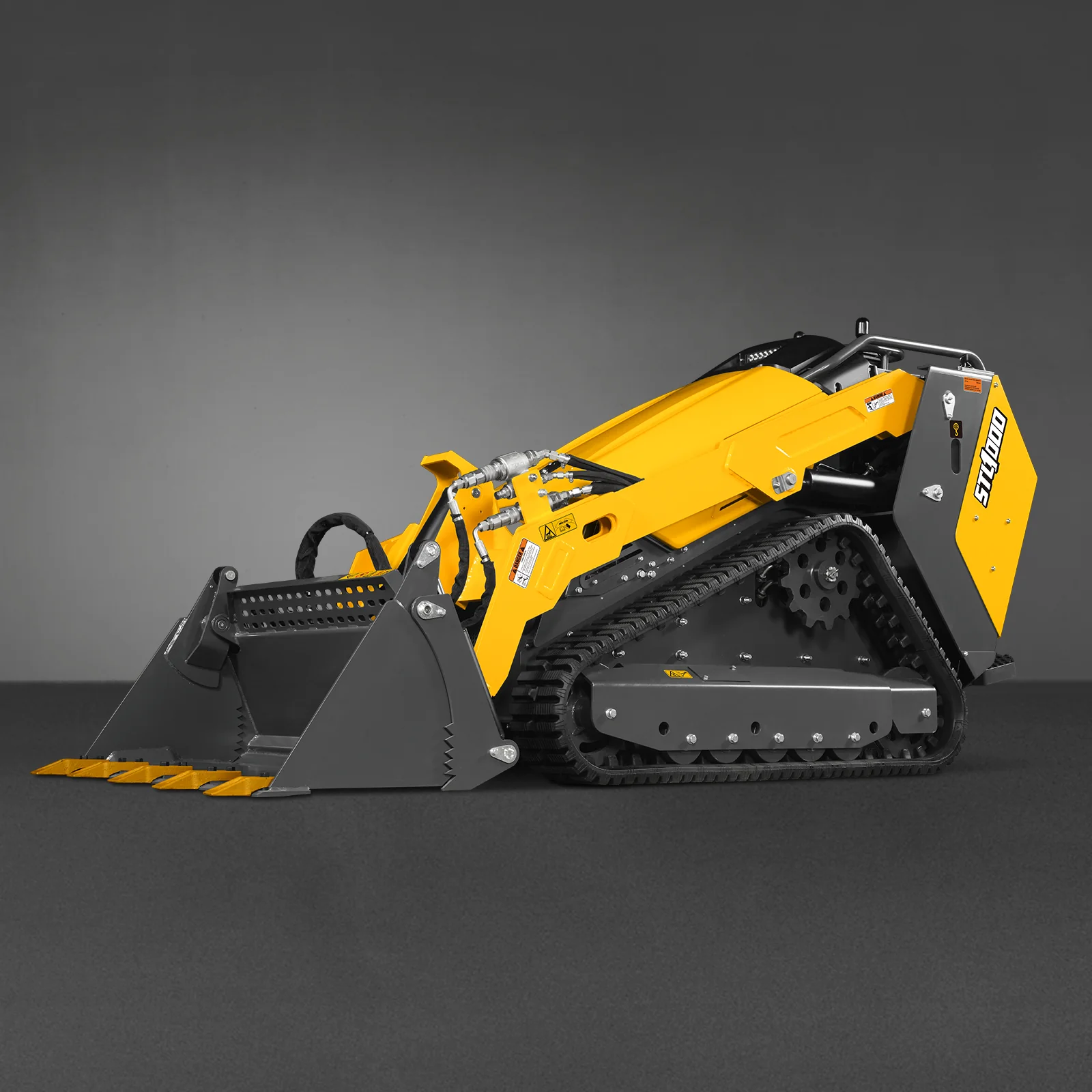

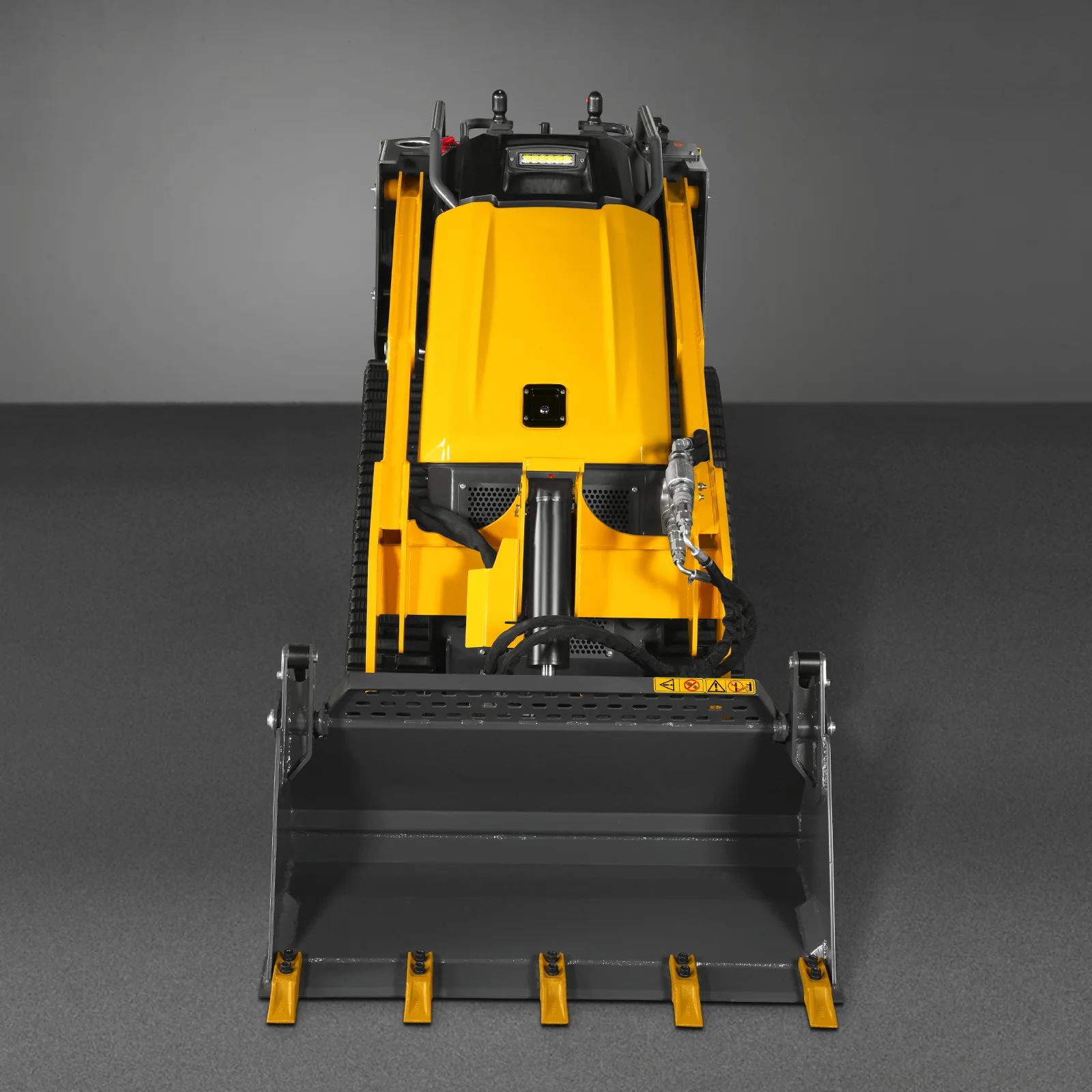

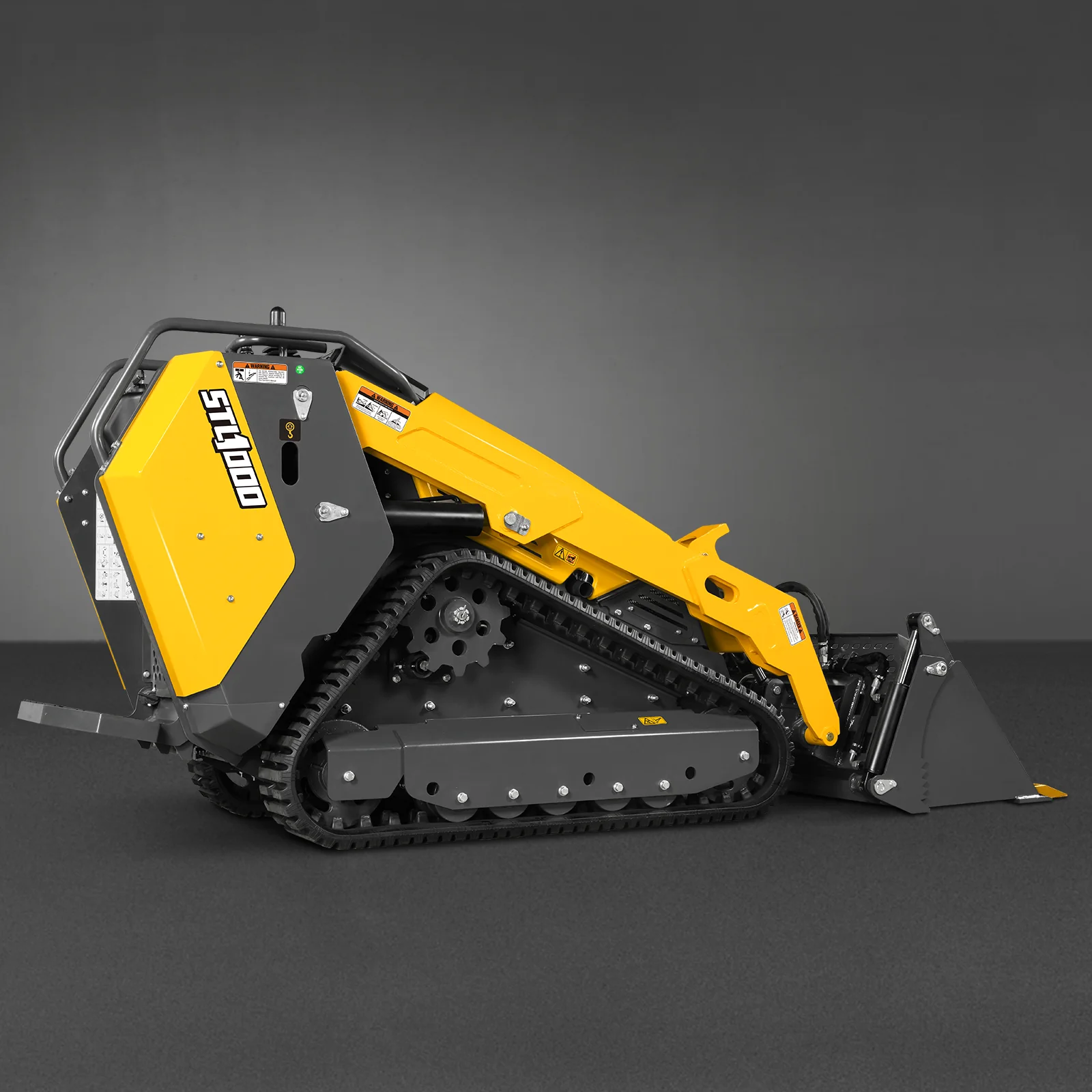

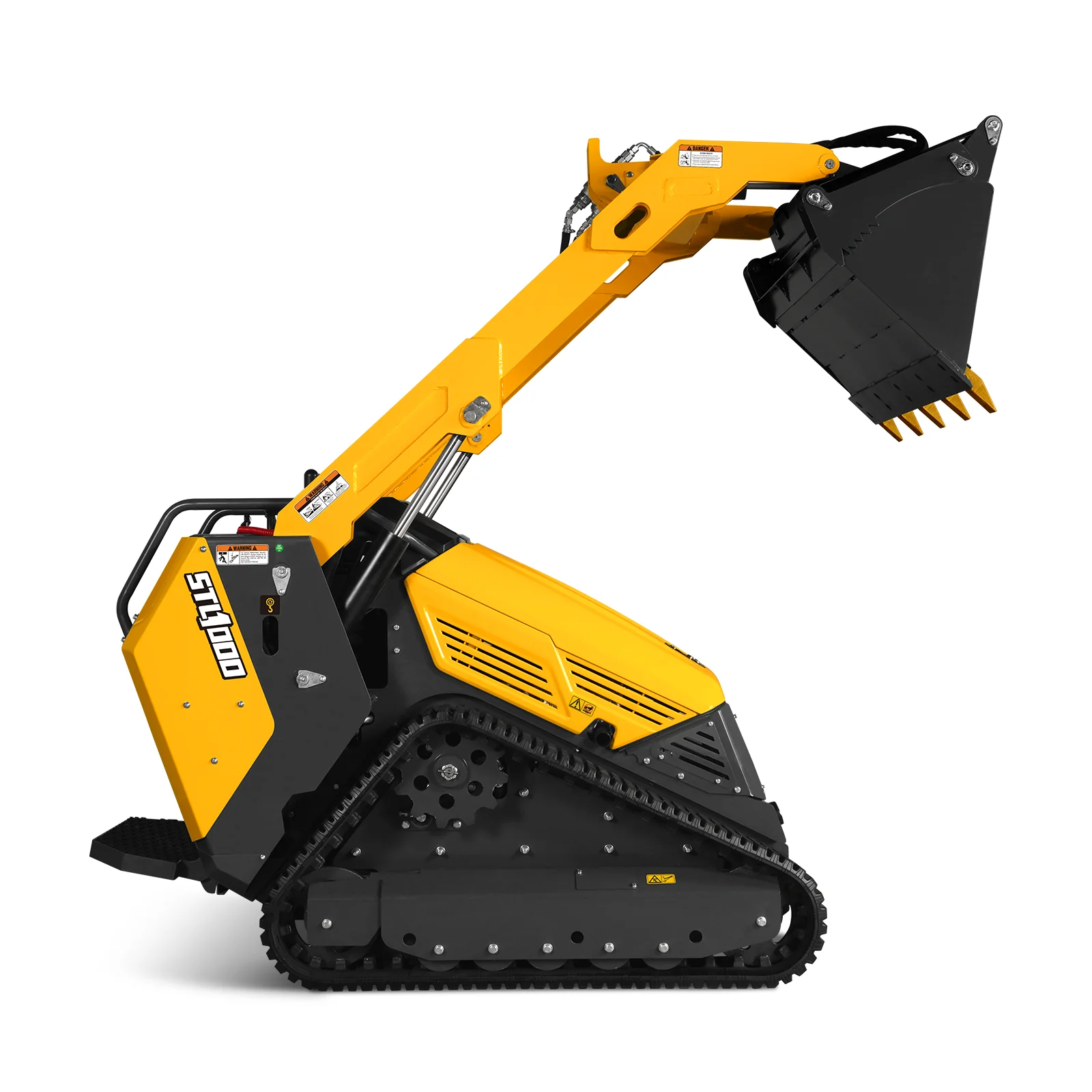

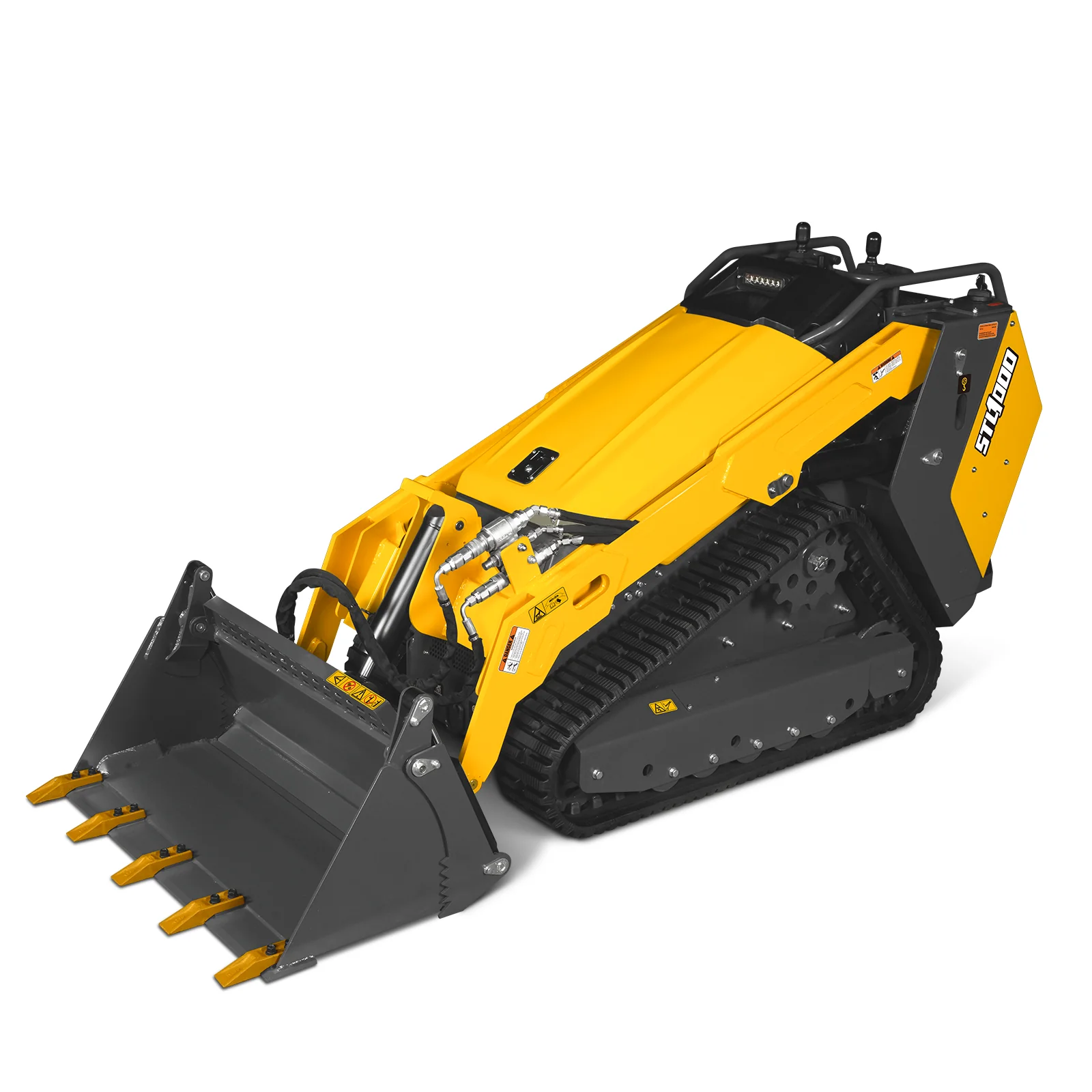

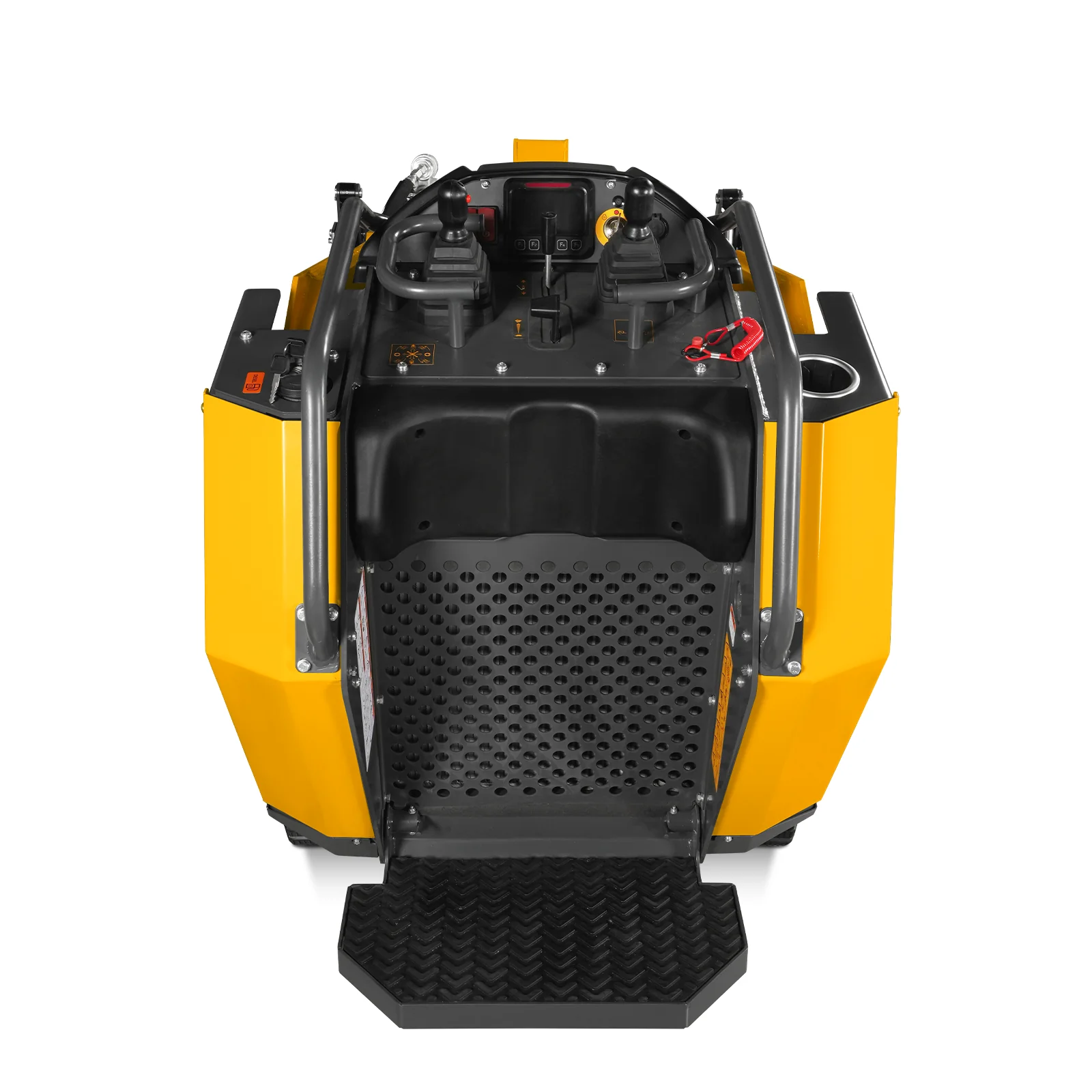

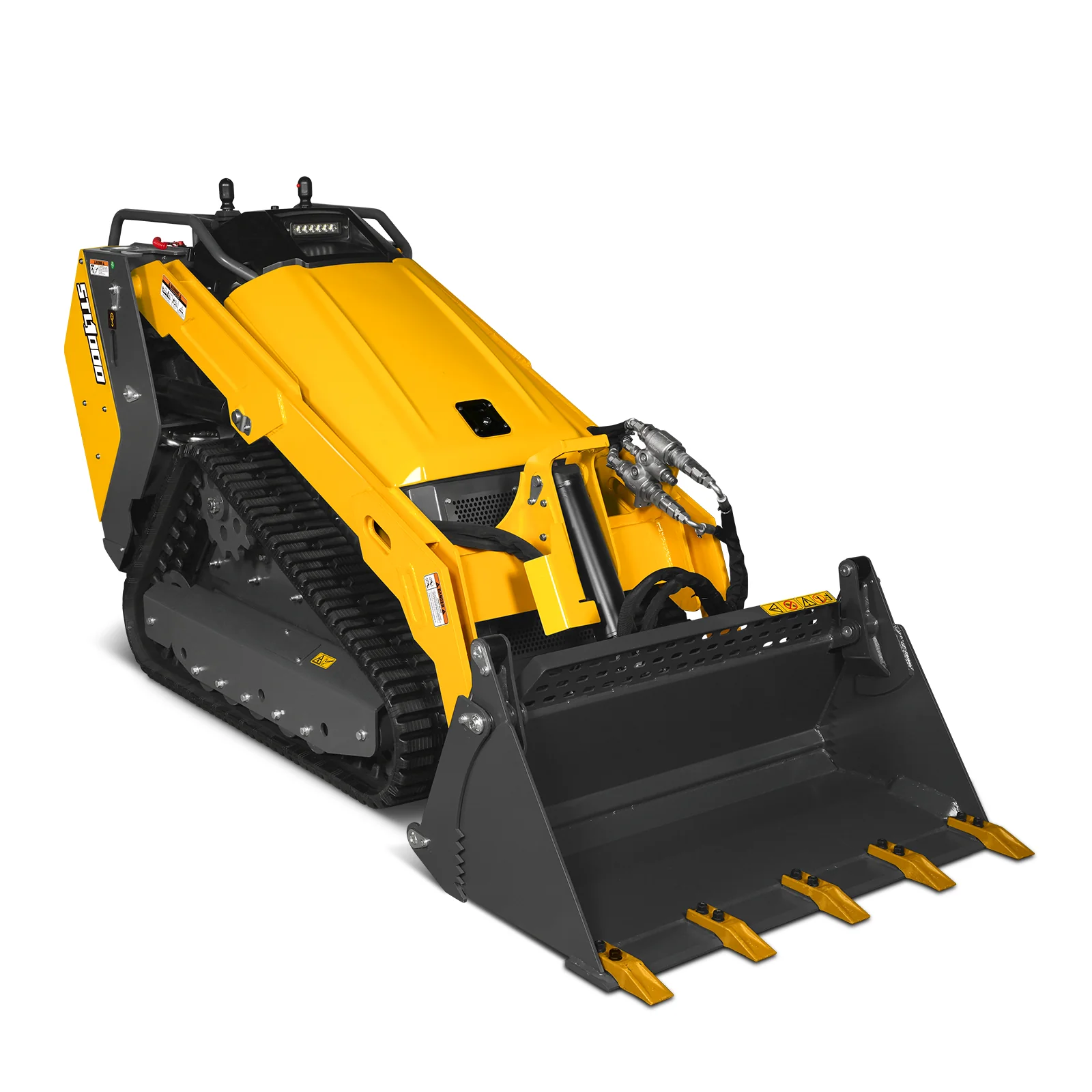

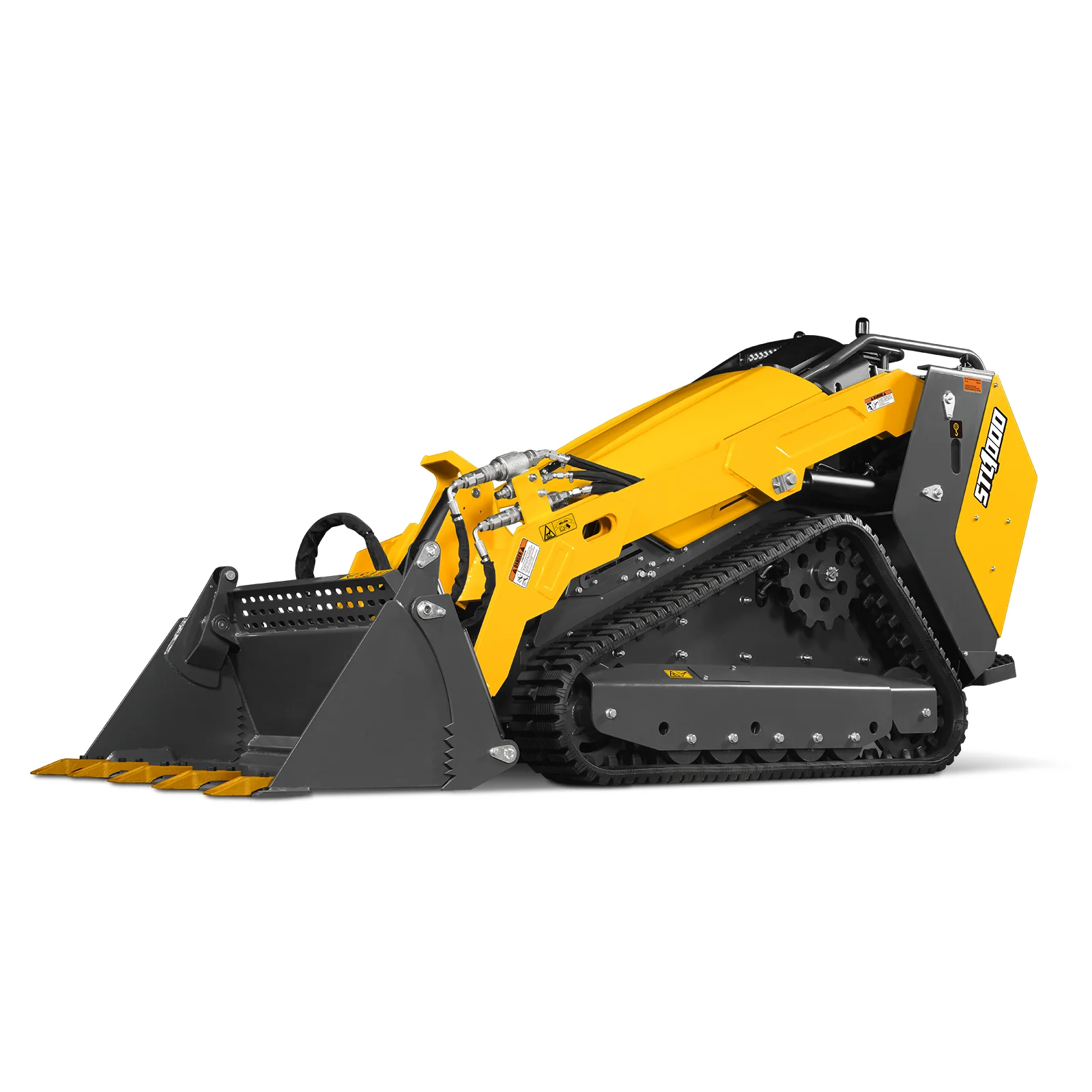

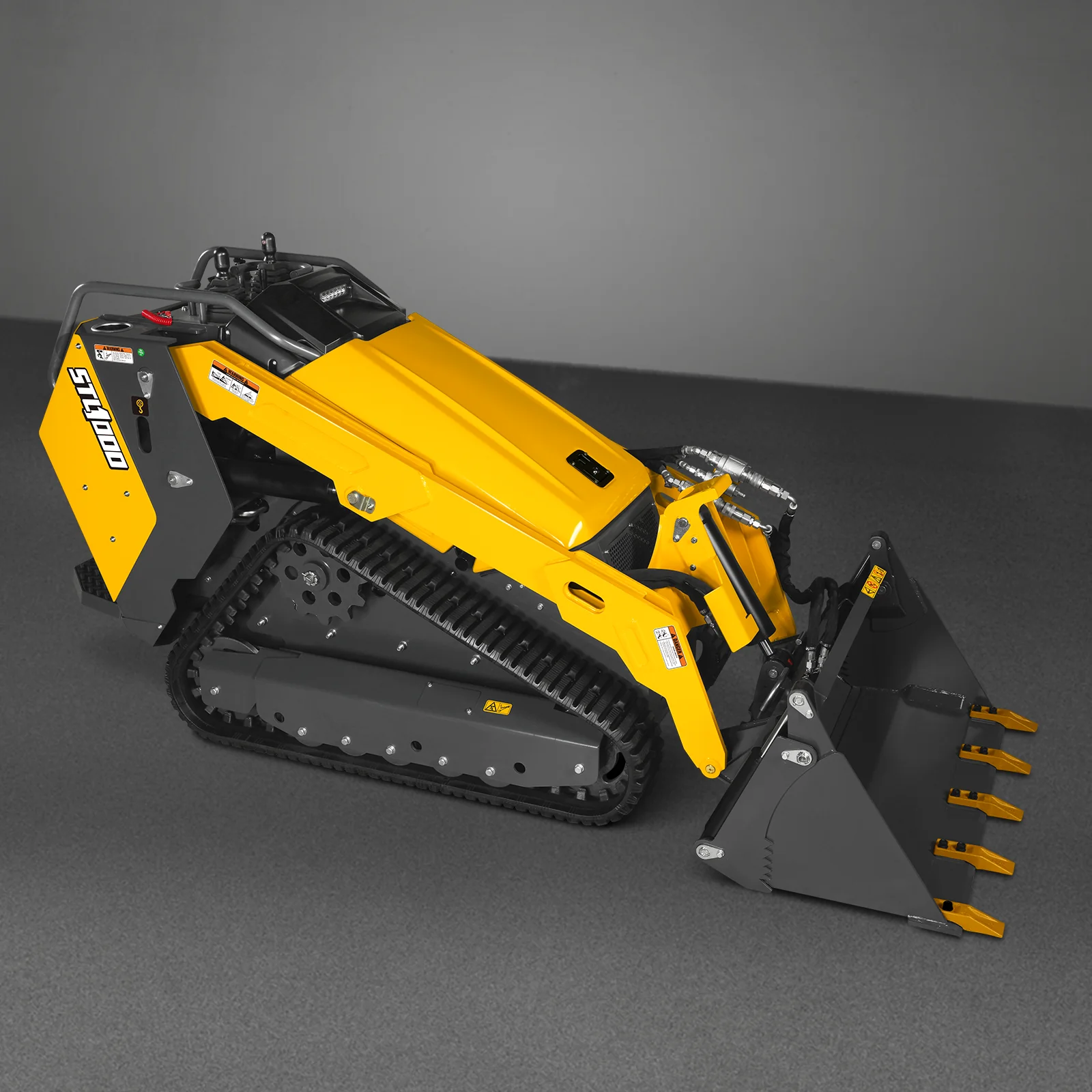

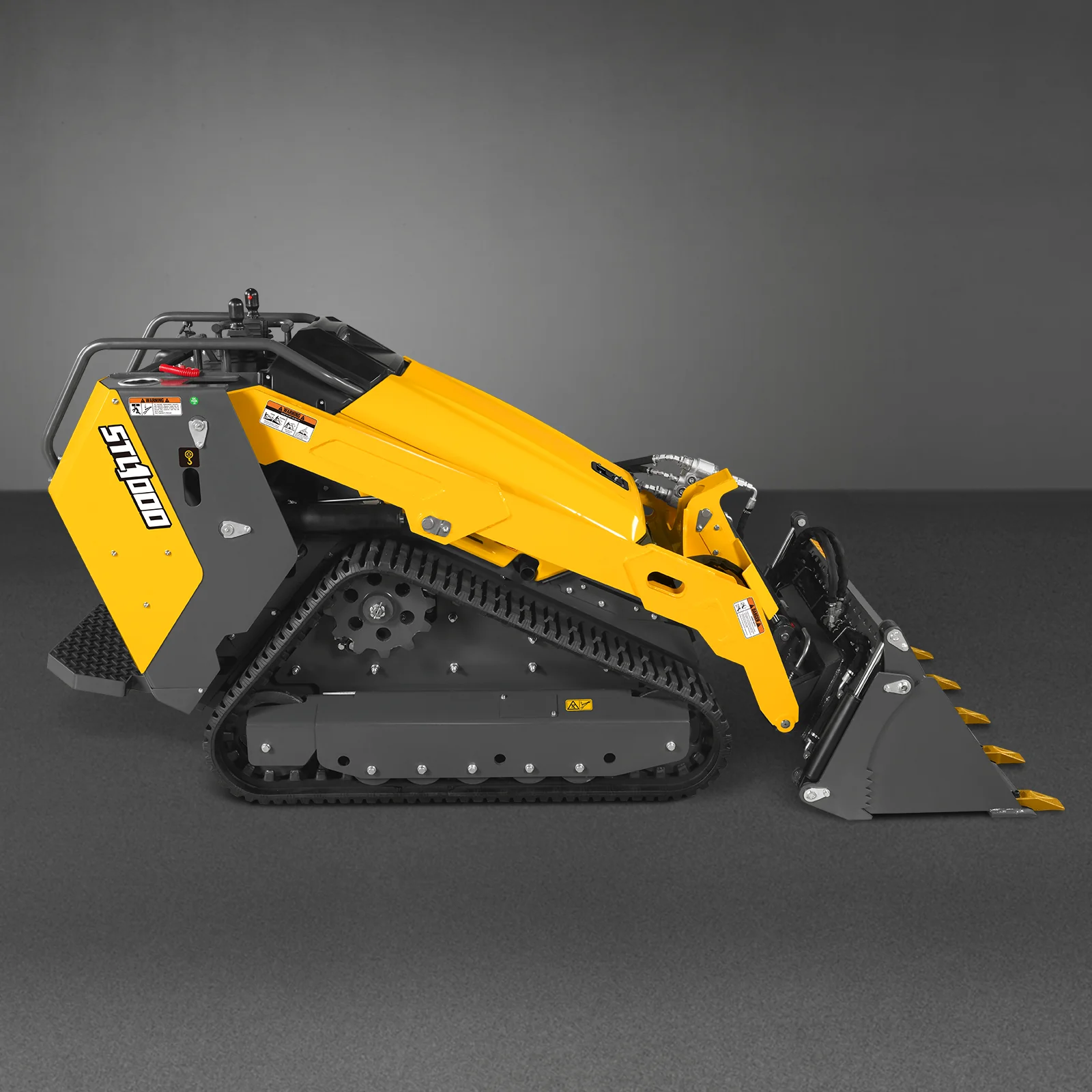

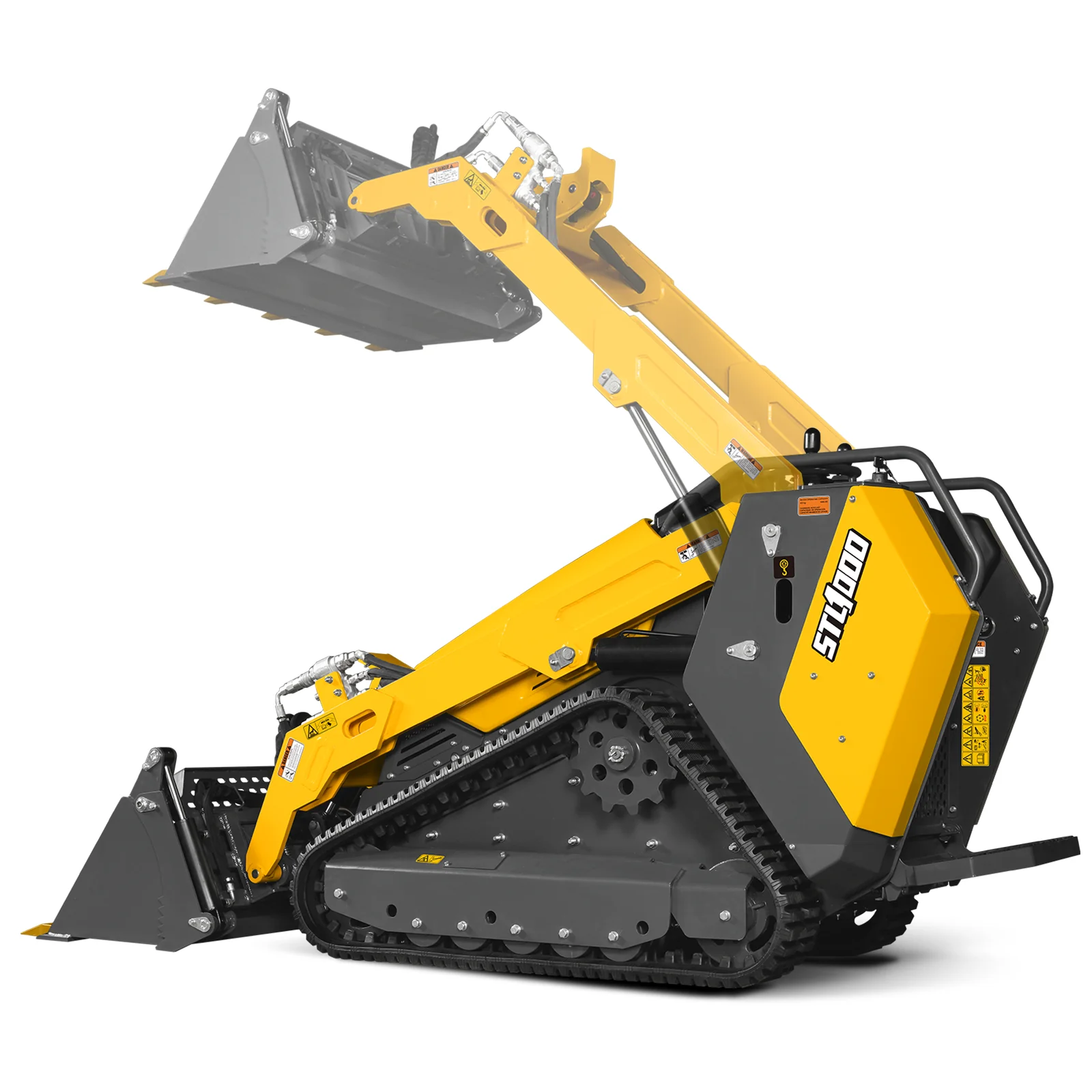

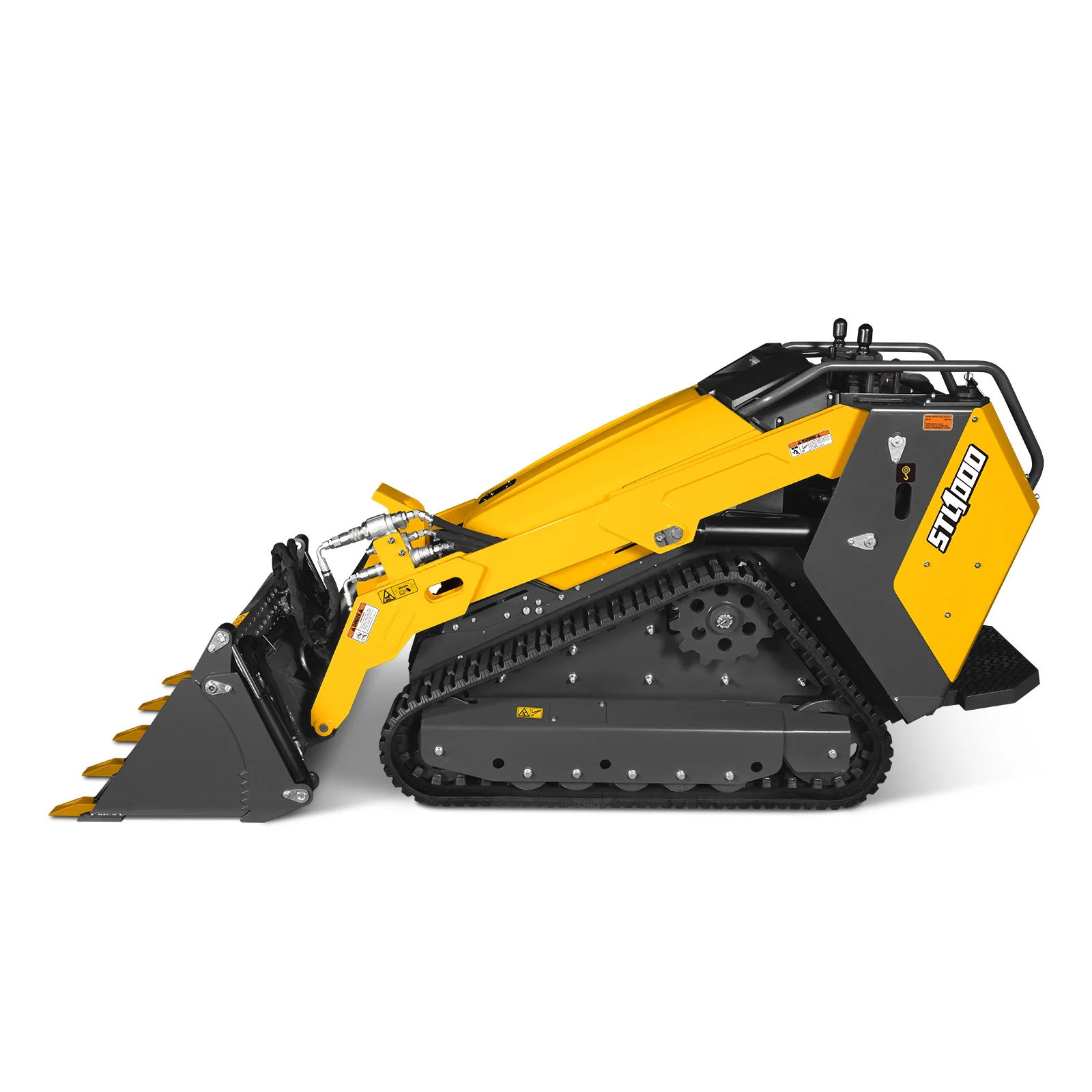

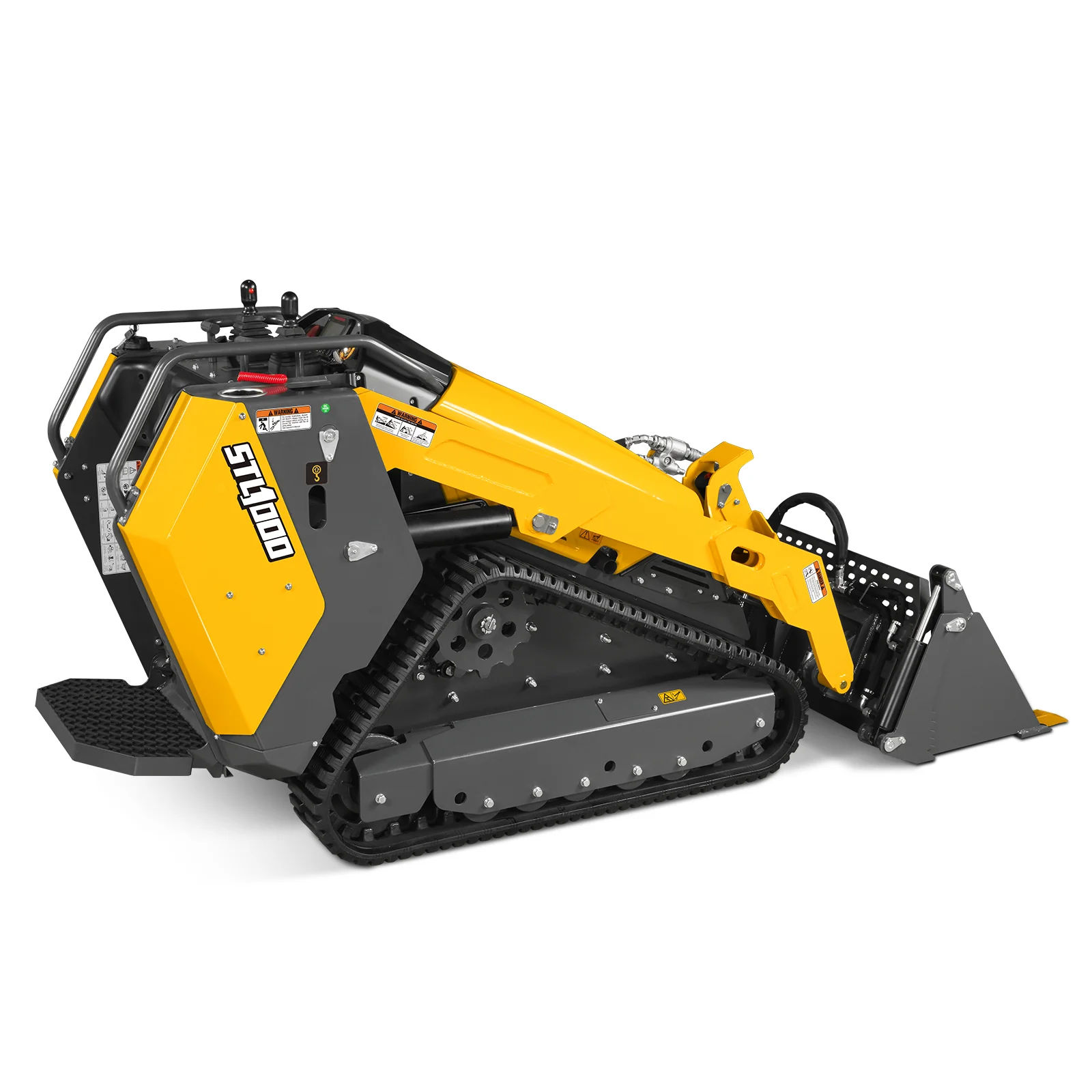

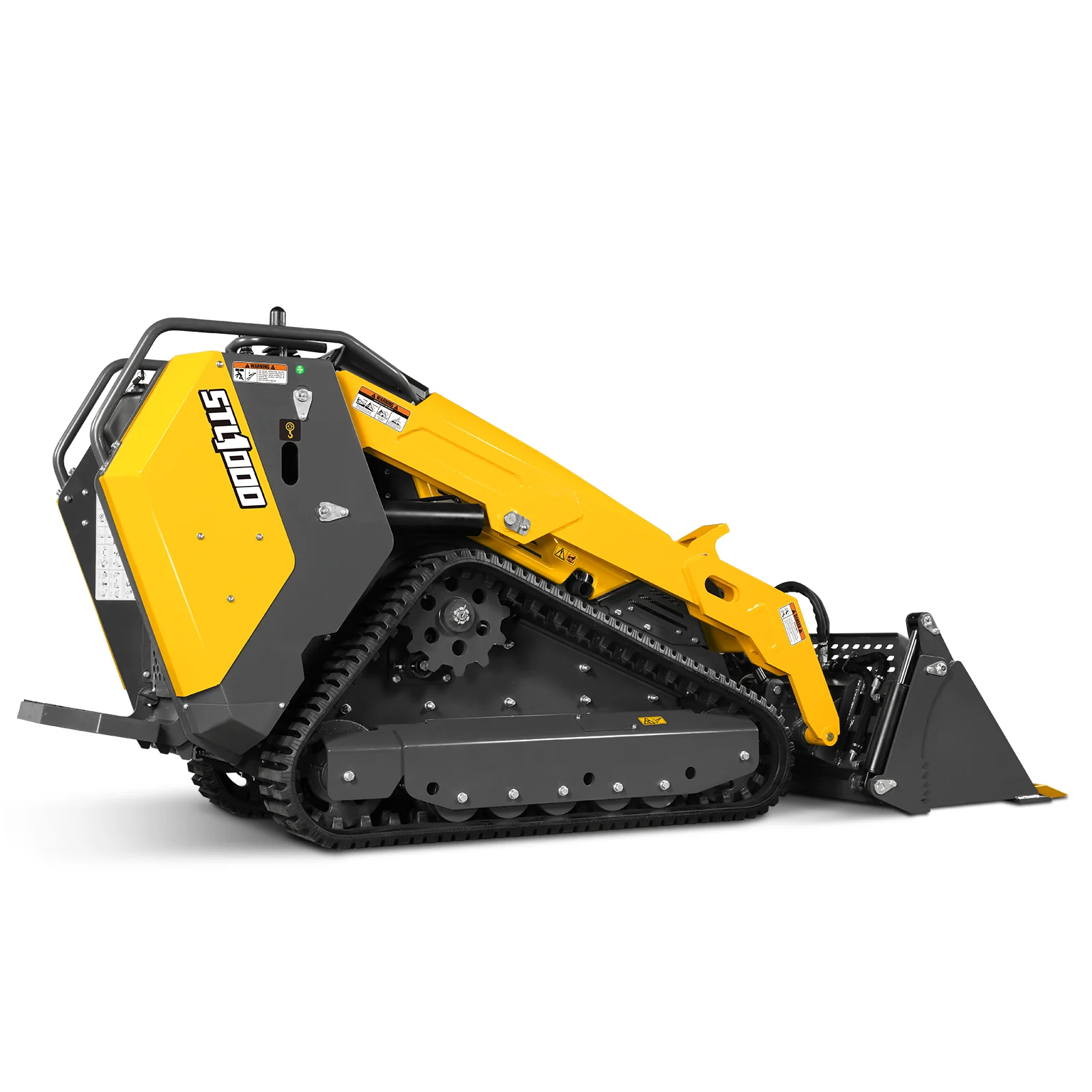

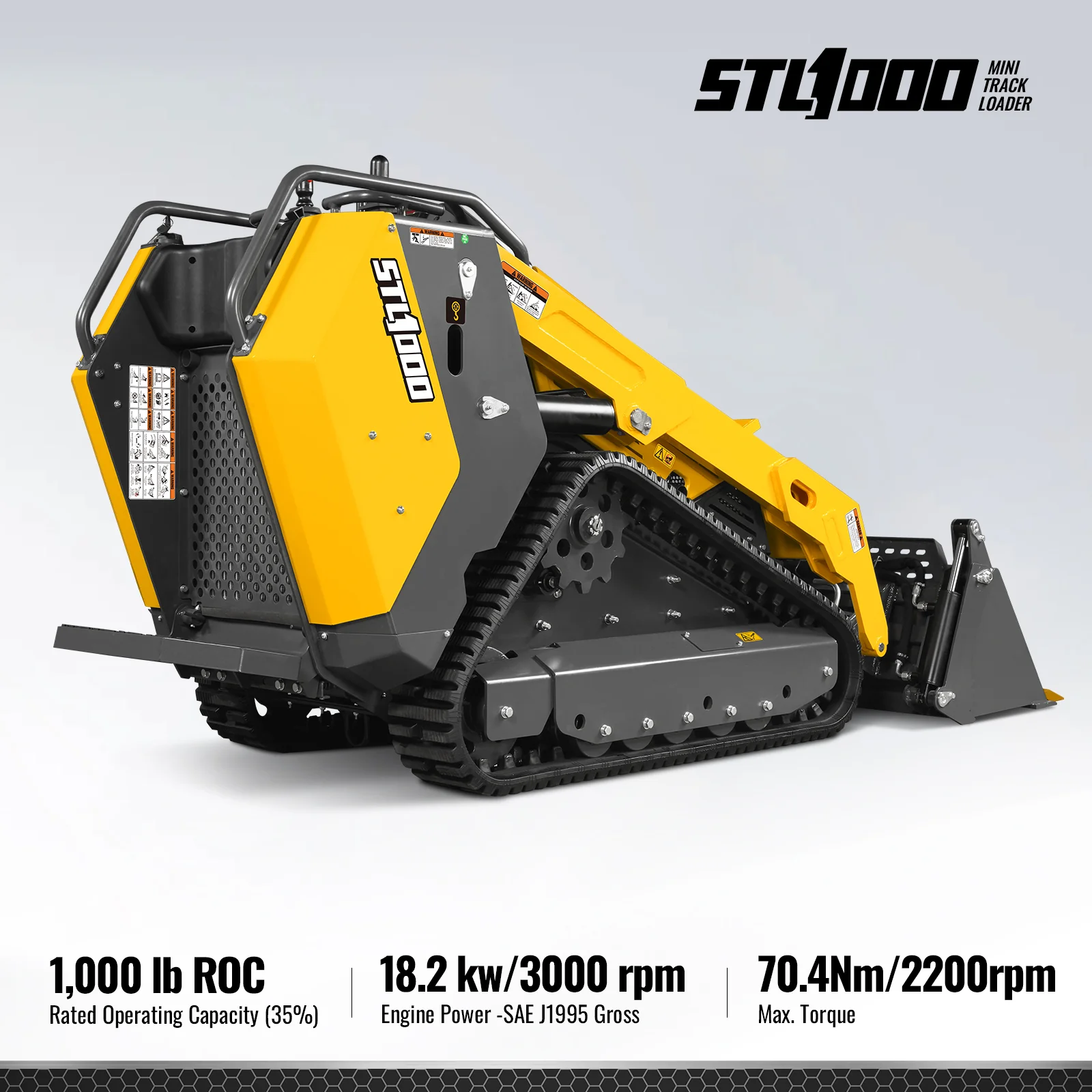

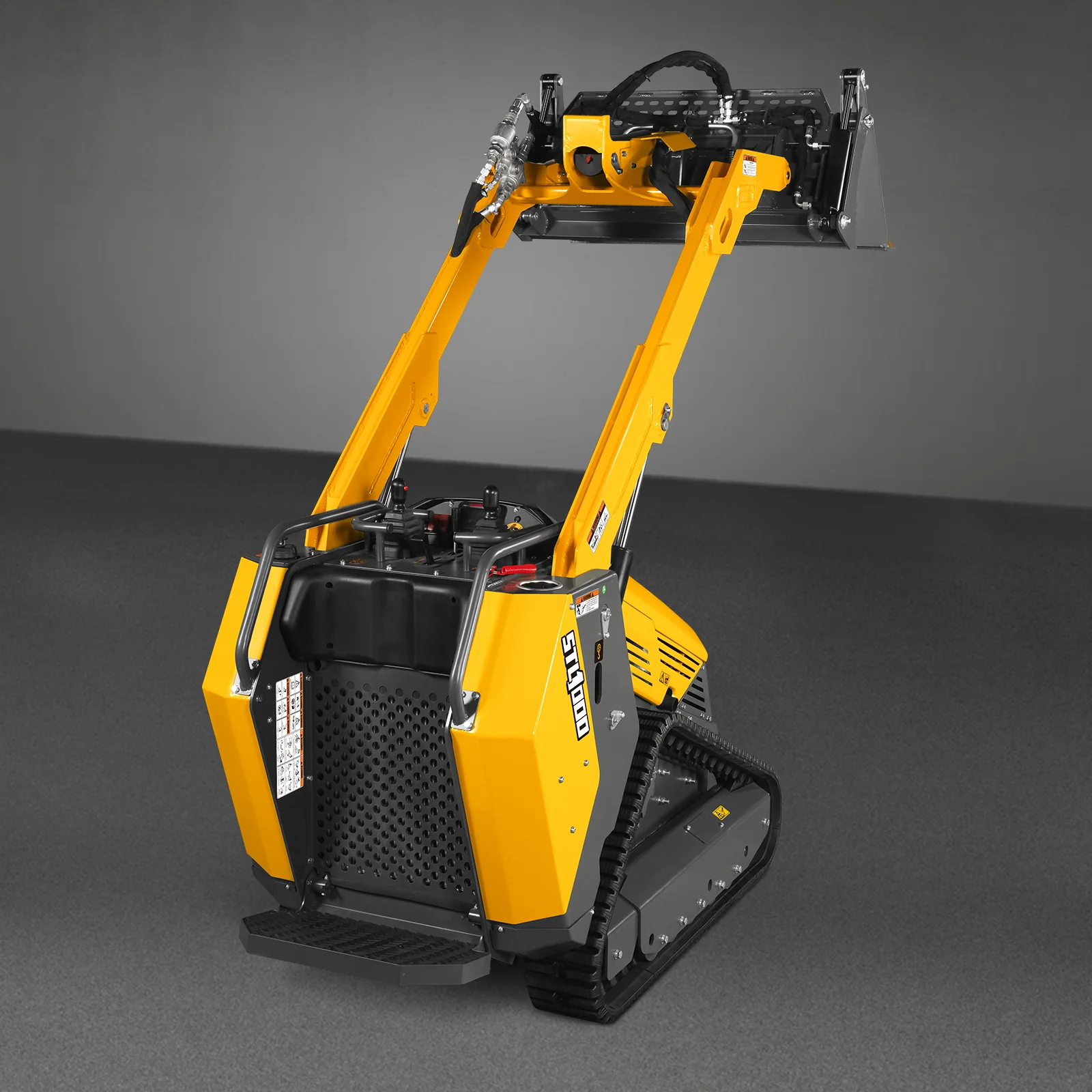

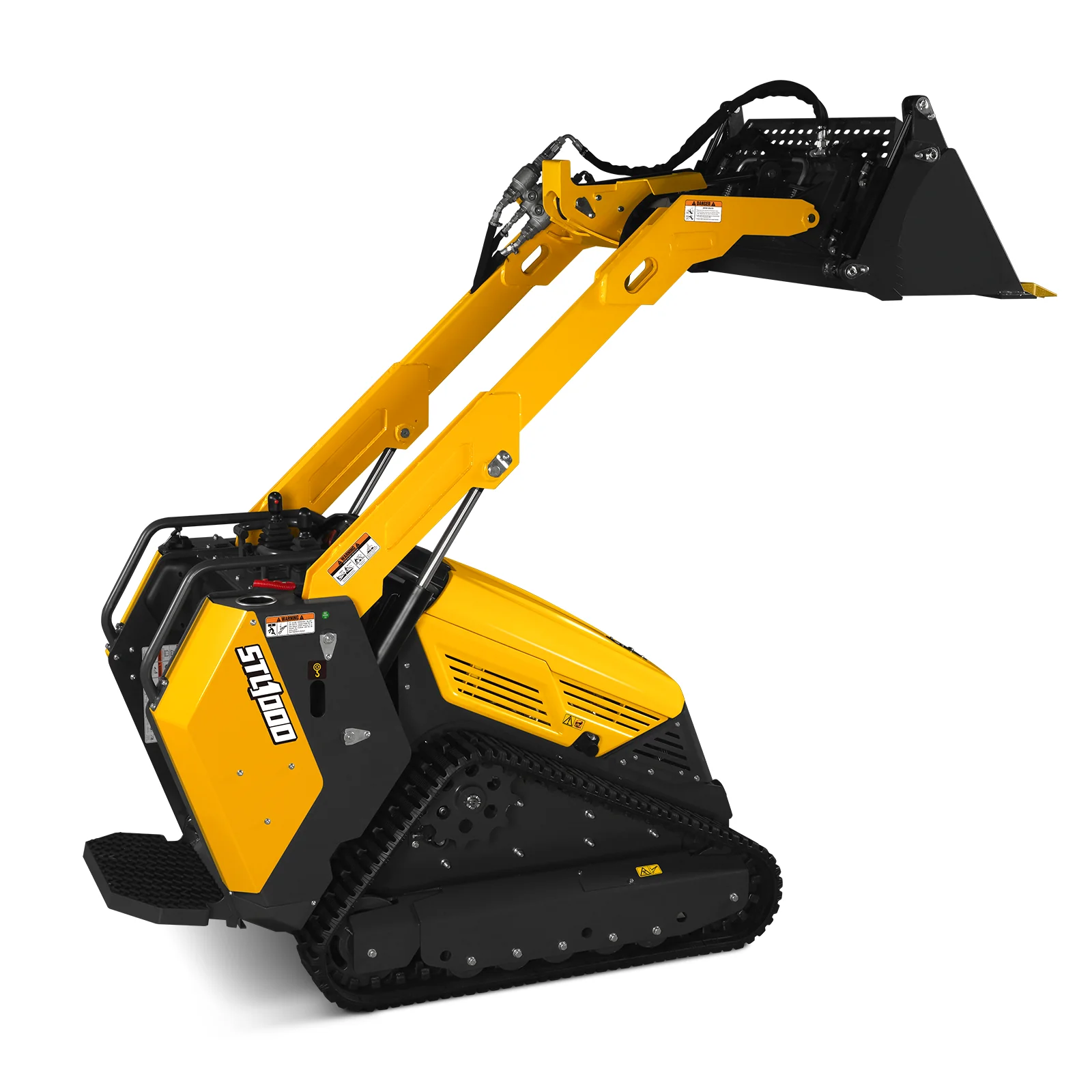

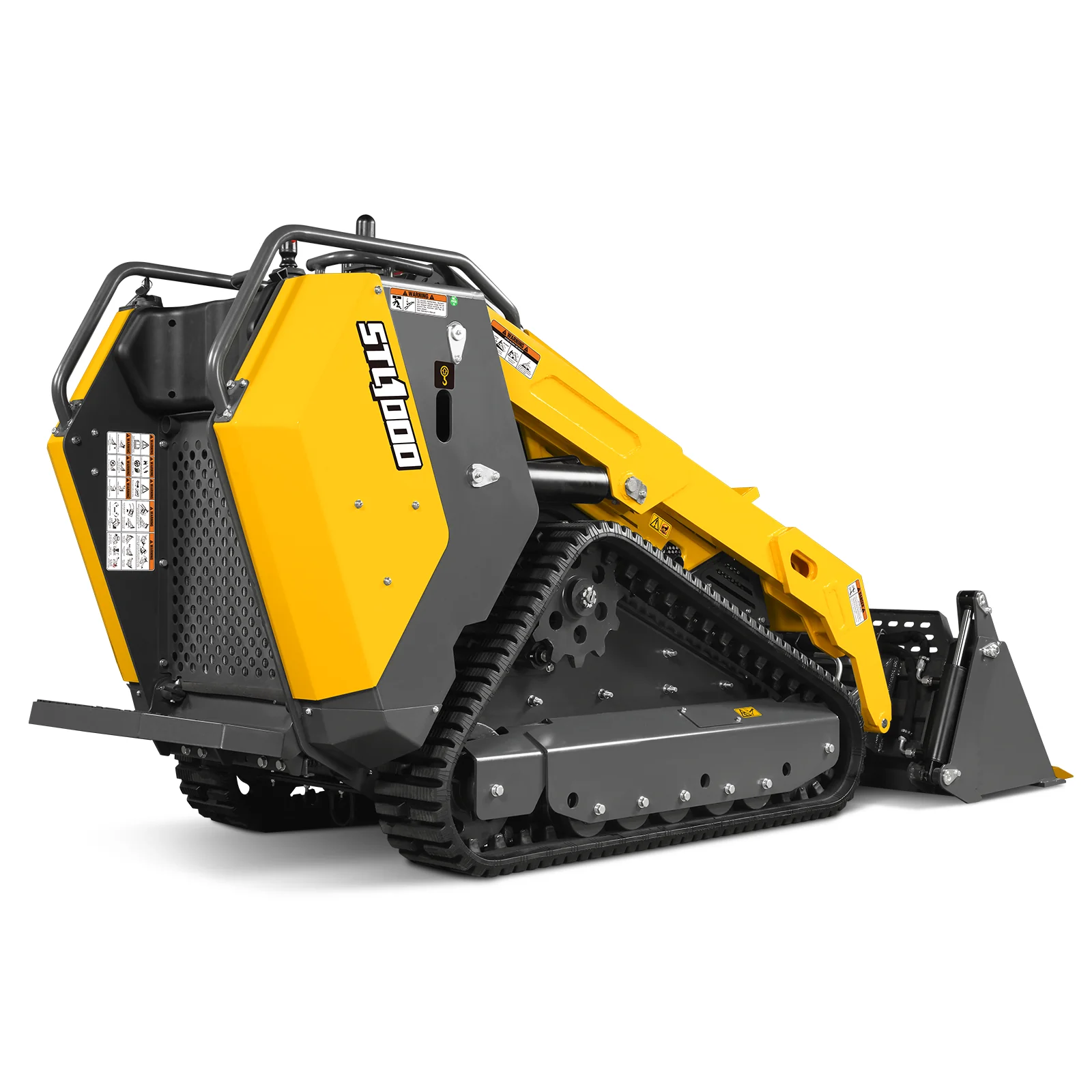

Mini Skid Steer Stand On Compact Track Loader ( 4 in 1 bucket included ) with 25HP KUBOTA D1105 Diesel Engine, Common Industry Interface (CII), CROBA STL1000

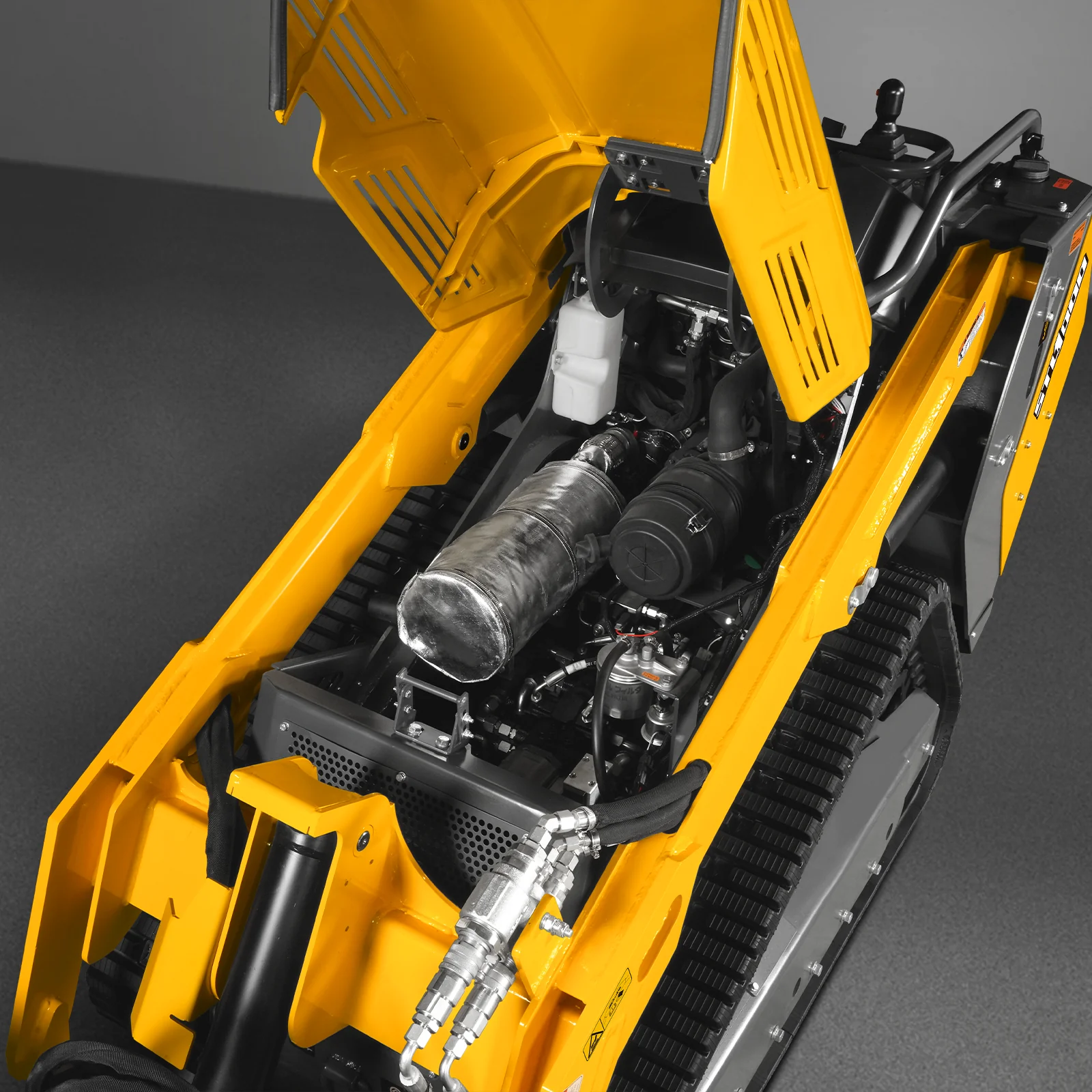

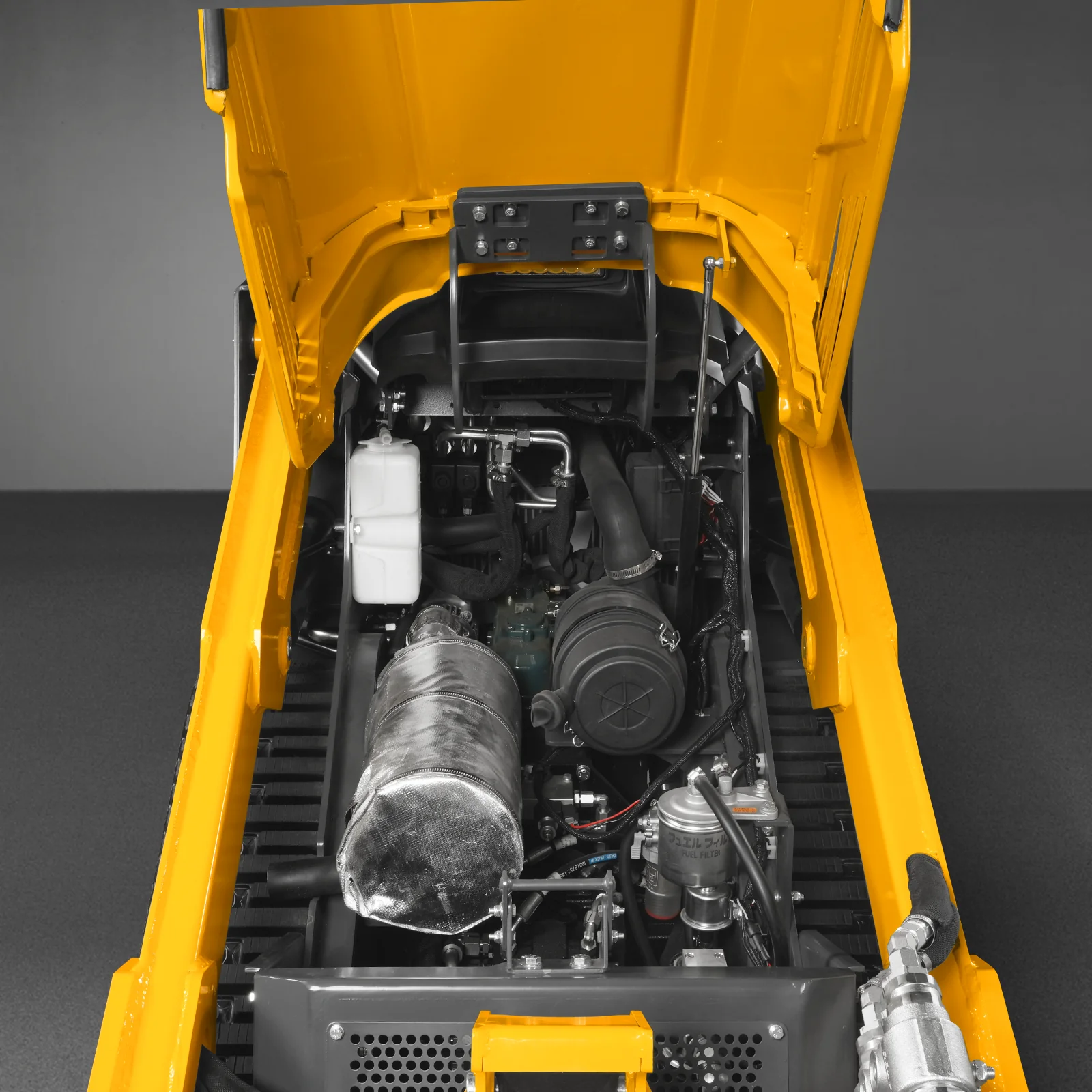

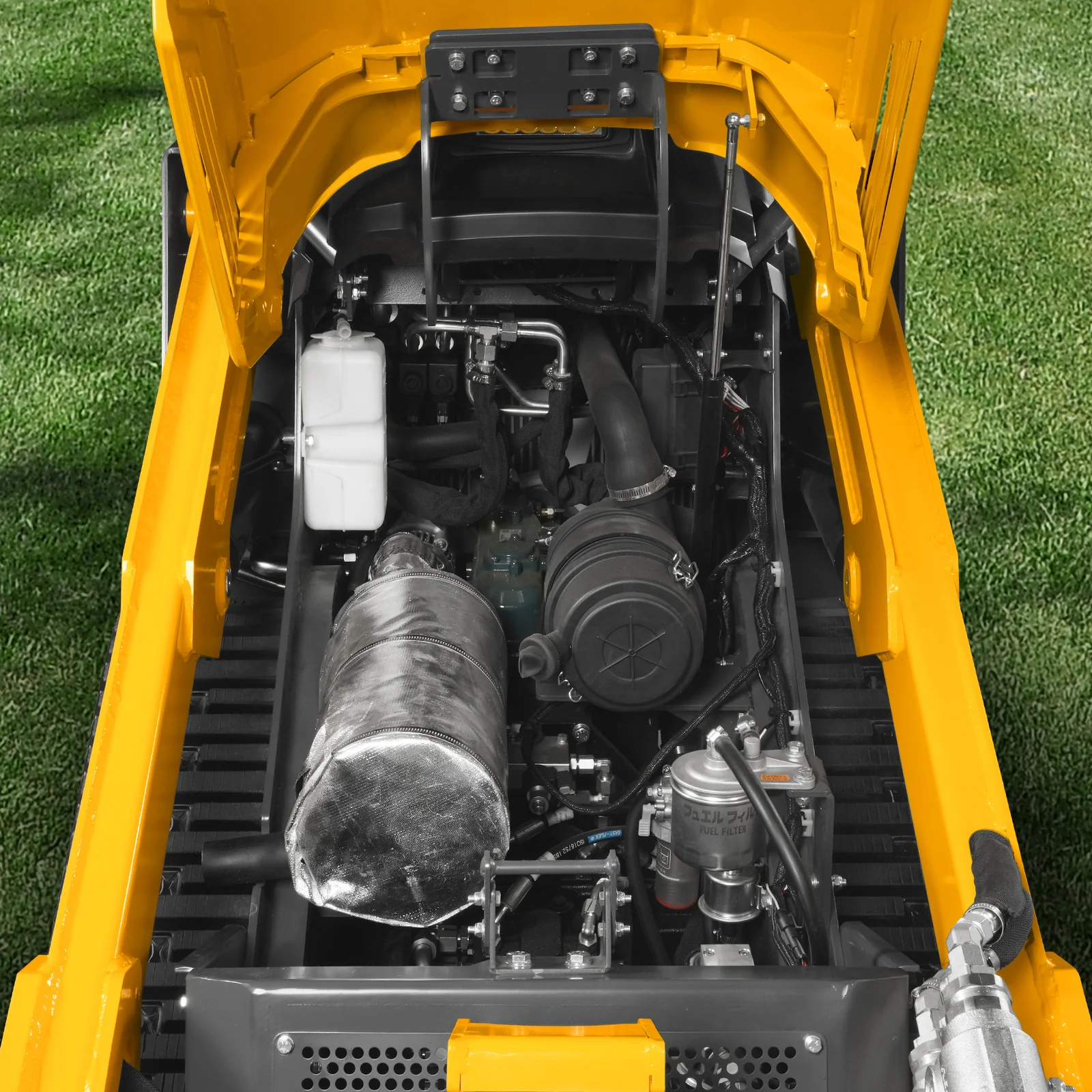

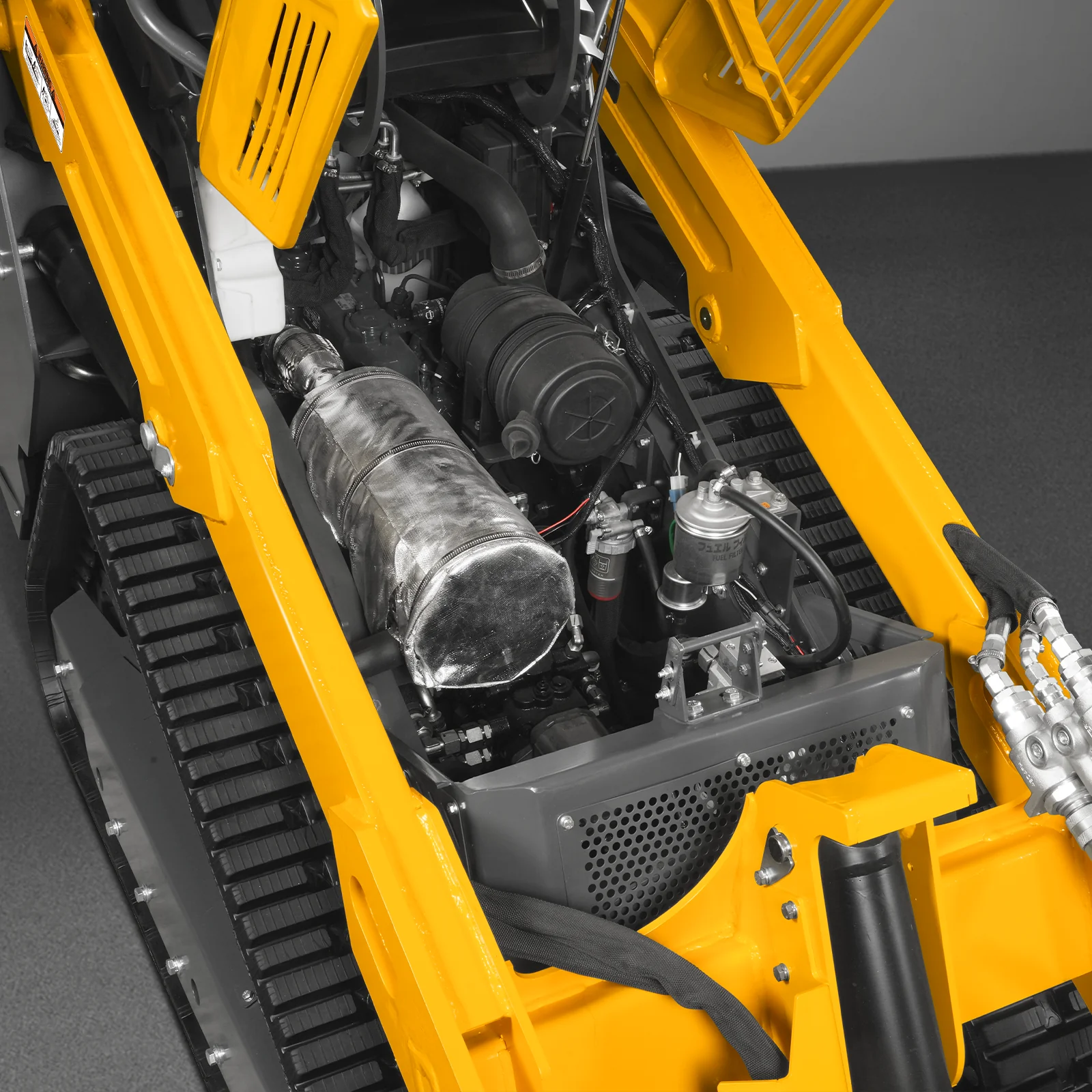

ENGINE

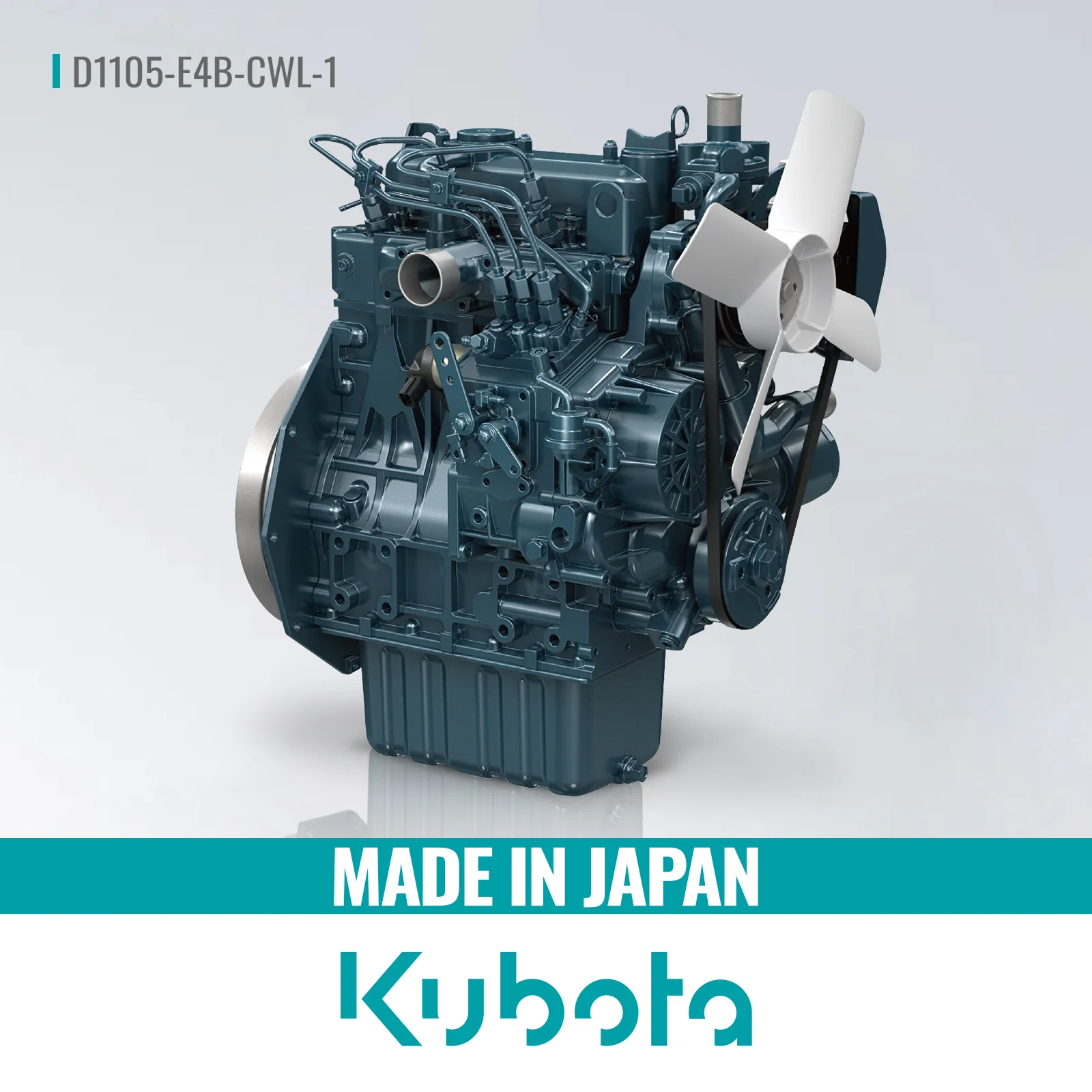

Engine Model	KUBOTA D1105-E4B-CWL-1
Type	Vertical, water-cooled, 4-cycle diesel
Total Displacement	68 cu.in.
Number of cylinder	3
Brake Horse Power -Net intermittent without fan ISO 14396	18.2 kw/3000 rpm
Rated Speed	3000 rpm
Max. Torque	70.4Nm/2200 rpm
Low Idling Speed	850-950 rpm
DIMENSIONS
Overall Length (With 4-In-1 Bucket Parallel To Ground)	109 in
Overall Length (w/o 4-In-1 Bucket)	83 in
Overall Height	51.6 in

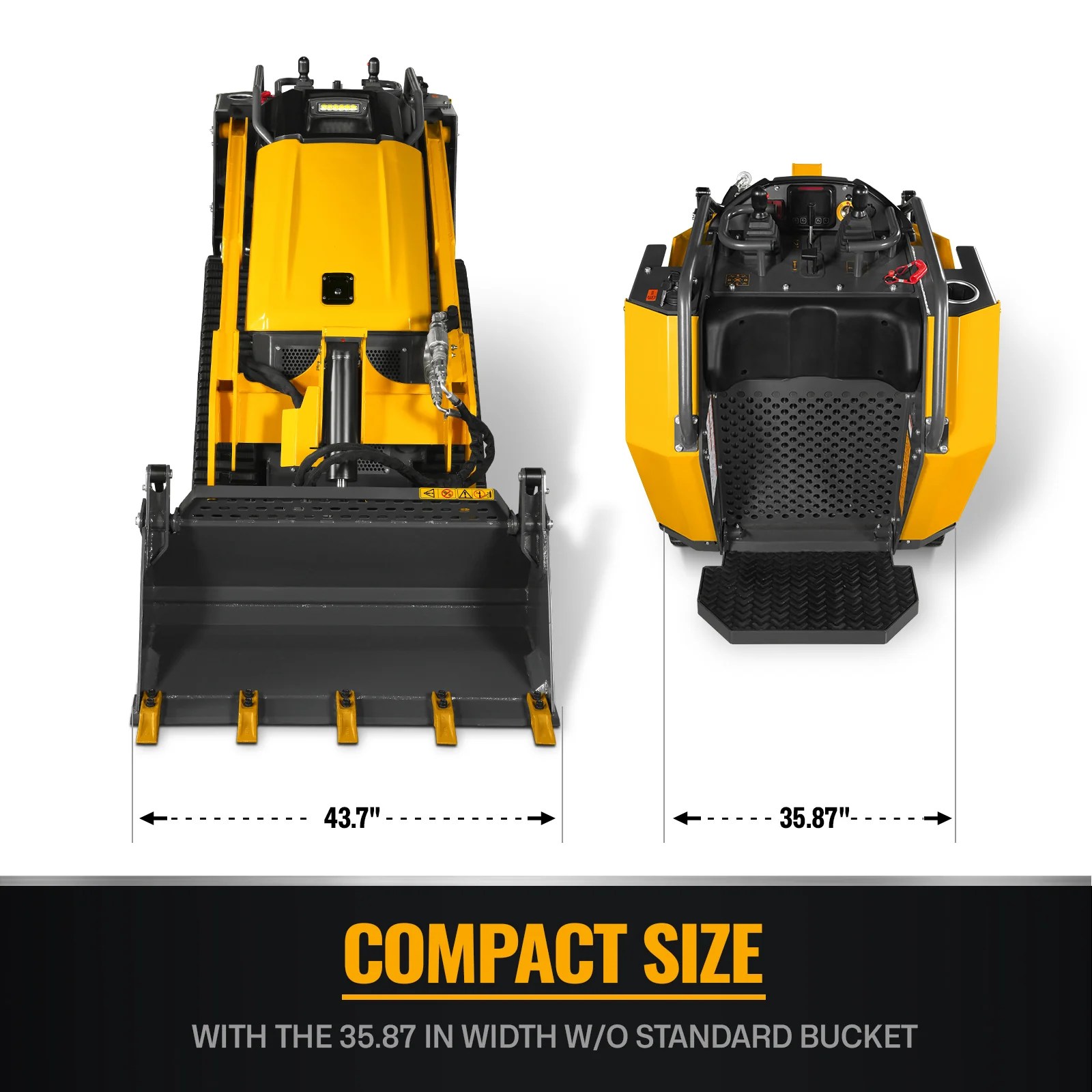

Overall Width With 4-In-1  Bucket	43.7 in
Overall Width w/o 4-In-1 Bucket Bucket	35.87 in
Weight With 4-In-1 Bucket (w/o Operator) lbs	3206 lbs
Weight w/o 4-In-1 Bucket	2895 lbs
Rated Operating Capacity (35%)	1,000 lbs ROC
Tipping Load	2,857 lbs
Wheelbase	42 in

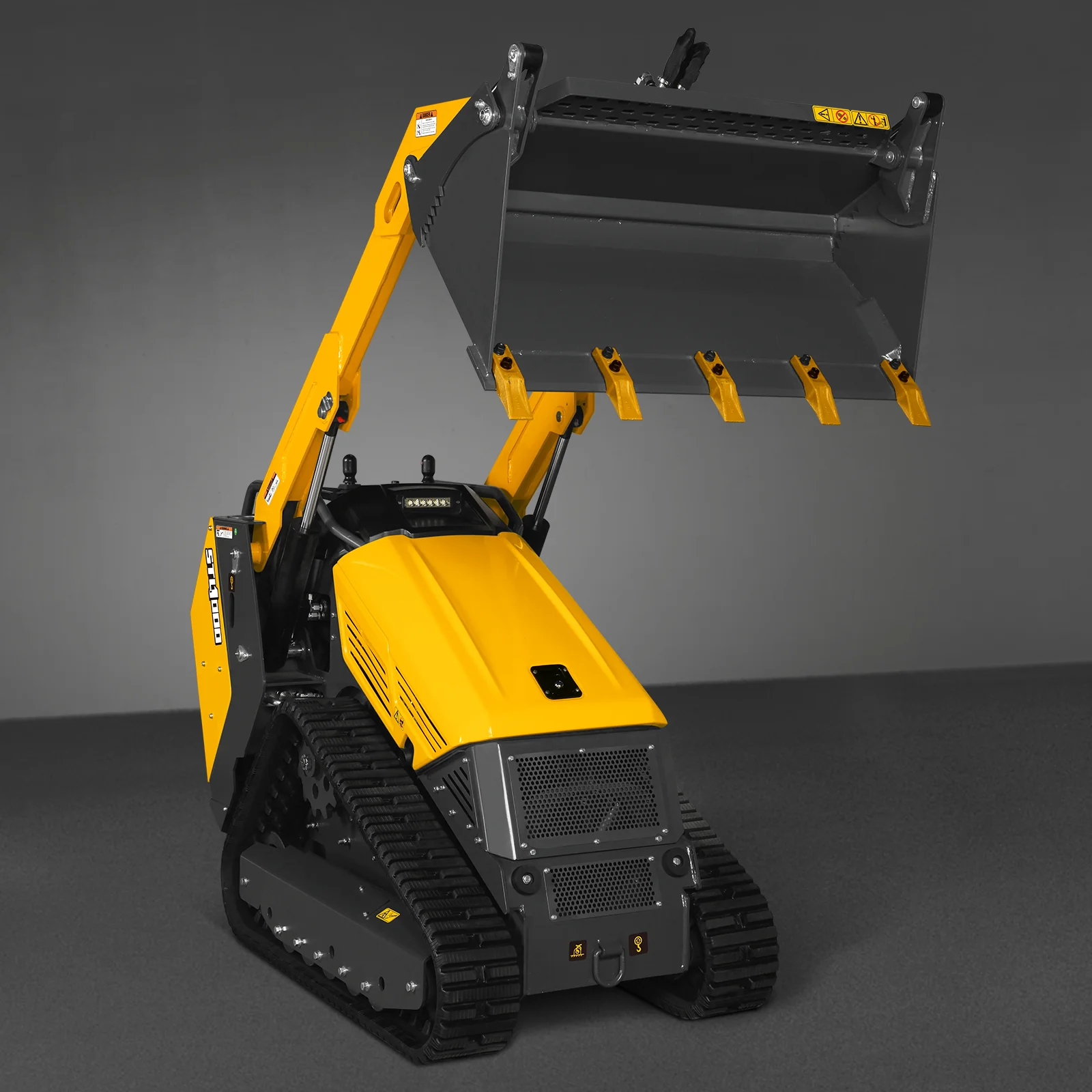

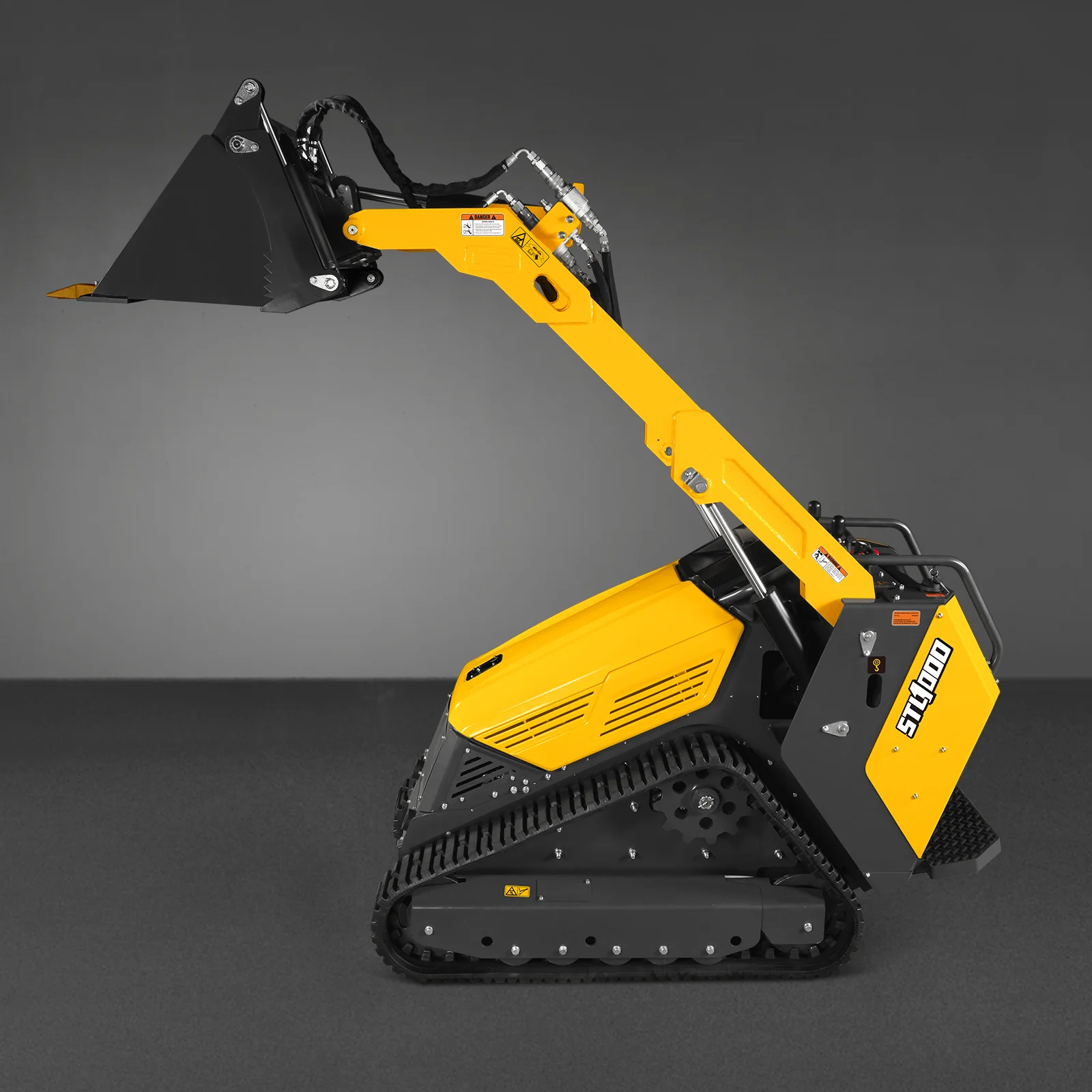

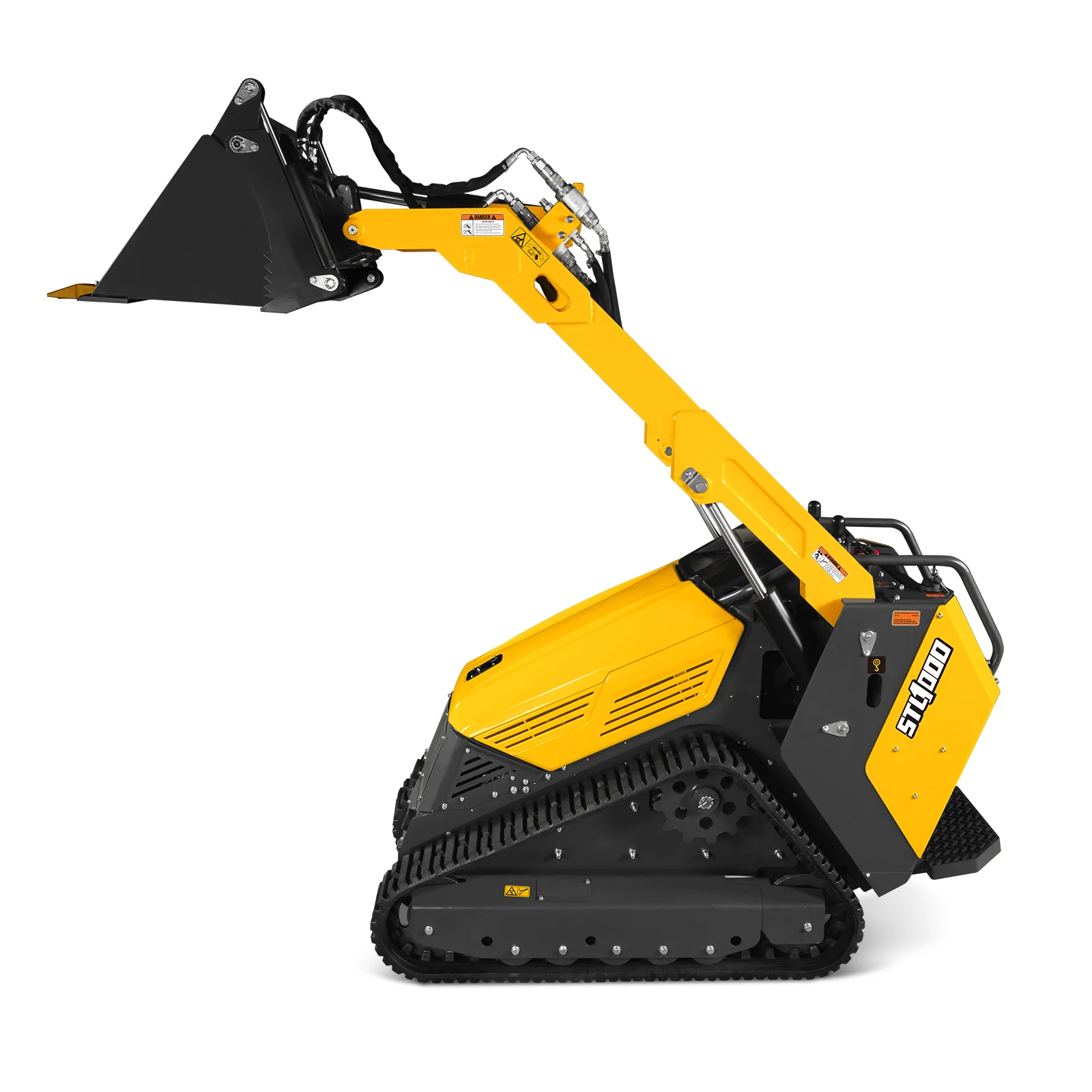

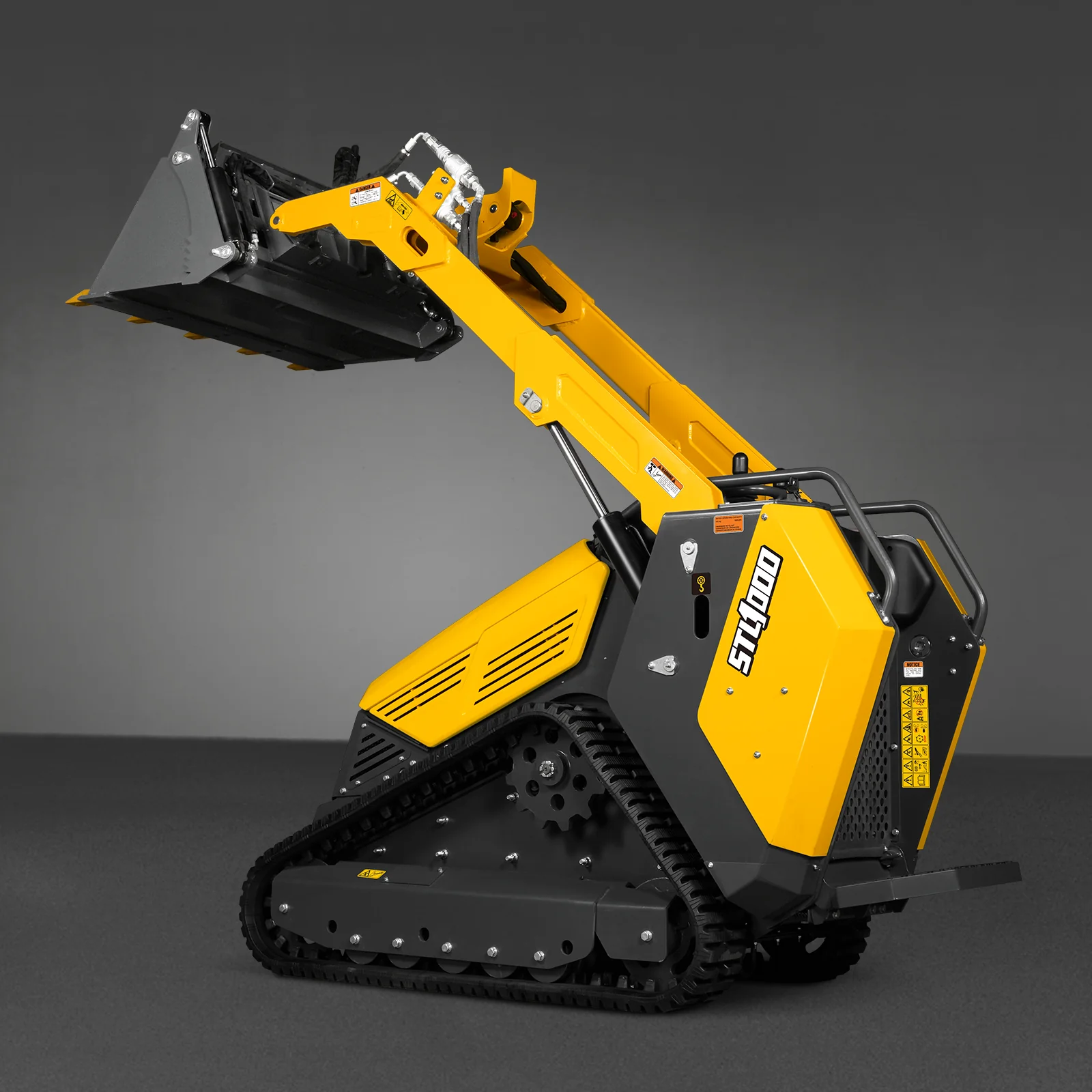

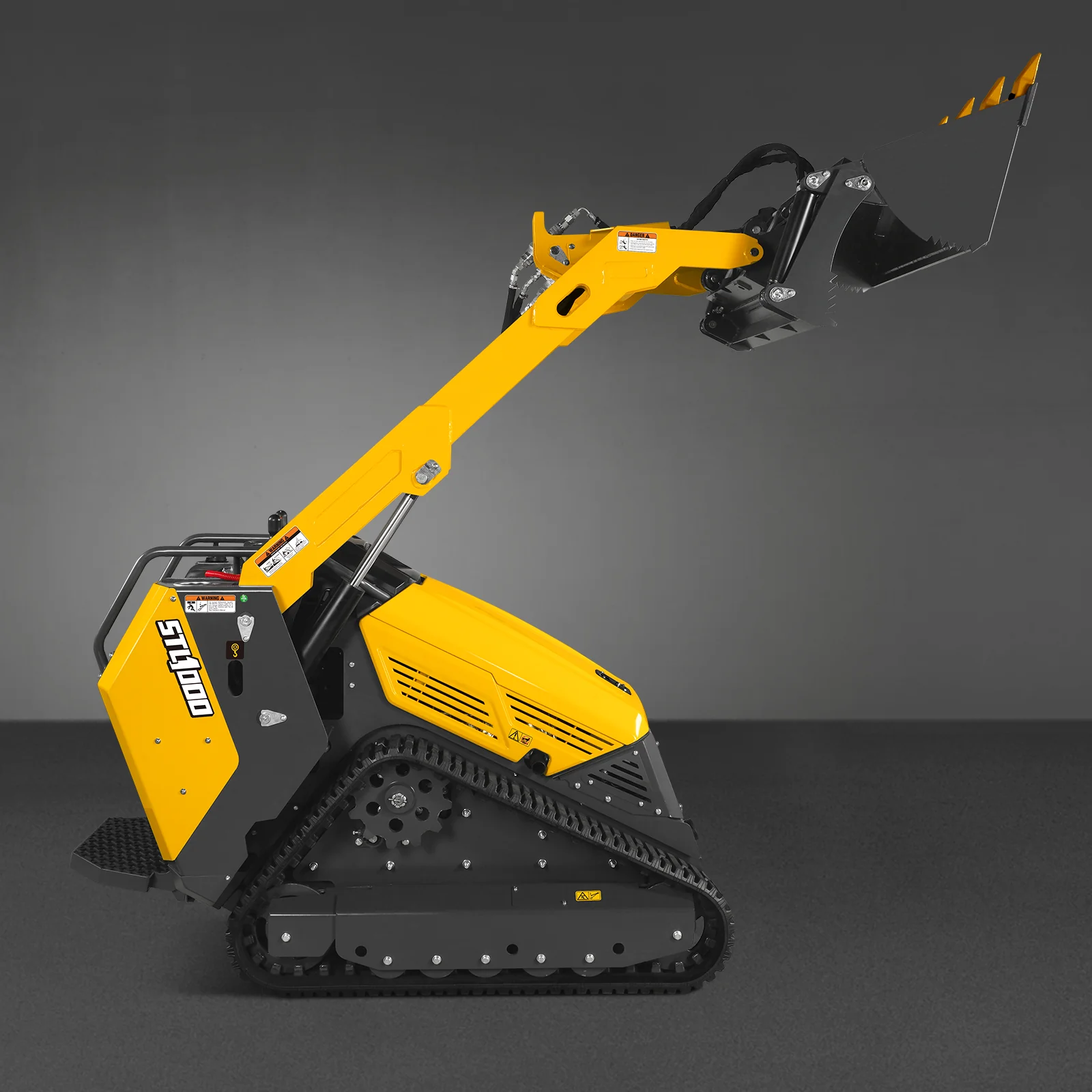

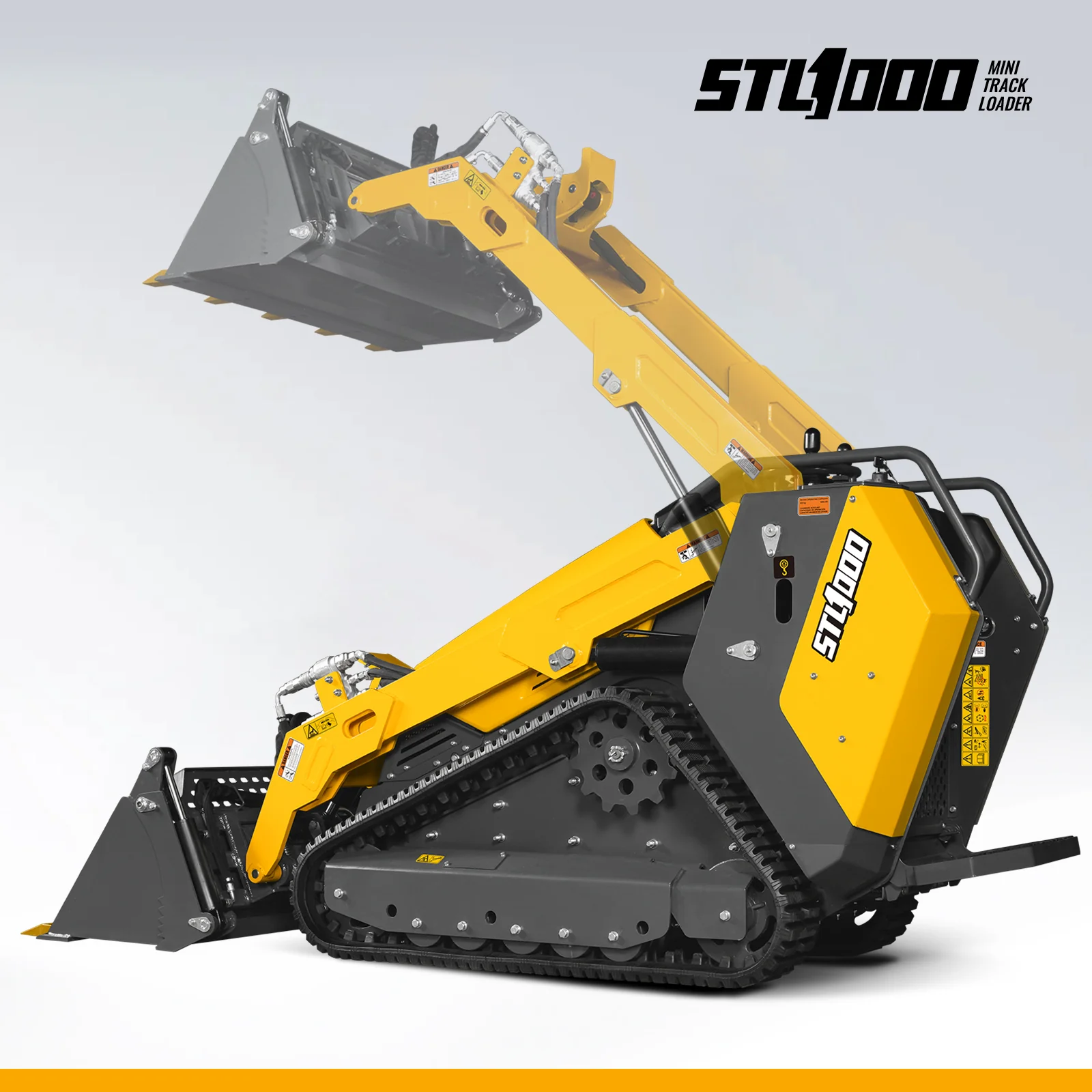

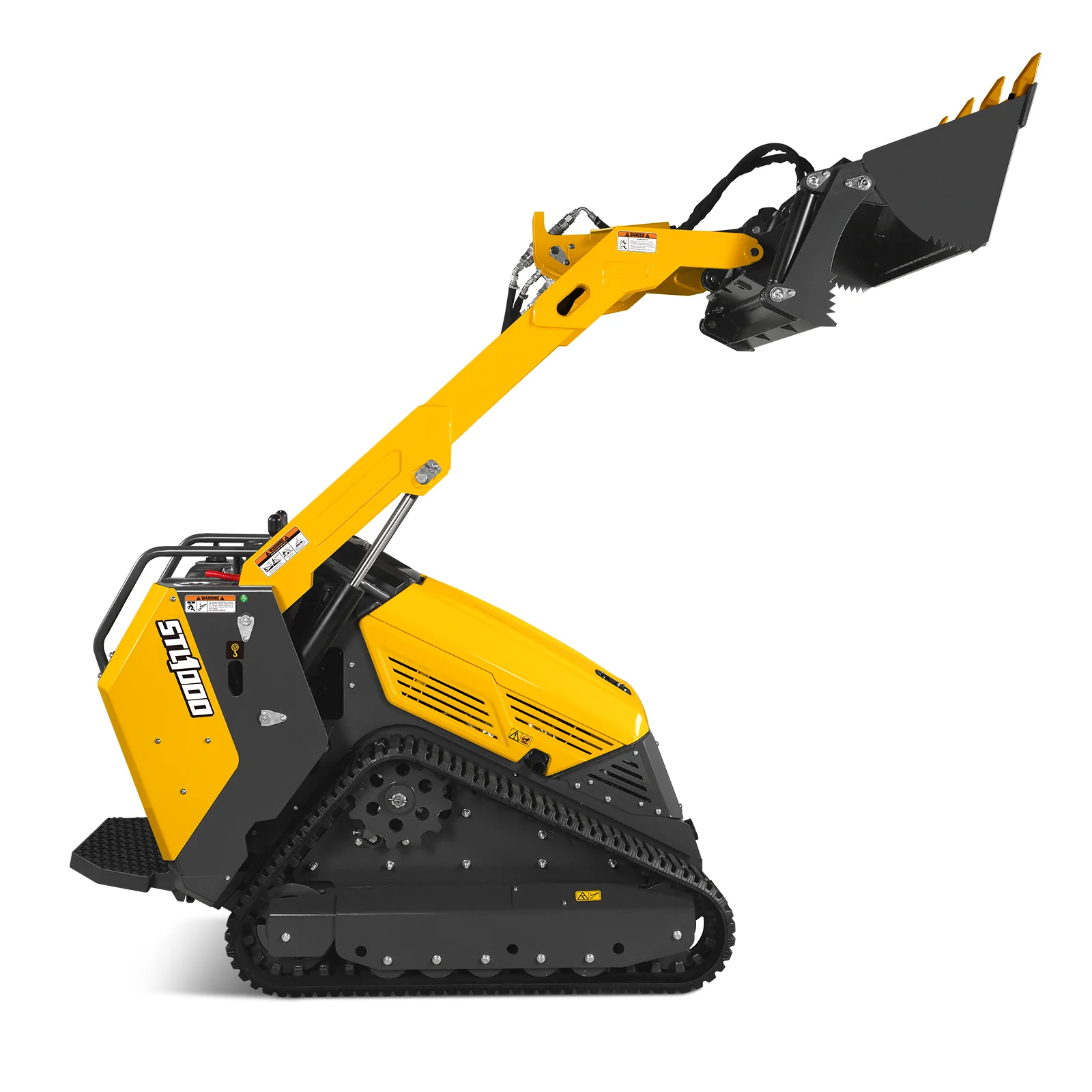

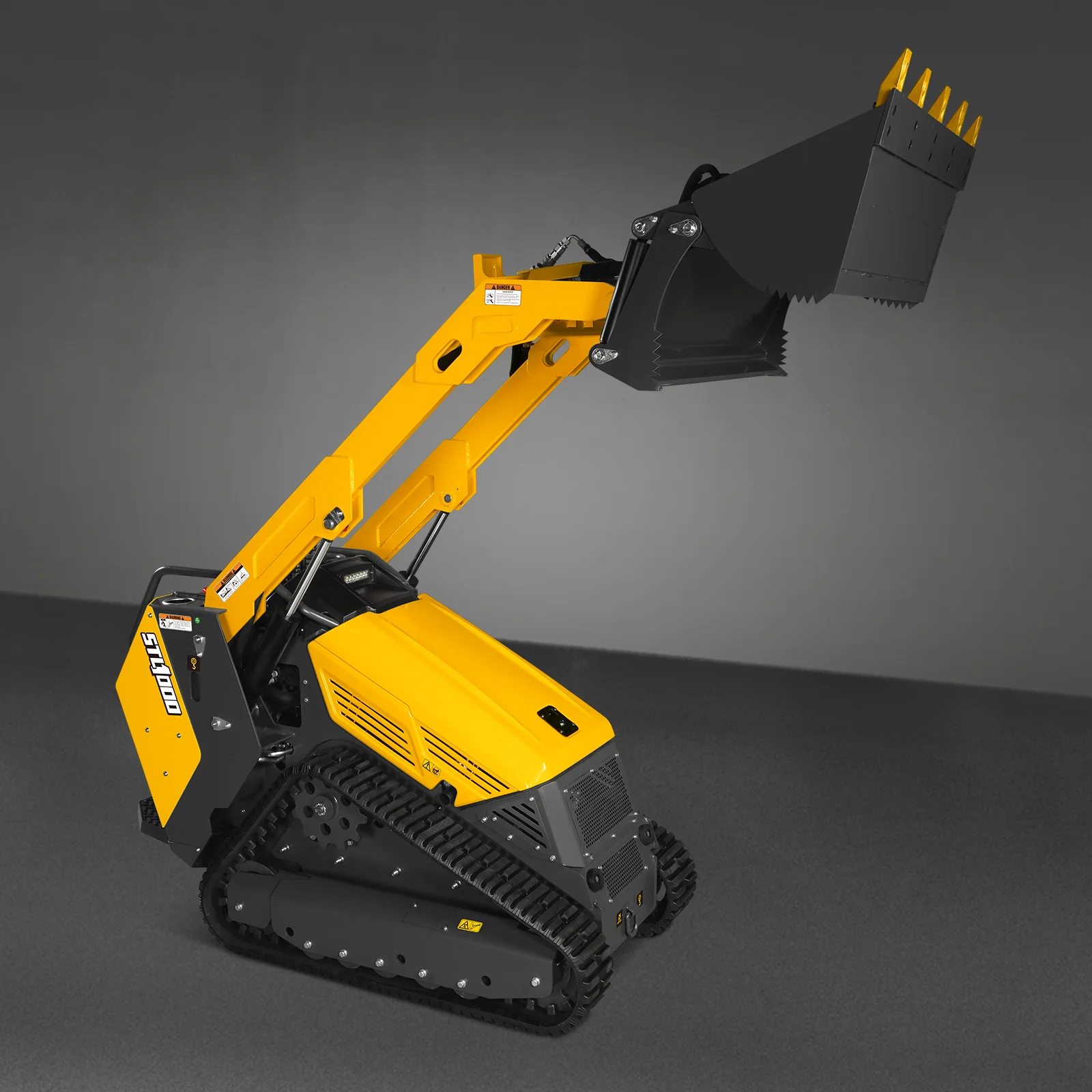

Hinge Pin Height At Max. Lift	83.5 in
Reach At Max. Lift And 45° Dump	19.2 in

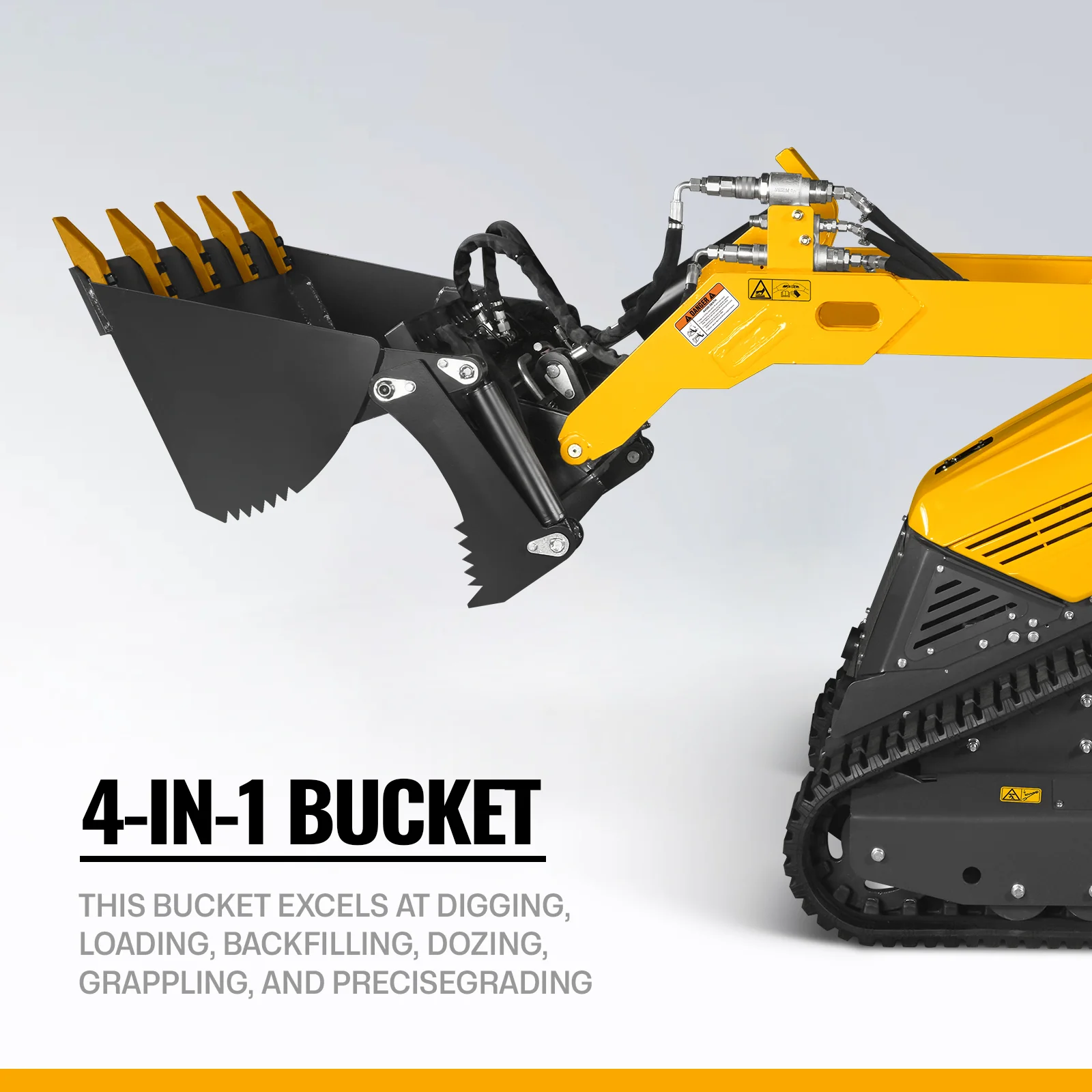

Bucket Capacity	6.53 cu.ft.

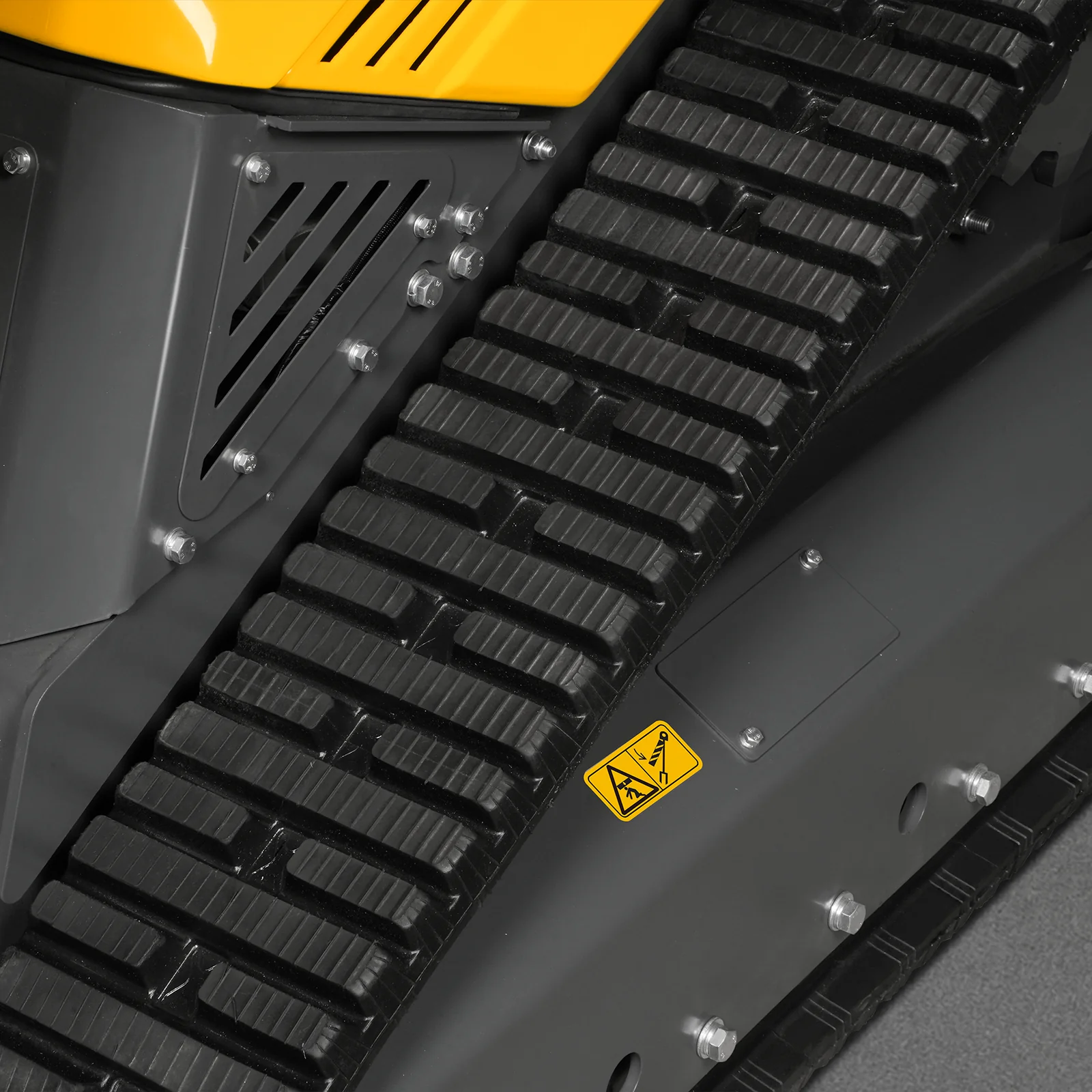

Track Width	7.87 in
Ground Clearance	6.30 in
Angle of Departure	24.8°

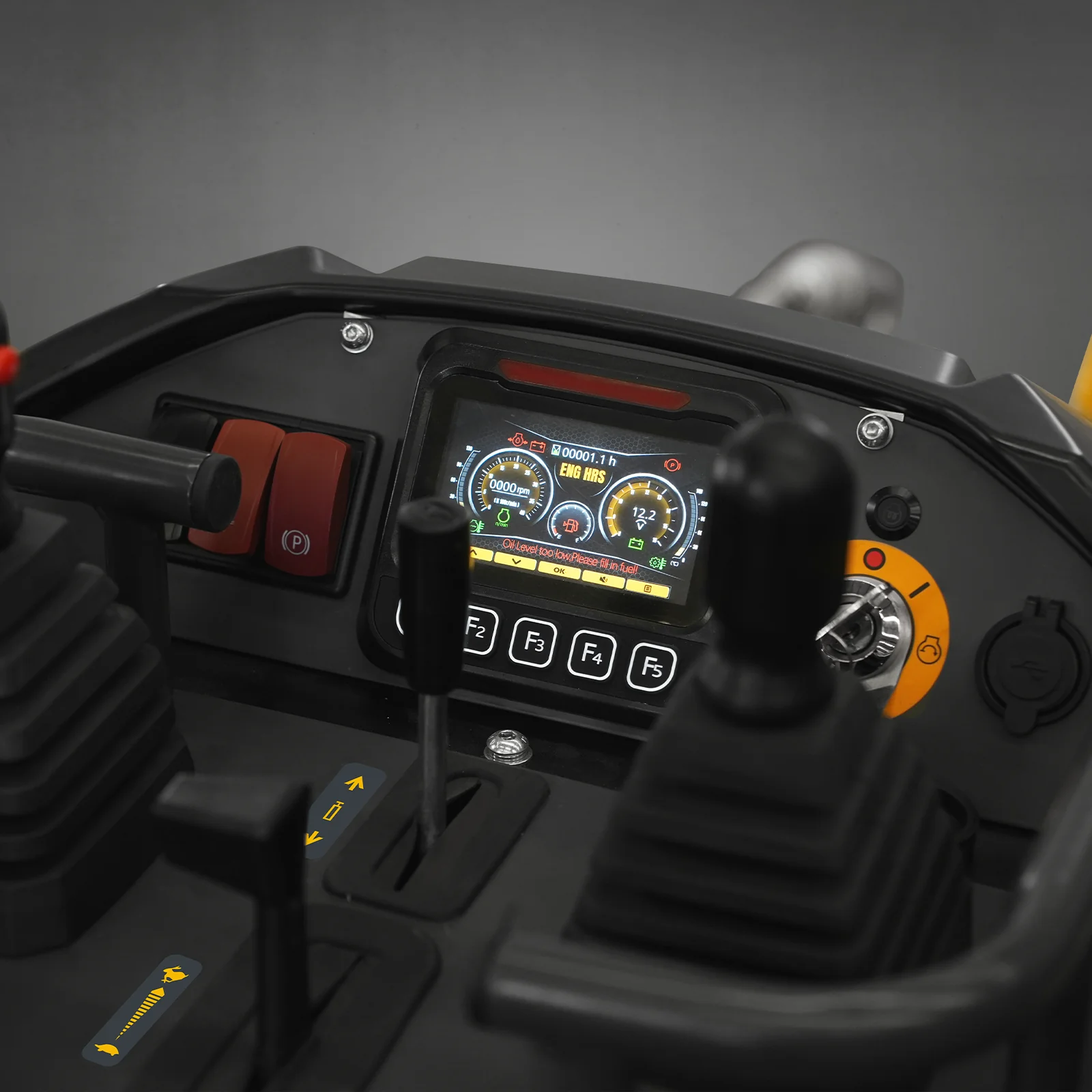

OPERATION

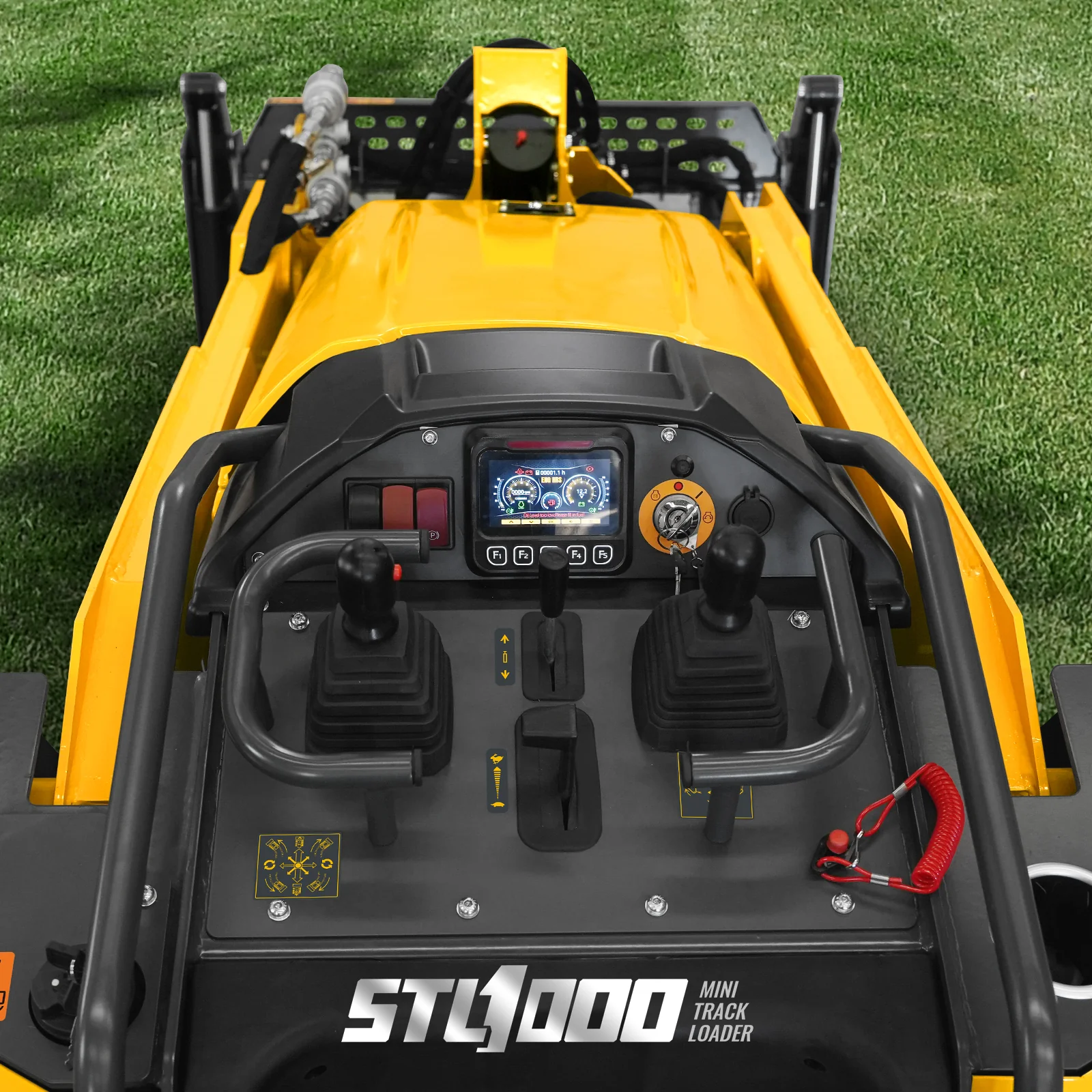

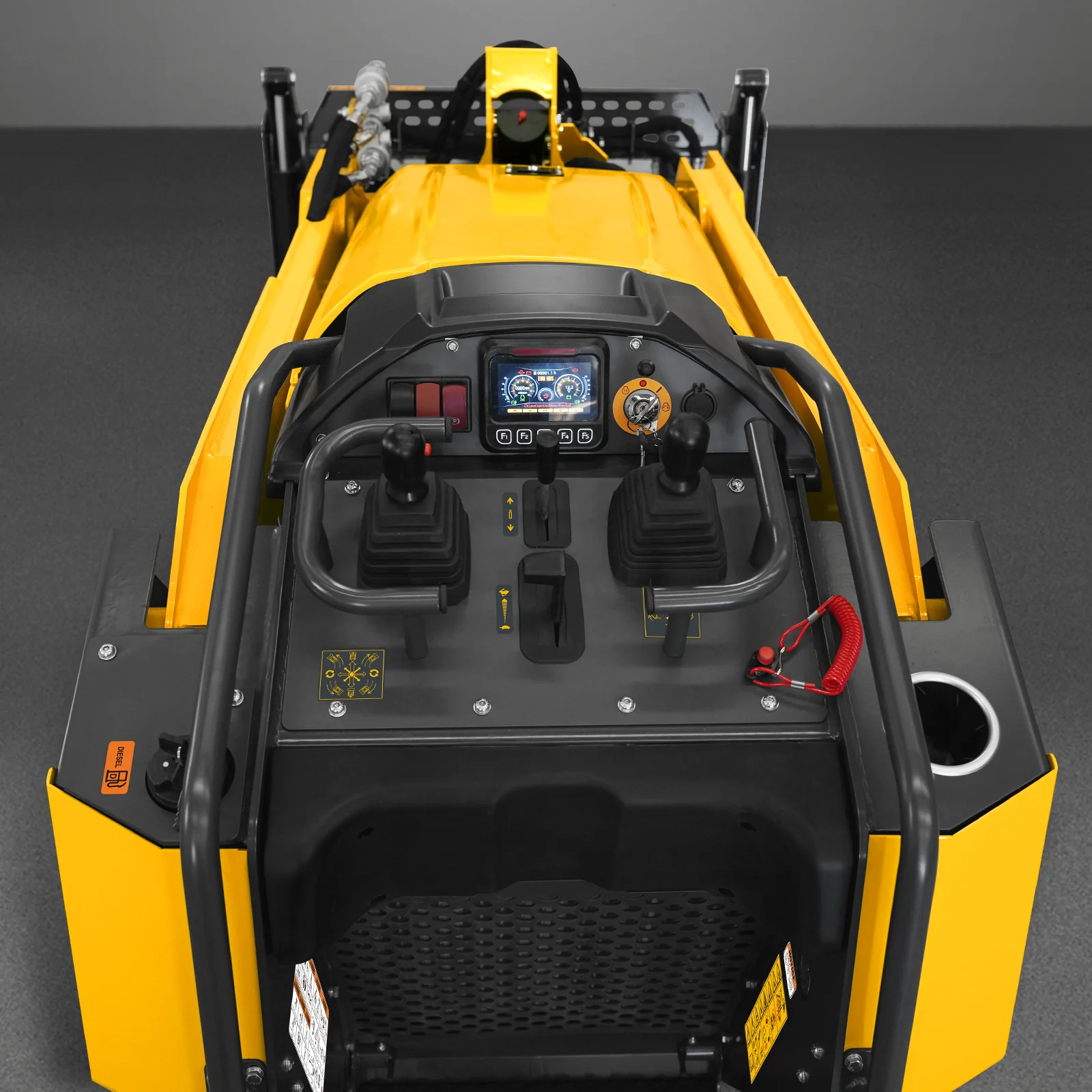

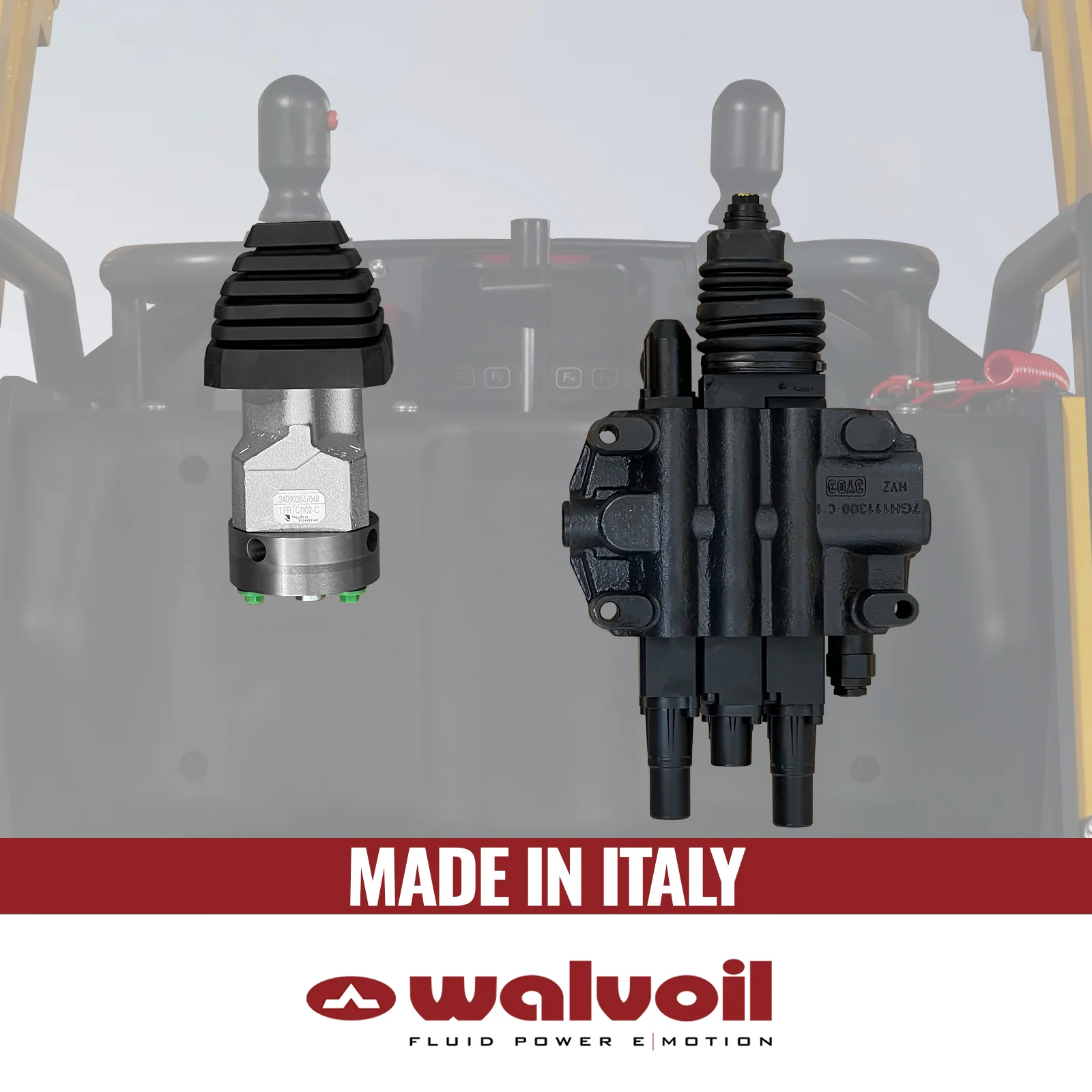

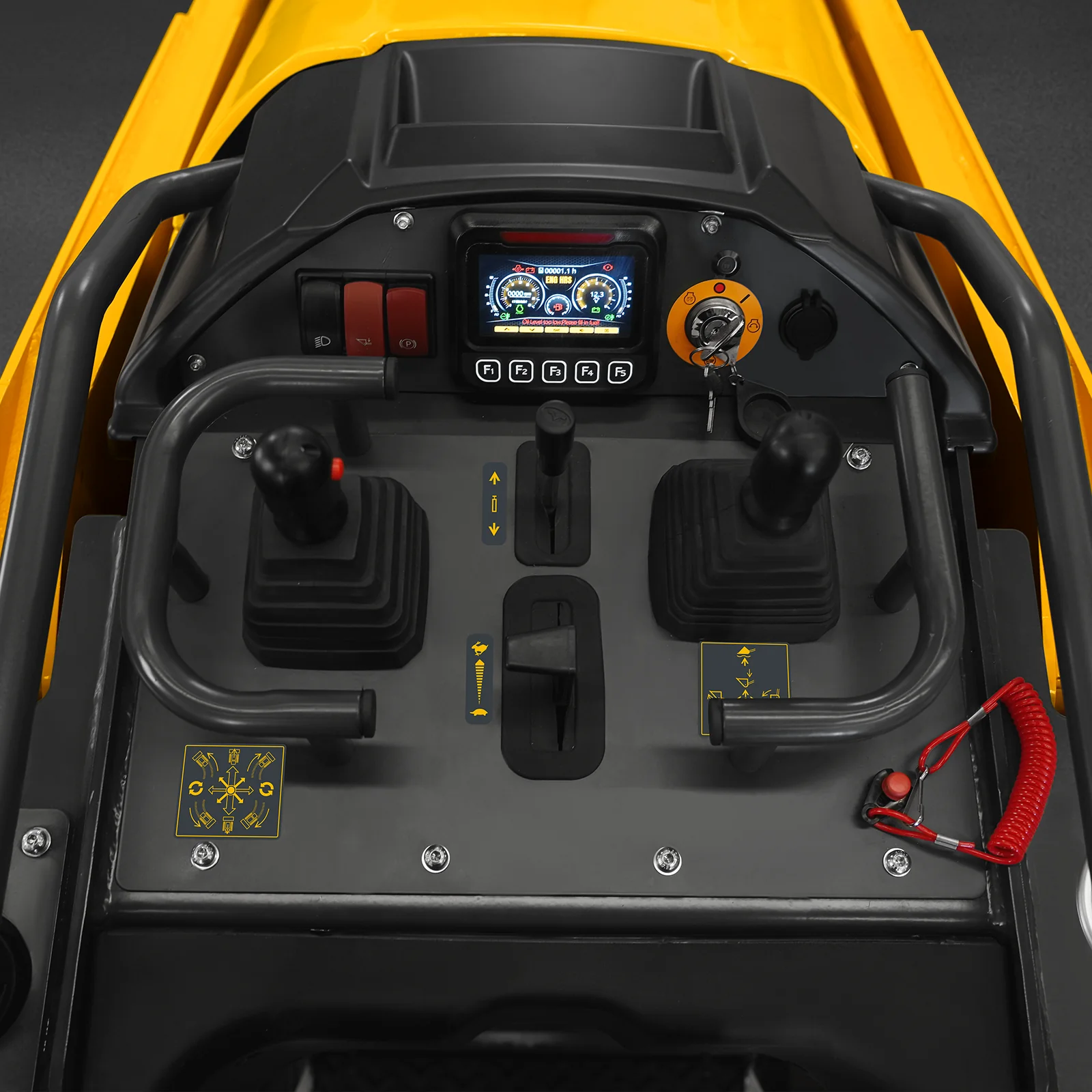

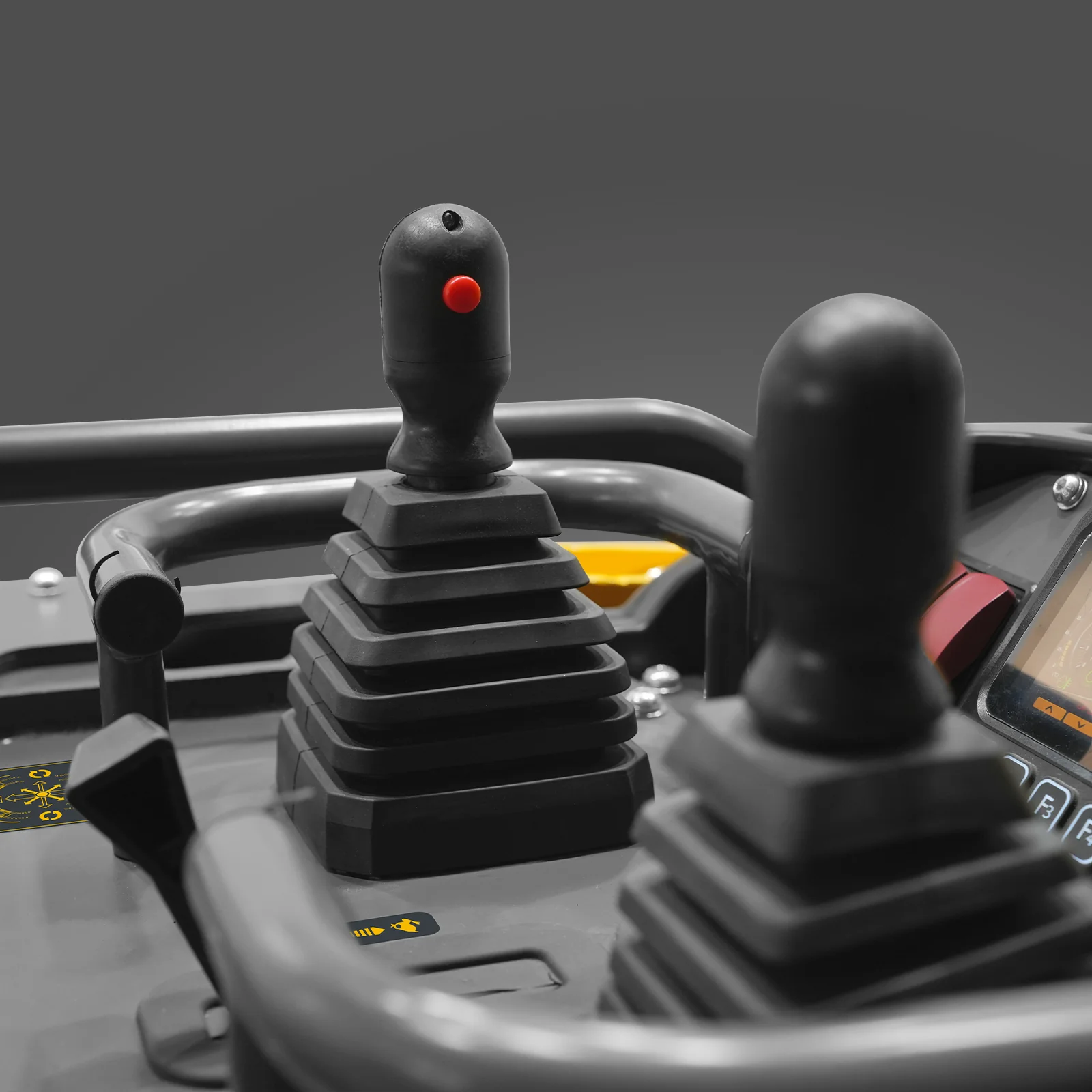

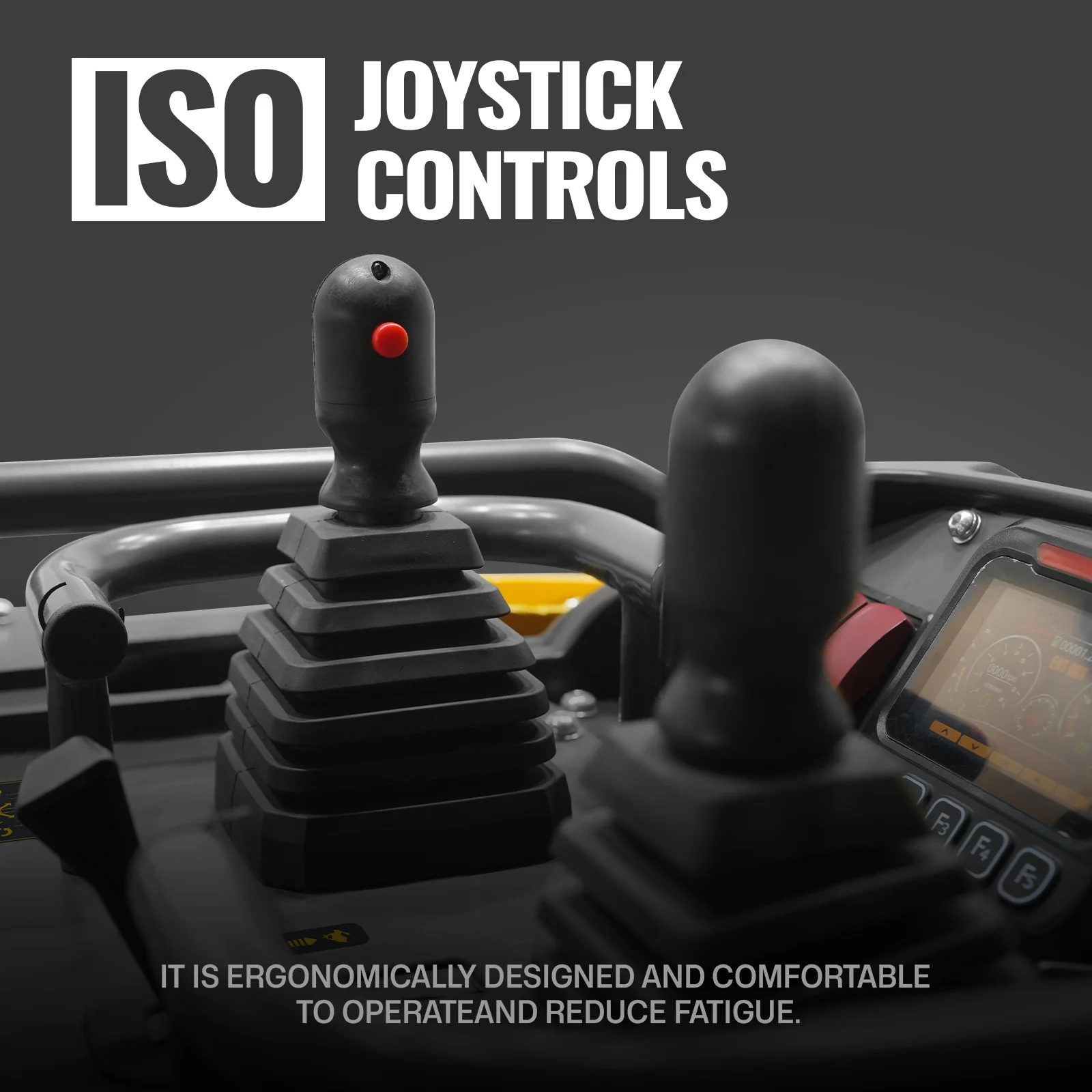

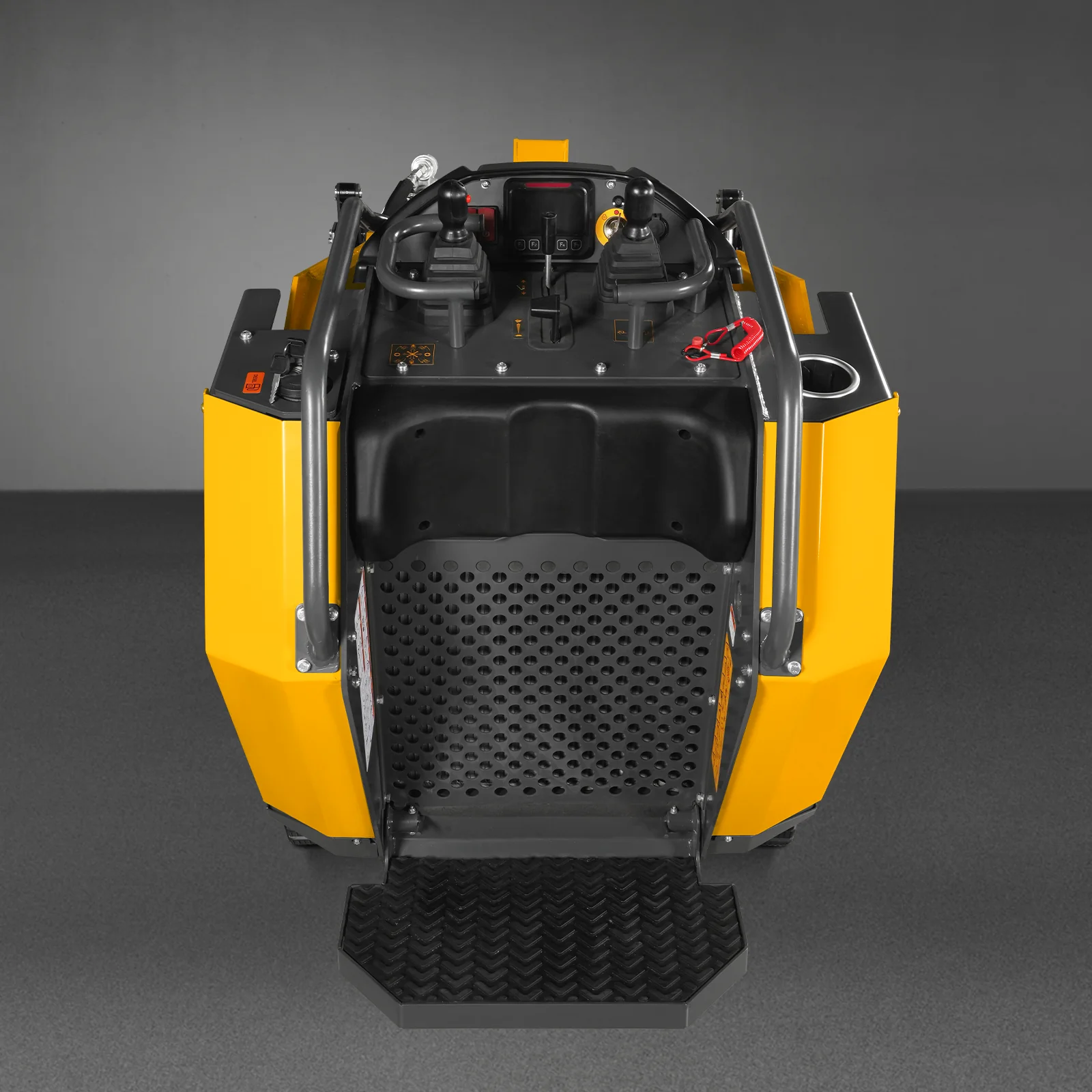

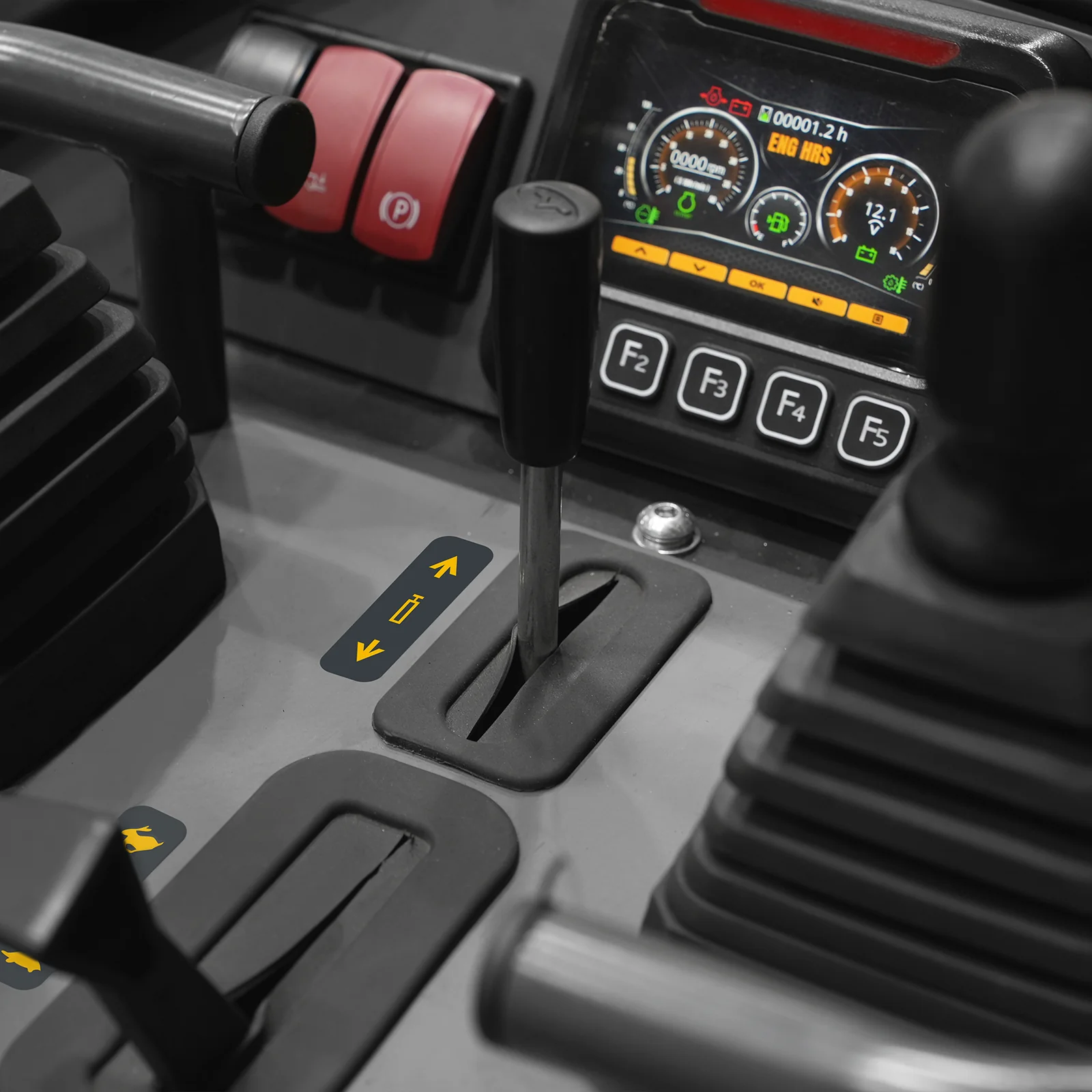

Steering And Drive	Dual axis, pilot-operated joystick

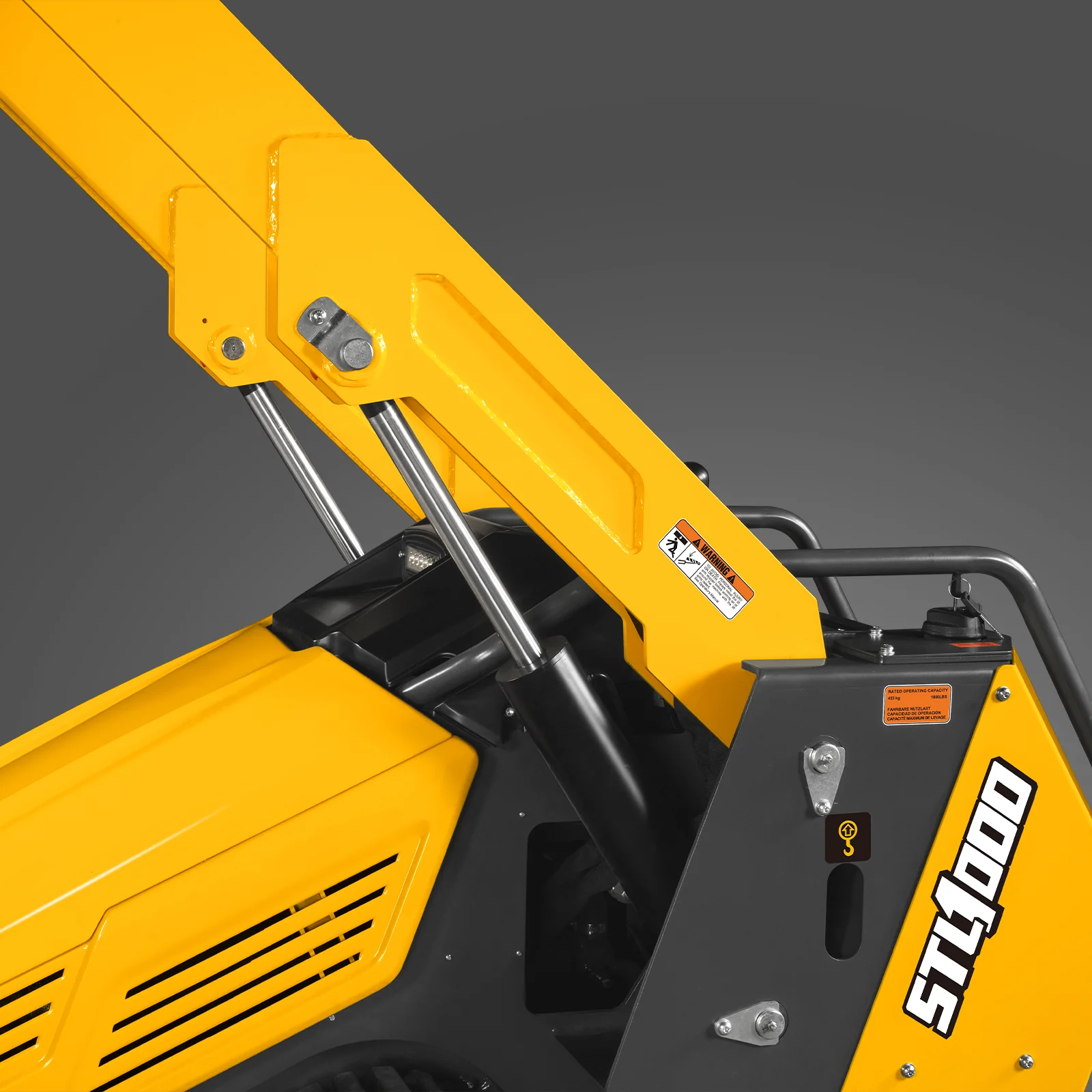

Lift And Tilt	Dual axis, manual-operated joystick

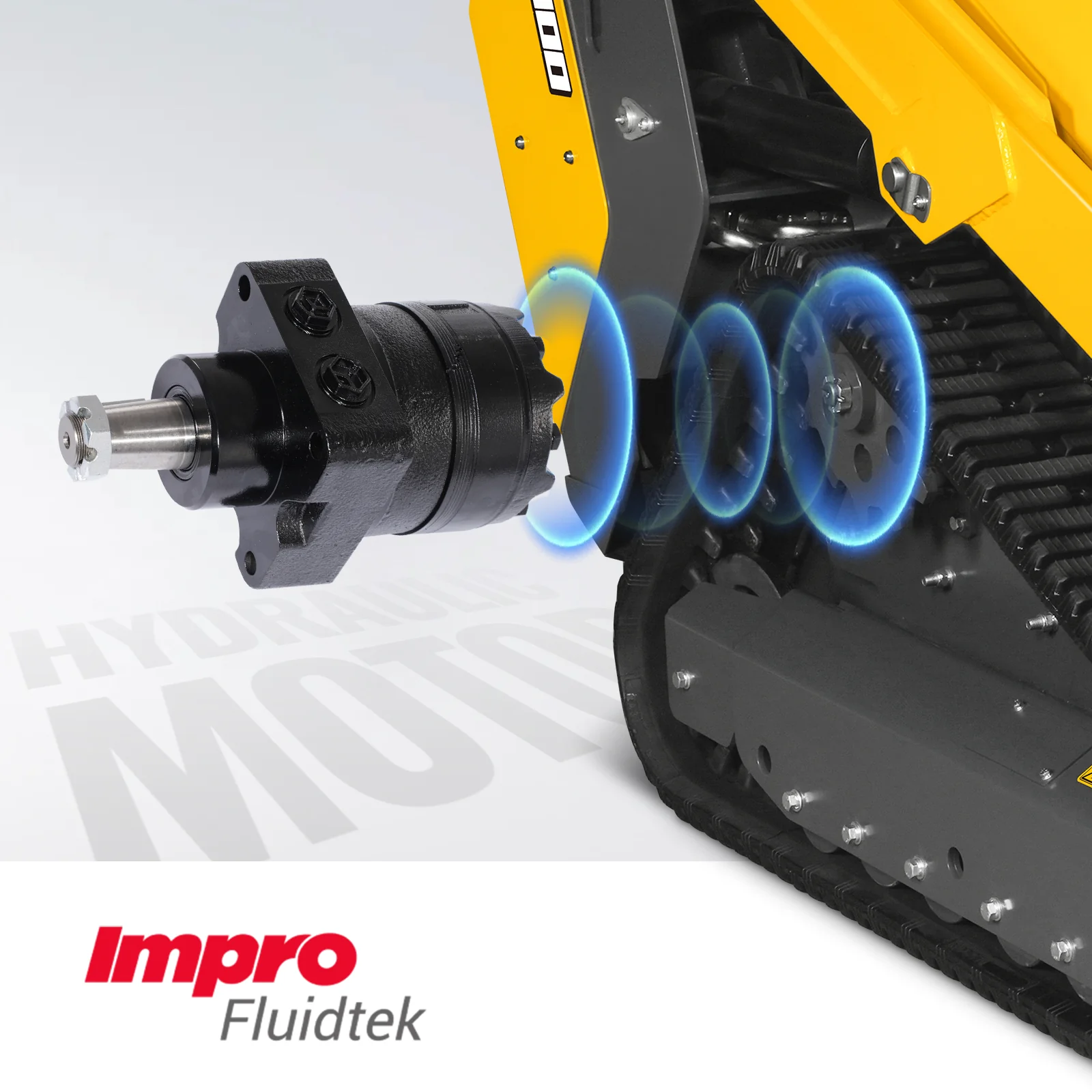

Transmission	Hydrostatic track drive system
Attachment	One lever with dual direction detent
PERFORMANCE

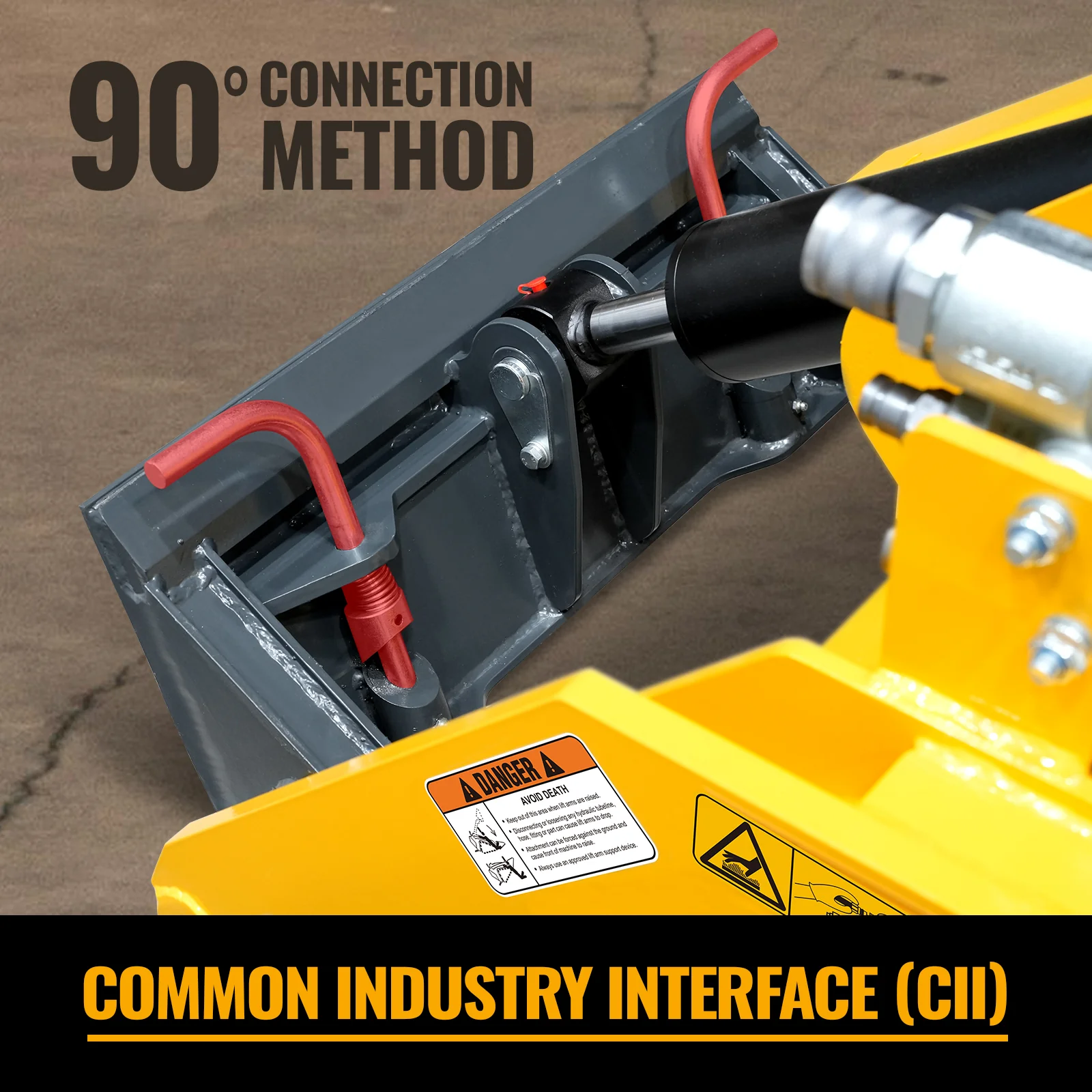

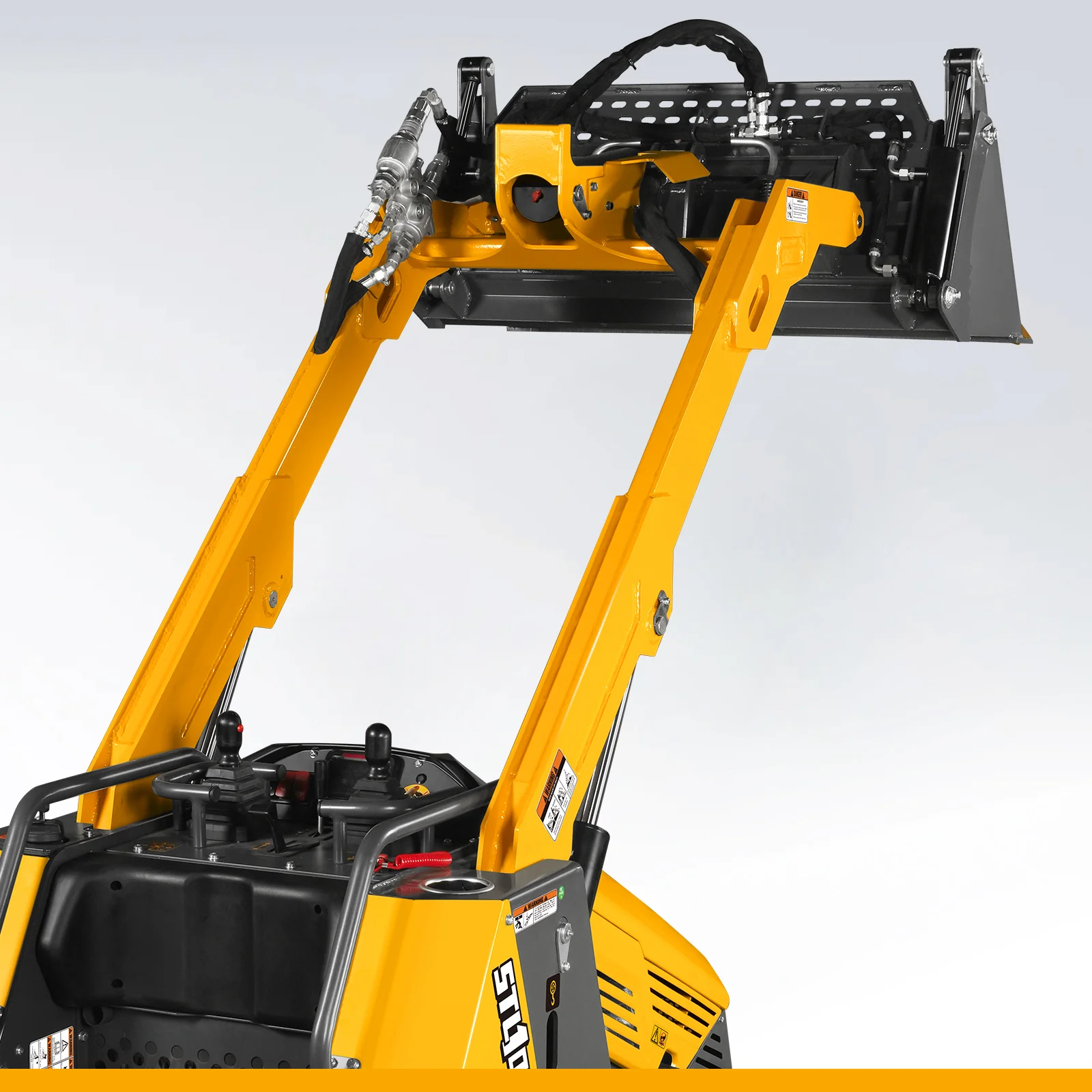

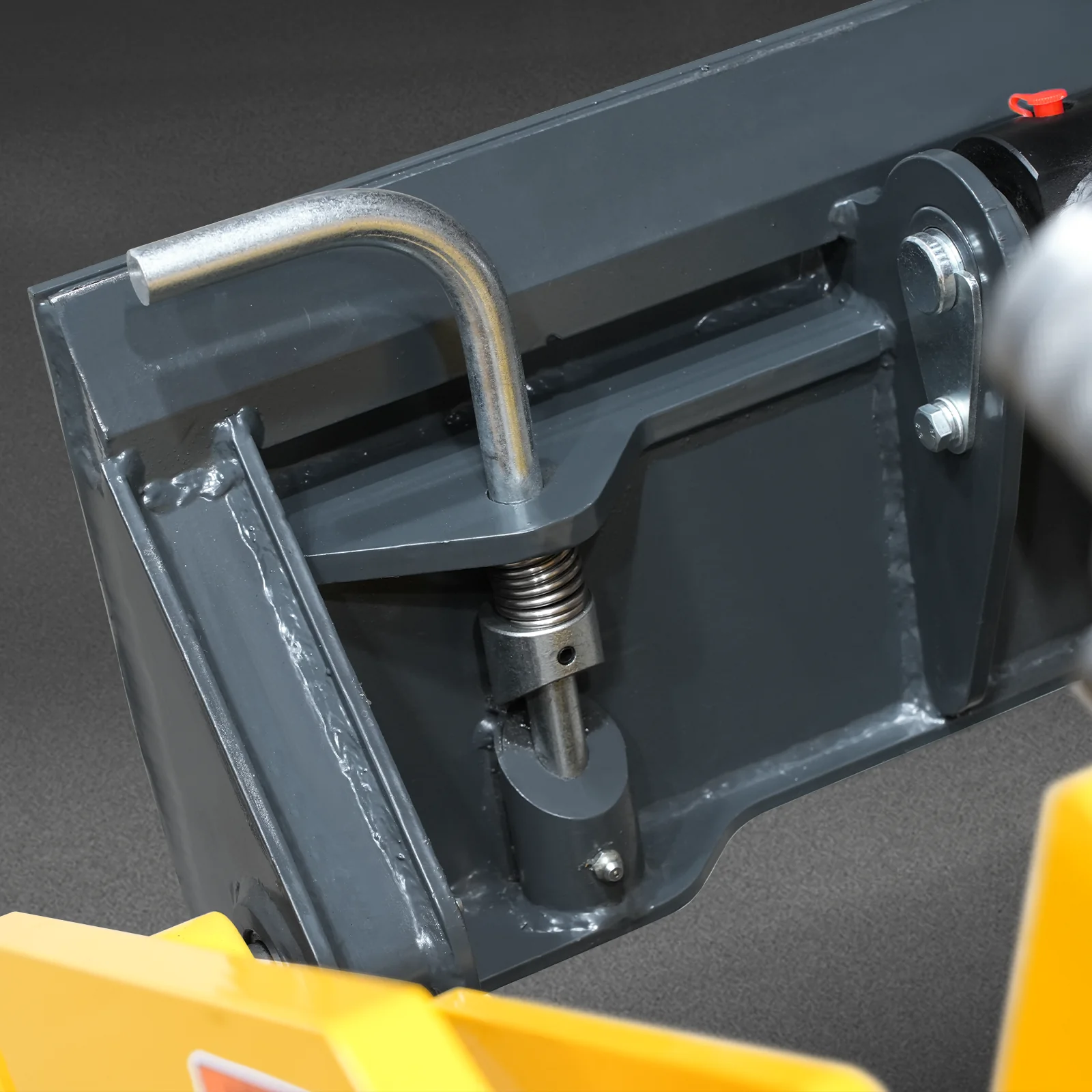

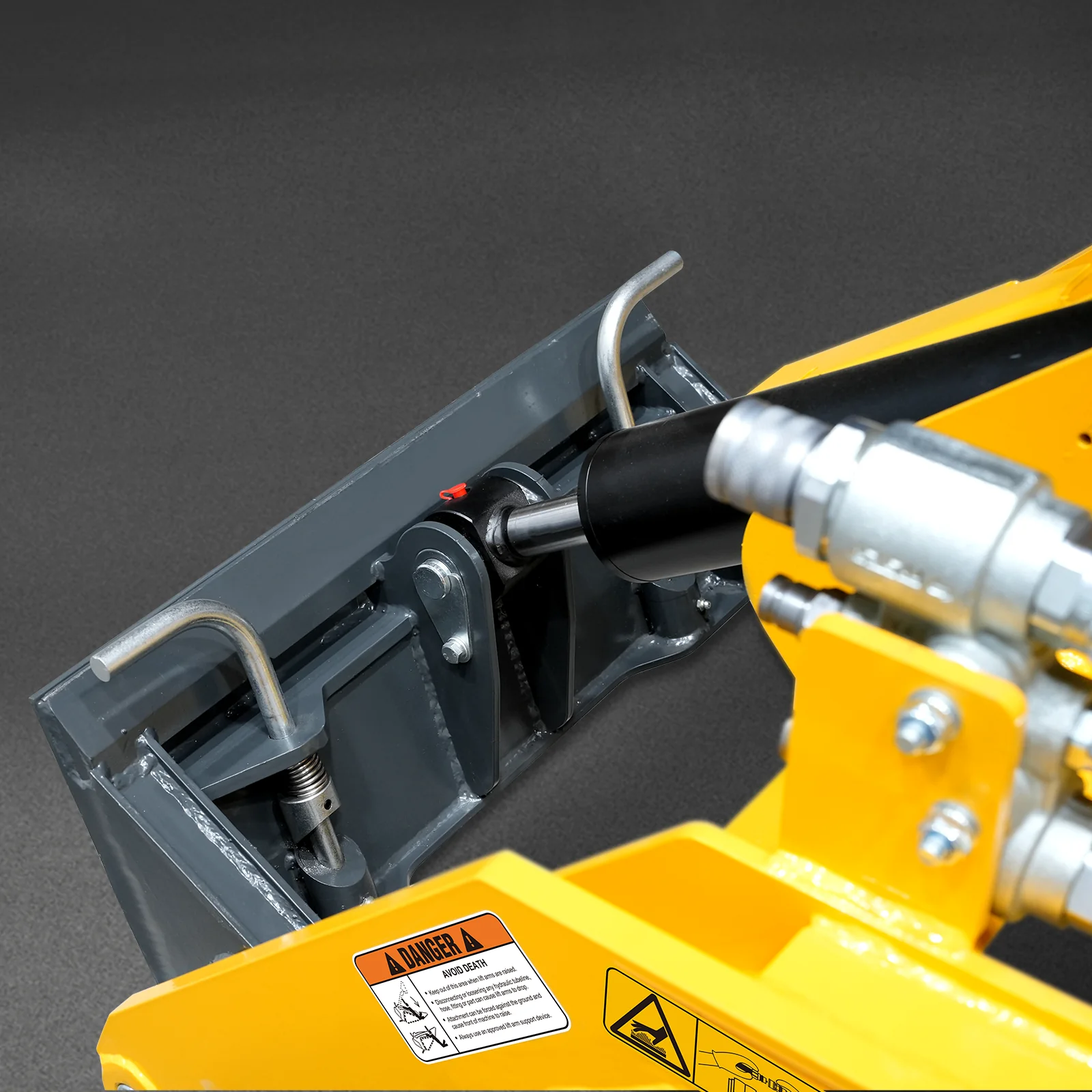

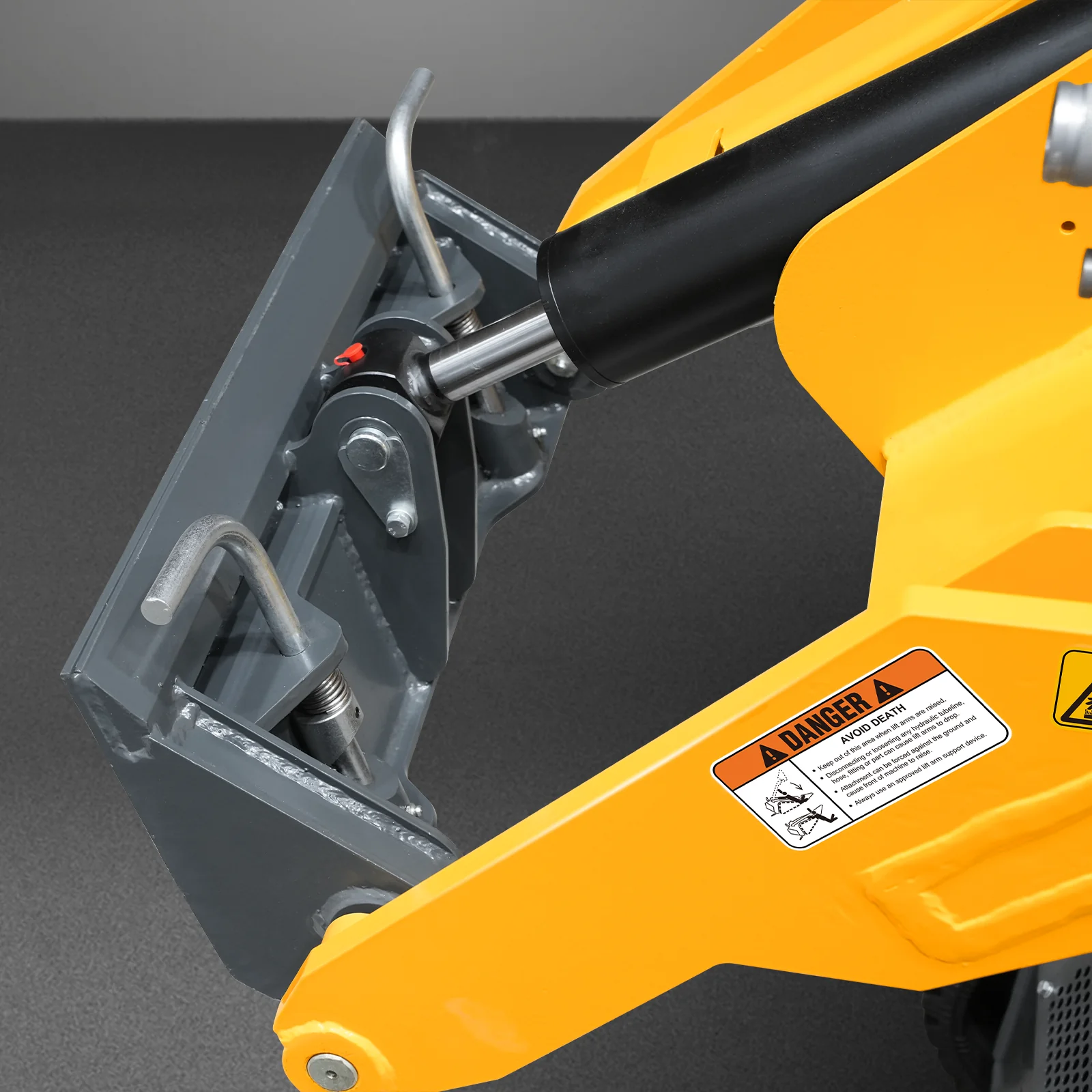

Attachment Mounting System	CII (Common Industry Interface)

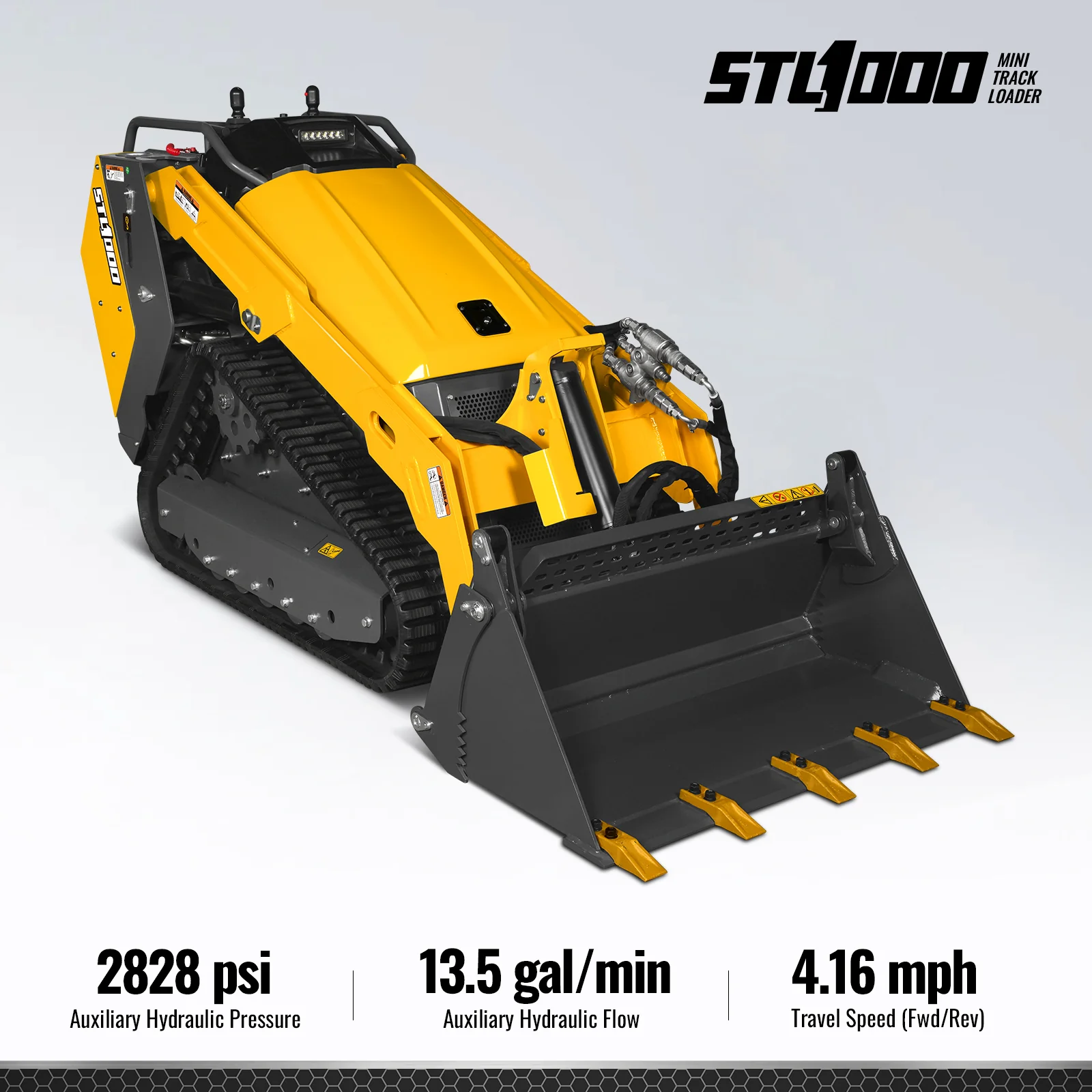

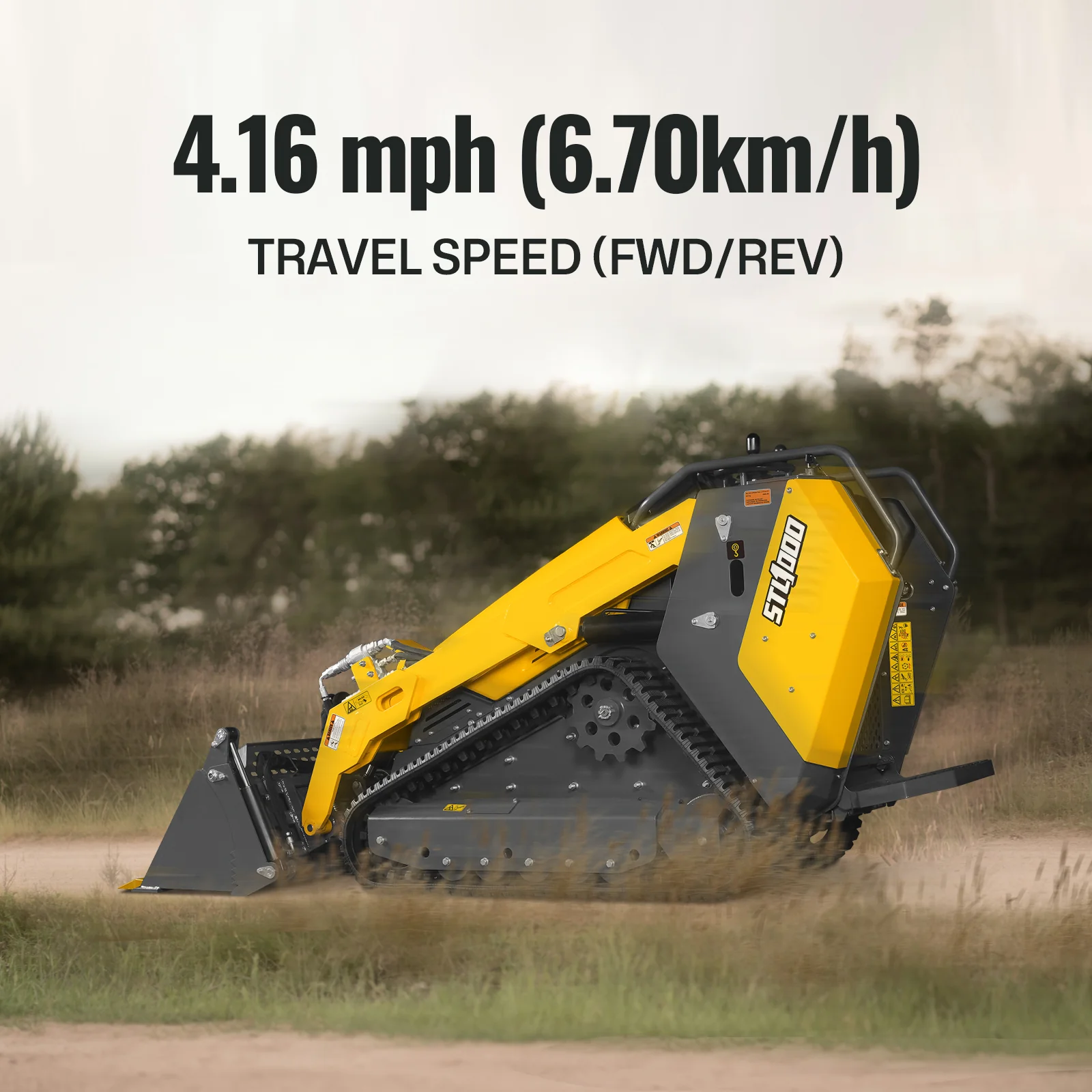

Travel Speed (Fwd/Rev)	4.16 mph (6.70km/h)

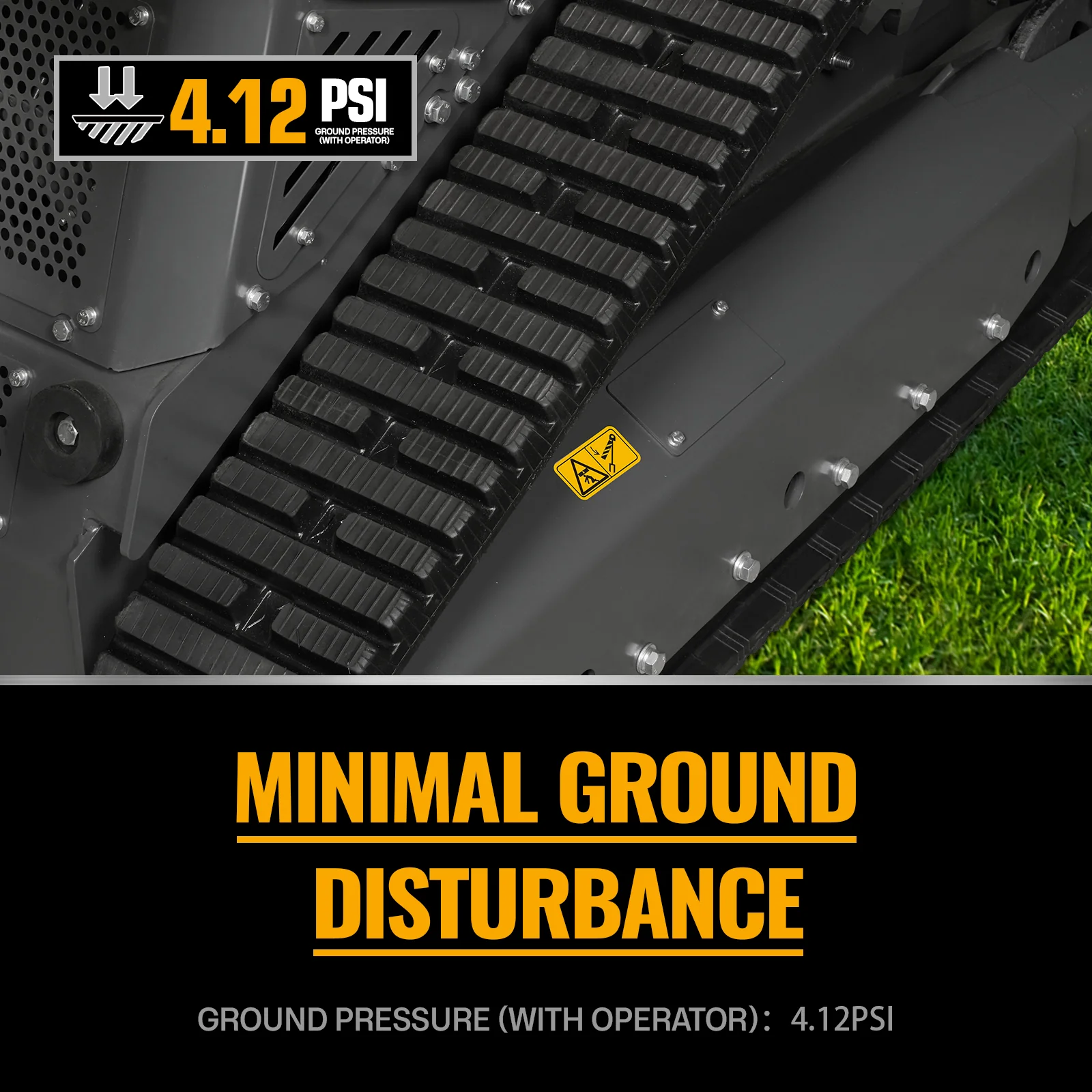

Ground Pressure (with Operator)	4.12 psi (28.4kpa)
Battery Capacity	12V, 55Ah

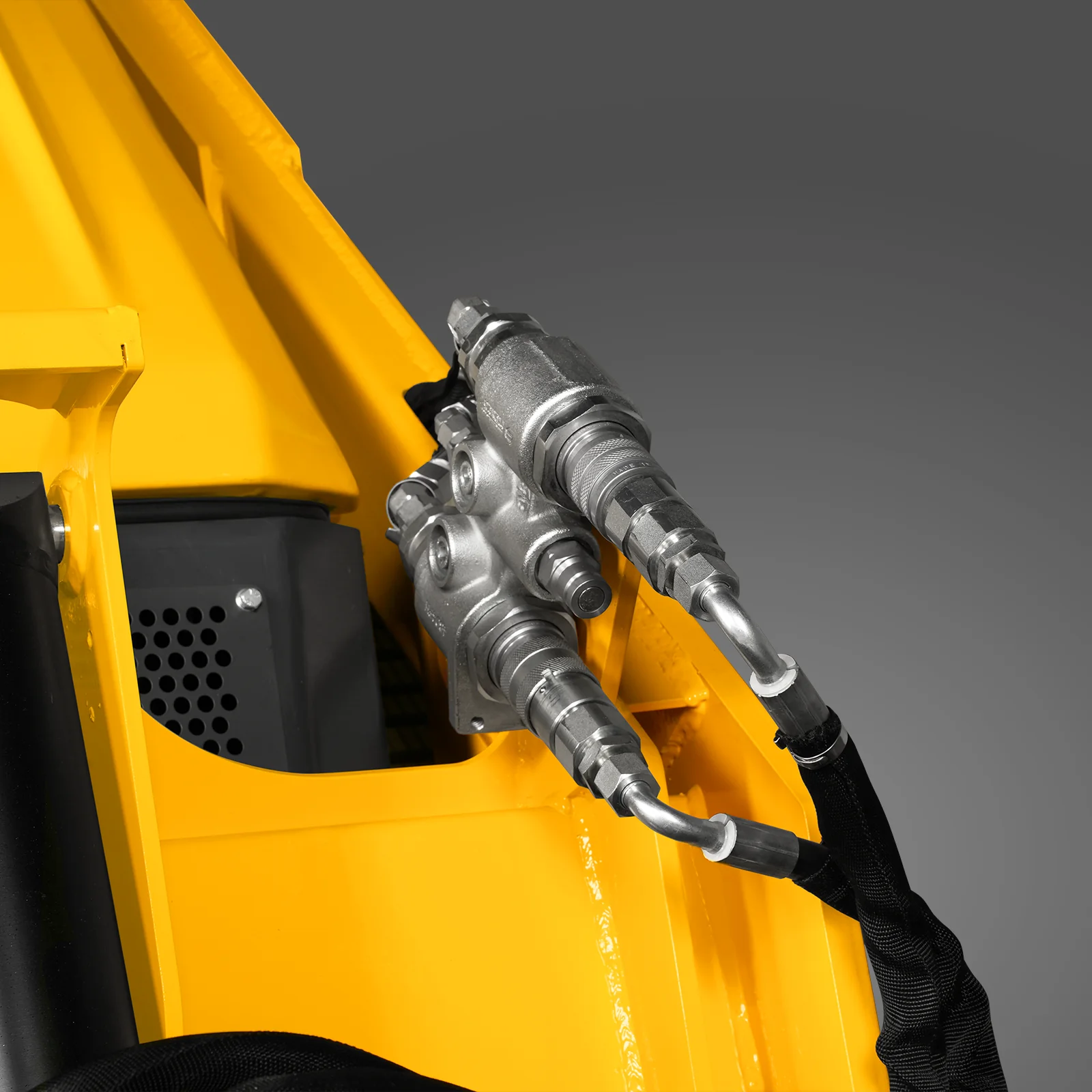

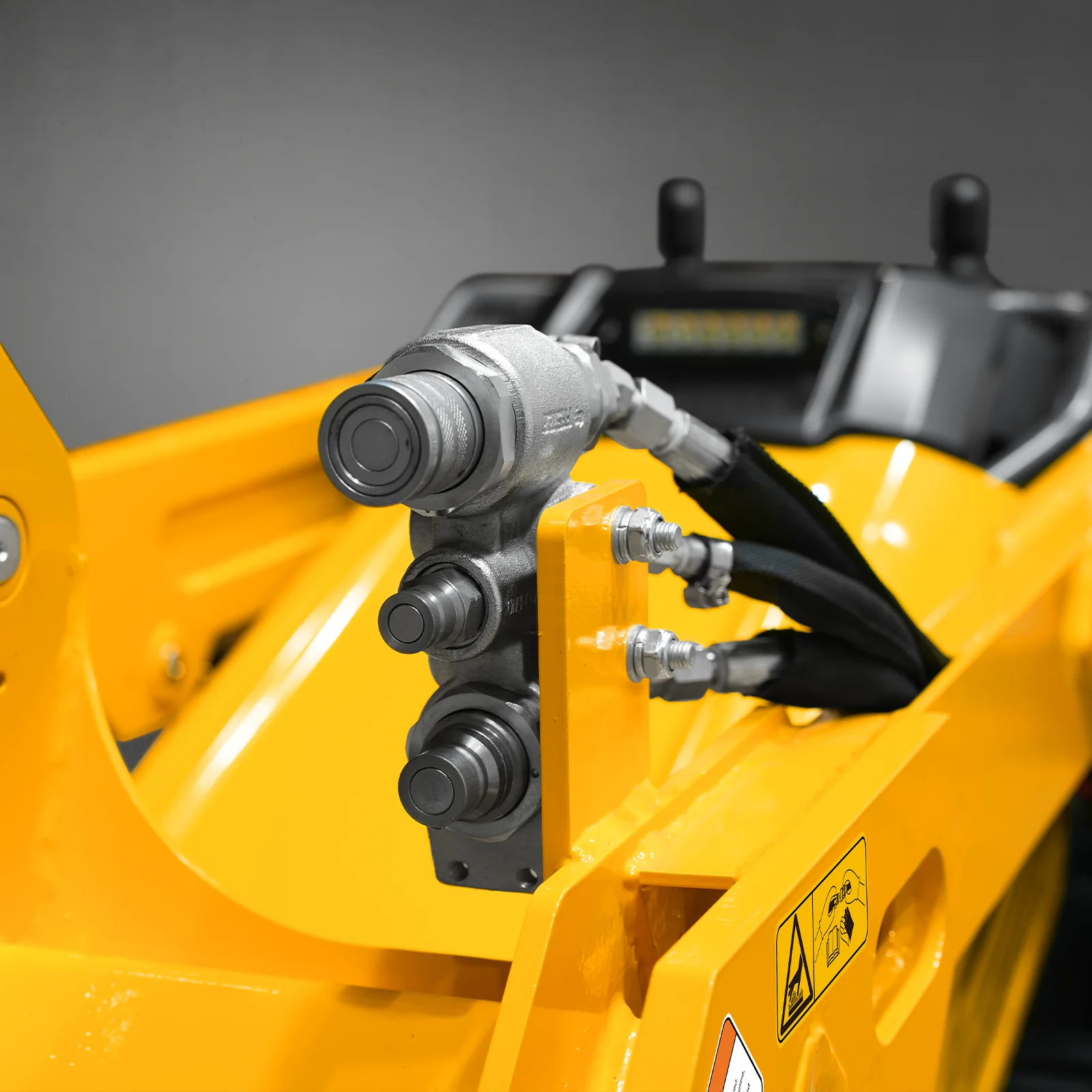

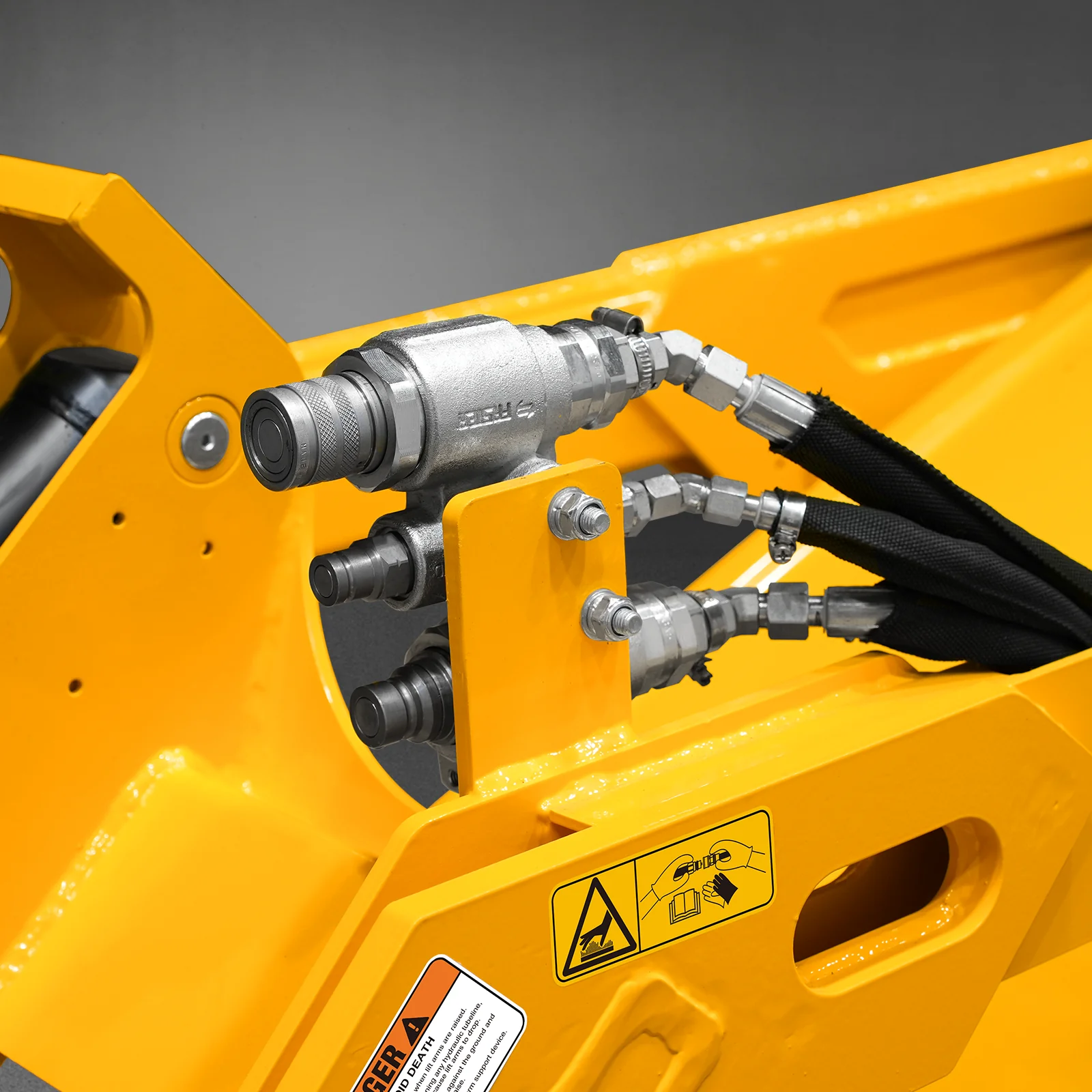

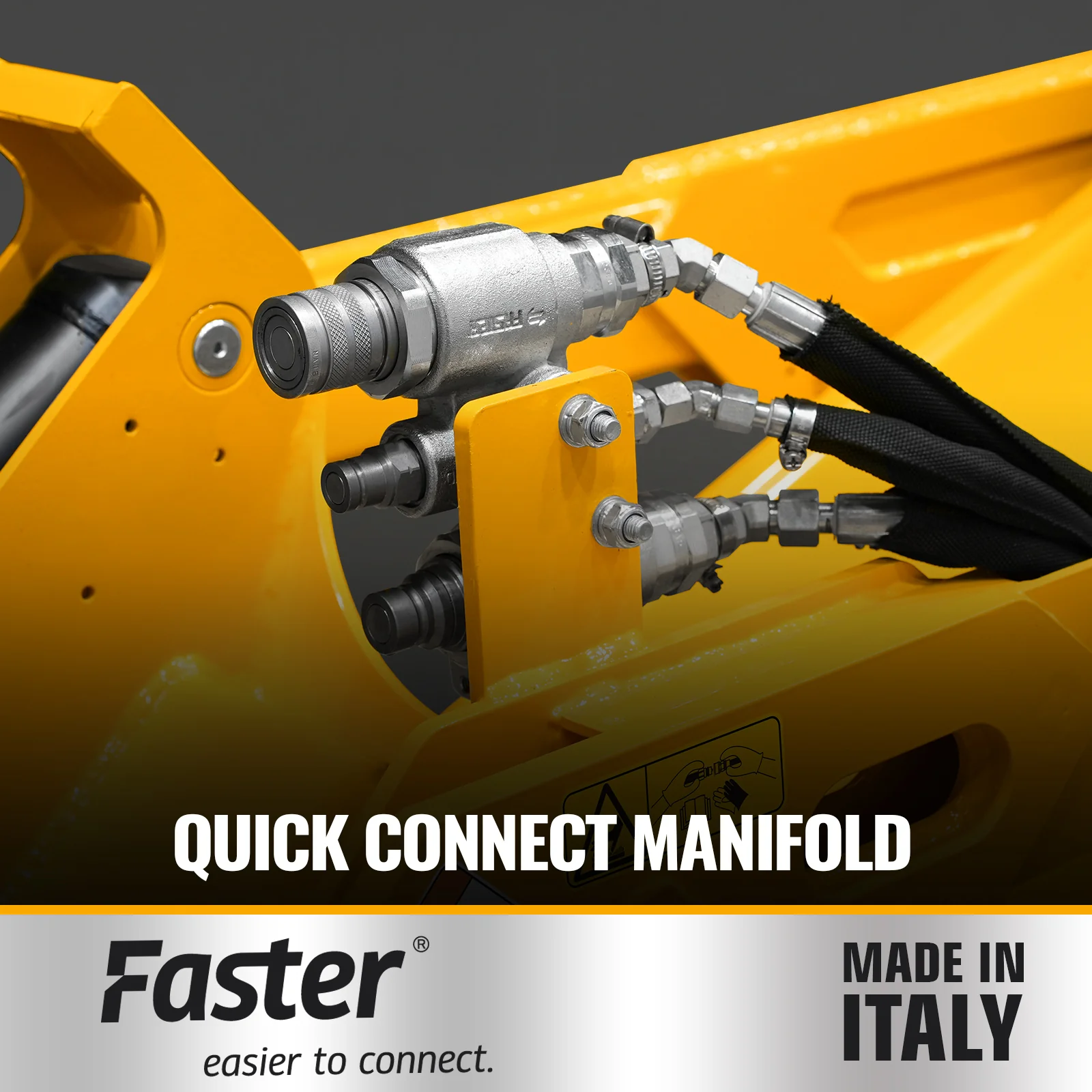

Auxiliary Hydraulic Flow	13.5 gal/min
Auxiliary Hydraulic Pressure	2828 psi (19.5Mpa)
SERVICE & FILL CAPACITIES
Fuel Tank Capacity	8.32 gal
Hydraulic System	5.54 gal

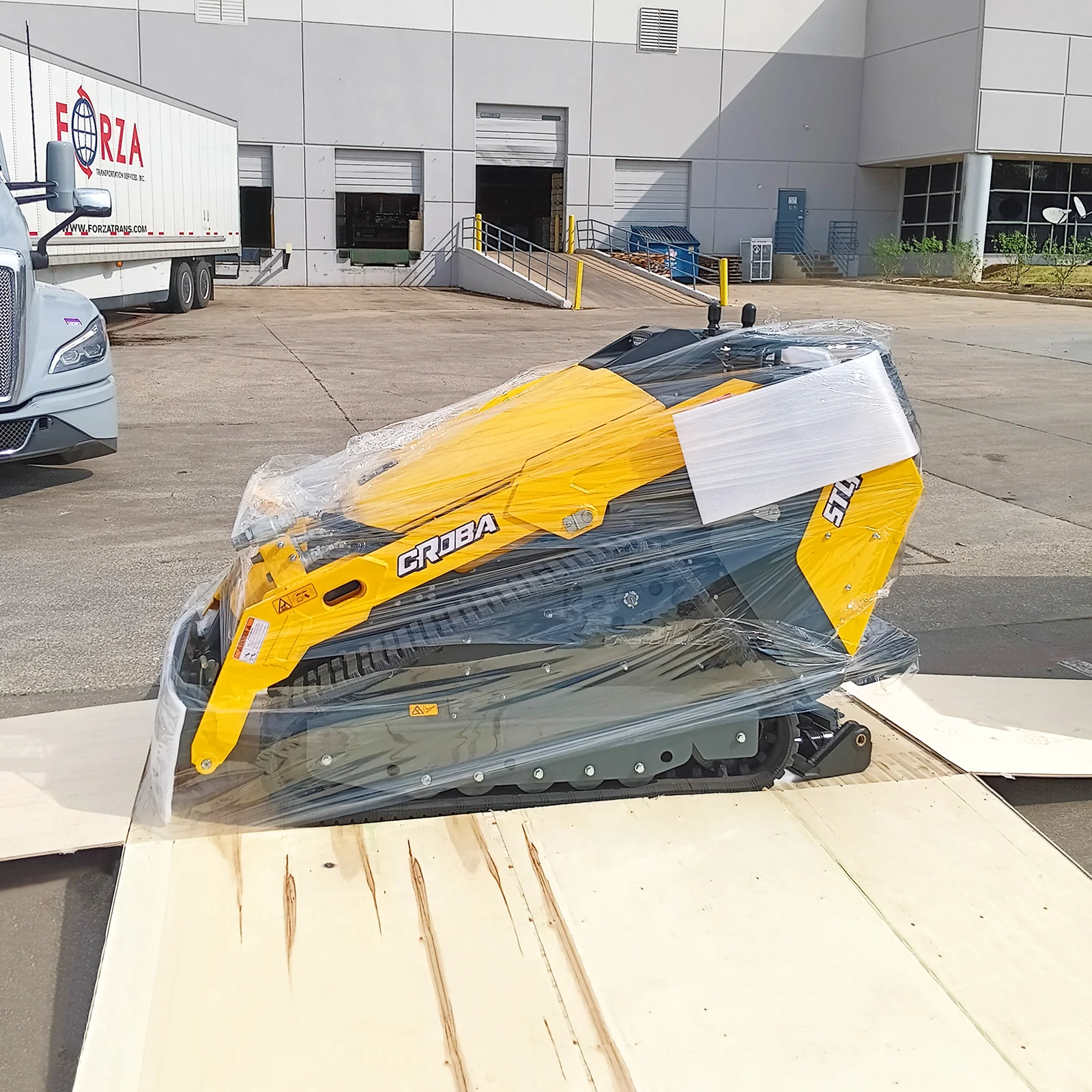

Package Method	Wood Case
Warranty for Machine	1 Year
Warranty for Engine	2-Year or 2,000-Hour Warranty, Whichever Comes First.
Packing Size	87 x 38 x 59 in
Shipping Weight	3087 lbs



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
