High Performance Tilt Back Tire Changer Wheel Balancer Combo, TC9682, WB857

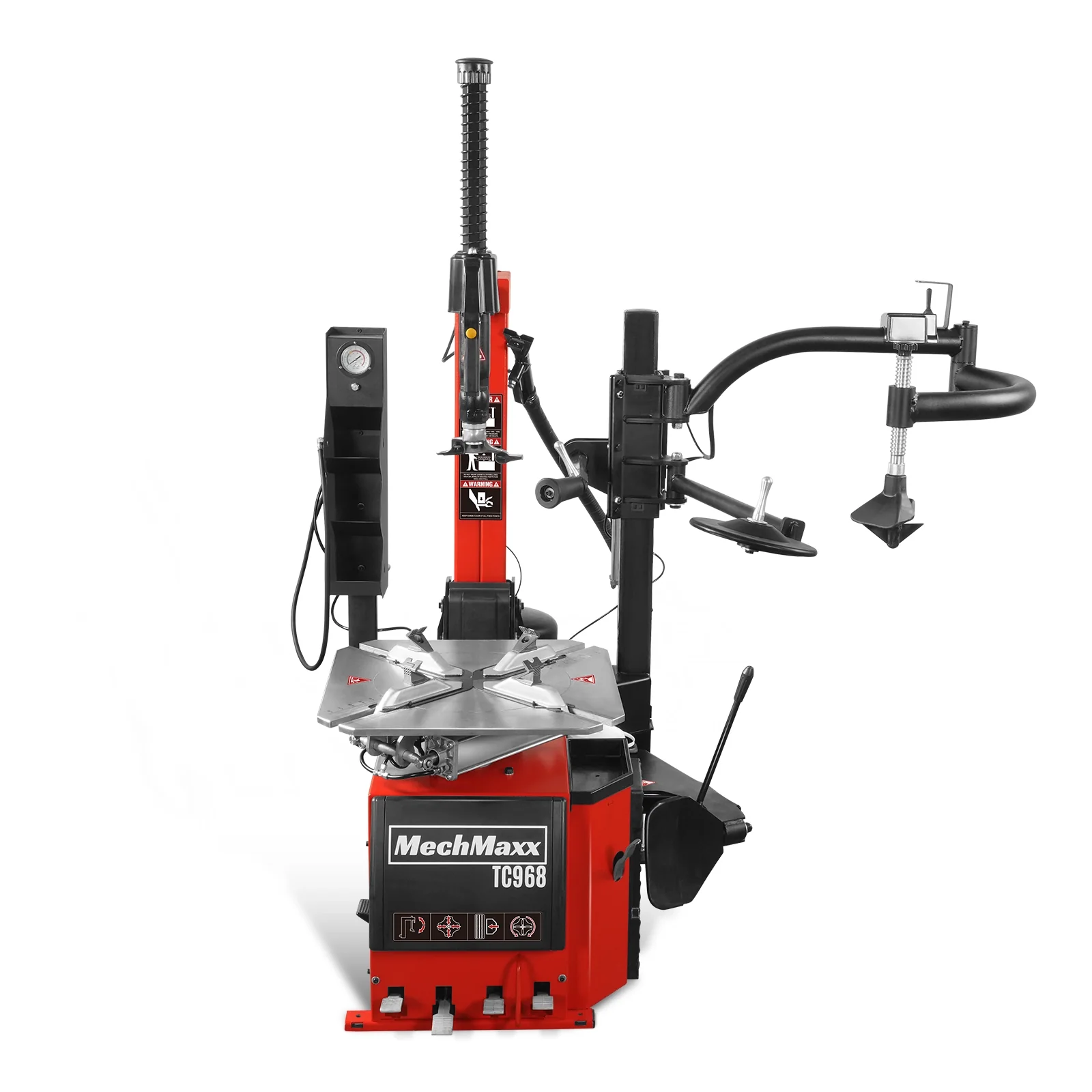

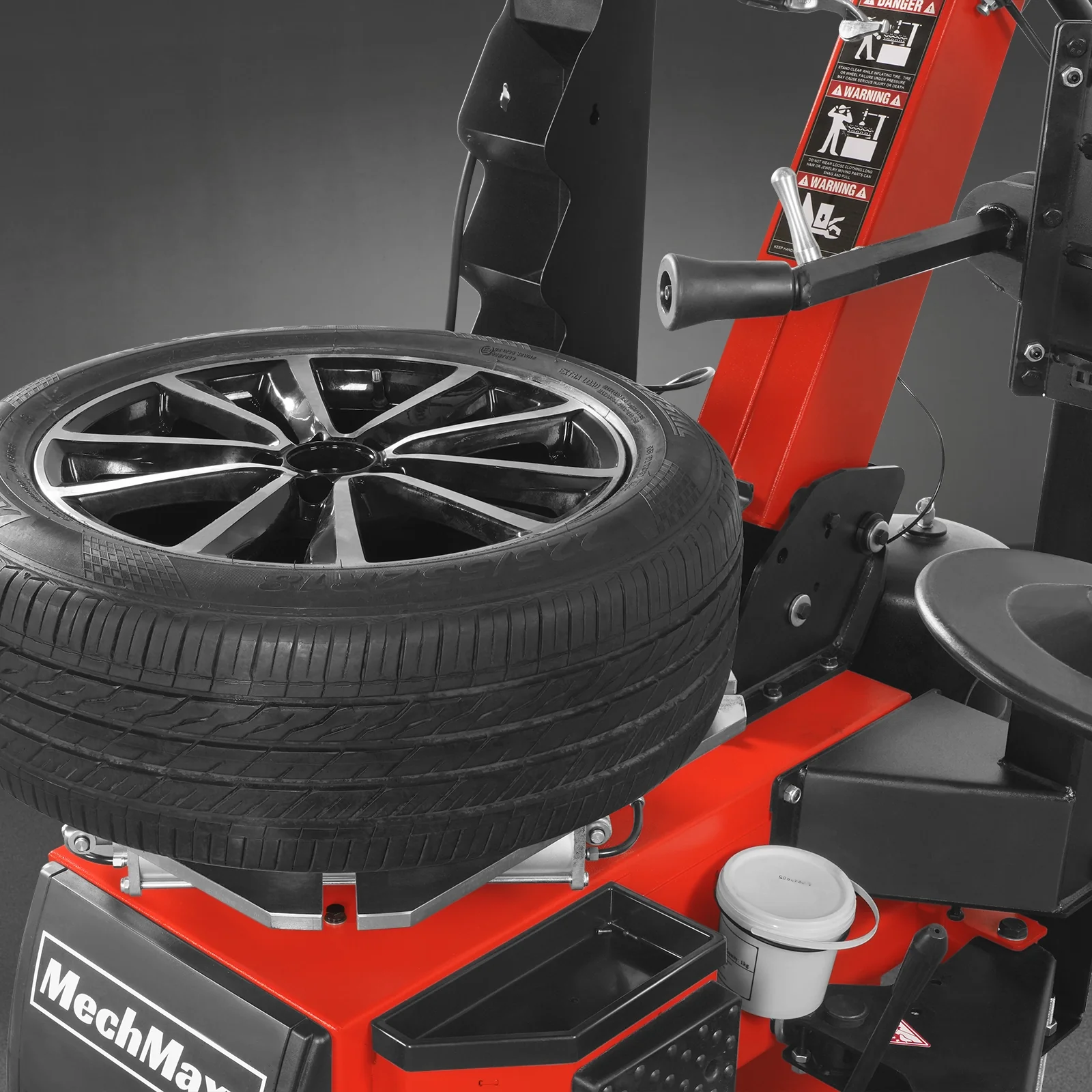

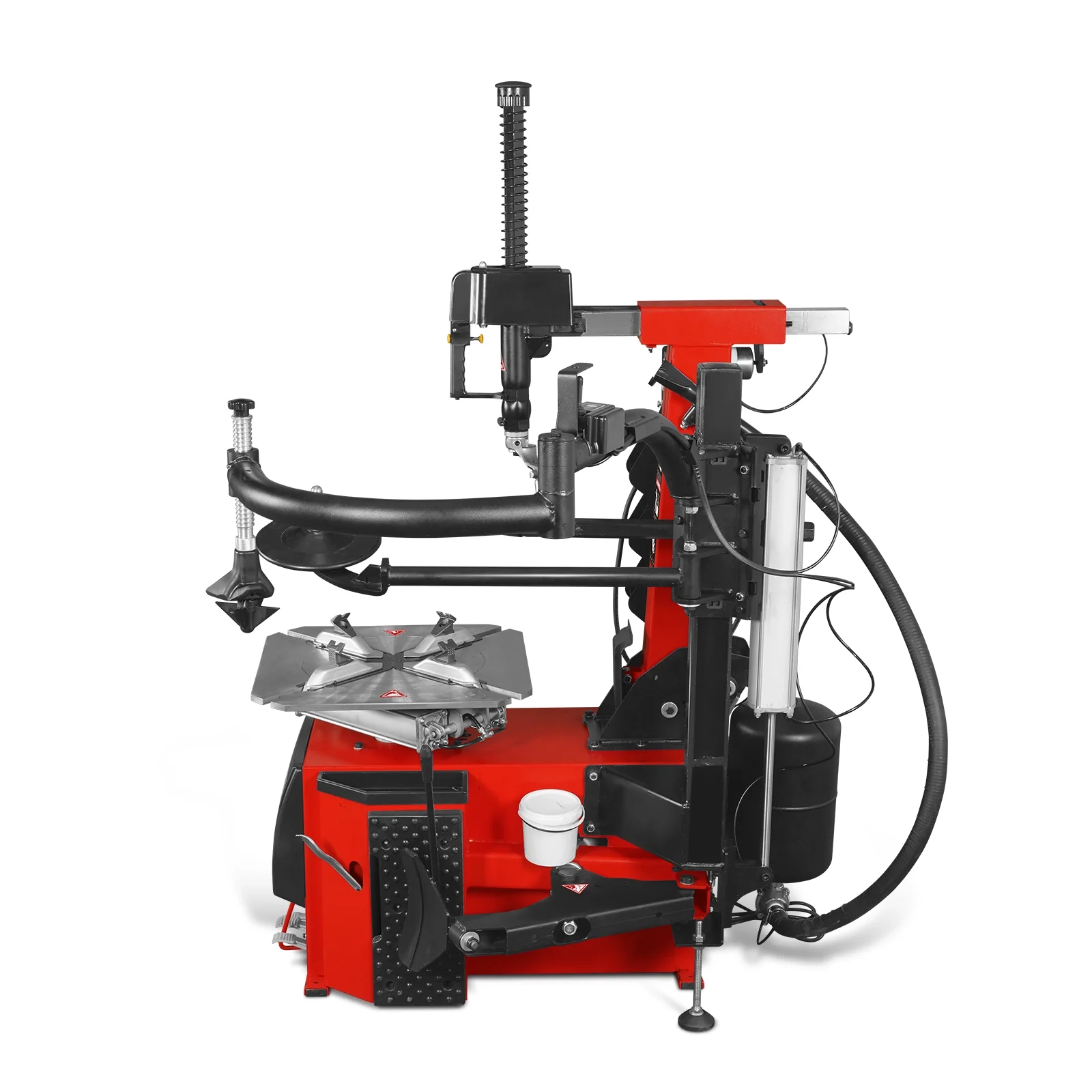

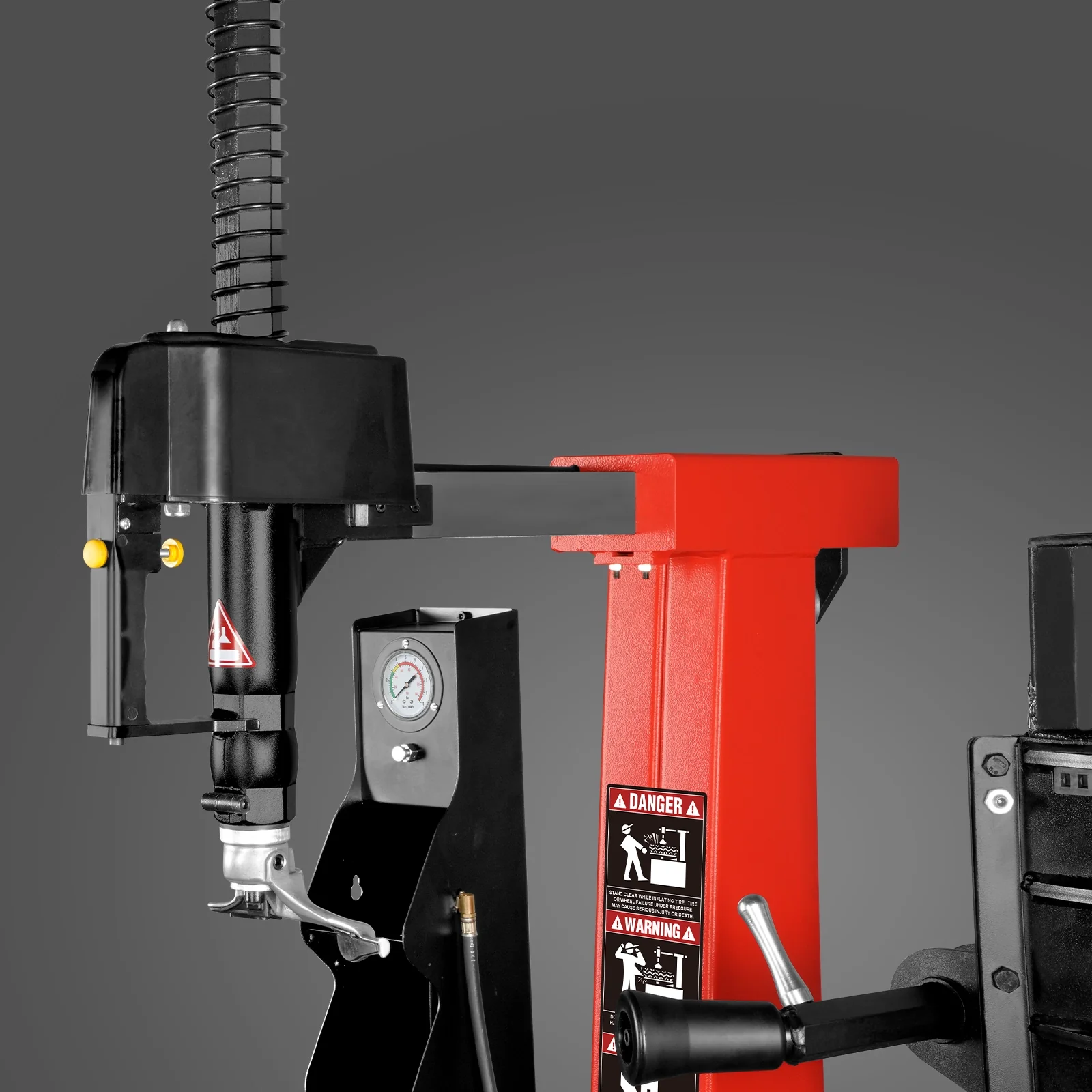

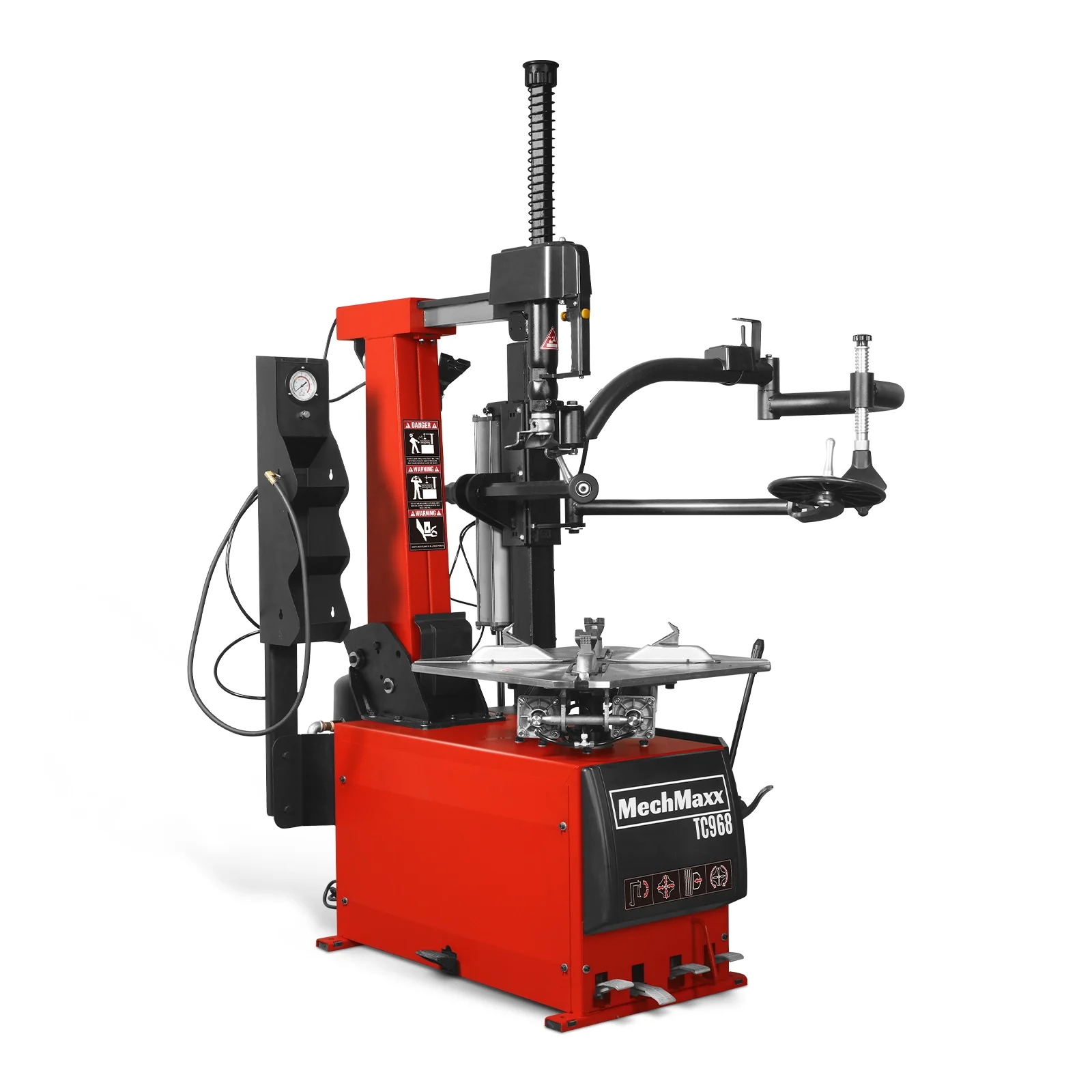

Tire Changer TC9682

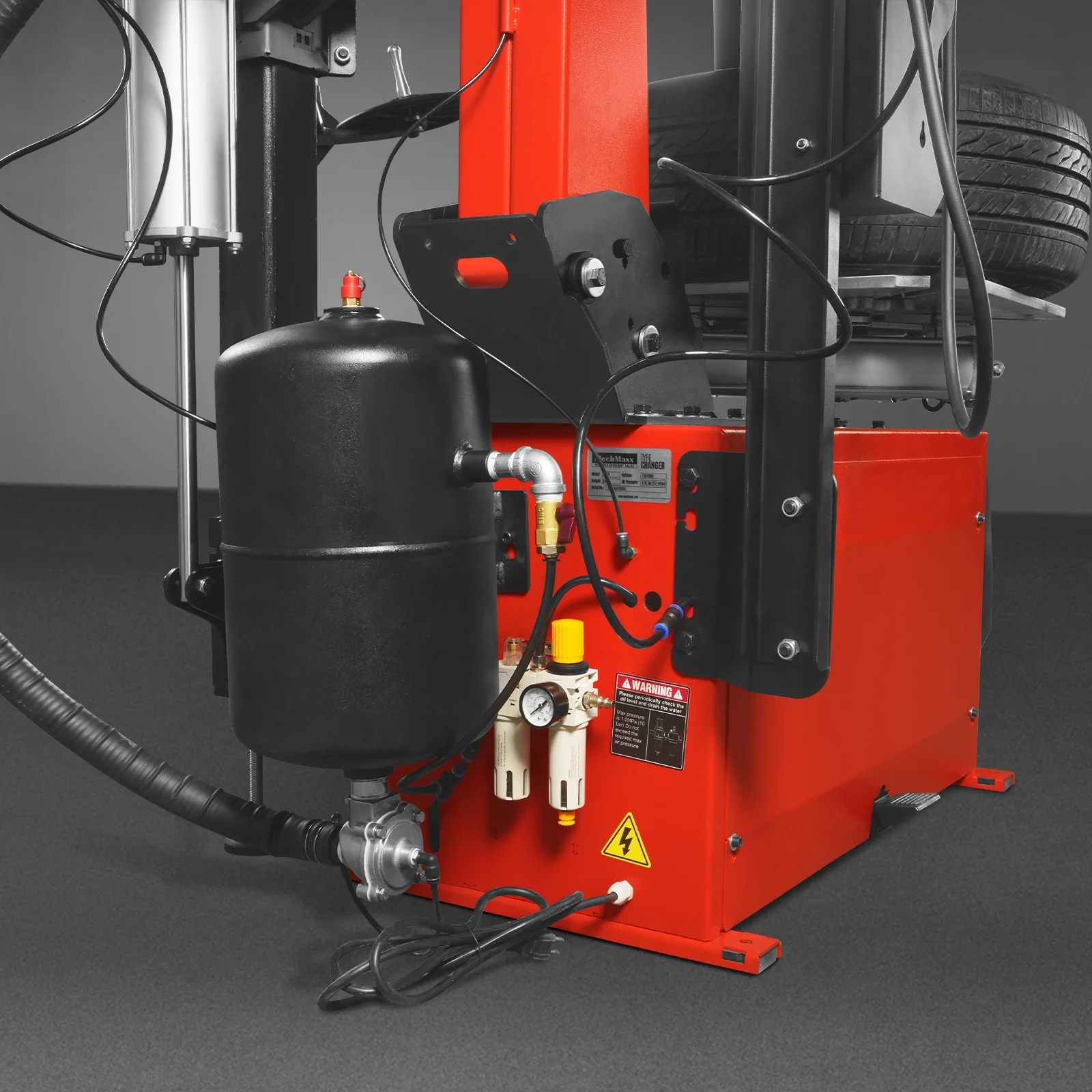

Voltage	110v / 60hz / 1 phase	Bead Blaster	Hand Held Bead Blaster

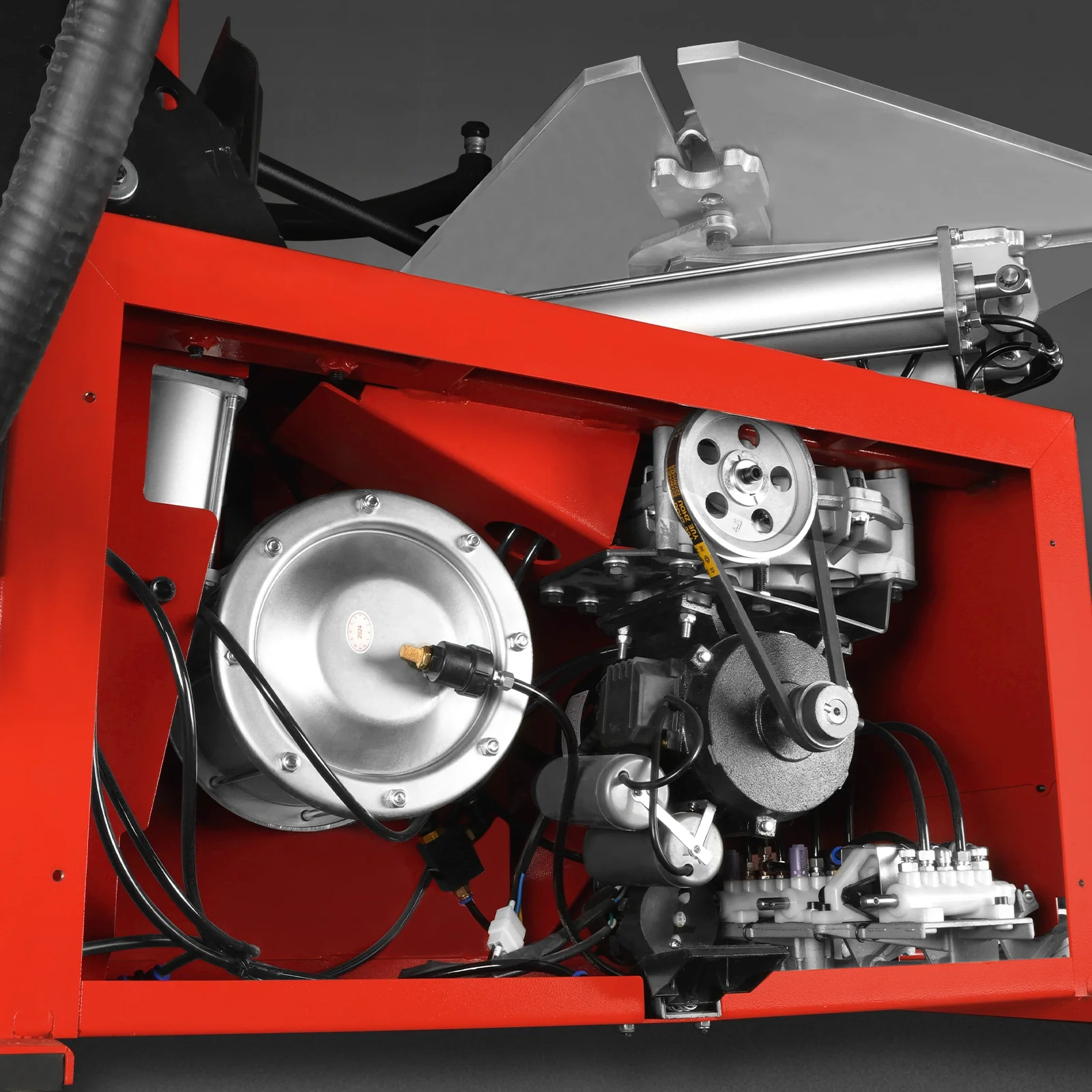

Motor Power	1.5 HP	Hex Shaft Locked Type	Pneumatic

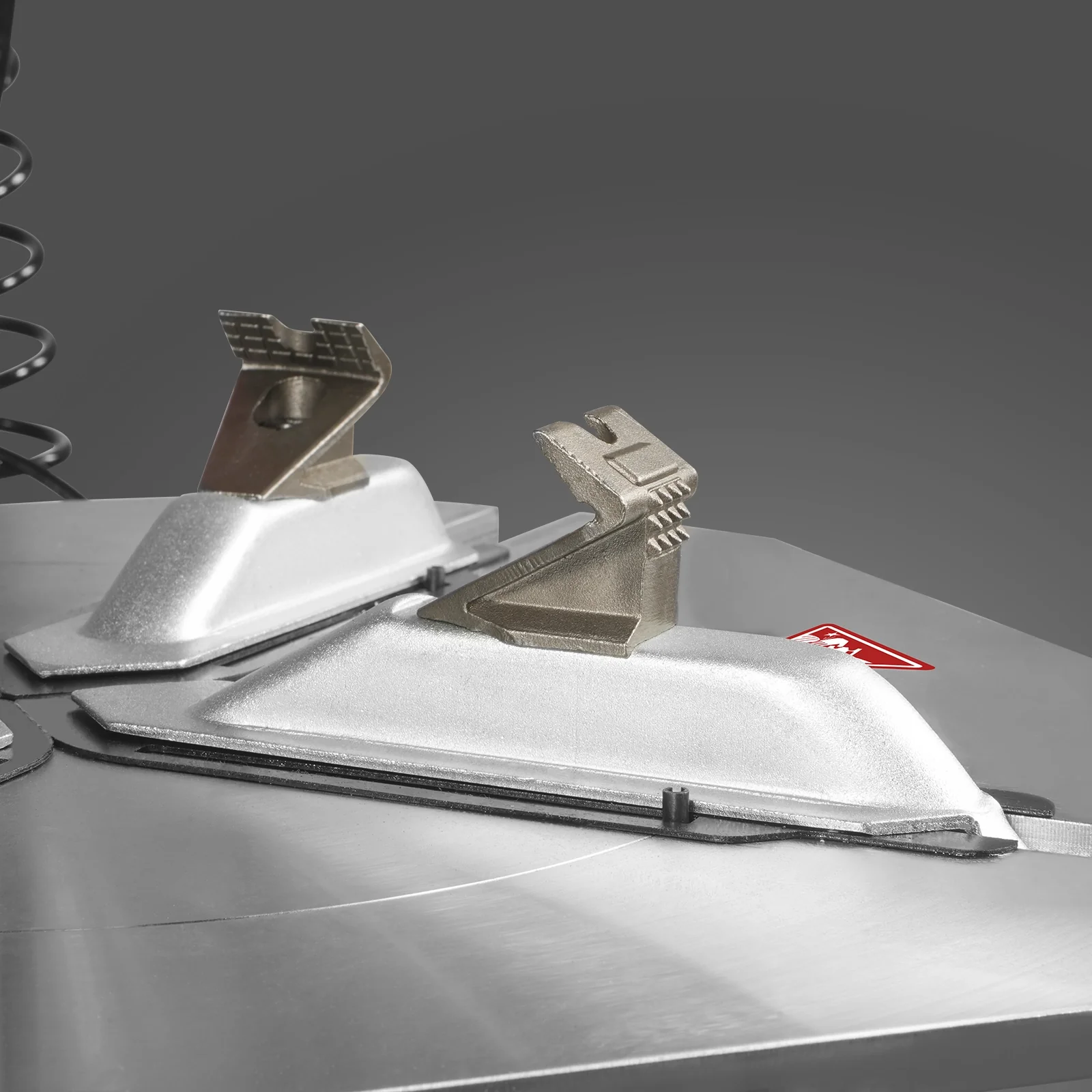

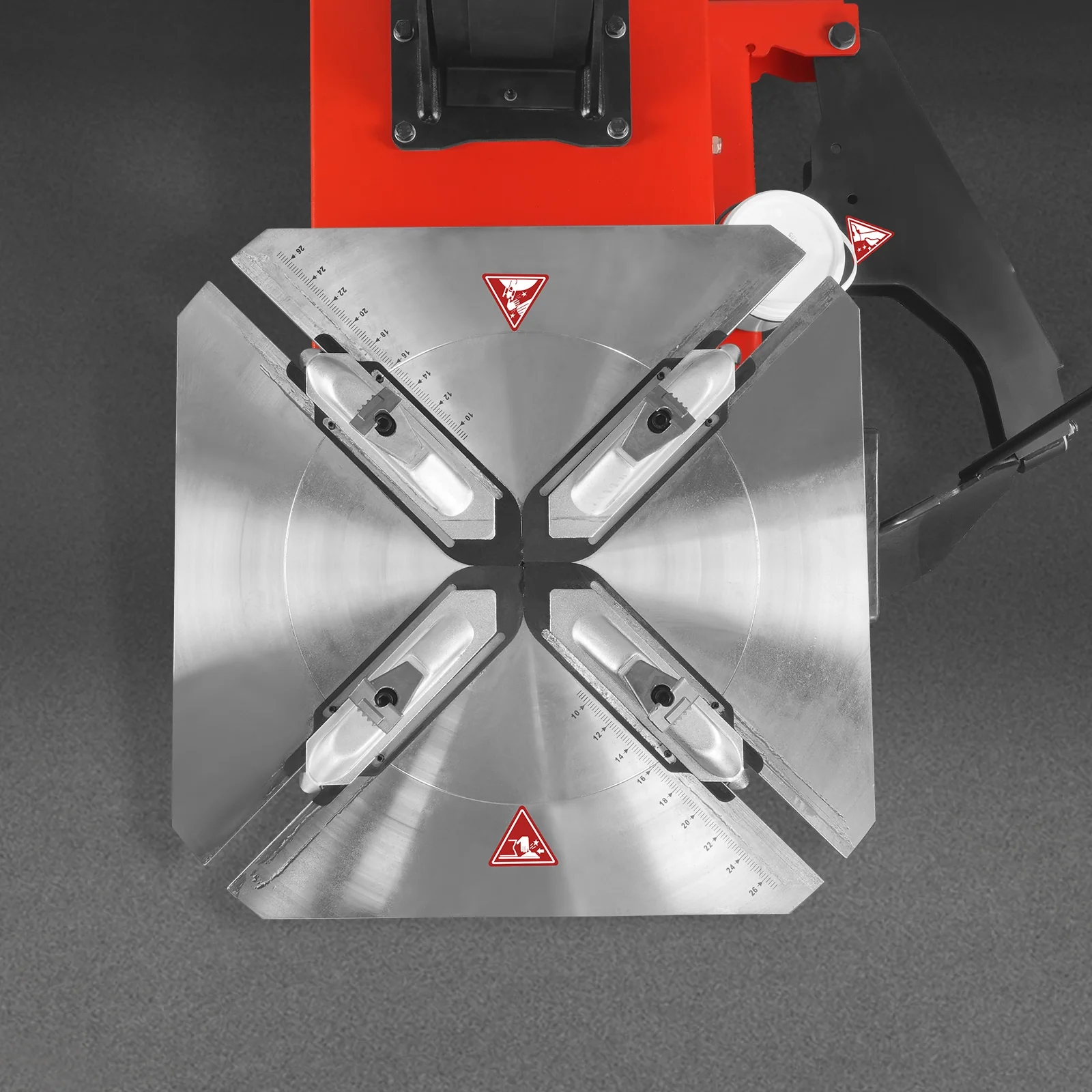

Inside Rim Clamp Range	14-26 in	Mount Head	Stainless Steel & Plastic
Outside Rim Clamp Range	12-24 in	Inflator	Foot-controlled
Max Tire Diameter	43 in	Motorcycle Adapter	Sold Separately, SKU: 200020
Rim Width	3-15 in	Packing	2 x Plywood case
Working Pressure	117-145 psi (8-10 bar)	Machine Packing Size (LxWxH)	40 x 30 x 45 in
Bead Breaking Force	6170 lbs	Assist Arm Packing Size (LxWxH)	51 x 16 x 17 in

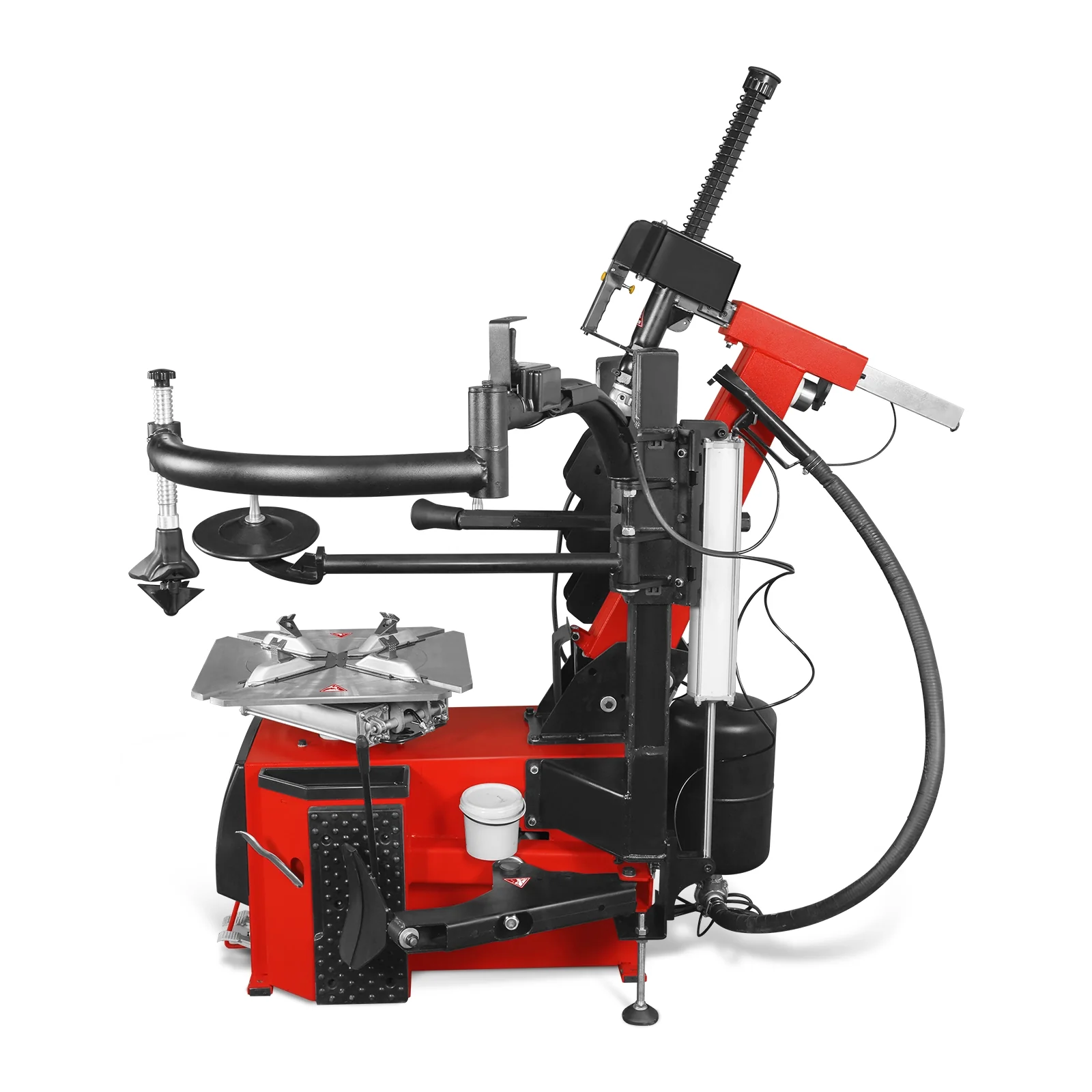

Type	Tilt Back	Machine Weight (N.W/G.W.)	518/545 lbs

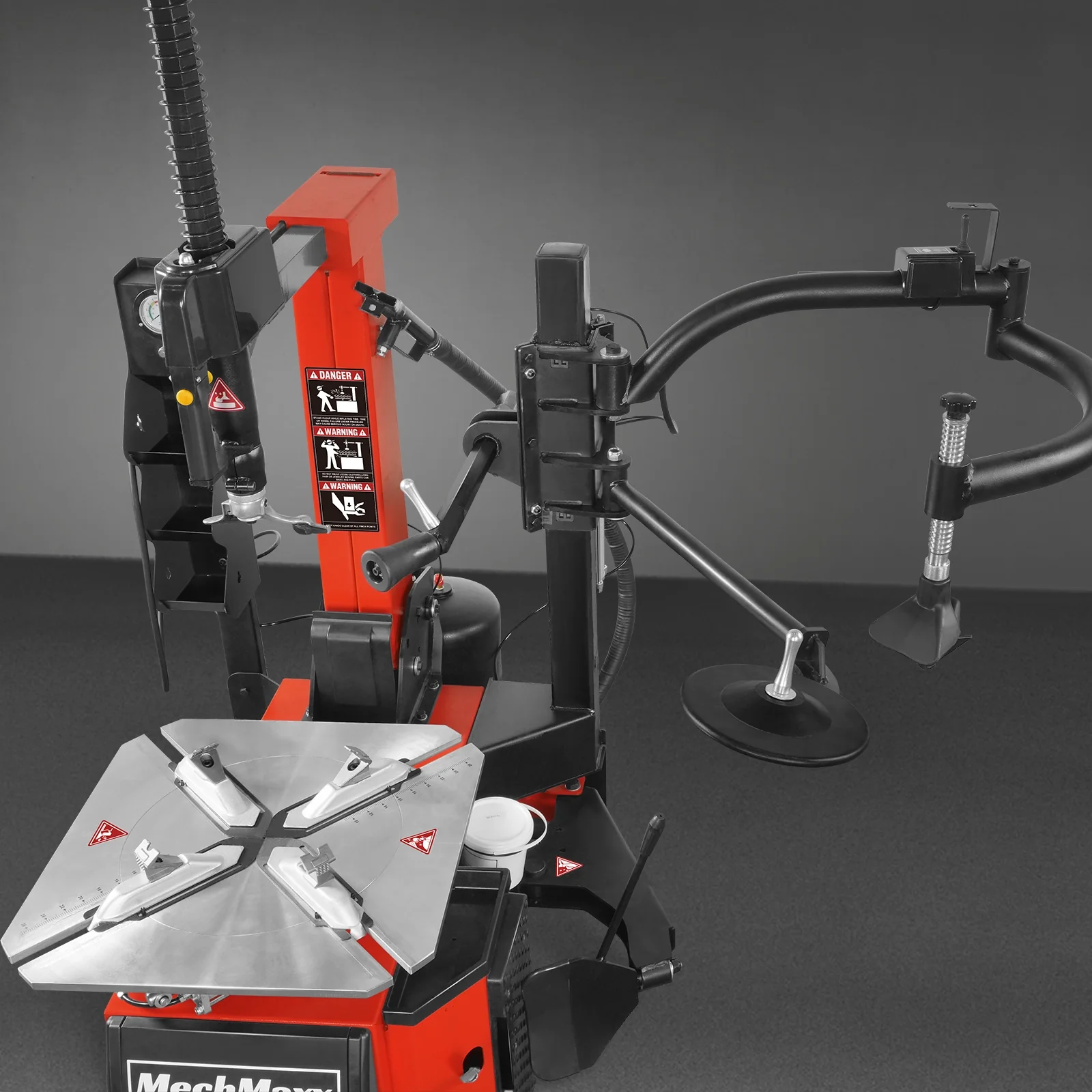

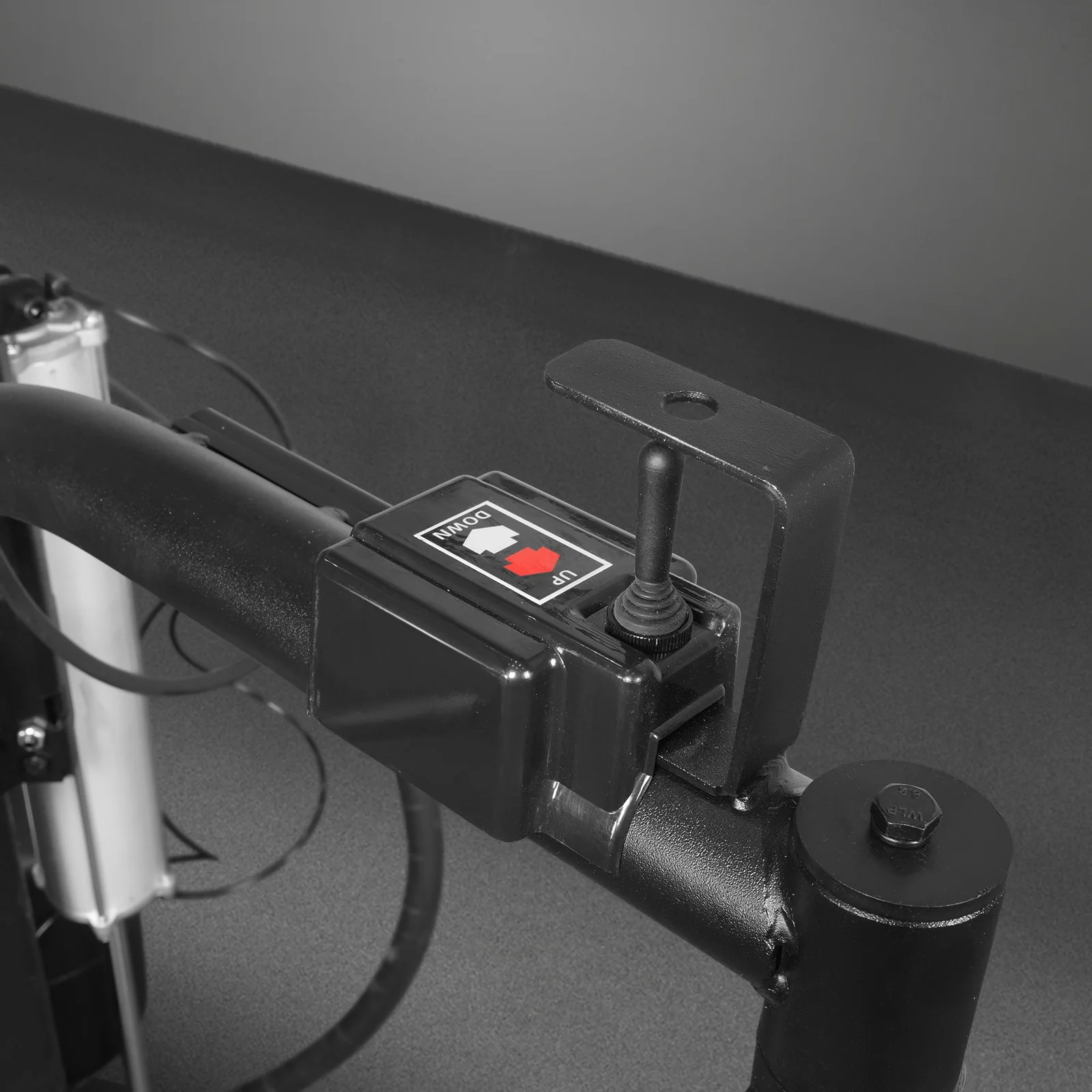

Help Arm	Right-side Assist Arm	Assist Arm Weight (N.W/G.W.)	146/174 lbs

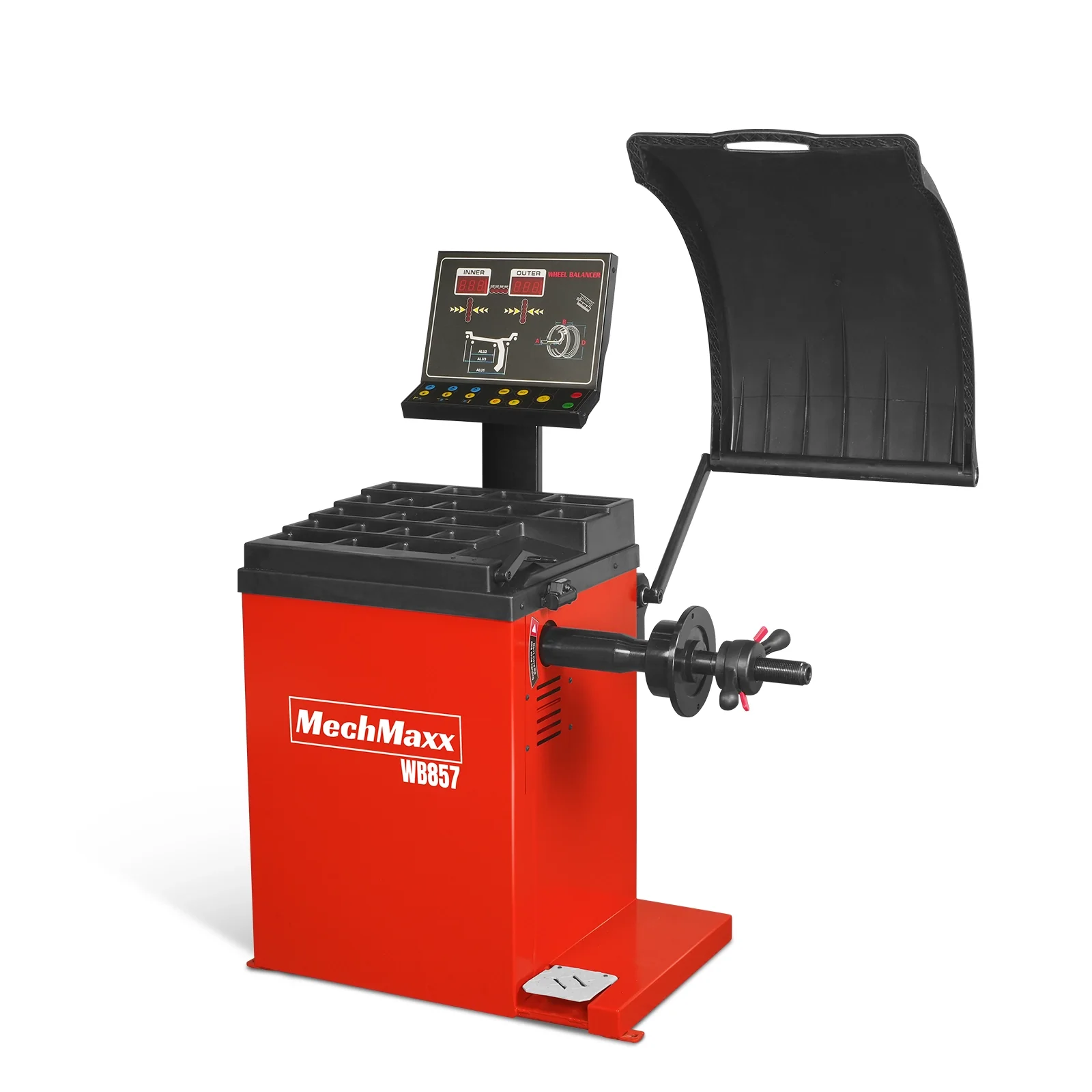

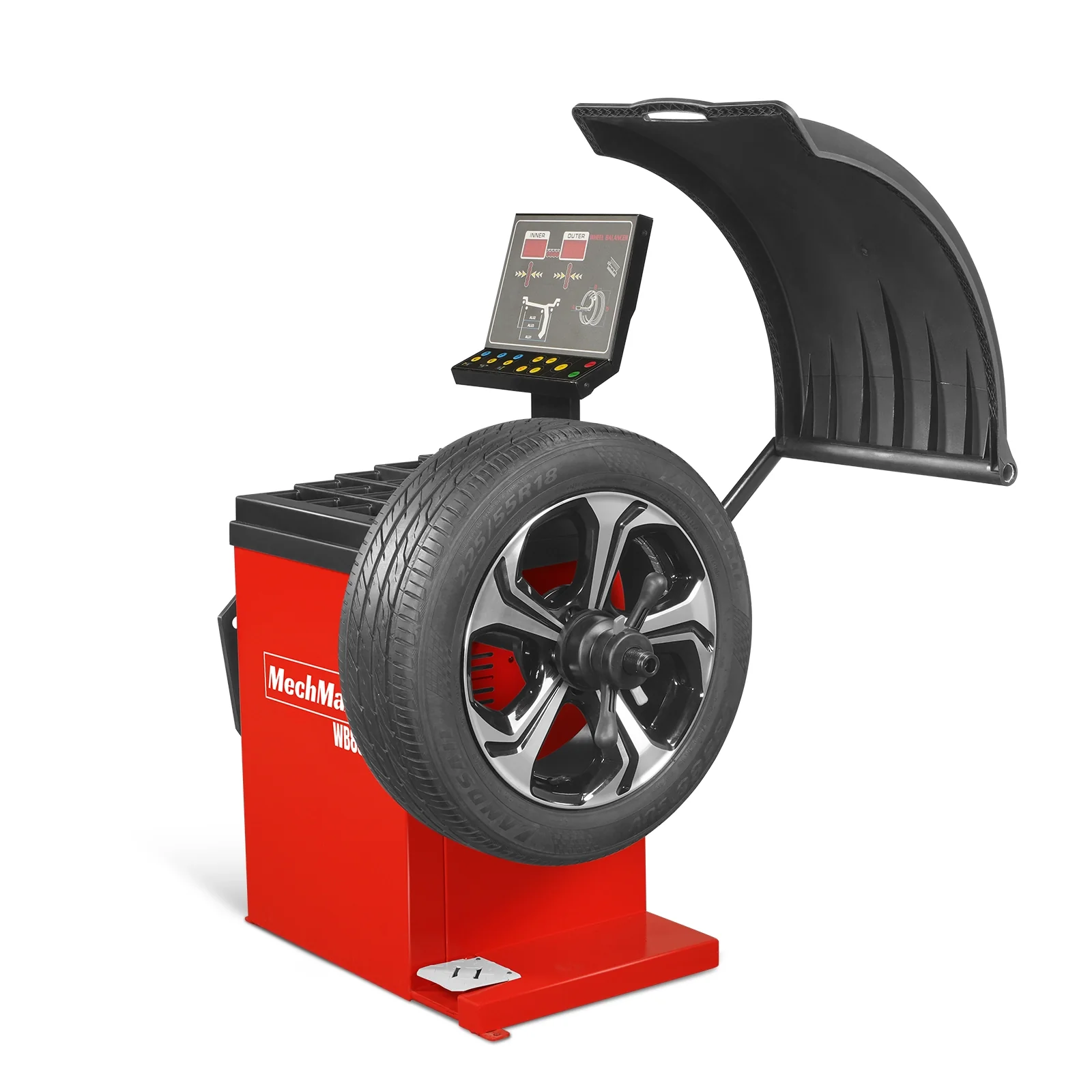

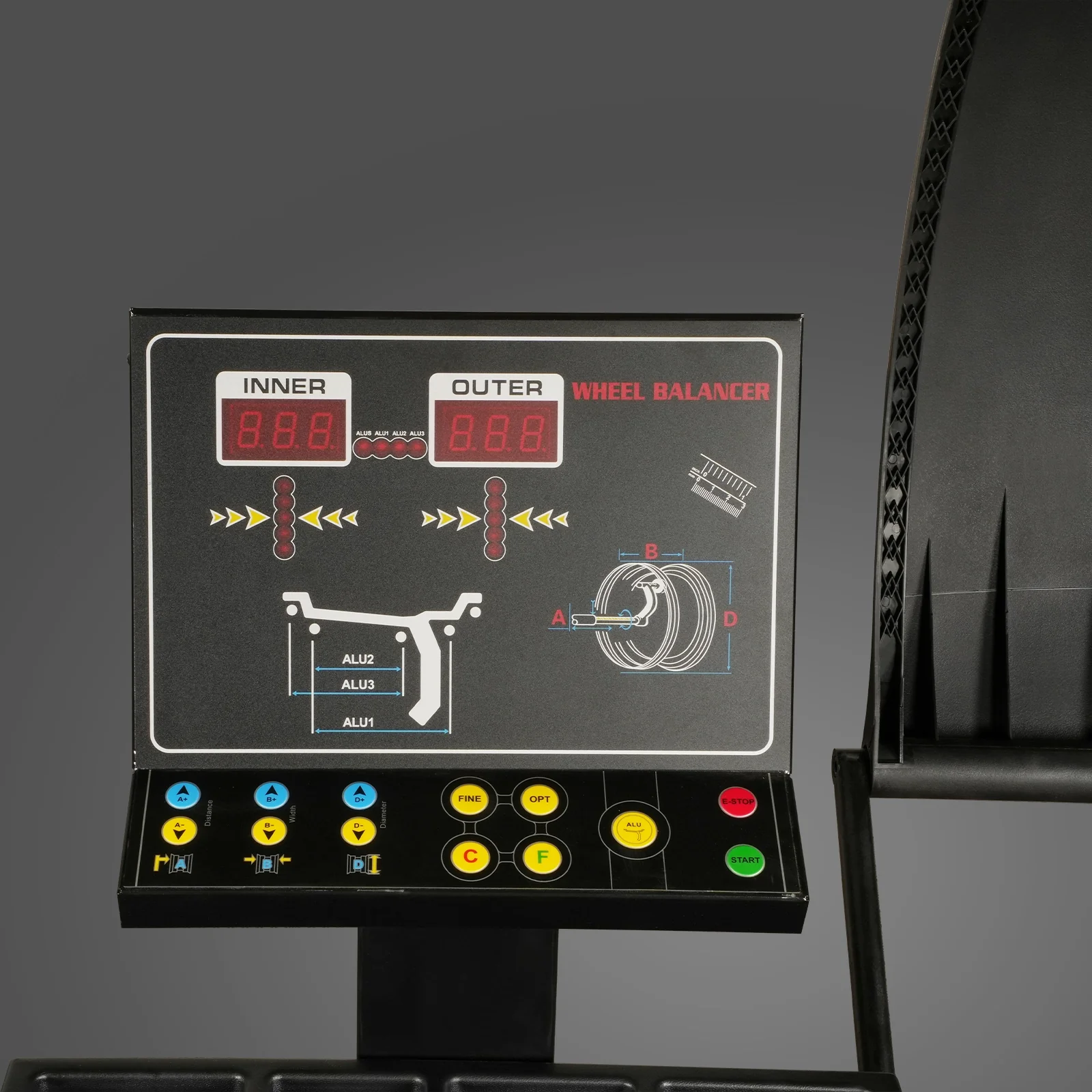

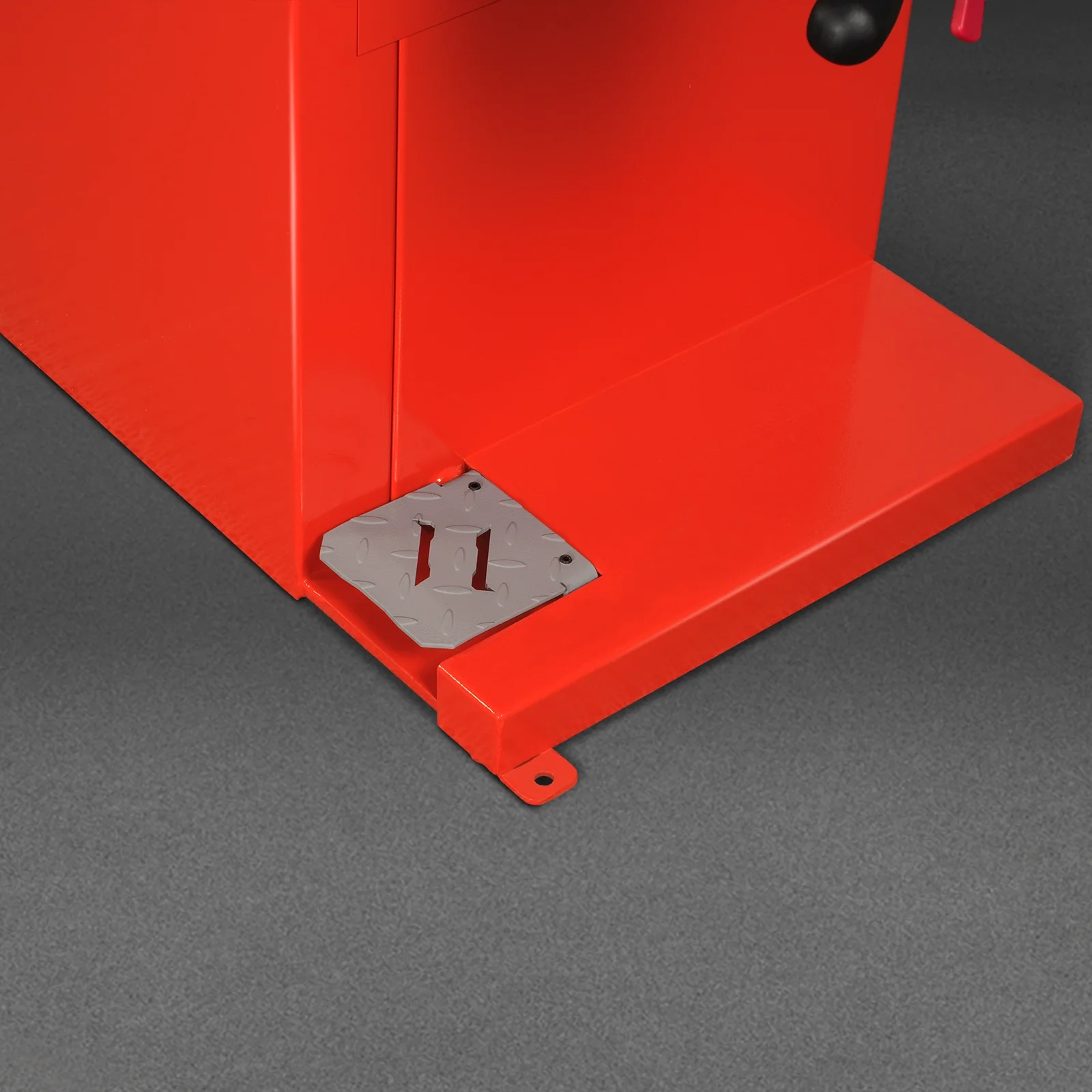

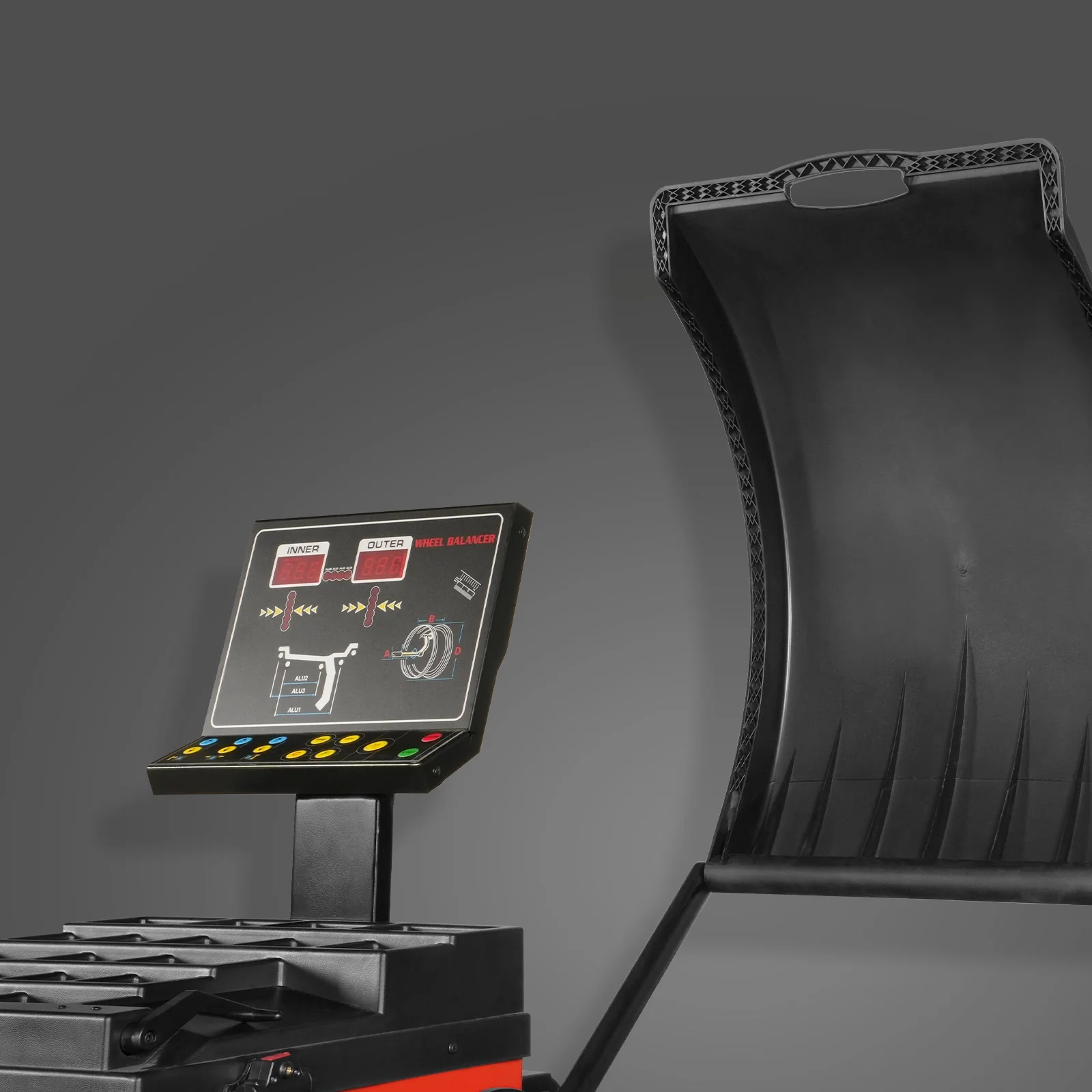

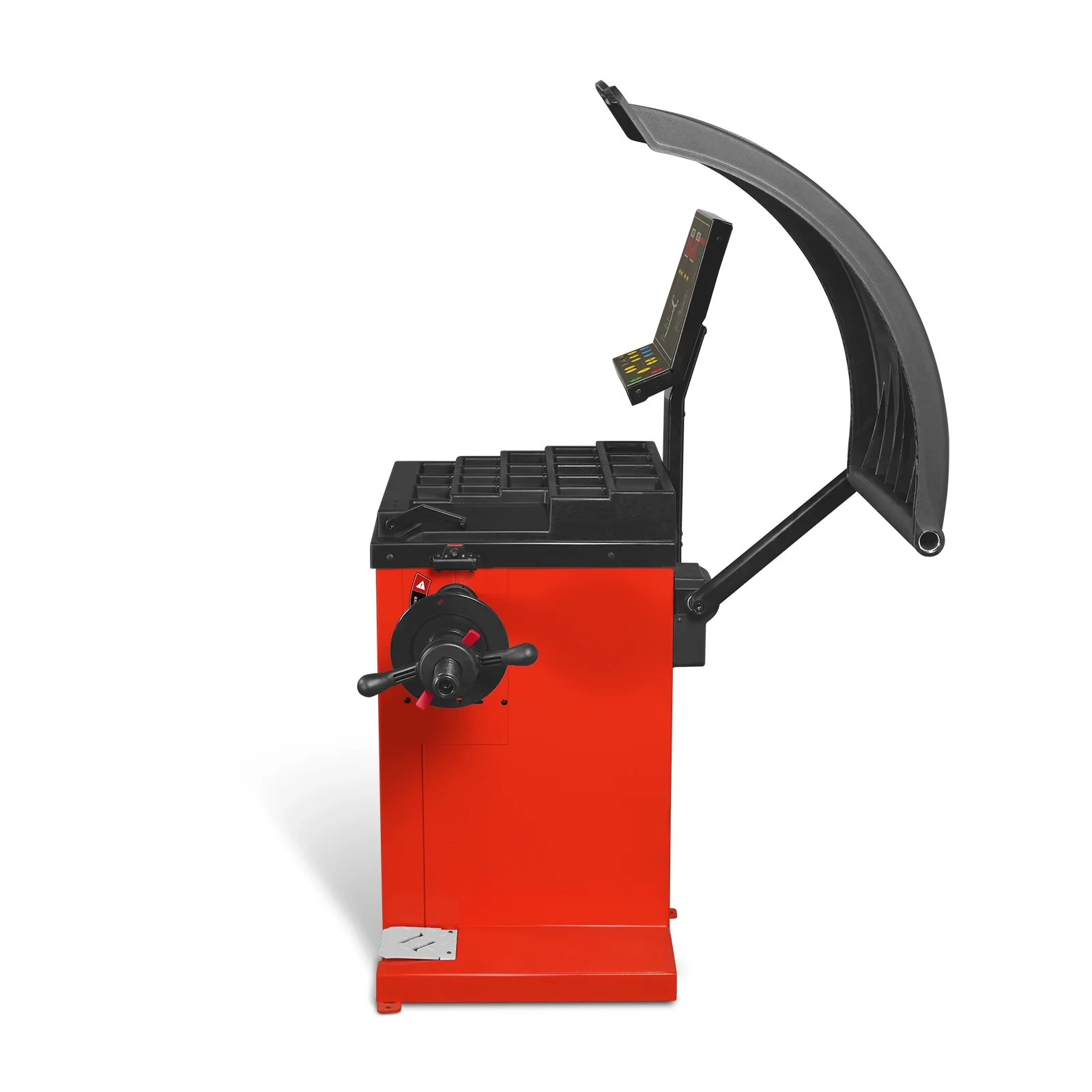

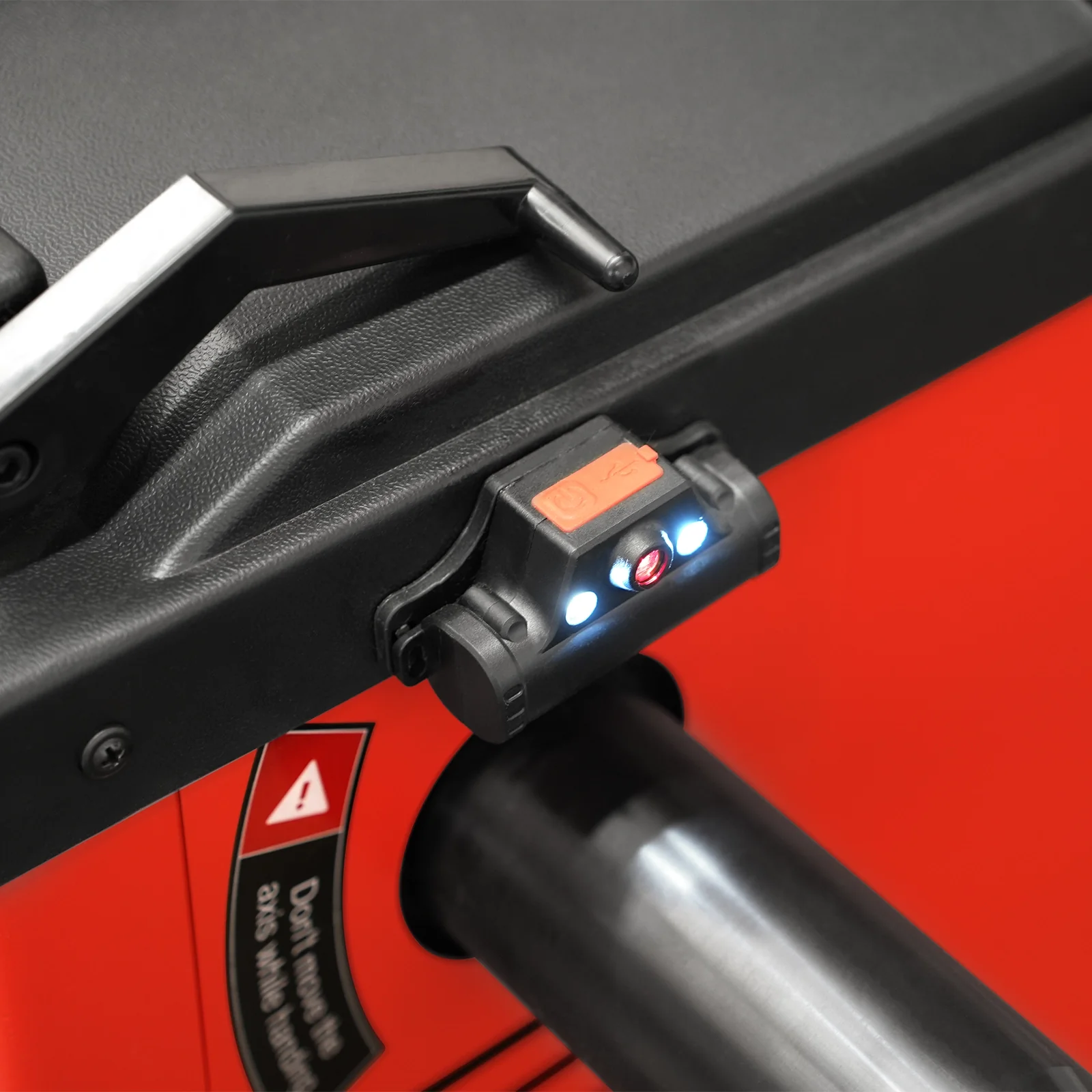

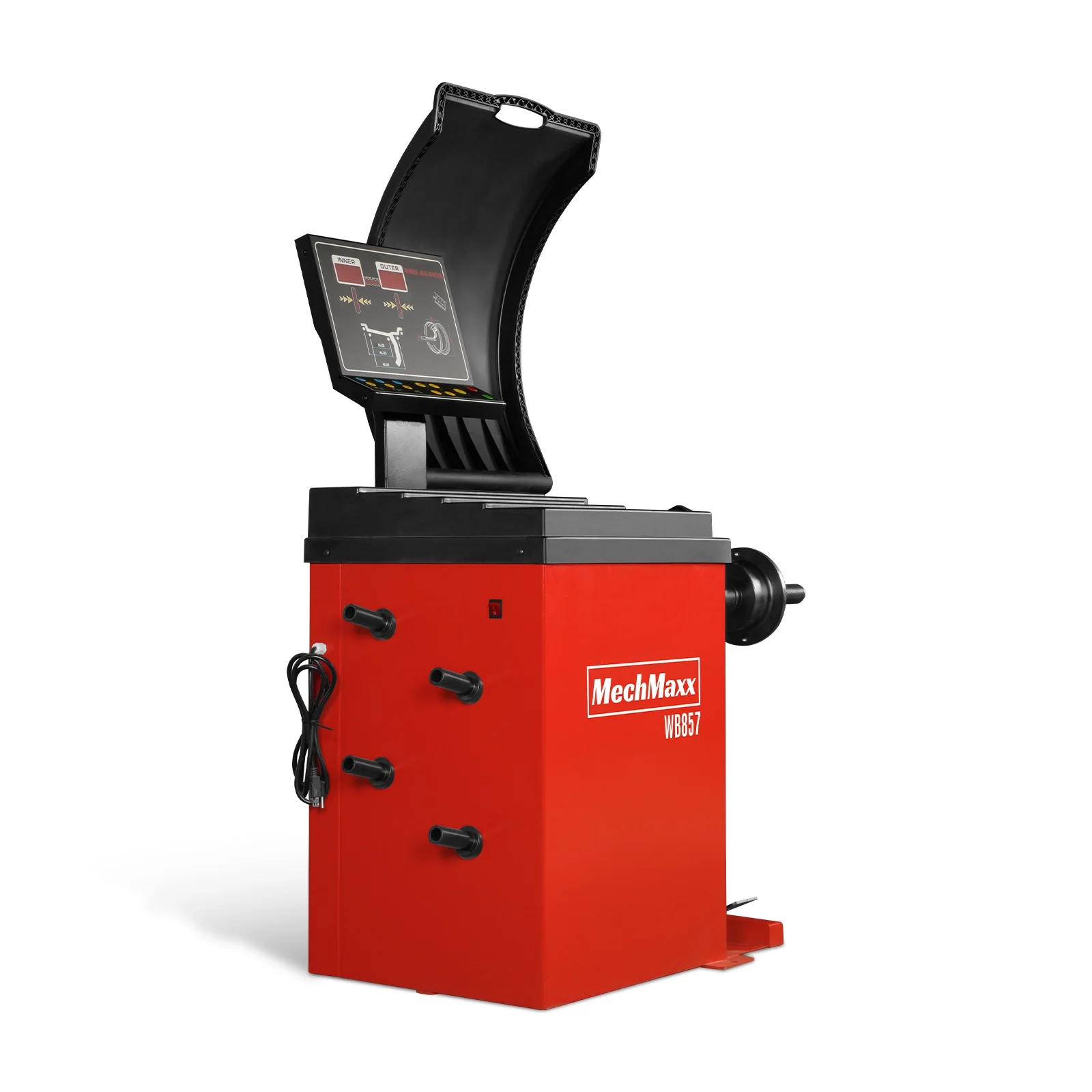

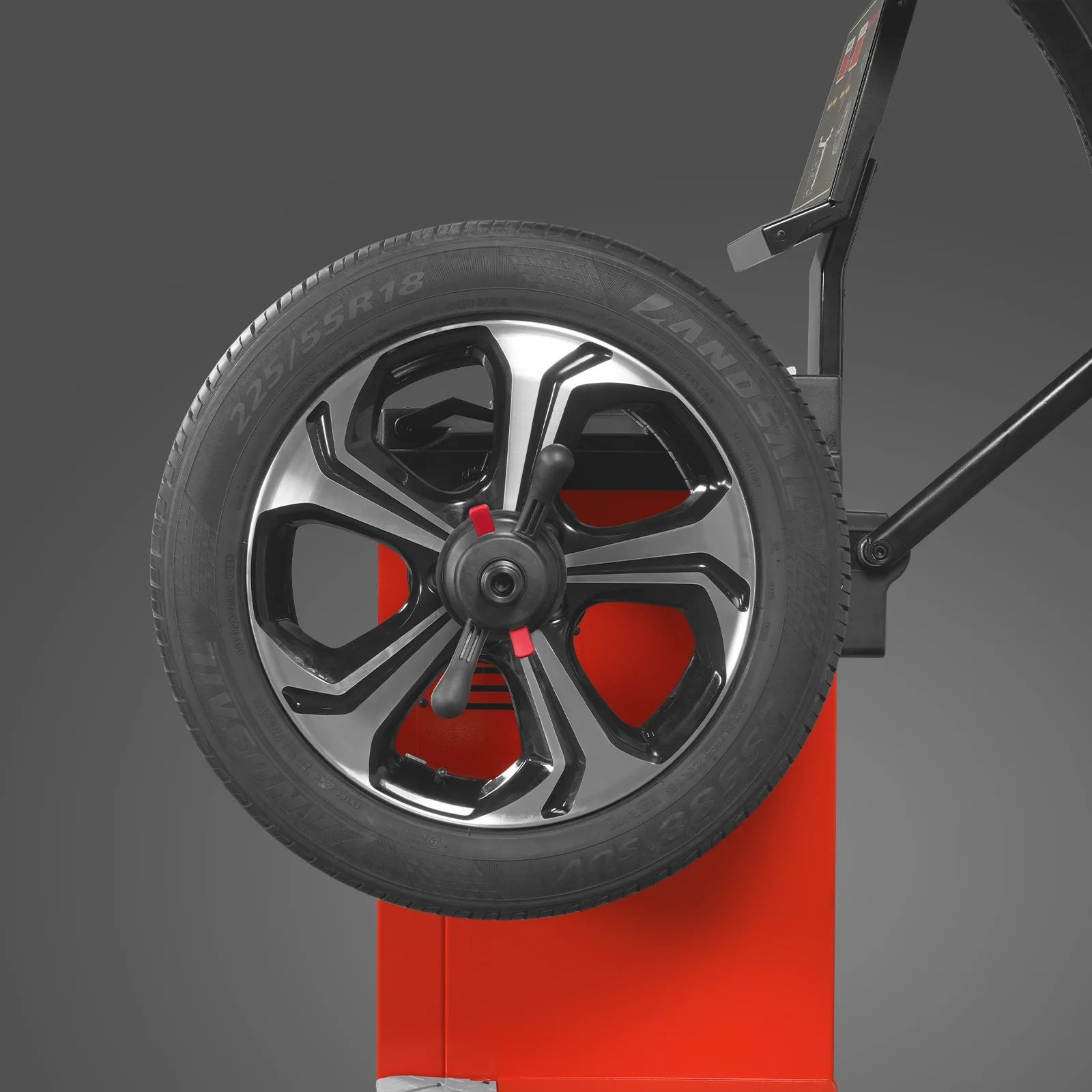

Wheel Balancer WB857

Voltage	110v / 60hz / 1 phase	Shaft Size	40 mm
Motor Power	1/3 HP	Calibration Wheel	Recommended 15 in steel rim wheel
Rim Diameter	10-24 in	Motorcycle Adapter	Sold Separately, SKU: 200021
Rim Width	1.5-20 in	Truck Cone Kit	Sold Separately, SKU: 200022
Max Tire Diameter	40 in	Packing	Plywood case
Max Tire Weight	154 lbs	Packing Size (LxWxH)	35 x 24 x 44 in
Accuracy	±1 gram	Weight (N.W/G.W.)	207/269 lbs
Balancing Speed	200 RPM

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
